Titan® ZXM6075 152 cm Zero Turn Riding Mower 76635
Product Information
- Model number: 76635
- Serial number: 400000000 - 415399999
- Product Type: Riding Products
Loading...

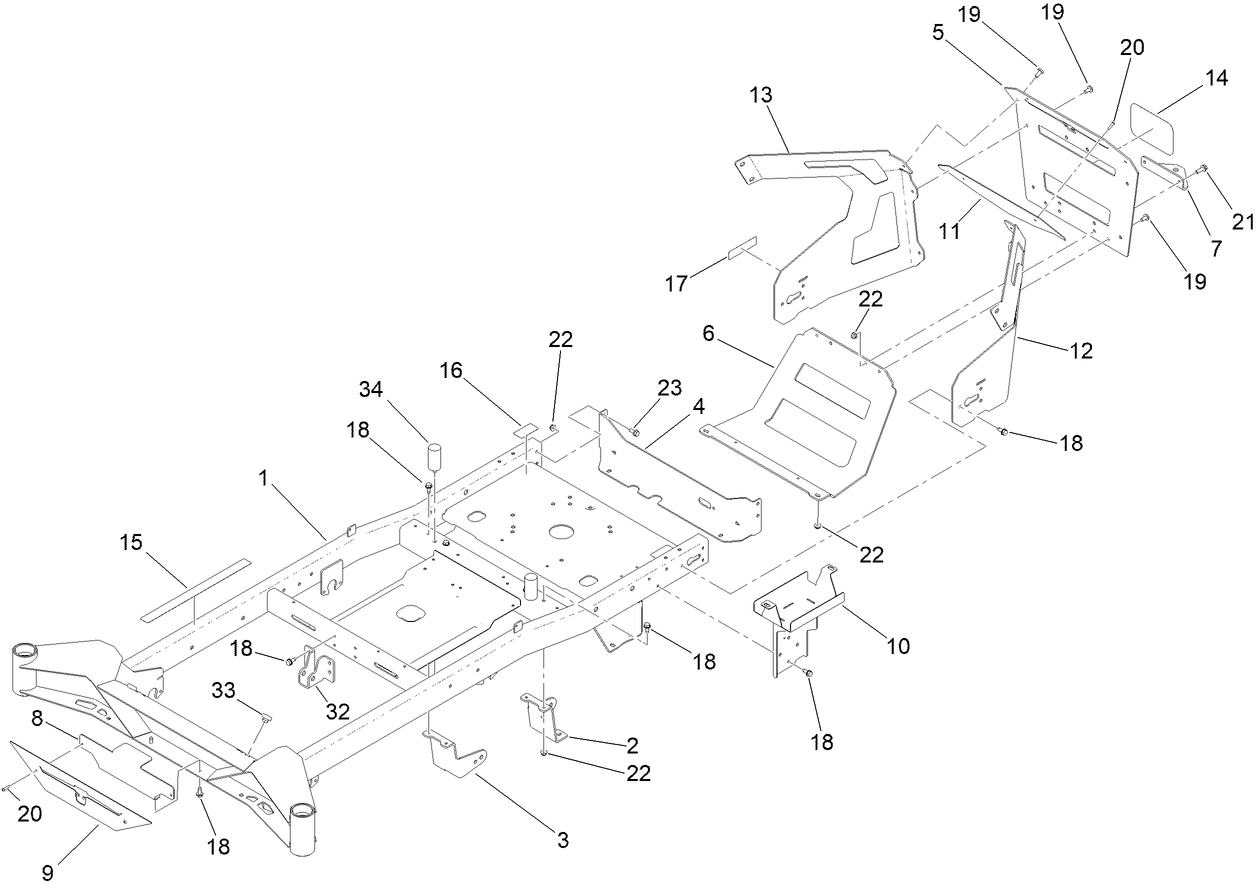

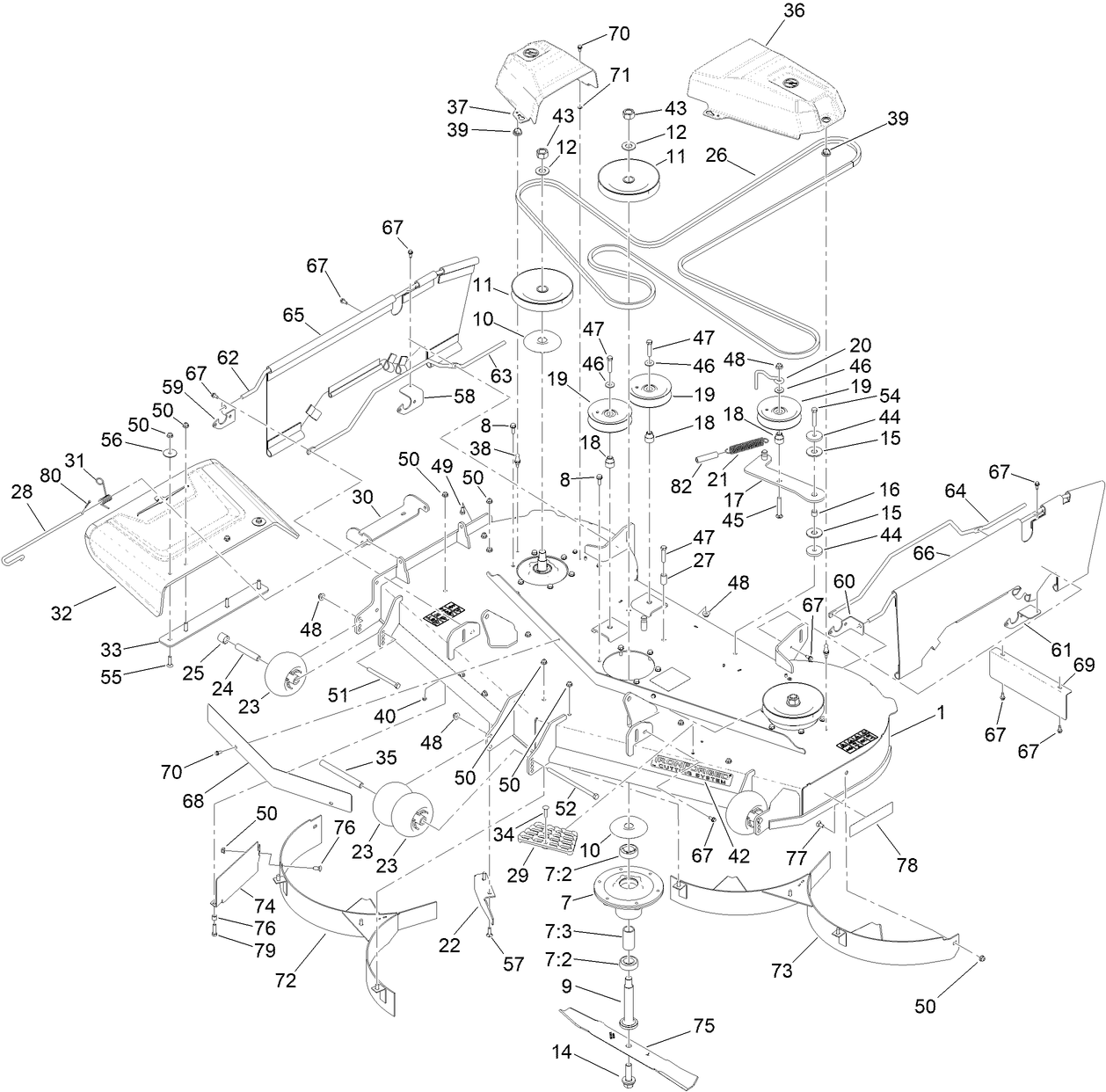

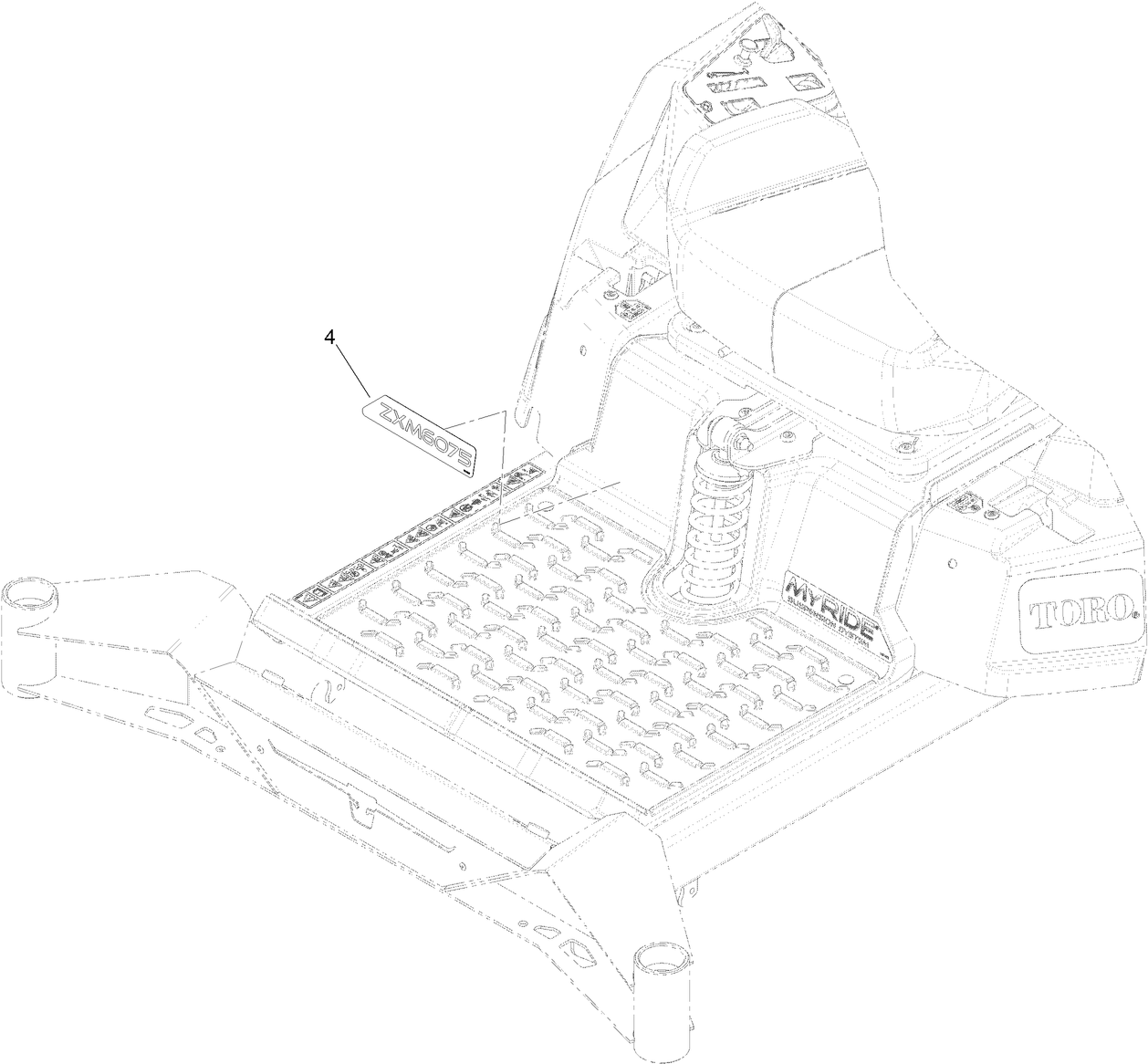

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Product Warranty
-
Setup Instructions
-
EU/UK Declaration of Conformity
HYPR-OIL 500 -QUART (Part number 114-4713)
BLADE-HI FLOW, 20.5IN FOR 60IN TC - 3 (Part number 115-9649-03P)
Jack Kit, Zero-Turn-Radius Side-Discharge or Rear-Discharge Riding Mow (Part number 127-6666)
Fuel Stabilizer .05 oz (Part number 130-2393)
4-CYCLE FUEL, SNOW AND LAWN, 32OZ CAN (Part number 131-3823)
Toro Premium Fuel Treatment (Part number 131-6572)
60in Recycler Kit, TimeCutter HD Riding Mower (Part number 136-7490)
OIL-30/10W-30 SYNTHETIC (Part number 138-6053)
HEAVY DUTY SPRING KIT (Part number 140-2051)
HD BAGGER COVER KIT (Part number 140-5036)
KIT-LEAF BAGGING ENHANCEMENT (Part number 140-5122)
KIT-HYDRO SERVICE (Part number 144-5347)
KIT-CASTER WHEEL (Part number 145-0489)
LED LIGHT KIT (Part number 147-8757)
KIT-STRIPING, 54/60" (Part number 147-8781)
MOUNT, JACK TITAN (Part number 147-8824)
ASSIST BAR KIT (Part number 161-4450)
KIT-ARM REST (Part number 161-4567)
CE BAGGER COMPLIANCE KIT (Part number 161-6178)
10W30 4-CYCLE ENGINE OIL 32 OZ BOTTLE (Part number 38280)
TORO 4-CYCLE SAE 30 OIL (32OZ BOTTLE) (Part number 38903)
Toro Deluxe Z Cover (Part number 490-7319)
POWERED BAGGER, TITAN MODELS ROHS (Part number 79348)
ROPS Kit, TimeCutter Max or Titan Riding Mower (Part number 79487)
KIT-SLOPE SENSOR (Part number 79489)
-
Model number
76635 -
Serial number
400000000 - 415399999 -
Product Name
Titan® ZXM6075 152 cm Zero Turn Riding Mower 76635 -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Consumer -
Chassis Type
ZRT - Consumer -
Swath
60 inch / 152 cm -
Discharge
Recycler & Side Discharge -
Engine/Motor Manufacturer
Kohler -
Engine/Motor Size
24 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Battery
12V 300CCA -
Engine: Engine Speed
2900±100 RPM -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
13 psi / 90 kPa -
Engine: Engine Oil Type
64 oz. (1.9 Liter) SAE 10W-30 or 10W-40 -
Engine: Spark Plug
Champion XC12YC -
Chassis: Height of Cut Range
1.5"- 5", 1.2" increments -
Engine: Ignition Coil Air Gap
0.011in (0.3mm) -
Drive System: Ground Speed
Forward: 0-7 mph -
Drive System: Gearbox Lubricant
HYPR-OIL 500 / 20w-50 Synthetic Motor Oil
