Titan® ZXM5475 137 cm Zero Turn Riding Mower 76530
Product Information
- Model number: 76530
- Serial number: 417116866 - 999999999
- Product Type: Riding Products
Loading...

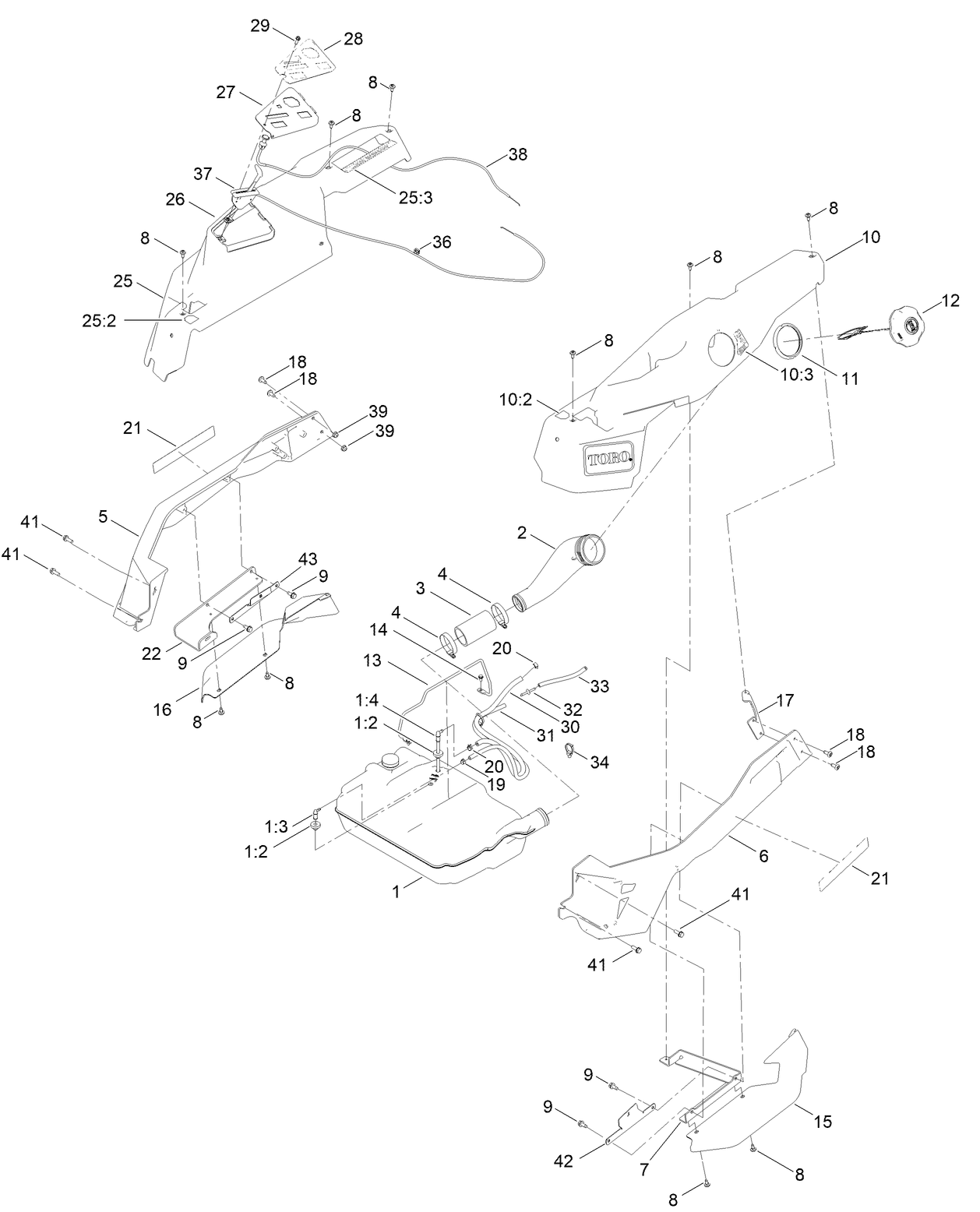

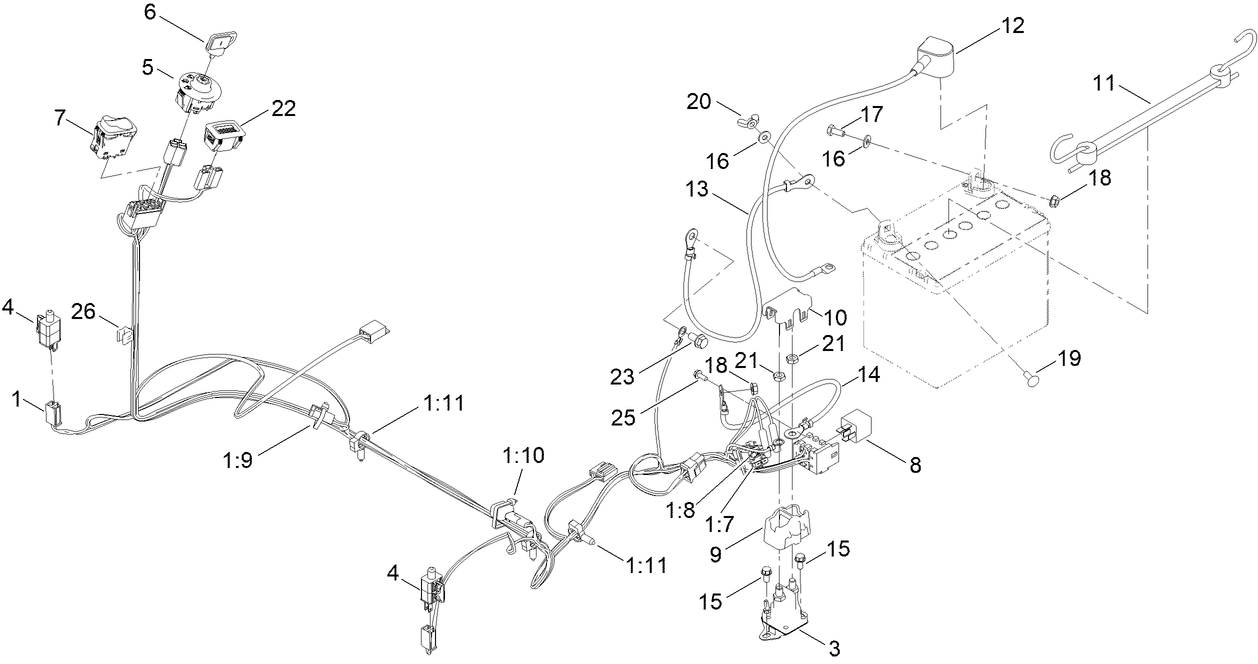

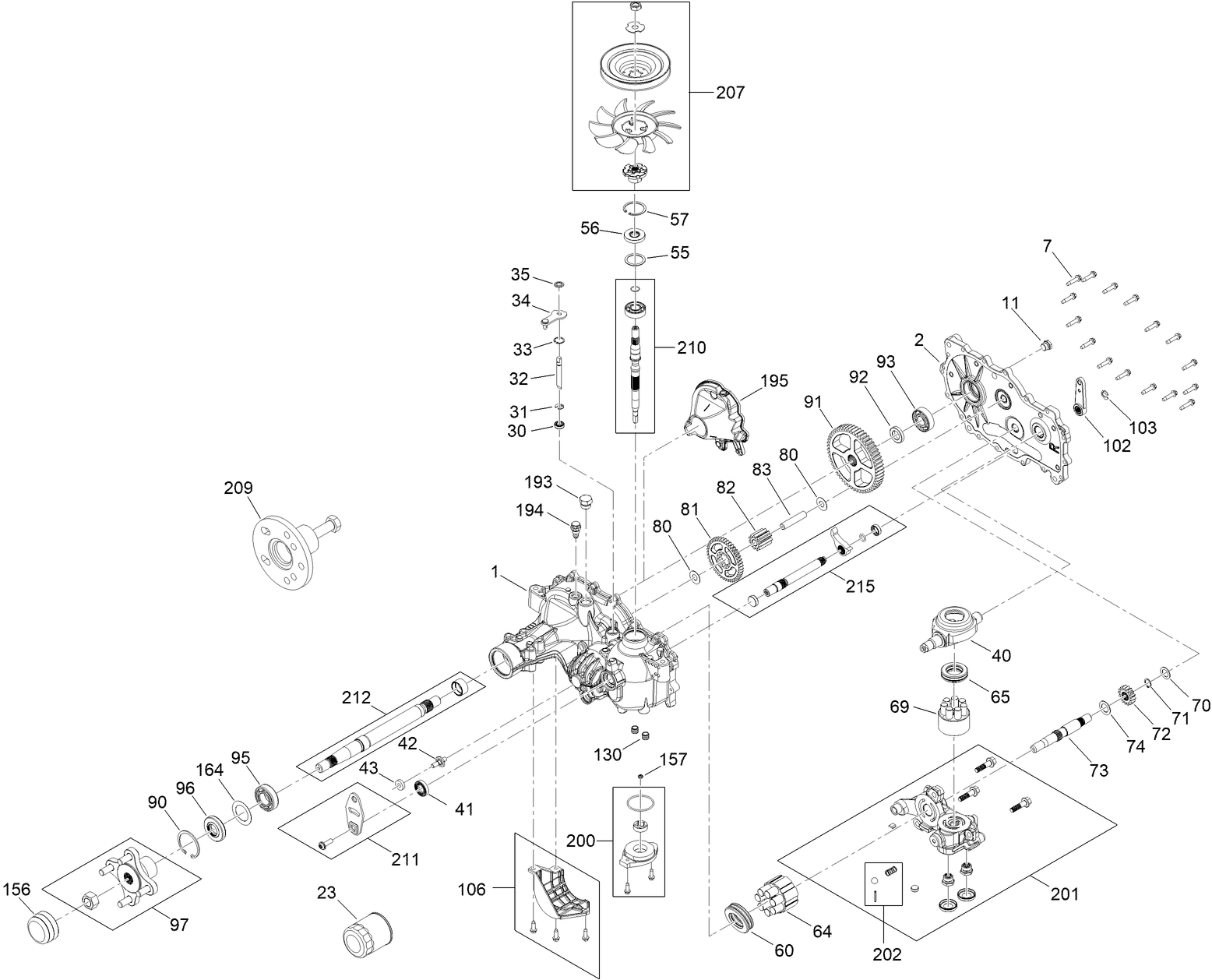

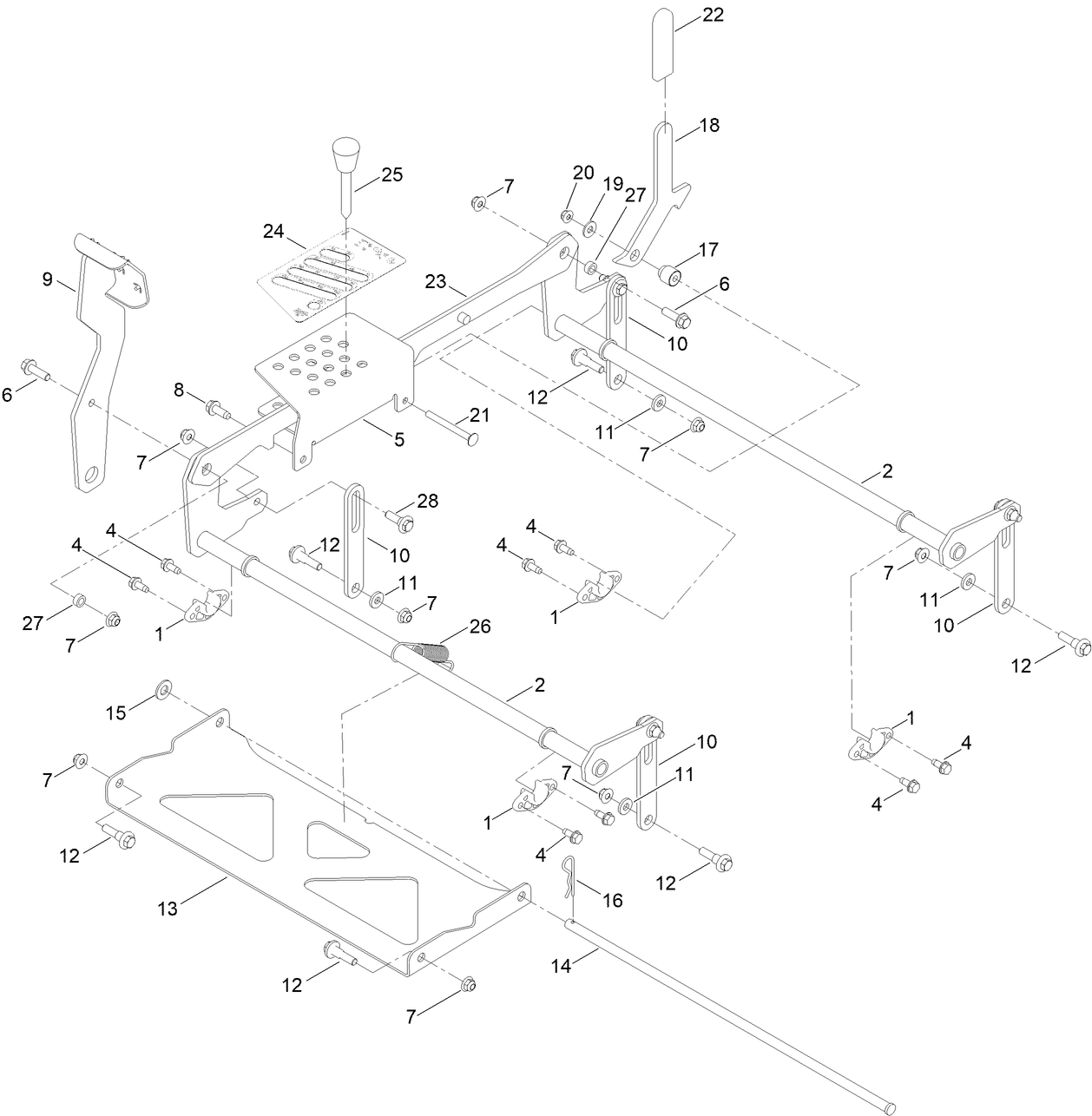

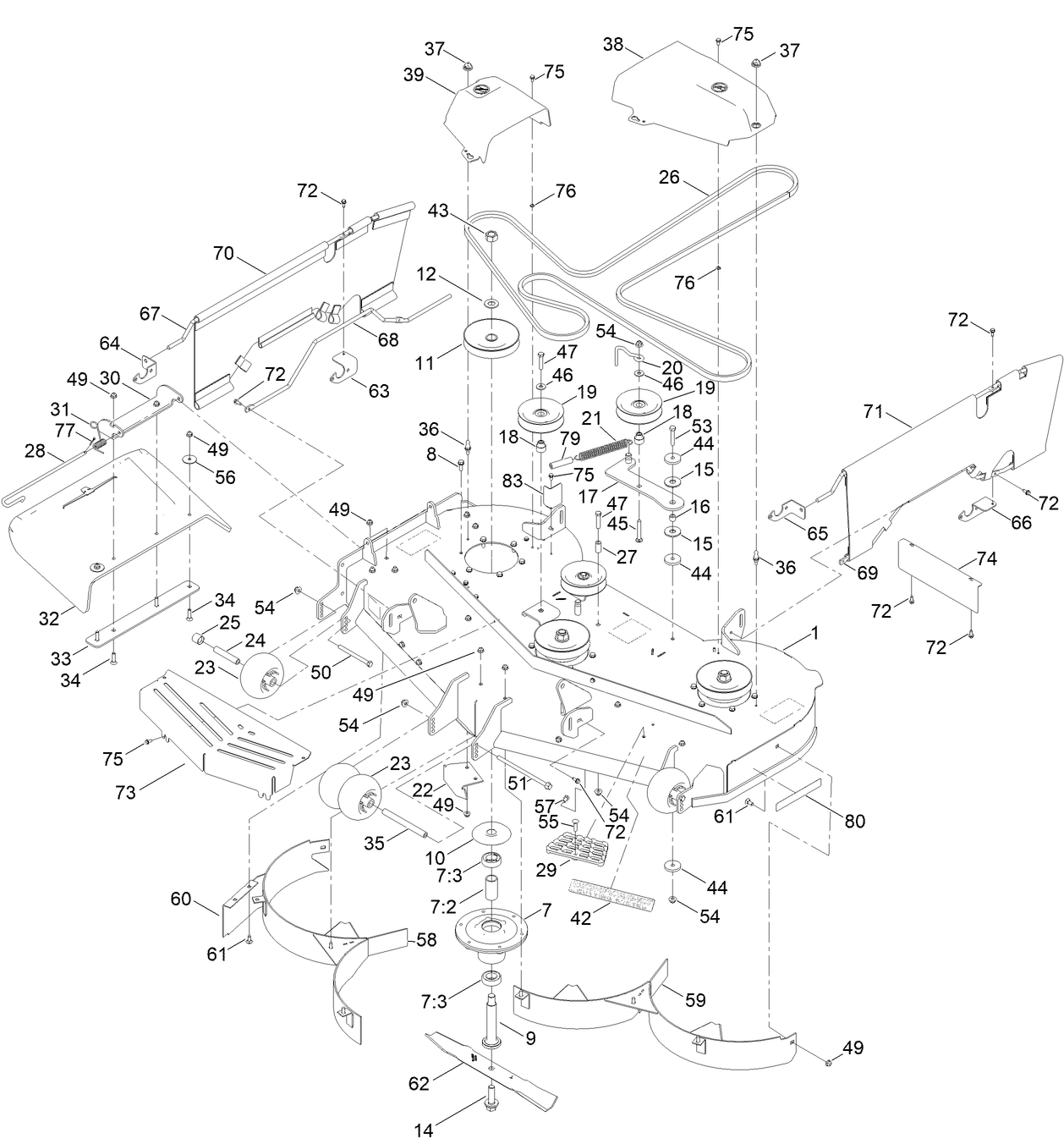

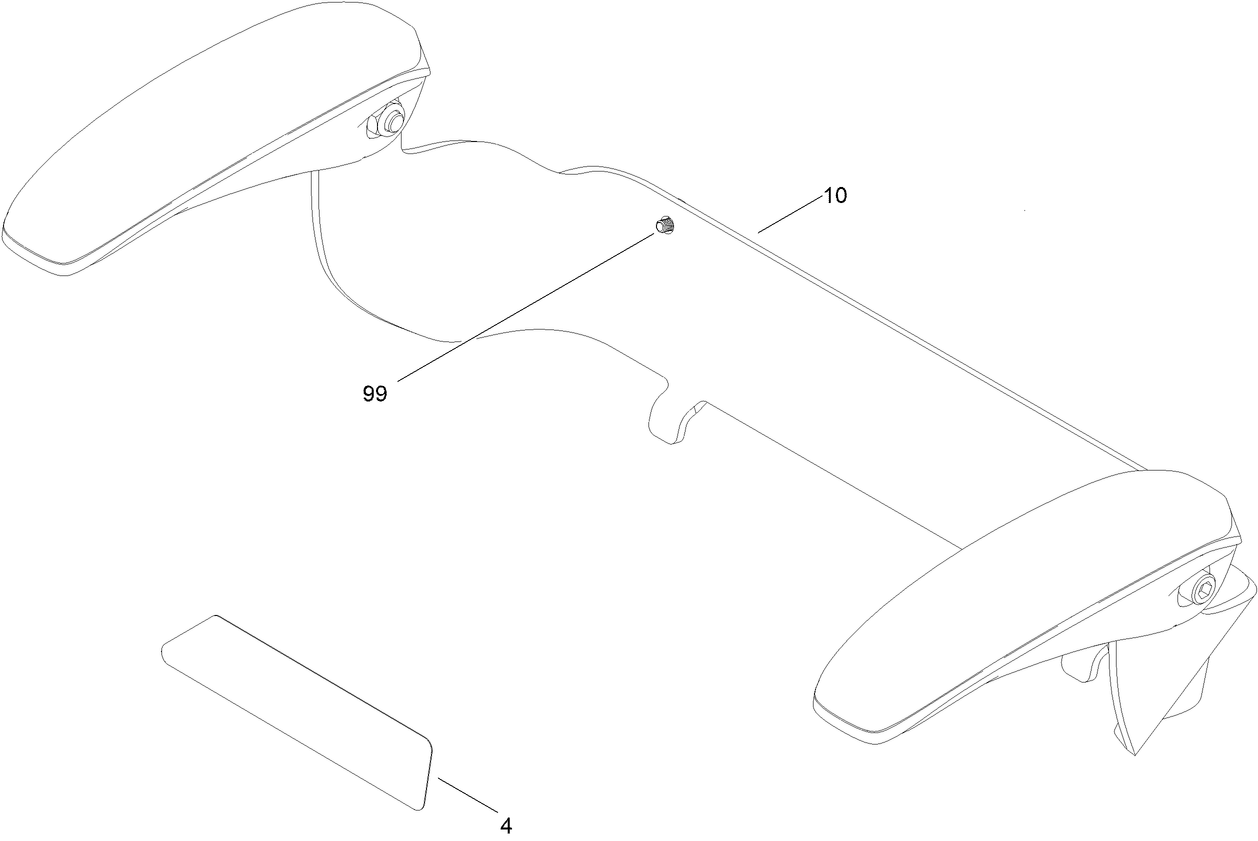

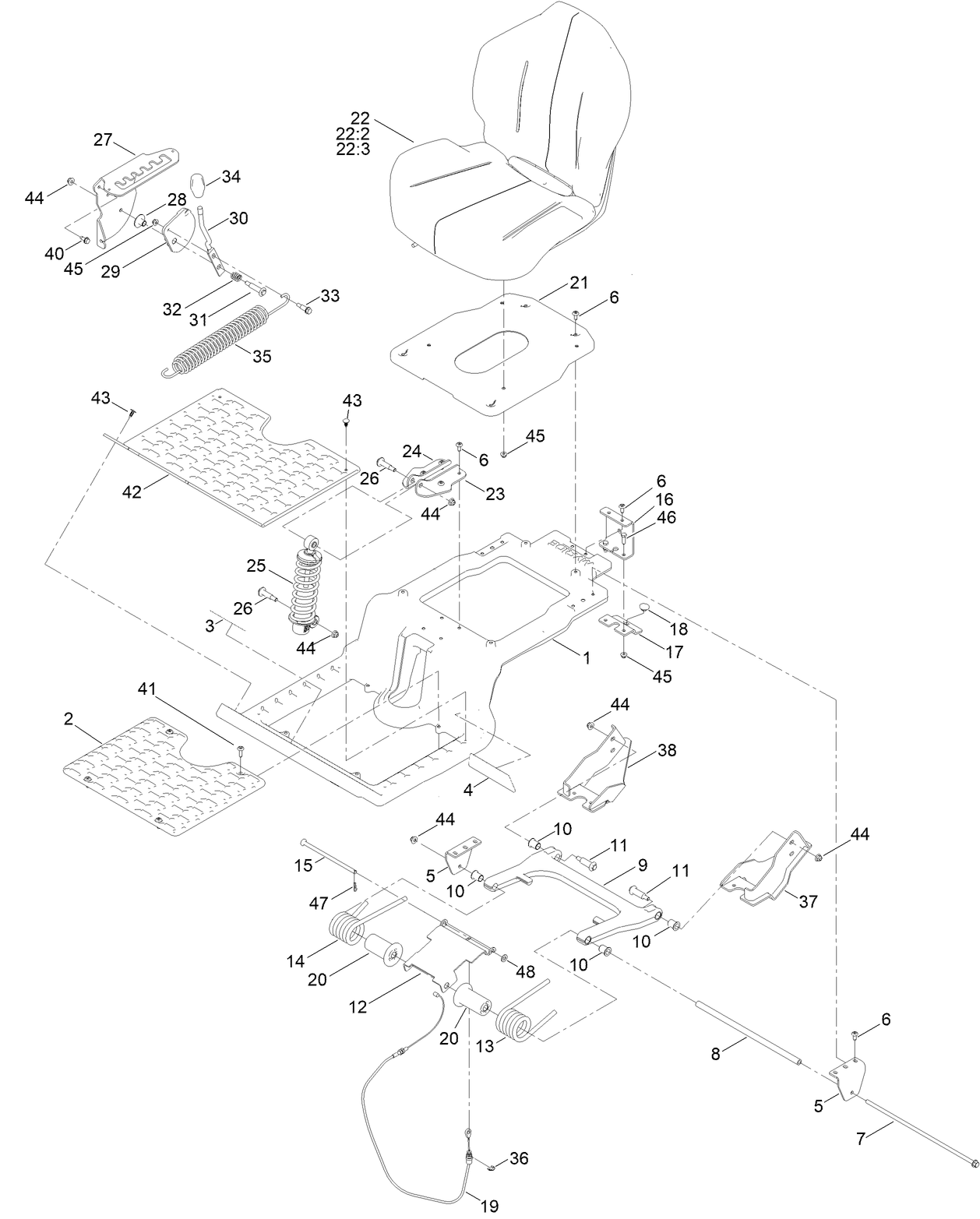

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Product Warranty
-
Setup Instructions
-
EU/UK Declaration of Conformity
HYPR-OIL 500 -QUART (Part number 114-4713)
Jack Kit, Zero-Turn-Radius Side-Discharge or Rear-Discharge Riding Mow (Part number 127-6666)
Fuel Stabilizer .05 oz (Part number 130-2393)
4-CYCLE FUEL, SNOW AND LAWN, 32OZ CAN (Part number 131-3823)
Toro Premium Fuel Treatment (Part number 131-6572)
54" RECYCLER KIT (Part number 136-7489)
OIL-30/10W-30 SYNTHETIC (Part number 138-6053)
HEAVY DUTY SPRING KIT (Part number 140-2051)
HD BAGGER COVER KIT (Part number 140-5036)
KIT-LEAF BAGGING ENHANCEMENT (Part number 140-5122)
KIT-HYDRO SERVICE (Part number 144-5347)
KIT-CASTER WHEEL (Part number 145-0489)
LED LIGHT KIT (Part number 147-8757)
KIT-STRIPING, 54/60" (Part number 147-8781)
MOUNT, JACK TITAN (Part number 147-8824)
ASSIST BAR KIT (Part number 161-4450)
CE BAGGER COMPLIANCE KIT (Part number 161-6178)
10W30 4-CYCLE ENGINE OIL 32 OZ BOTTLE (Part number 38280)
TORO 4-CYCLE SAE 30 OIL (32OZ BOTTLE) (Part number 38903)
Toro Deluxe Z Cover (Part number 490-7319)
POWERED BAGGER, TITAN MODELS ROHS (Part number 79348)
ROPS Kit, TimeCutter Max or Titan Riding Mower (Part number 79487)
KIT-SLOPE SENSOR (Part number 79489)
-
Model number
76530 -
Serial number
417116866 - 999999999 -
Product Name
Titan® ZXM5475 137 cm Zero Turn Riding Mower 76530 -
Product Brand
Toro -
Product Type
Riding Products -
Chassis Type
ZRT - Consumer -
Swath
54 inch -
Discharge
Recycler & Side Discharge -
Engine/Motor Manufacturer
Kohler -
Engine/Motor Size
24 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
