Dingo® TX 1000 Track Loader, Wide
Product Information
- Model #: 22328
- Serial #: 412438203 - 412899999
- Product Type: Compact Utility Loaders
Loading...

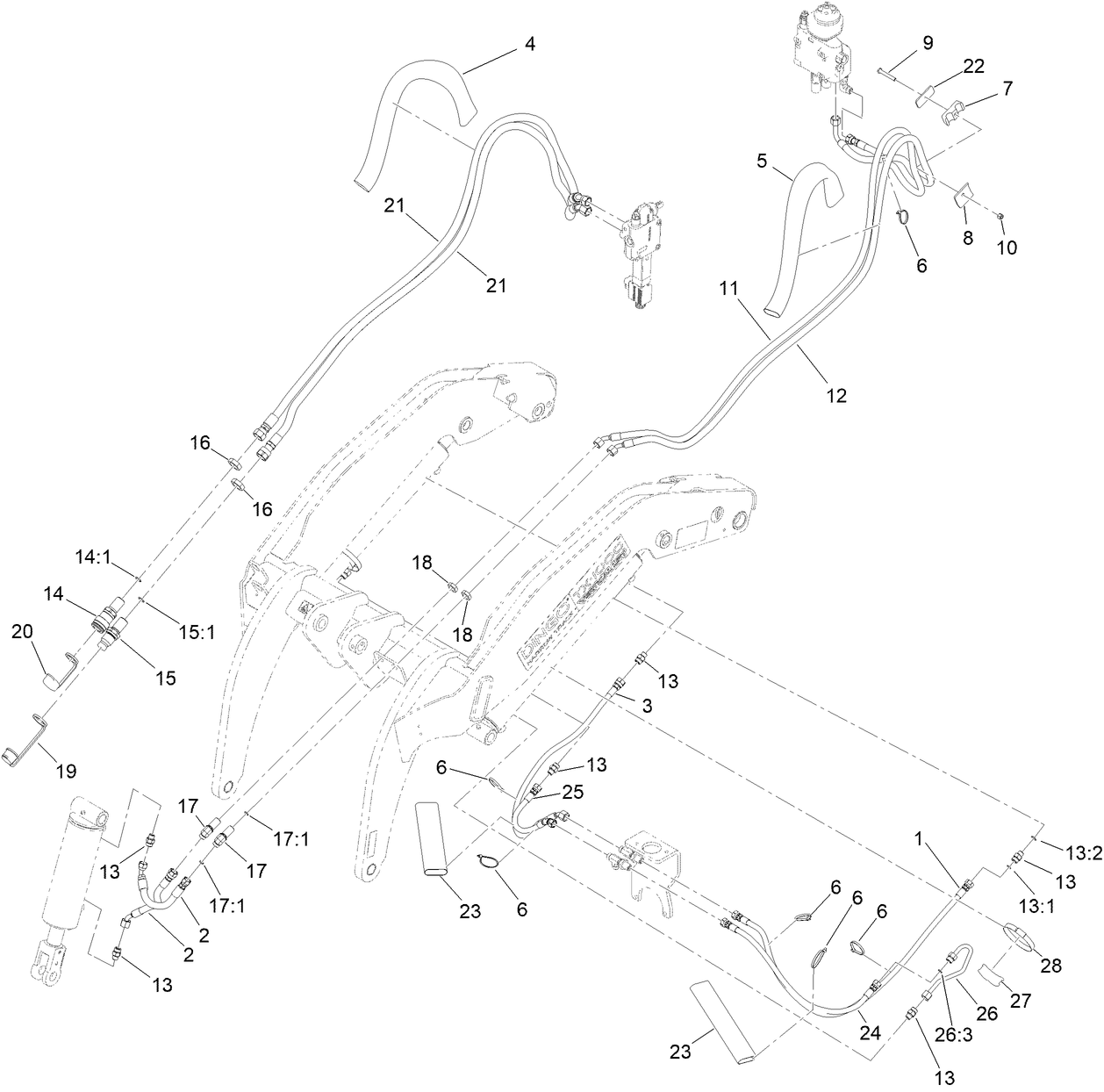

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Product Warranty
-
Schematic Drawing - Electrical
-
Schematic Drawing - Hydraulic
-
ACMA Declaration of Conformity
-
EU/UK Declaration of Conformity
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
Light Kit (Part # 144-7100)
Light kit fits: Dingo TX 1000 - LED (650 LM)
KIT ROAD WHEEL, 5-PACK (Part # 144-7392)
KIT ROAD WHEEL, 5-PACK (Part # 144-7393)
DECAL KIT - HERC (Part # 145-6943)
Loader Bucket Attachment 4 Cubic Feet (Part # 22340)
Use this standard bucket for moving rock, dirt, sand or other materials off and around the job site. The hardened steel cutting edge offers improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear. Capacity = 4 cubic feet (1 cu. m.).
Adjustable Forks, TX 1000 Compact Utility Loaders (Part # 22341)
Loader Bucket Attachment 9 Cubic Feet (Part # 22342)
Designed for Dingo® TX 1000, volume = 9.0 cubic feet. This high volume loader bucket attachment is great for moving rock, dirt, sand or other materials off and around the job site. Ideal for jobs with large amounts of material to move.
Light Materials Loader Bucket Attachment (Part # 22410)
Designed for moving light materials like chip-bark, mulch, snow and loam. The larger capacity bucket, 6.4 cubic feet (.2 cu. m.), is great for handling larger loads of lighter materials. The hardened steel cutting edge allows for improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear.
Utility Blade Attachment (Part # 22414)
The Toro Dingo hydraulic blade greatly increases the versatility of your Dingo system. This incredibly versatile attachment can be used for a variety of earth or snow moving jobs. Fill trenches where rows of trees have been planted or irrigation pipes have been installed. Keep your hydraulic blade working in the winter by pushing snow from sidewalks in one pass.
Bore Drive Head Attachment (Part # 22420)
The Toro® Dingo® boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.
Rod and Reamer Kit (Part # 22421)
Easily bore under driveways and sidewalks to simplify irrigation and cable installations. Use with Bore Drive Head attachment model 22420. Working depth: 19". Bits and reamers up to 3.5" in diameter.
Multi-Purpose Tool, Dingo (Part # 22423)
Power Box Rake Attachment (Part # 22426)
The Toro Power Box Rake is the perfect tool for seed bed and sod bed preparation. The rotary drum on the power box rake pulverizes rough soil, cuts high spots and fills low spots in one pass; while removing rocks and debris. Pure carbide teeth design produces the best possible seeded sub-soil, which promote superior moisture retention and rapid seed growth.
Stump Grinder Attachment (Part # 22429)
The Toro® Dingo® Stump Grinder easily attaches to either Dingo or Dingo TX compact utility loaders. Make grinding stumps quicker and more productive with the stump grinder attachment for your Toro Dingo.
Tree Fork Attachment (Part # 22438)
The Toro Dingo hydraulic tree forks can help you plant trees and large shrubs quickly and effortlessly, plus move all sorts of materials around your garden center or nursery. The Dingo Compact Utility Loader is especially easy to maneuver, helping you transport and position trees or shrubs exactly where you want them.
Cement Mixer Attachment (Part # 22442)
This unique attachment will mix and pour up to 200 pounds (90.7 kg) of dry cement. The specially designed auger flighting inside the cement bowl keeps the cement in the bowl during mixing. This same auger design permits cement to be poured into fence post holes with the posts in place!
Tiller Attachment (Part # 22445)
The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6" (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
Trencher Crumber (Part # 22464)
Spring design, trencher accessory to help clean out trenches
Trench Backfiller Attachment (Part # 22472)
Designed for time and money-saving efficiency, this attachment lets operators fill trenches in a single pass. Two sets of opposing augers direct the spoils from the sides of the trench back into the hole, while the filler levels off the work area and fluffs the turf on each side of the trench minimizing its footprint
High Torque Trencher Attachment (Part # 22473)
High-torque trencher head with heavy-duty drive system guarantees performance in the toughest soil conditions from rock to caliche. Dig trenches up to 50" (127 cm) below grade. Heavy-duty nose roller bearing and reversible abrasion-resistant boom give you years of dependable use.
High Speed Trencher Attachment (Part # 22474)
Ideal for fast, efficient trenching in most soil conditions. Great for cable, pipe or irrigation installations.
4-in-1 Bucket Loader Bucket Attachment (Part # 22478)
Designed to be used on the Dingo 323, 320-D, e-Dingo, TX 427, TX 525 and TX 1000 models, this attachment offers the versatility of 4 attachments. Use as a standard bucket, a leveler, a grapple rake and a blade.
Narrow Loader Bucket Attachment (Part # 22520)
Handle compact construction and remodeling sites by moving through 36" (91.4 cm) gates without a problem. This 35" (88 cm) wide bucket allows you to get through narrow spaces, including gates and doorways. Move rock, dirt, sand or other materials off and around the job site. Great for use on any Dingo® model equipped with narrow wheels and tires.
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
Standard Bucket with Spacer (Part # 22522)
Addresses MA hoisting regulation. Results in 450 lb. rated operating capacity. Capacity = 4.3 cubic feet.
Grapple Rake Attachment (Part # 22577)
The Toro grapple rake attachment allows operators to grab, drag, lift, and place materials with ease. The grapple has two heavy-duty cylinders capable of producing 3000 pounds of clamping force at the tine tips, insuring you can "grab-ahold" and not let go.
Snow Canopy Attachment (Part # 22584)
Operators will feel more secure and protected in wintry conditions with the TX 1000 snow canopy exclusively for the Dingo TX 1000 models. It shields operators from wind and snow, so they can comfortably concentrate on the task at hand.
Snow Thrower Attachment (Part # 22585)
The Toro snow thrower attachment has enough power for heavy-duty performance in wet snow condition, plus a gentle touch for lighter conditions. The maximum hydraulic flow is 15.5 gpm and the chute articulation is electrical, so the operator never needs to worry about hand cranking.
High Torque Auger Attachment (Part # 22805)
In any drive head, there is a tradeoff between torque (power) and speed (revolutions per minute). The high torque head provides a large amount of torque to the auger at a slower speed. The high torque translates into the Dingo's capability to dig 30" (76.2 cm) holes up to 6' (1.8 m) deep in clay, gravel, sandstone and many other conditions where lower torque heads get stuck.
Mini Skid Steer Auger Attachment (Part # 22806)
This attachment swivels in all directions to create plumb holes on uneven terrain. The higher speed of this auger power head is ideal for augers up to 24" (61cm) in diameter. Quickly change between auger bit sizes to dig holes for fence posts, footings, irrigation heads and more!
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
18" Auger Bit (Part # 22814)
18" auger bit requires auger power head attachment 22805 or 22806.
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
24" Auger Bit (Part # 22815)
24" auger bit requires auger power head attachment 22805 or 22806.
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
30" Auger Bit (Part # 22816)
30" auger bit requires auger power head attachment 22805.
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
12" Auger Extension (Part # 22818)
Add extension to any auger to increase depth.
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
24" Auger Extension (Part # 22819)
Add extension to any auger to increase depth.
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
6" Full Flight Auger Bit (Part # 22820)
6" full flight auger bit requires auger power head attachment 22805 or 22806.
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
9" Full Flight Auger Bit (Part # 22821)
9" full flight auger bit requires auger power head attachment 22805 or 22806.
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
12" Full Flight Auger Bit (Part # 22822)
12" full flight auger bit requires auger power head attachment 22805 or 22806.
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
15" Full Flight Auger Bit (Part # 22823)
15" full flight auger bit requires auger power head attachment 22805 or 22806.
Vibratory Plow Attachment (Part # 22911)
The Toro® Dingo® vibratory plow attachment greatly reduces a contractor's time spent on irrigation and cable installations. Exclusively designed and built by Toro specifically for use on the Dingo, the vibratory plow optimizes pipe-pulling performance while minimizing turf damage during an installation. Also, use the chuted blade and spool carrier to install wire or cable.
Soil Cultivator Attachment (Part # 23102)
The soil cultivator is the ultimate attachment for soil preparation! This incredibly versatile attachment can be used to cultivate and level soil as well as blend landscape materials, compost and fertilizer. This attachment will also bury debris such as stones, soil clods and grass. It transforms rough terrain into a perfect planting bed in one pass.
Backhoe Attachment (Part # 23106)
This powerful attachment can be used for various jobsite activities - digging foundations, planting trees, trenching for irrigation and utilities installation and much more.
Requires fit-up kit model 23126
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
Backhoe Fit-up Kit (Part # 23126)
Allows 23106 to fit-up to Dingo TX 1000 units.
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
Dingo TX 1000 Low Flow Auxiliary Kit (Part # 23134)
Dingo TX 1000 Low Flow Auxiliary Kit for use on models 22327 and 22328
Concrete Breaker, Dingo Compact Utility Loaders (Part # 23135)
Leveler Attachment (Part # 23165)
This versatile and highly productive tool is a must have attachment for all job sites. Use to grade, finish, and spread landscape materials, backfill trenches, and break up the turf. Also great for carrying and transporting materials around the job site.
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
Dingo TX 1000 Auxiliary Detent Value (Part # 23171)
Dingo TX 1000 Auxiliary Detent Value - for 2015 and 2016 models only
![Empty Image Container](https://shop.toro.com/UserFiles/Images/Products/MD_NotFound.png)
TX 1000 Stump Grinder Fit-Up Kit (Part # 23172)
Kit available for 22429 stump grinder F'16 and prior year models. Only required for TX 1000 F'15 and F'16 models.
Red Paint (Gallon) (Part # 361-11)
Genuine OEM Part
Dark Metallic Gray Paint (Part # 361-12)
Genuine OEM Part
Semi-Gloss Black Paint (Part # 361-9)
Genuine OEM Part
Red Paint (Part # 5340)
Genuine OEM Part
Spark Arrestor (Part # 98-9099)
Toro OEM spark arrestor prevents carbon build ups from being ejected from the engine and igniting a fire.
-
