Professional 4000 Series MyRIDE® Petrol Z Master® 122 cm 74048TE
Product Information
- Model number: 74048TE
- Serial number: 417000000 - 418029507
- Product Type: Riding Products
Loading...

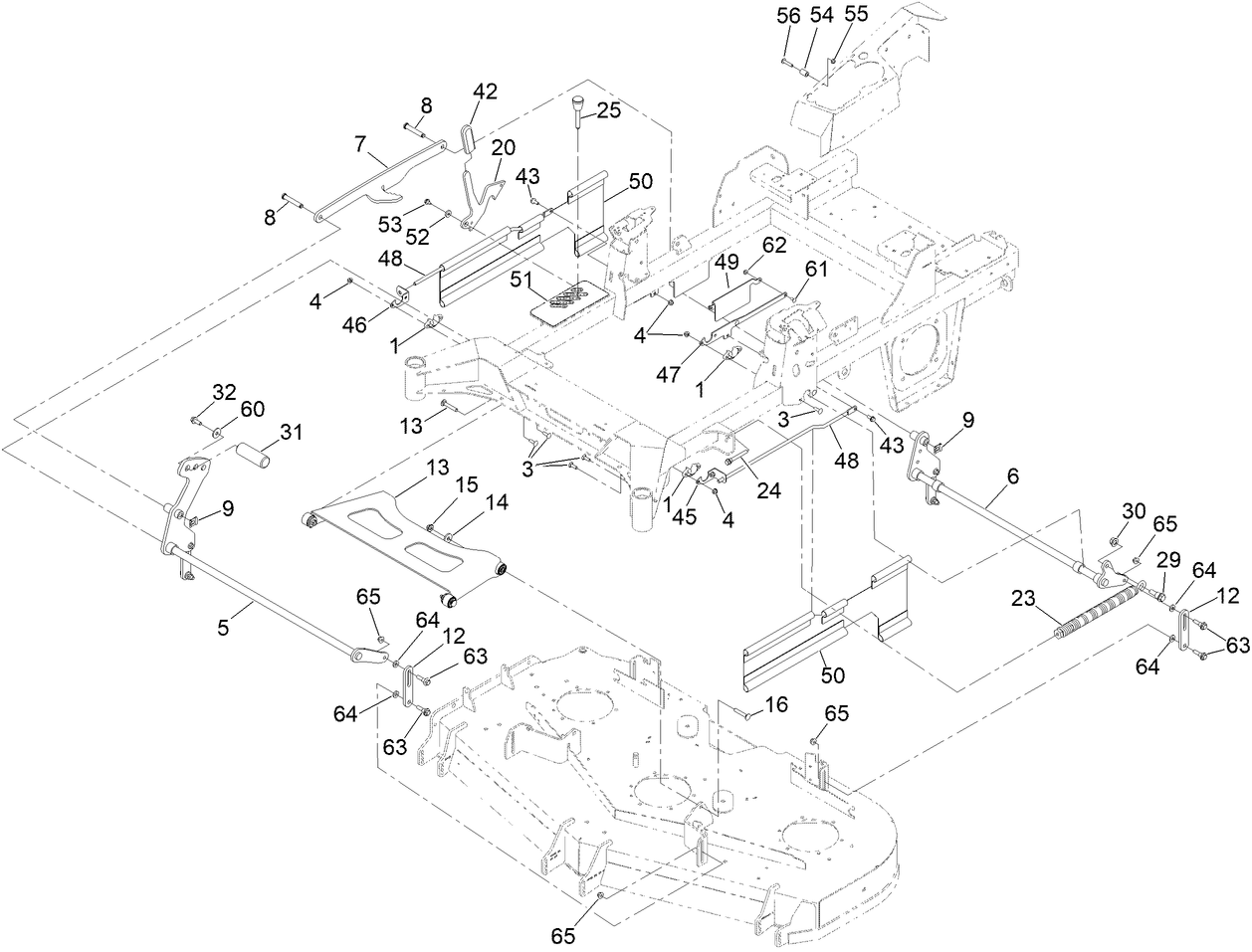

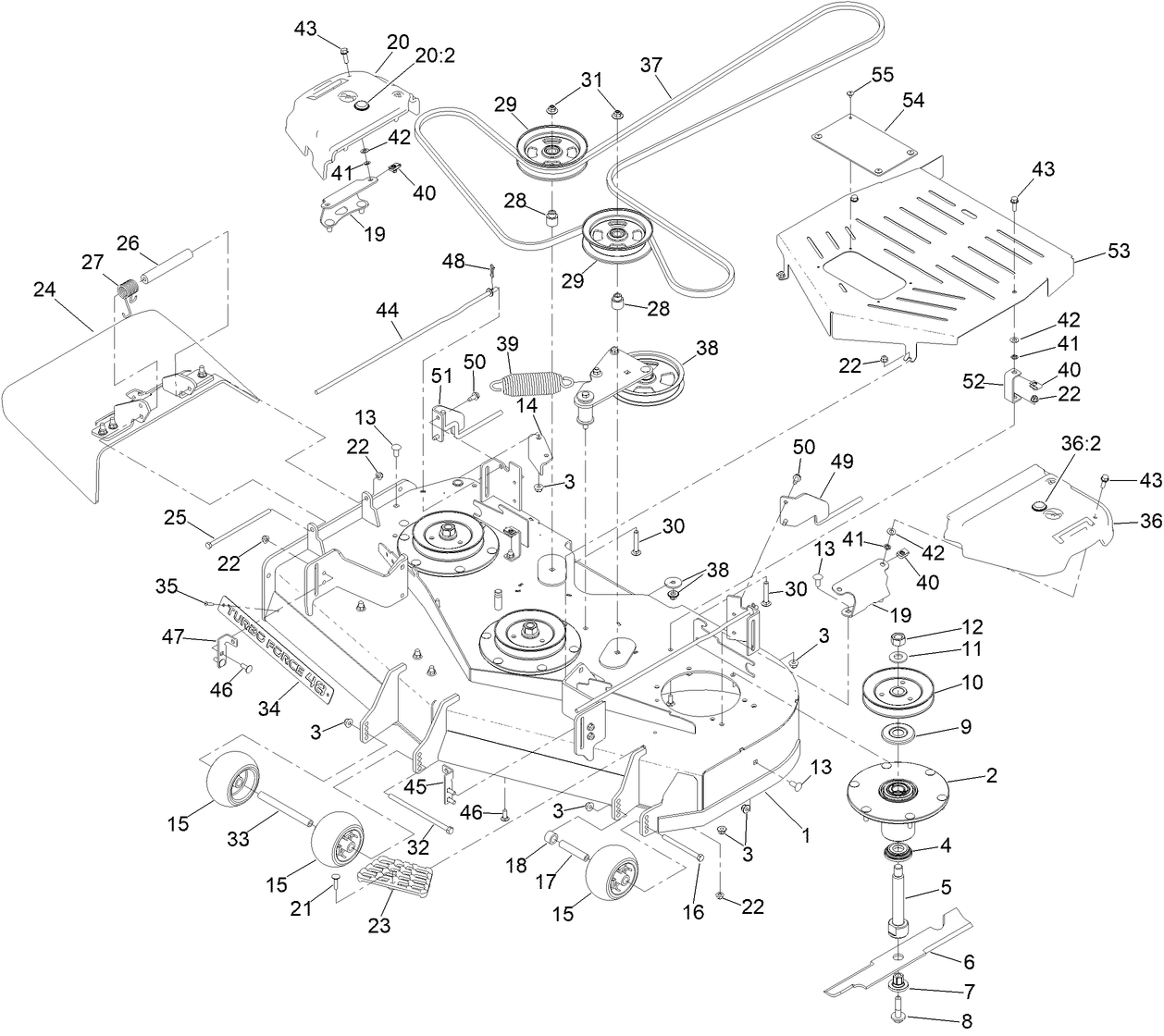

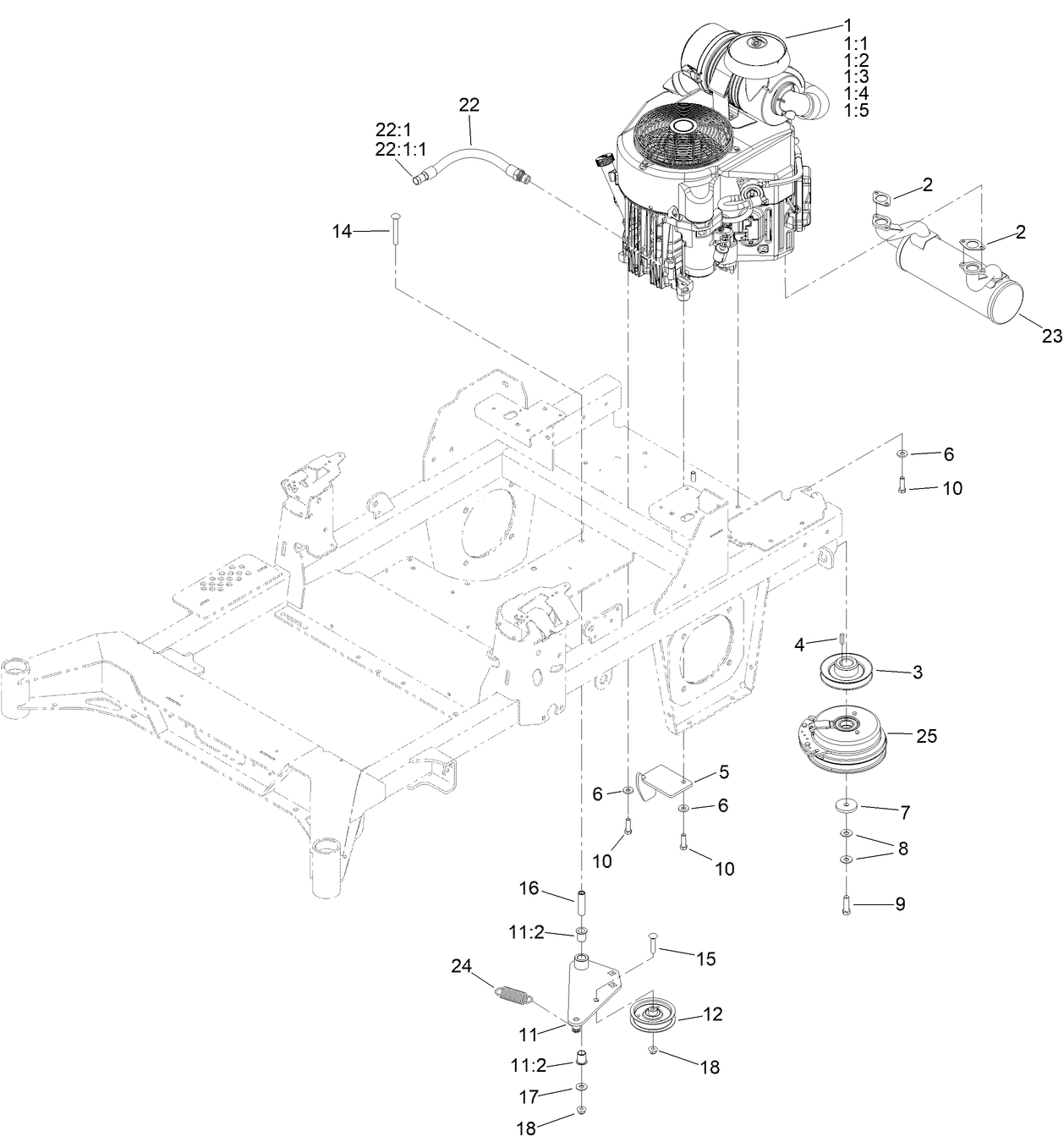

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Product Warranty
-
Setup Instructions
-
EU/UK Declaration of Conformity
HYPR-OIL 500 -QUART (Part number 114-4713)
HYPR-OIL 500-GALLON (Part number 114-4714)
HYPR-OIL 500-5 GALLON (Part number 114-4715)
Striper Kit (Part number 126-7882)
Jack Kit, Zero-Turn-Radius Side-Discharge or Rear-Discharge Riding Mow (Part number 127-6666)
SHOCK/SPRING ASM (Part number 136-8993)
SPARK ARRESTOR, 1.25 I.D. (Part number 137-8098)
TWEEL-TURF (Part number 139-3649)
RECYCLER KIT-G3/GRANDSTAND 48 (Part number 139-6650)
BLADE-16.50 HIGH FLOW (Part number 140-1243)
BLADE-16.50 MEDIUM FLOW (Part number 140-4860)
BLADE-16.50 LOW FLOW (Part number 140-4861)
BLADE-16.50 ATOMIC (Part number 140-4862)
BLADE-16.50 RECYCLER (Part number 140-4863)
6 PACK-BLADE, 16.5 HIGH FLOW (Part number 140-4887)
6 PACK-BLADE, 16.5 MED FLOW (Part number 140-4888)
6 PACK-BLADE, 16.5 LOW FLOW (Part number 140-4889)
6 PACK-BLADE, 16.5 ATOMIC (Part number 140-4890)
6 PACK-BLADE, 16.5 RECYCLER (Part number 140-4891)
BASE LIGHT KIT-4000 SERIES (Part number 144-0389)
TRIMMER MOUNT (Part number 144-2665)
KIT, JACK MOUNT (Part number 144-2676)
48" CHUTE GATE KIT [4000] (Part number 144-2688)
48 CE COMPLIANCE KIT [4000] (Part number 145-1261)
HANDLE EXTENSION KIT (Part number 145-3615)
ASM-VOODOO TRAC 24X9.5-12 (Part number 147-5029)
BLADE-16.50 HIGH FLOW (Part number 147-6250)
6 PACK-BLADE, 16.50 HIGH FLOW (Part number 147-6254)
13X6.5N6 CASTER TWEEL ASM (Part number 147-6294)
Bucket Mount Kit, Z Master 2000 or 4000 Series Riding Mower (Part number 147-6345)
Universal Mount Kit, Z Master 2000 or 4000 Series Riding Mower (Part number 147-6346)
Kit-Baffle, Turbo Force 48 (Part number 147-7360)
KIT-ELEC DECK LIFT (Part number 147-7867)
KIT-2IN RECIEVER HITCH (Part number 161-2810)
KIT-ACTUATOR REPLACEMENT,412200557 BE (Part number 161-3549)
KIT-ELEC DECK LIFT, SN 412200557 BELO (Part number 161-3550)
Fuel Pickup with Screen, Kit (Part number 161-6806)
BAGGER KIT, Z MASTER 2000 / 4000 (Part number 78439)
Z 4000 48IN COMPLETION KIT (Part number 78464)
-
Model number
74048TE -
Serial number
417000000 - 418029507 -
Product Name
Professional 4000 Series MyRIDE® Petrol Z Master® 122 cm 74048TE -
Product Brand
Toro -
Product Type
Riding Products -
Chassis Type
ZRT - LCE -
Swath
48 inch / 122 cm -
Discharge
Side Discharge -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
22 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
