Proline 91 cm Mid-Size Commercial Walk Behind Mower 44410TE
Product Information
- Model number: 44410TE
- Serial number: 406500000 - 406610836
- Product Type: Walk Behind Mowers
Loading...

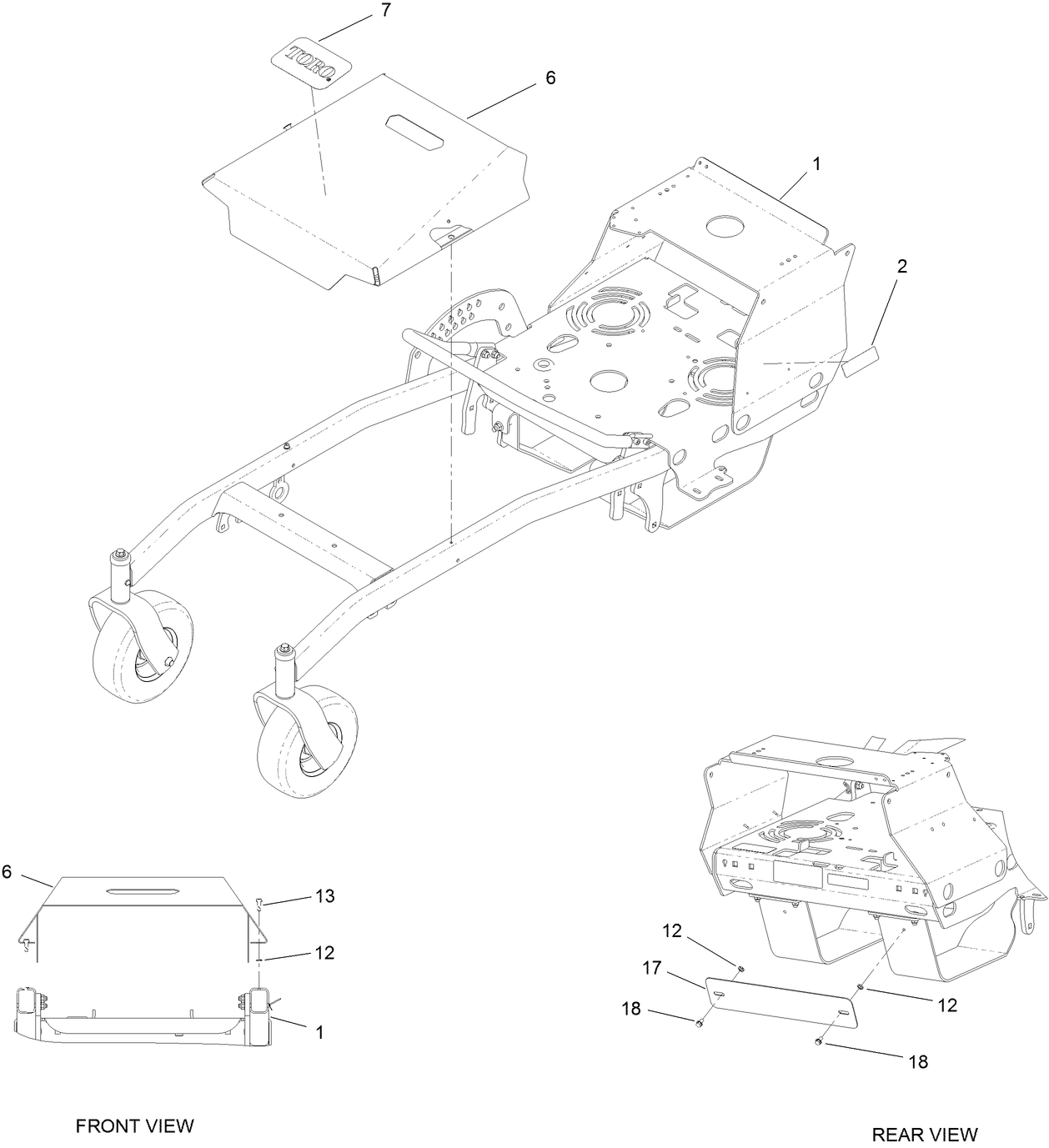

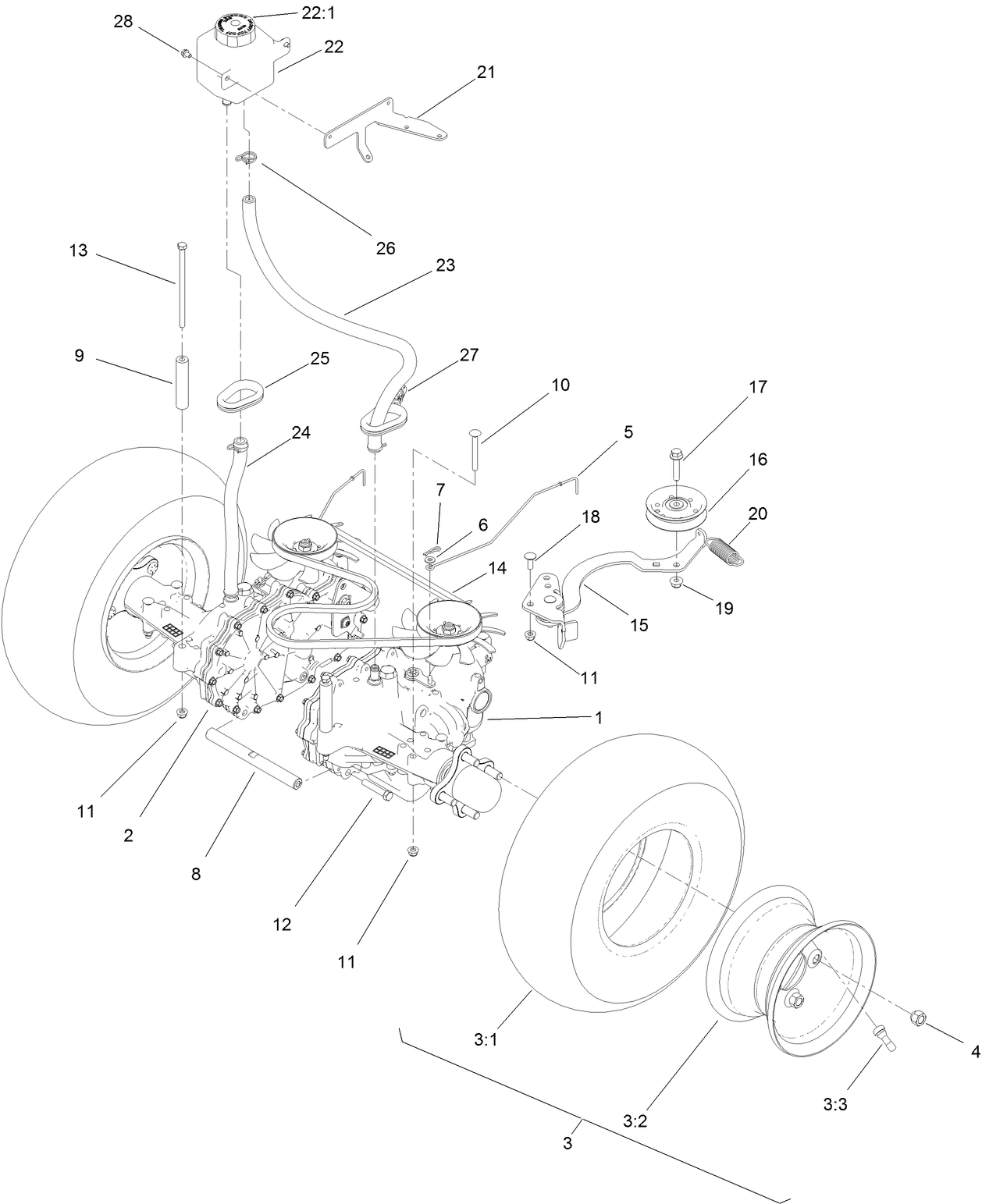

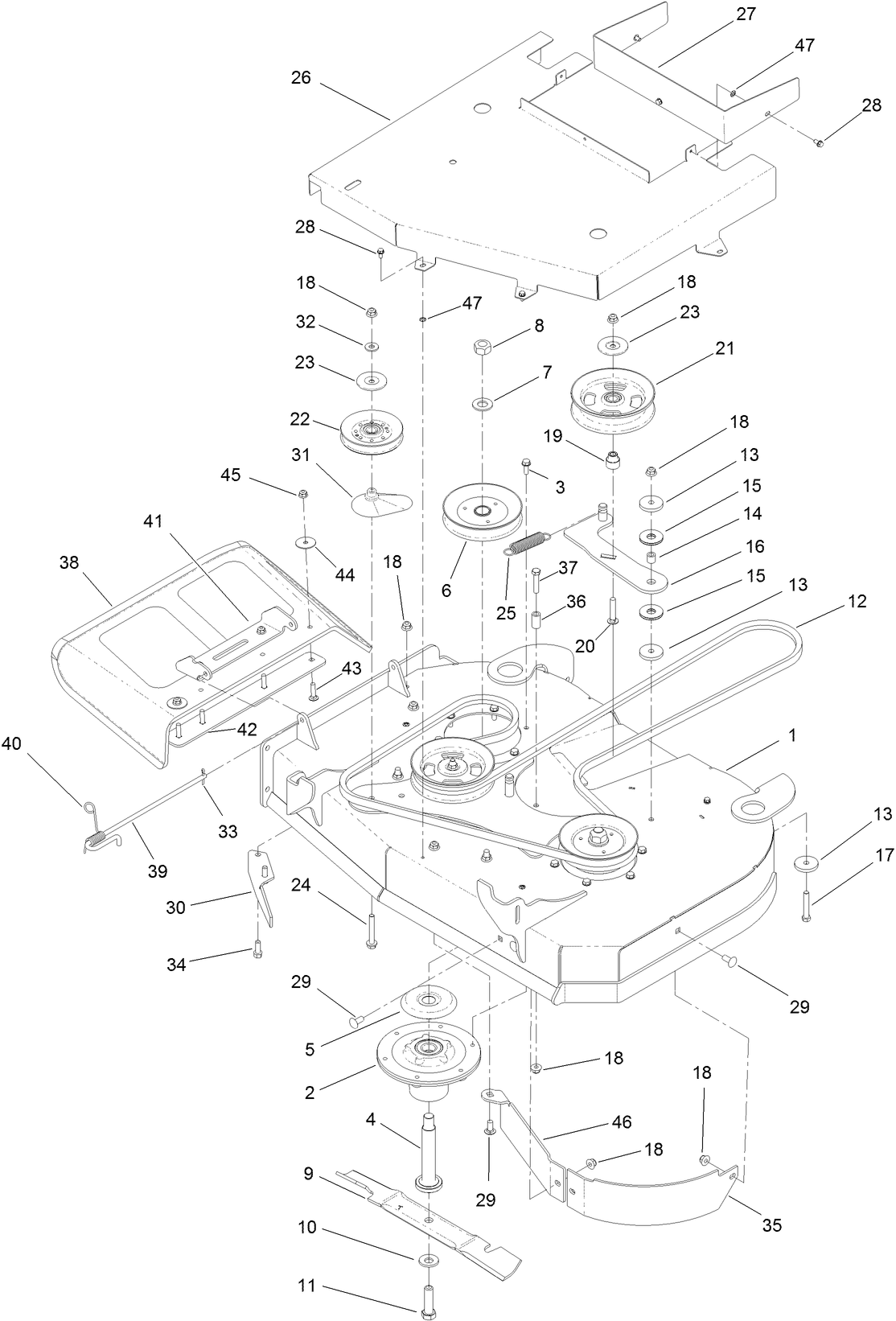

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Product Warranty
-
EU/UK Declaration of Conformity
HYPR-OIL 500 -QUART (Part number 114-4713)
HYPR-OIL 500-GALLON (Part number 114-4714)
HYPR-OIL 500-5 GALLON (Part number 114-4715)
BAGGER ADAPTOR KIT (Part number 121-7515)
Toro Premium Fuel Treatment (Part number 131-6572)
Electric Accessory Port (Part number 133-1438)
WEIGHT KIT (Part number 138-6866)
BLADE - MULCH, 18.00 IN (Part number 138-8883-03)
BLADE - HI FLOW, 18.00 IN (Part number 138-8887-03)
BLADE - HIGH LIFT, 18.00 IN (Part number 138-8894-03)
HOC BRACKETS KIT, WAM (Part number 139-4063)
WAM LIGHT KIT (Part number 139-5595)
SOFT SIDE BAGGER (Part number 139-7860)
36IN RECYCLER KIT (Part number 140-1913)
RUBBER DEFLECTOR KIT (Part number 140-4300)
KIT-BAGGING ENHANCEMENT (Part number 140-4321)
6 PACK-BLADE, 18.00 RECYCLER (Part number 140-7729)
6 PACK-BLADE, 18.00 HI-FLOW (Part number 140-7733)
6 PACK-BLADE, 18.00 HI-LIFT (Part number 140-7737)
10W30 4-CYCLE ENGINE OIL 32 OZ BOTTLE (Part number 38280)
TORO 4-CYCLE SAE 30 OIL (32OZ BOTTLE) (Part number 38903)
TWO-WHEEL SULKY, PROLINE MIDSIZE (Part number 44401)
Spark Arrestor (Meets USDA Forest Service Standard 5100-1A) (Part number 98-9099)
-
Model number
44410TE -
Serial number
406500000 - 406610836 -
Product Name
Proline 91 cm Mid-Size Commercial Walk Behind Mower 44410TE -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
Mid-Size ProLine Mower -
Chassis Type
Walk Behind -
Swath
91cm -
Discharge
Side -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
14.5 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Spark Plug
NGK BPR4ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Height of Cut Range
1.5-4.5"; 1/4" increments -
Engine: Ignition Coil Air Gap
.008-.016" / .2-.4mm -
Engine: Engine Oil Type
1.8 qt (1.7L) 10w-30 engine oil API SF or higher -
Engine: Engine Speed
2600±100 RPM -
Engine: Battery
12V 230CCA -
Chassis: Tire Pressure
13 psi rear -
Drive System: Ground Speed
Up to 8 mph -
Drive System: Gearbox Lubricant
HYPR-OIL 500
