Thatching Reel Kit
Product Information
- Model #: 04720
- Serial #: 314000001 - 314999999
- Product Type: Riding Products
Loading...
Assembly Drawings
Search for a part within assembly drawings:
-
Installation Instructions
-
Service Bulletin
Narrow Wiehle Roller (Part # 04255)
Wide Wiehle Roller Kit, Greensmaster DPA Cutting Units (Part # 04256)
Front Full Smooth Roller Kit, Greensmaster DPA Cutting Units (Part # 04257)
Extended Narrow Wiehle Roller Kit, Greensmaster DPA Cutting Units (Part # 04258)
Paspalum Wiehle Roller, DPA Cutting Reel for Greensmaster Mower (Part # 04267)
Turf Evaluator (Part # 04399)
Mirror device used to assess turf conditions
Full Roller Kit, Greensmaster DPA Reel Mowers (Part # 04625)
Narrow Wiehle Roller Kit, Greensmaster DPA Reel Mowers (Part # 04626)
Wide Wiehle Roller Kit, Greensmaster DPA Reel Mowers (Part # 04627)
Steel Roller Kit (Part # 04628)
DPA Reel Mower Rear Roller Scraper Kit, Greensmaster 3000 Series (Part # 04646)
Twin Tip Groomer Blade (Part # 04802)

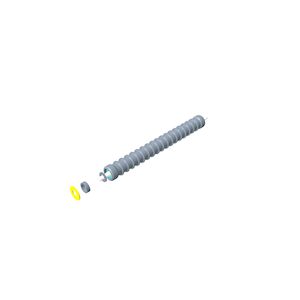

Roller Seal Rebuild Kit (Part # 107-1594)
Toro OEM Roller Seal Rebuild Kit.
STEEL ROLLER ASM (Part # 107-3509)
STEEL ROLLER ASM, WIEHLE DPA (Part # 107-3510)
Wide Wiehle Steel Roller (Part # 107-3514)
Use on puffy turf to control bobbing marks. Adds weight to stabilize cutting unit over rough surfaces.
21.00 Inch Narrow Wiehle Roller Assembly (Part # 115-7360)
Toro 21.00 Inch OEM Narrow Wiehle Roller Assembly. This roller has a 2.50 inch diameter. This Assembly comes with a Wiehle roller, roller shaft, ball bearings, lock nuts, seals, V-rings, roller rebuild kit & grease. A Wiehle roller has groves built into the roller as a standard Wiehle roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Narrow Wiehle Roller Scraper/Brush Kit (Part # 115-7377)
Scraper brushes condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Wide Wiehle Roller Scraper Brush (Part # 115-7378)
Scraper brushes condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Full Roller Scraper Brush (Part # 115-7379)
Scraper brushes condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Narrow Wiehle Roller Scraper Comb Assembly (Part # 115-7380)
Toro OEM Narrow Wiehle Roller Scraper Comb Assembly.
Wide Wiehle Roller Scraper Comb (Part # 115-7381)
Scraper combs condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Full Roller Scraper Comb (Part # 115-7382)
Scraper combs condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
21.00 Inch Wide Wiehle Roller Assembly (Part # 115-7386)
Toro 21.00 Inch OEM Wide Wiehle Roller Assembly. This roller has a 2.50 inch diameter. This Assembly comes with a Wiehle roller, roller shaft, ball bearings, bearing lock nuts, seals, V-rings, roller rebuild kit & grease. A Wiehle roller has groves built into the roller. A wide Wiehle roller has a larger gap between each of the groves when a standard Wiehle roller, where a standard roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.

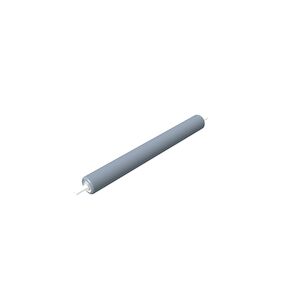

21 .00 Inch Smooth Roller Assembly (Part # 115-7388)
Toro 21.00 Inch OEM Smooth Roller Assembly. This roller has a 2.50 inch diameter. This Assembly comes with a roller tube, roller shaft, ball bearings, bearing lock nuts, seals, V-rings, roller rebuild kit & grease. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
5.00 Inch 11 Tooth Carbide Dethatcher Blade (Part # 117-6824)
Toro 5 Inch OEM 11 Tooth Carbide Blade. Genuine Toro blades are desinged with quality materials. Outfit your machine with the proper Toro blade and get the beautifully clean, healthy cut your turf deserves. This Toro 5 Inch OEM 11 Tooth Carbide Blade has multiple applications. Be sure to verify model and serial number to ensure the correct Blade.
Dethatcher Blade Kit (1.2mm Carbide) (Part # 117-6839)
Contains 117-6824 @ 36
Dethatcher Blade Kit, 2.0mm Carbide (Part # 117-6840)
Contains 119-1128 @ 36
5.00 Inch 11 Tooth Carbide Dethatcher Blade (Part # 119-1128)
Toro OEM 11 Tooth Blade. Genuine Toro blades are desinged with quality materials. Outfit your machine with the proper Toro blade and get the beautifully clean, healthy cut your turf deserves. This Toro 11 Tooth Blade has multiple applications. Be sure to verify model and serial number to ensure the correct Blade.

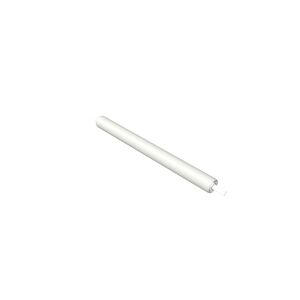

22.00 Inch Full Rear Roller Assembly (Part # 120-9595)
Toro 22.00 Inch OEM Full Rear Roller Assembly. This roller has a 2.00 inch diameter. This assembly comes with a rear roller tube, ball bearings, lock nuts, roller shaft, seals, V-rings, roller rebuild kit & grease. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
High HOC Kit (Part # 120-9600)
Contains 120-9601 @ 2, 119-4067 @ 2, 3274-54 @ 4, 119-4165 @ 6, 119-4040 @ 4
Rear Roller Adjustment Kit (Part # 120-9602)
Eccentric bolt used to precisely level rear roller
Rear Roller Scraper Kit, Riding Greensmaster Mower with DP (Part # 121-2260)
Extended Wiehle Roller Kit (Part # 121-4675)
5.00 Inch 11 Tooth Dethatcher Blade (Part # 121-6674)
Toro 9.00 Inch OEM 11 Tooth Dethatcher Blade. Genuine Toro blades are designed with quality materials. Outfit your machine with the proper Toro blade and get the beautifully clean, healthy cut your turf deserves. This Toro 9.00 Inch OEM 11 Tooth Dethatcher Blade has multiple applications. Be sure to verify model and serial number to ensure the correct Blade.
Dethatcher Blade Kit (Spring Steel) (Part # 121-6675)
Contains 121-6674 @ 36
22.00 Inch Paspalum Wiehle Roller Assembly (Part # 121-9535)
Toro 22.00 Inch OEM Paspalum Wiehle Roller Assembly. This roller has a 2.50 inch diameter. A Wiehle roller has groves built into the roller. A Paspalum roller has less aggressive groves then a standard Wiehle roller has. This Assembly comes with a Wiehle paspalum roller, roller shaft, lock nuts, ball bearings, seals, V-rings, grease fittings, roller rebuild kit & grease. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Narrow Wiehle Roller Scraper Kit (Part # 125-3503)
Clears the rollers of dirt, grass and debris buildup that may impact height of cut
Wide Wiehle Roller Scraper (Part # 125-3504)
Wide Wiehle scrapers clear rollers of dirt, grass and debris buildup that may impact height of cut
Full Roller Scraper (Part # 125-3505)
Full roller scrapers clear rollers of dirt, grass and debris buildup that may impact height of cut
Rear Roller Extension Kit, Greensmaster DPA Reel Mowers (Part # 125-5180)
2.375 Inch 5-Point Twin Tip Groomer Blade (Part # 132-4626)
Toro 2.375 Inch OEM 5-Point Twin Tip Groomer Blade. Genuine Toro blades are designed with quality materials. Outfit your machine with the proper Toro blade and get the beautifully clean, healthy cut your turf deserves. This Toro 2.375 Inch OEM 5-Point Twin Tip Groomer Blade has multiple applications. Be sure to verify model and serial number to ensure the correct Blade.
21.00 Inch Wiehle Roller Assembly (Part # 71-1550)
Toro 21.00 Inch OEM Wiehle Roller Assembly. This roller has a 2.00 inch diameter. This Assembly comes with a Wiehle roller, roller bearings, grease fittings & grease. A Wiehle roller has groves built into the roller as a standard Wiehle roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Height of Cut Kit (Part # 94-9010)
Height of cut range 0.285”– 1.00” (7.2 – 25.4 mm), set of one
-
Model #
04720 -
Serial #
314000001 - 314999999 -
Product Name
Thatching Reel Kit -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
GR 3000 Series
