Reelmaster 4000-D 4 Wheel Drive Traction Unit
Product Information
- Model #: 03707
- Serial #: 310000001 - 310999999
- Product Type: Riding Products
Loading...
Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
EU Declaration of Conformity
-
Service Bulletin
7-Blade Reel Mower (LH), Reelmaster 4000 Series (Part # 03723)
7-Blade Reel Mower (RH and Ctr), Reelmaster 4000 Series (Part # 03724)
11-Blade Reel Mower (LH), Reelmaster 4000 Series (Part # 03725)
11-Blade Reel Mower (RH and Ctr), Reelmaster 4000 Series (Part # 03726)
Dethatcher (LH), Reelmaster 4000-D (Part # 03730)
Dethatcher (RH & Center), Reelmaster 4000-D (Part # 03732)
Wiehle Roller Kit, Reelmaster 4500 (Part # 03740)
Full Roller Kit, Reelmaster 450-D (Part # 03742)
5-Blade Reel Mower (LH), Reelmaster 4000 Series (Part # 03752)
Cutting Unit Floatation Kit, Reelmaster 4000 Series (Part # 03760)
Fixed Head Kit, Reelmaster 4000 Series (Part # 03762)
Two-Piece Hydraulic Tube Replacement Kit, 2001 and Later Reelmaster 40 (Part # 105-3333)
MVP KIT-HYD HOSE (RM4000 CU) (Part # 117-2723)
Contains 98-7401 @ 1, 98-7402 @ 1, 98-7400 @ 1, 98-7403 @ 4, 98-7407 @ 1, 98-7404 @ 2, 98-7410 @ 1, 98-7406 @ 1, 98-7408 @ 1, 98-7413 @ 1, 237-22 @ 10, 237-65 @ 18,
MVP FILTER KIT-RM4000D (2008- ) (Part # 30061)
Contains 108-3812 @ 1, 108-3813 @ 1, 104-5169 @ 3, 86-6110 @ 1, 98-9764 @ 1
RM4000 Rear Roller Scraper Kit (Part # 59-6090)
Contains 59-6060-01 @ 1, 59-6070-01 @ 1, 59-6080-01 @ 1, 322-2 @ 6, 322-3 @ 2, 3253-4 @ 8, 3256-2 @ 8,
Front Roller Scraper Kit, Reelmaster 450D/4500D (Part # 62-6220)

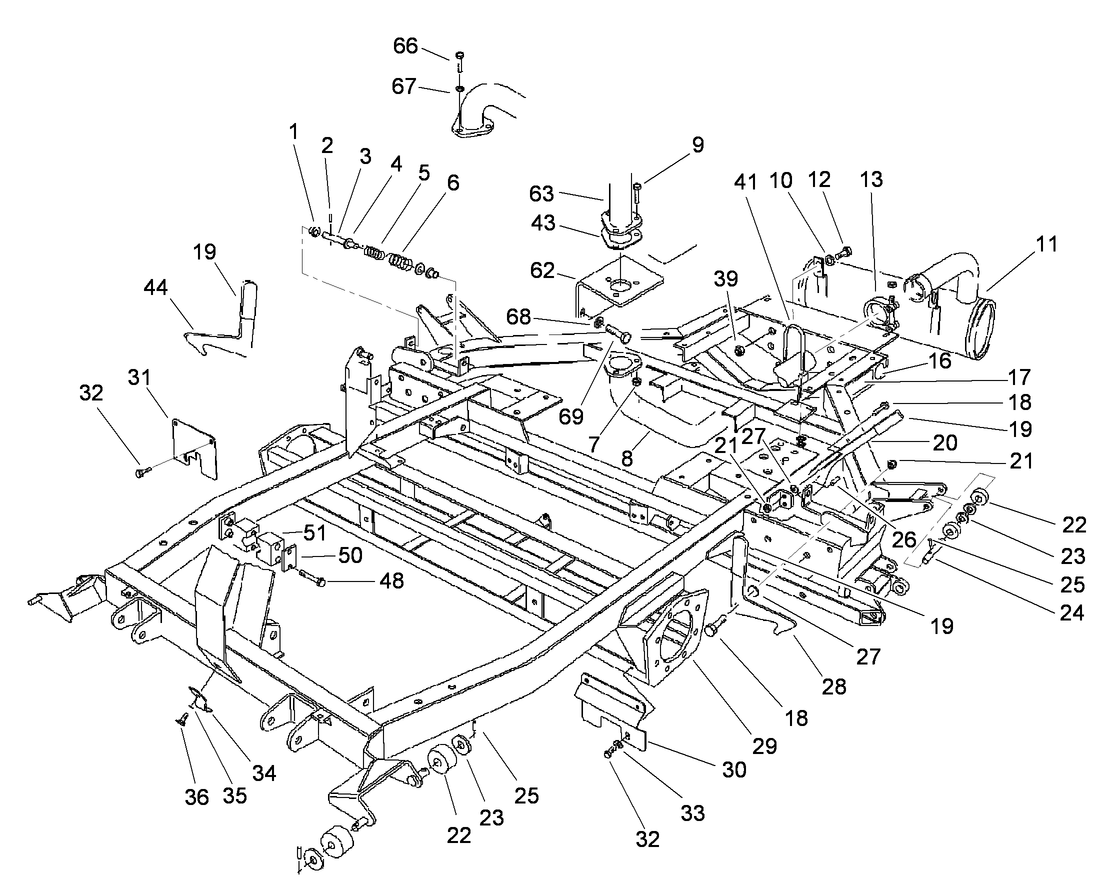

MUFFLER - SPARK ARREST (Part # 92-6074)
-
Model #
03707 -
Serial #
310000001 - 310999999 -
Product Name
Reelmaster 4000-D 4 Wheel Drive Traction Unit -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
RM 4000 Series
