Product Information

Model #: 41164
Serial #: 240000401 - 240999999
Product Type: Sprayers

No.	Description

Parts

Assembly Drawings

Search for a part within assembly drawings:

Showing Results

Drawing Title	Part Number	Description
Title

Air Intake / Filtration Assembly Kohler CH20S-64647

Blower Housing and Baffle Assembly Kohler CH20S-64647

Boom Actuator Assembly

Boom Valve Assembly No. 106-4882

Brake and Accelerator Pedal Assembly

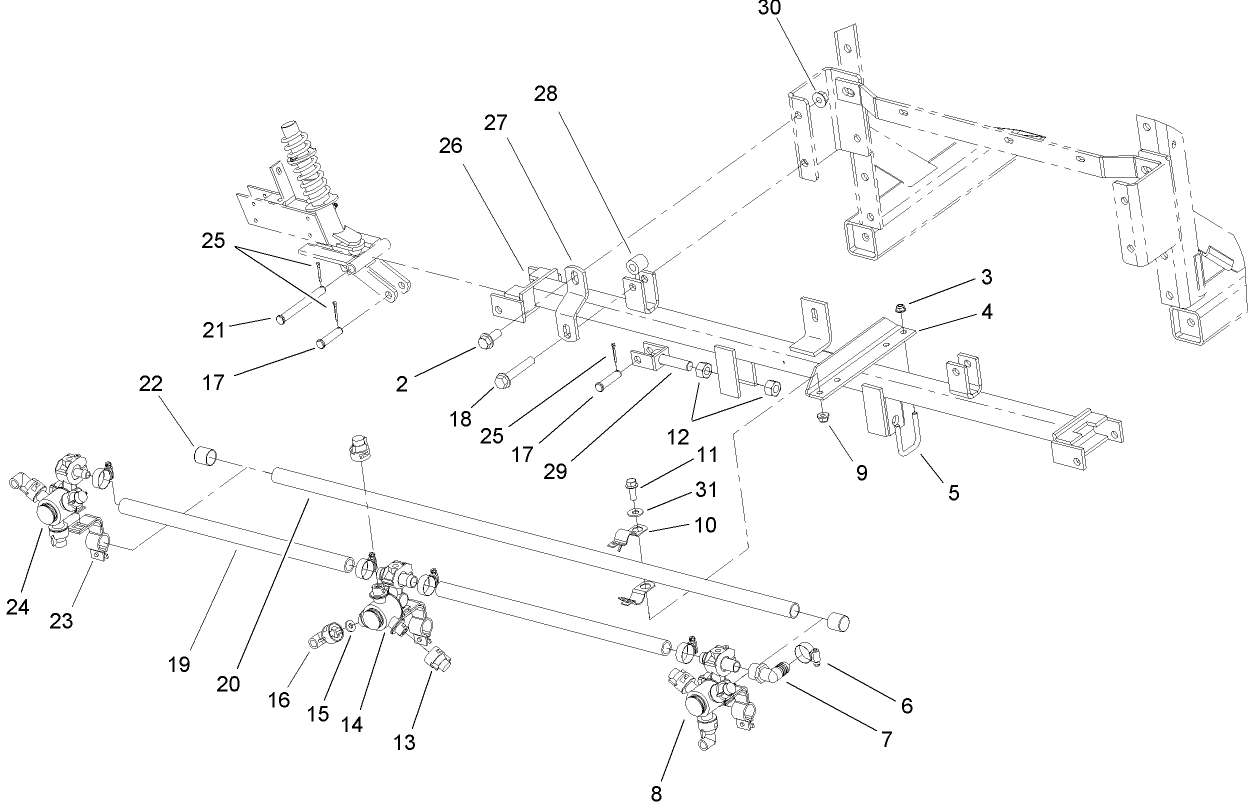

Center Boom Assembly

Countershaft Assembly Transaxle Assembly No. 104-9078

Crankcase Assembly Kohler CH20S-64647

Crankshaft Assembly Kohler CH20S-64647

Differential Gear Assembly Transaxle No. 104-9078

Drive Pulley Assembly No. 100-8289

Driver Clutch Assembly No. 100-8288

Driveshaft Assembly No. 98-2918

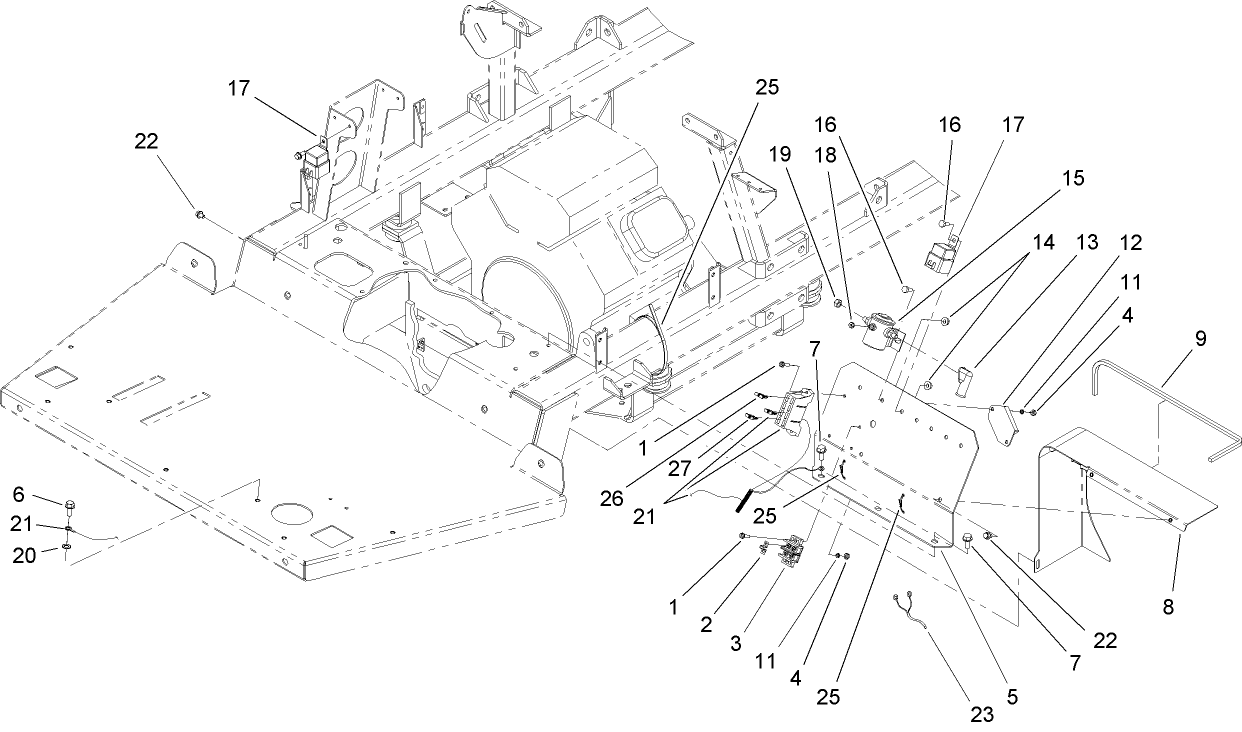

Electrical Panel Assembly

Engine and Gearbox Assembly

Engine Control Kohler CH20S-64647

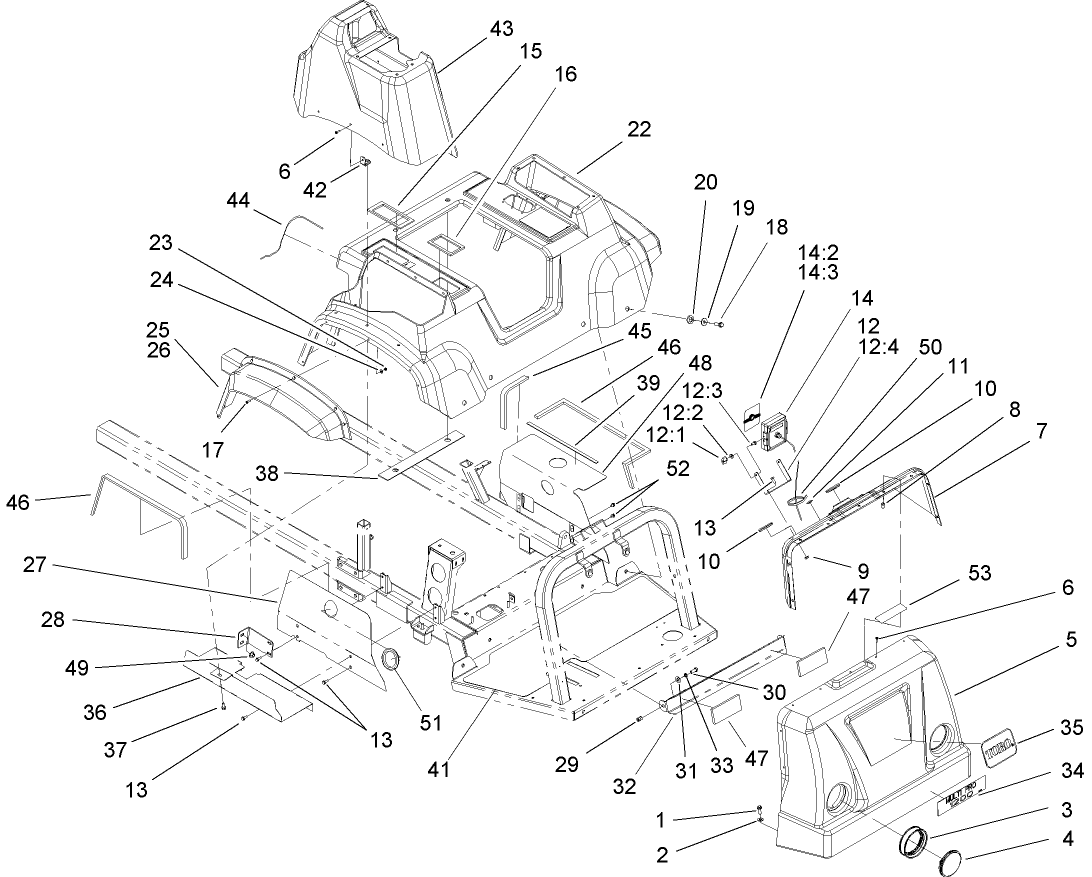

Engine Cover Assembly

Exhaust Assembly

Exhaust Assembly Kohler CH20S-64647

Extension Boom Assembly

Flow Meter Assembly No. 106-4884

Fresh Water Tank Assembly

Front Brake Assembly No. 100-8285

Front Suspension Assembly

Front Wheel Assembly

Fuel System Assembly Kohler CH20S-64647

Head / Valve / Breather Assembly Kohler CH20S-64647

Hose Assembly No. 1

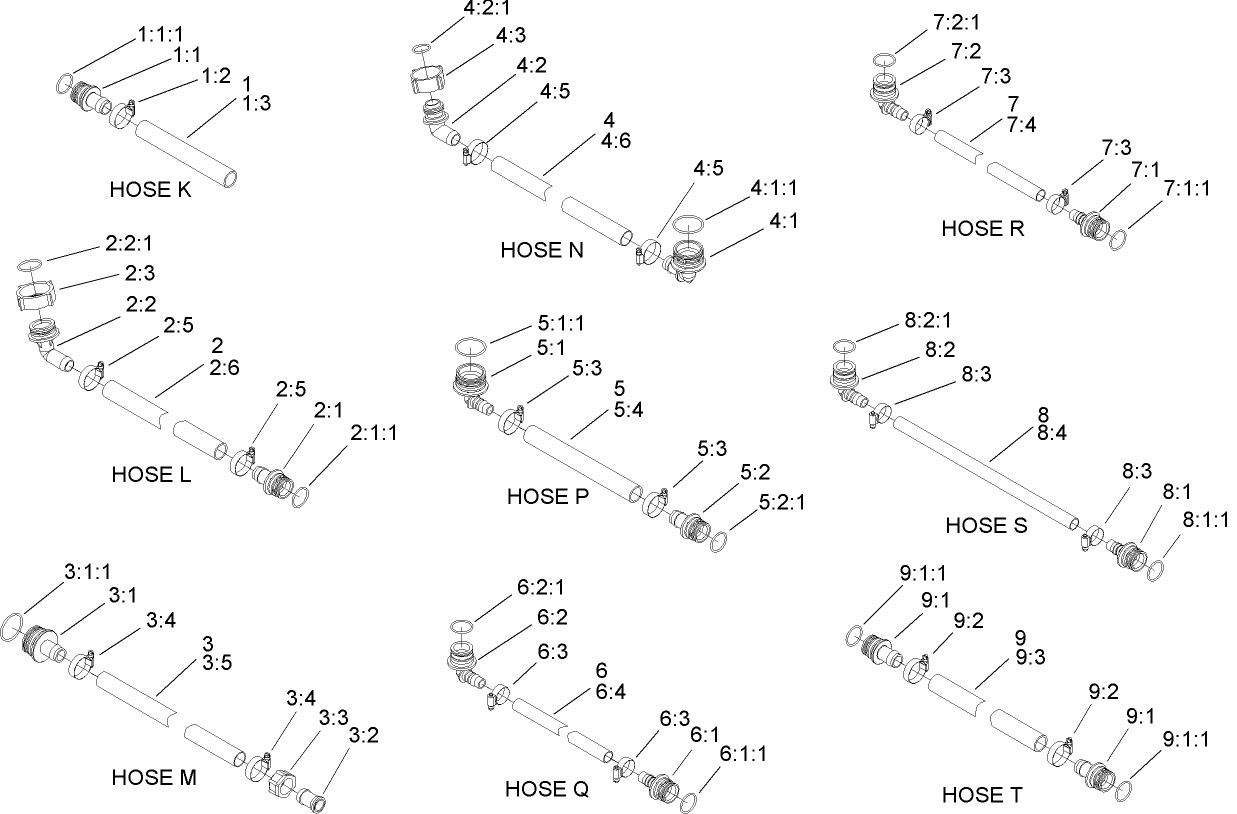

Hose Assembly No. 2

Hydraulic Brake Line Assembly

Hydraulic Cylinder Assembly No. 100-8278

Hydraulic Hose Routing Assembly

Ignition / Electrical Assembly Kohler CH20S-64647

LH Boom Mount Assembly No. 106-4961

Lid Assembly

Lower Sprayer Component Assembly

Main On/Off Valve Assembly No. 106-4881

Main Tank Assembly No. 106-5178

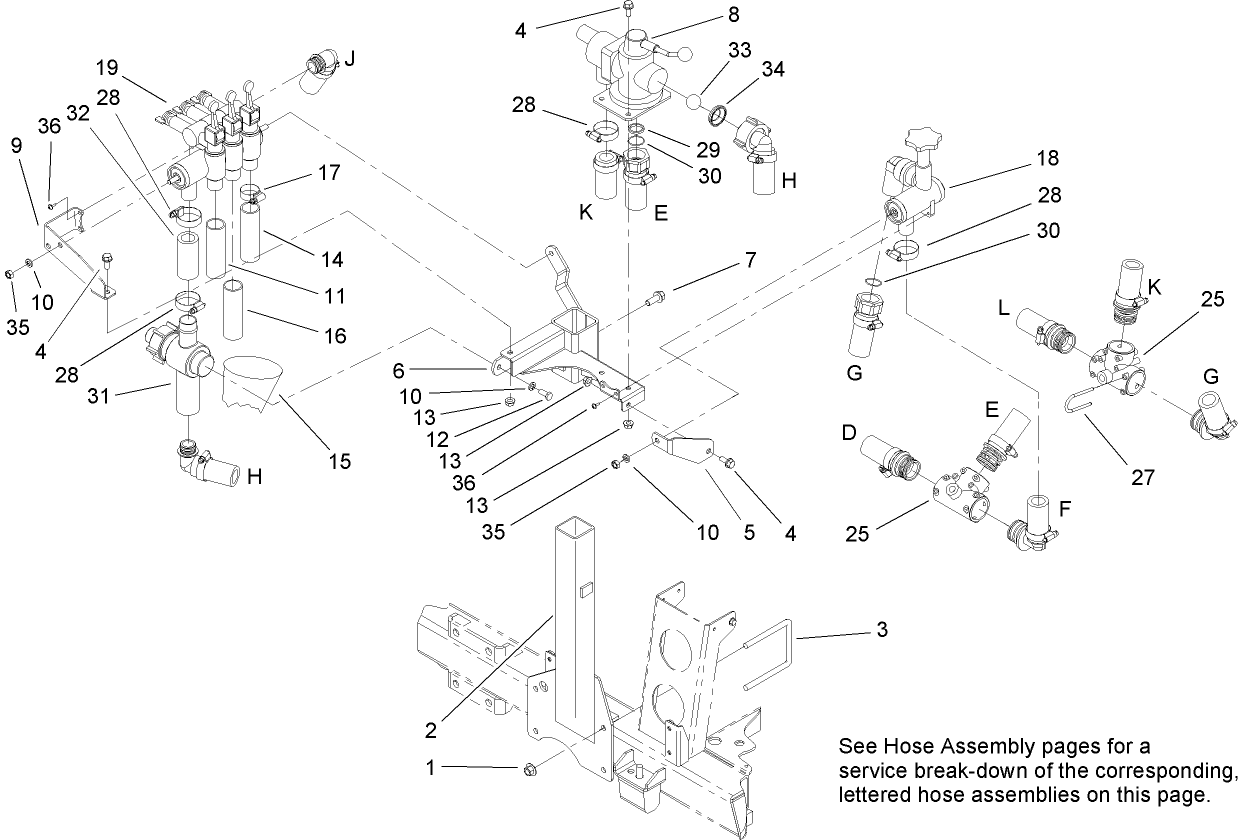

Manual Control Assembly

Master Cylinder Assembly No. 94-3800

Oil Pan / Lubrication Assembly Kohler CH20S-64647

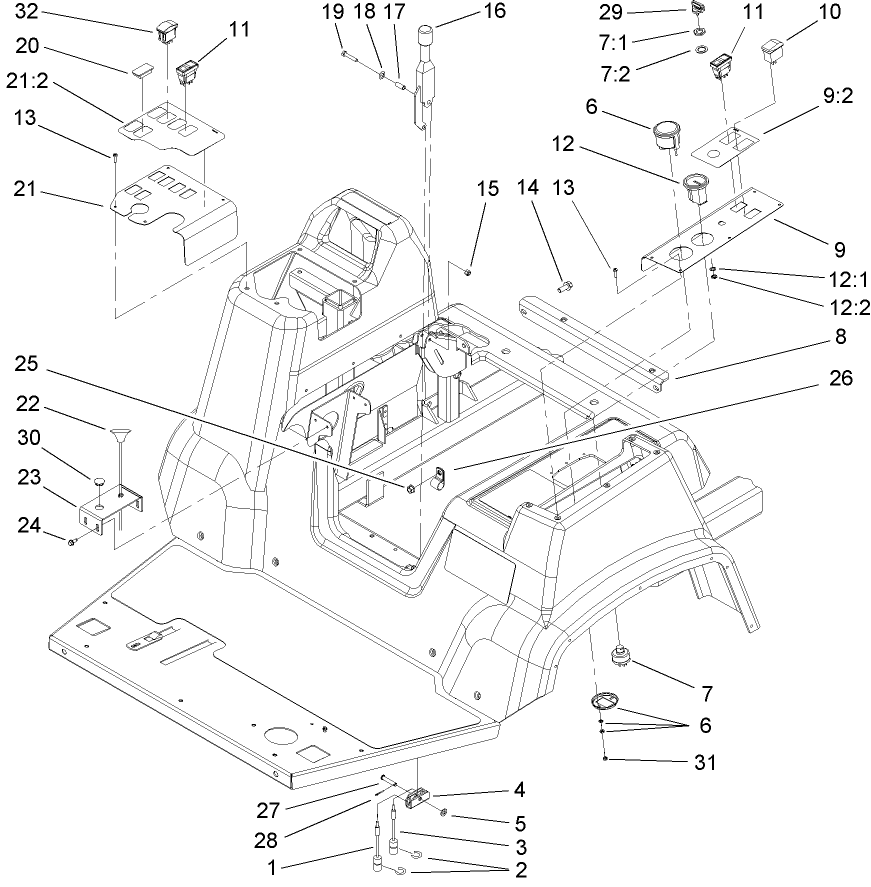

Parking Brake and Console Assembly

Pressure Control Valve Assembly

Pump Assembly

Pump Assembly No. 106-5121

Rear Brake Assembly No. 93-7125 (Right) and 93-7126 (Left)

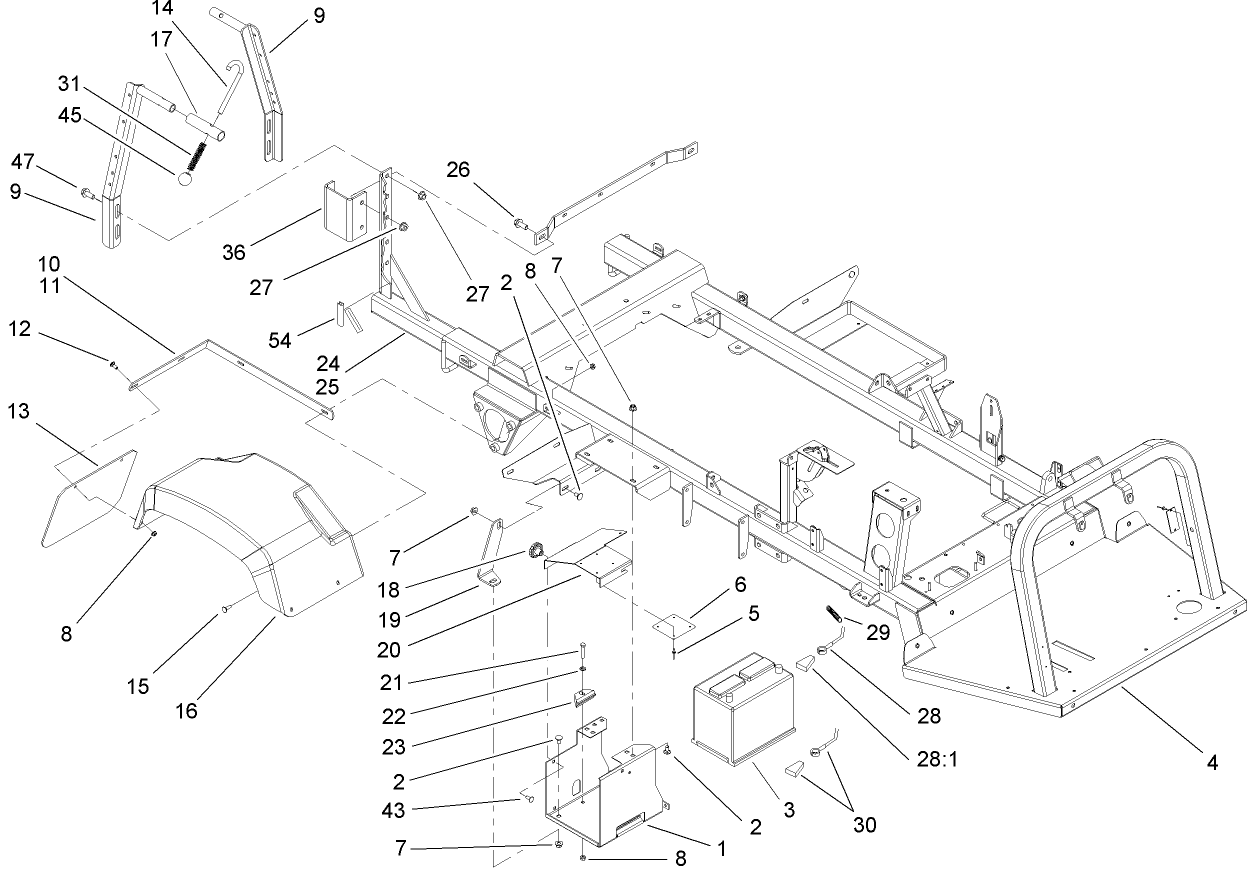

Rear Fender and Battery Mount Assembly

Rear Wheel Assembly

RH Boom Mount Assembly No. 106-4960

Safety Valve Assembly No. 100-6820

Seat Support Assembly

Shift Fork Assembly Transaxle Assembly No. 104-9078

Shifter Assembly

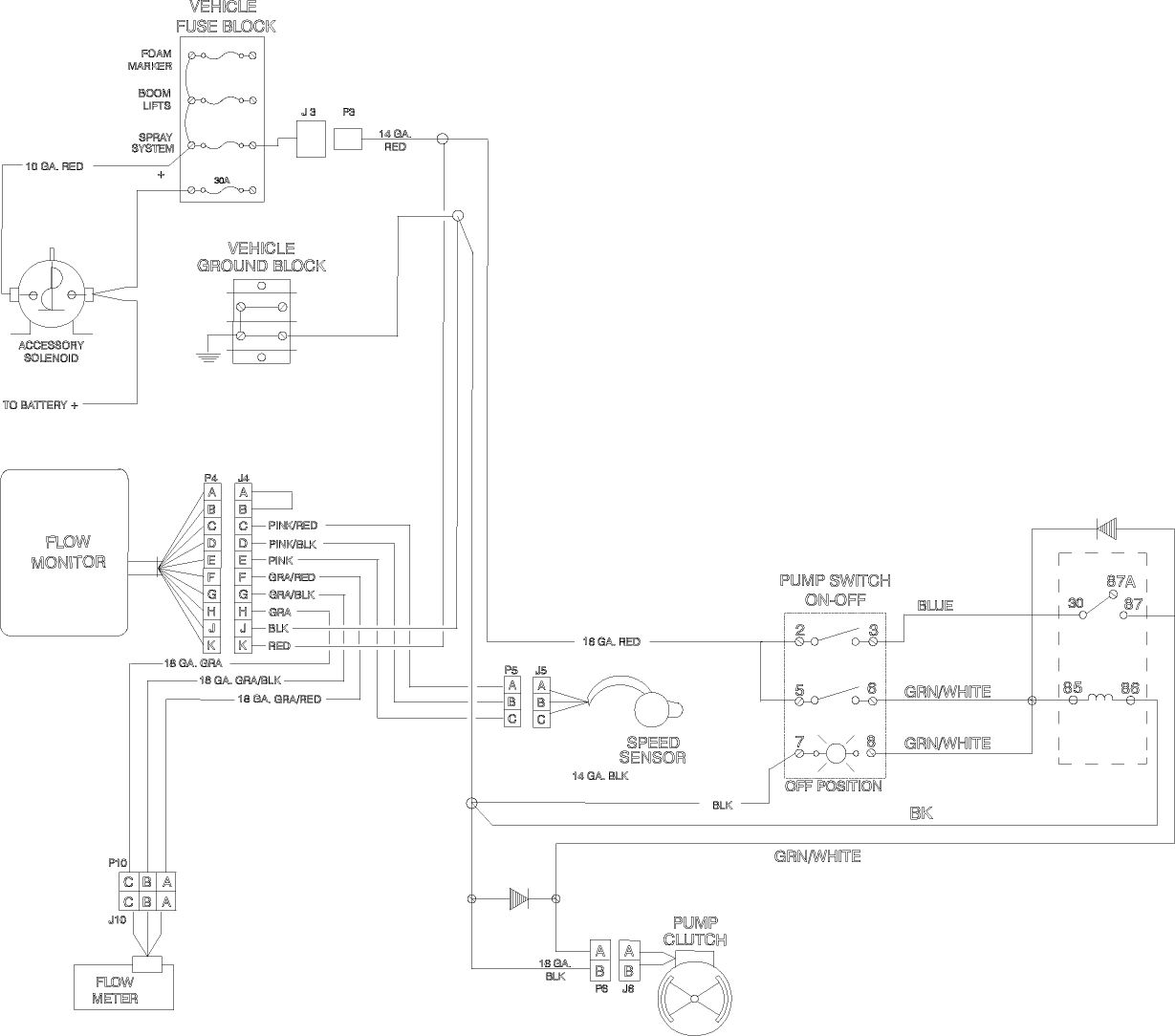

Spray System Electrical System

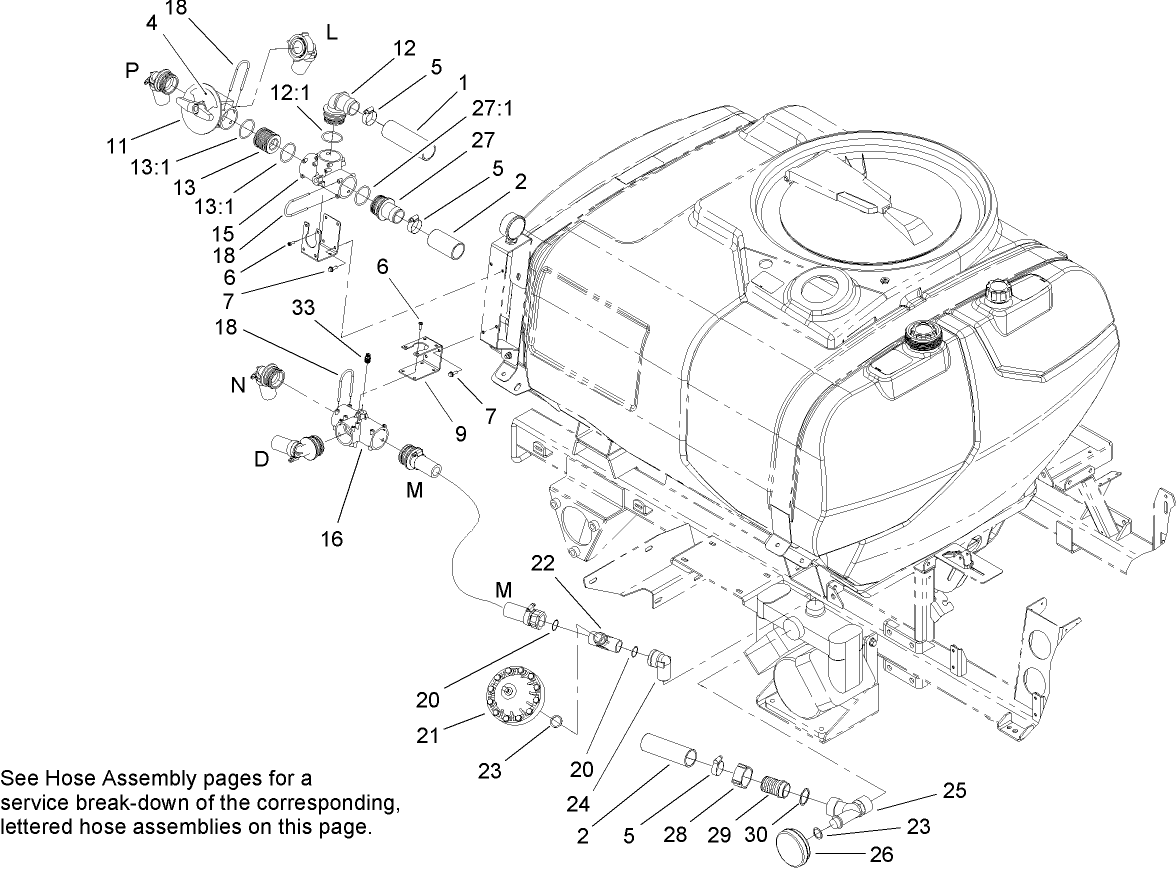

Sprayer Component Assembly No. 1

Sprayer Component Assembly No. 2

Starting System Kohler CH20S-64647

Steering Control Assembly No. 114-5076

Steering Pump Assembly No. 100-8302

Tank and Saddle Assembly

Tank Drain Assembly

Throttle Linkage Assembly

Top Mounted Suction Assembly

Transaxle Case Assembly Transaxle Assembly No. 104-9078

Transaxle Gear Shaft Assembly Transaxle Assembly No. 104-9078

Transaxle Installation Assembly

Vehicle Electrical Schematic

Vehicle Hydraulic Schematic

Download Parts Catalog

Manuals

Service Manual
- English (03112SL)
Operator's Manual
EU Declaration of Conformity
- EN,FR,DE,PT,FI,NL,NO,SV,ES,IT,DA,EL,SL,CS,ET,HU,LV,LT,PL (107-8630)
Reference Guide
- English (3351-389)
Service Bulletin

Accessories

Pump Rebuild Kit, stainless hardware (Part # 106-5150)

Single Nozzle Kit, Multi-Pro Turf Sprayers (Part # 41024)

Sonic Boom, Workman and Multi-Pro Sprayers (Part # 41089)

Spray Gun Kit, Multi-Pro 1200/1250 Turf Sprayer and Workman 200 Spray (Part # 41133)

Electric Hose Reel Kit, 2004 and Before Multi-Pro 1200/1250 Turf Spray (Part # 41134)

Pro Foam Concentrate (Part # 41157)

Enclosed Boom, Multi-Pro 1100 (Part # 41355)

Enclosed Walking Boom (Part # 41358)

Enclosed Walking Boom Trailer (Part # 41359)

Mounting Kit for Enclosed Boom (Part # 41360)

Roll-Over Protection System, Multi-Pro 1200/1250 Turf Sprayer (Part # 41361)

Foam Marker Kit, Multi Pro 1200/1250/5600 Turf Sprayers (Part # 41572)

1.0 GPM Stainless Steel Nozzle (Part # 95-9188)

Toro 1.0 GPM OEM Stainless Steel Nozzle

0.2 GPM Stainless Steel Nozzle (Part # 95-9221)

Toro 0.2 GPM OEM Stainless Steel Nozzle

0.4 GPM Stainless Steel Nozzle (Part # 95-9222)

Toro 0.4 GPM OEM Stainless Steel Nozzle

0.5 GPM Stainless Steel Nozzle (Part # 95-9223)

Toro 0.5 GPM OEM Stainless Steel Nozzle

0.6 GPM Stainless Steel Nozzle (Part # 95-9224)

Toro 0.6 GPM OEM Stainless Steel Nozzle

0.8 GPM Stainless Steel Nozzle (Part # 95-9225)

Toro 0.8 GPM OEM Stainless Steel Nozzle

1.5 GPM Stainless Steel Nozzle (Part # 95-9226)

Toro 1.5 GPM OEM Stainless Steel Nozzle
