Professional 2000 Series MyRIDE® Petrol Z Master® 132 cm 77292TE
Product Information
- Model number: 77292TE
- Serial number: 408875659 - 409999999
- Product Type: Riding Products
Loading...

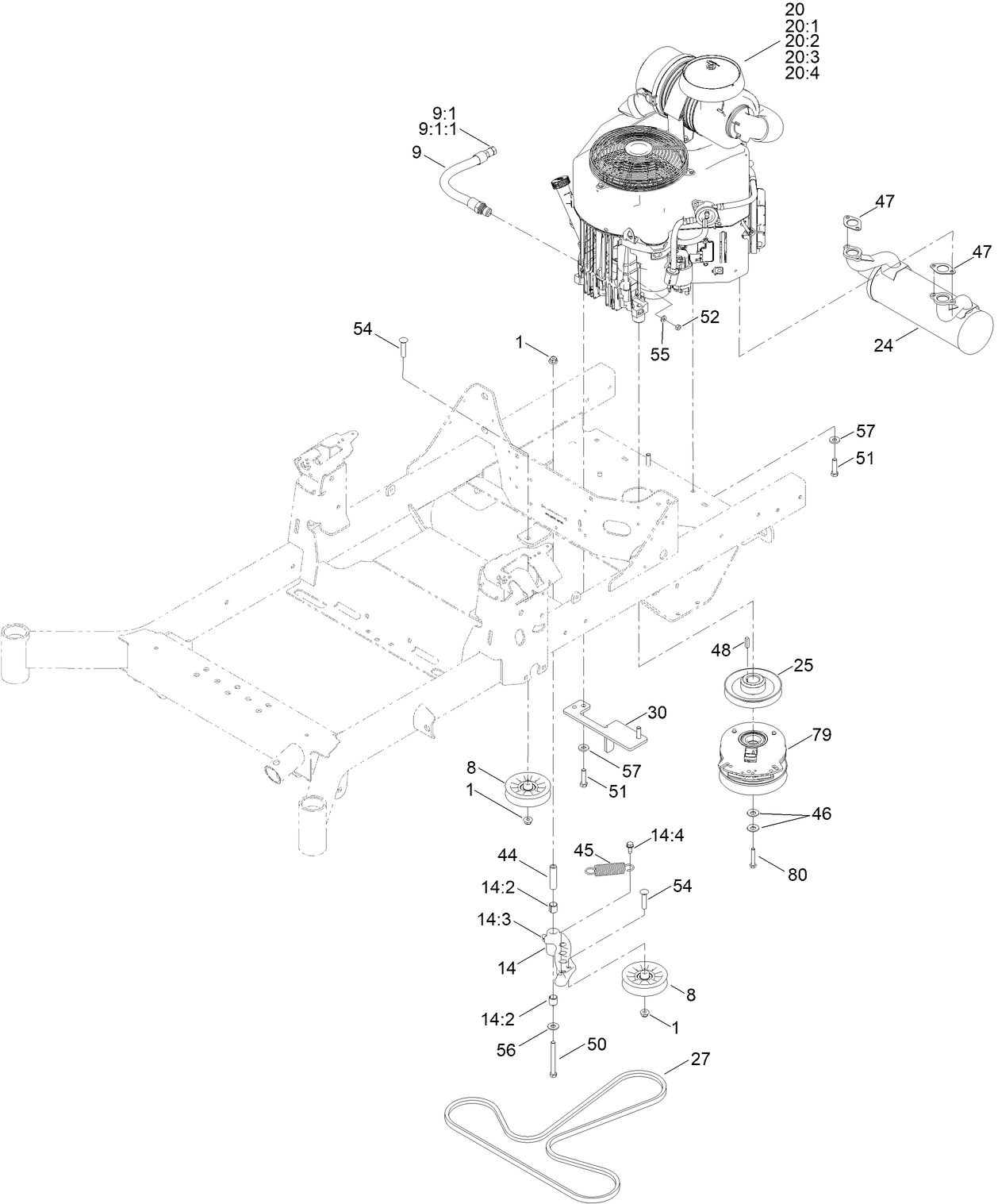

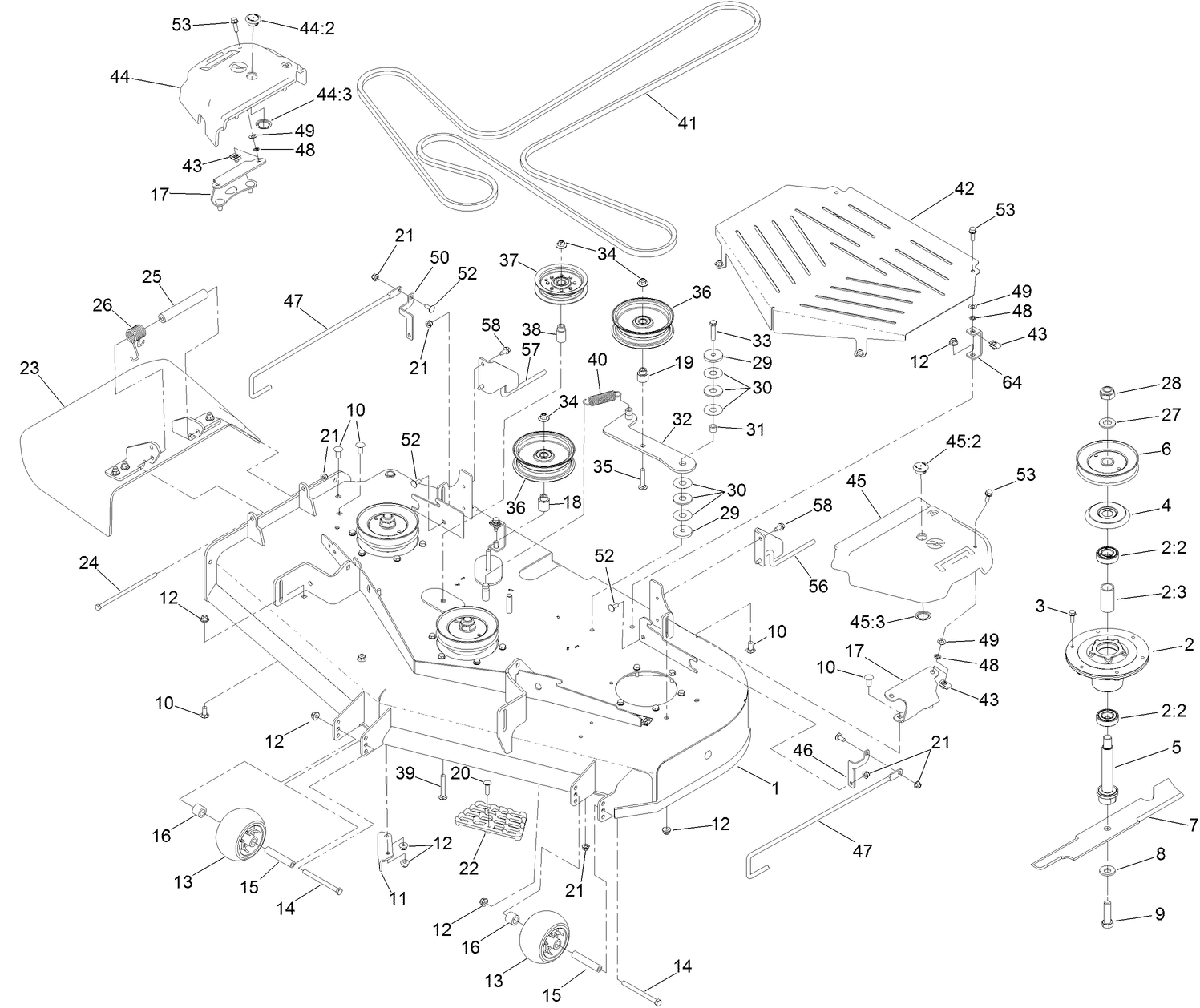

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Product Warranty
-
EU Declaration of Conformity
-
Setup Instructions
-
EU/UK Declaration of Conformity
HYPR-OIL 500 -QUART (Part number 114-4713)
HYPR-OIL 500-GALLON (Part number 114-4714)
HYPR-OIL 500-5 GALLON (Part number 114-4715)
KIT-HYDRO TORO, H-G (Part number 121-3783)
PORT-POWER, 12V (Part number 126-6499)
Sunshade Kit (Part number 126-8077)
COVER-HITCH (Part number 126-8299)
Trash Container Kit, TITAN HD Riding Mower (Part number 126-8379)
KIT-CASTER WEIGHT (Part number 126-8639)
52in Recycler Kit, TITAN HD 1500 or 2000 Series Riding Mower (Part number 126-8702)
CE Kit, 52in E-Z Vac Bagger for Titan HD Riding Mower (Part number 126-9361)
Jack Kit, Zero-Turn-Radius Side-Discharge or Rear-Discharge Riding Mow (Part number 127-6666)
MVP Belt and Blade Kit, TITAN HD 1500 or 2000 Series Riding Mower with (Part number 127-6794)
KIT-ENGINE MAINT KAWASAKI FX [TORO] (Part number 133-1307)
BLADE-ROTARY, 18.0IN (HI FLOW) (Part number 133-2134)
BLADE-ROTARY, ATOMIC 18.0 (Part number 133-2159)
BLADE-ROTARY, RECYCLING 18.0IN (Part number 133-2162)
BLADE (6 PACK) 18IN HI FLOW 52IN DECK (Part number 133-2175)
BLADE (6 PACK) 18IN RECYCLE 52IN DECK (Part number 133-2178)
BLADE (6 PACK) 18IN ATOMIC 52IN DECK (Part number 133-2181)
BUCKET-5 GALLON (Part number 133-2533)
Trimmer Mount Kit, Titan HD Series Riding Mower (Part number 136-1682)
ROPS Pin Kit, TITAN HD Riding Mower (Part number 136-1683)
Bucket Mount Kit, Titan HD Series Riding Mower (Part number 136-9045)
Universal Mount Kit, Titan HD Series Riding Mower (Part number 136-9046)
KIT-TITAN HD TRIPLE THREAT ATTACHMENT (Part number 136-9047)
HD Shock and Spring Kit, TimeCutter HD Riding Mower (Part number 137-2042)
ASM-SEMI PNEUMATIC 13X6.50-6 (Part number 140-4896)
Tilt Sensor-Radius (Part number 142-2802)
KIT-LIGHT (MID-MOUNT ZRT MOWER) (Part number 144-1992)
Toro Deluxe Z Cover (Part number 490-7319)
HD BAGGER KIT (Part number 78431)
52IN COMPLETION KIT - HD BAGGER 5.0 (Part number 78434)
EZ VAC BAGGER - STANDARD (Part number 78481)
52IN COMPLETION KIT - STD BAGGER 5.0 (Part number 78484)
-
Model number
77292TE -
Serial number
408875659 - 409999999 -
Product Name
Professional 2000 Series MyRIDE® Petrol Z Master® 132 cm 77292TE -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Commercial 2000 Series -
Chassis Type
ZRT - LCE -
Swath
52 inch / 132 cm -
Discharge
Side Discharge -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
23.5 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Battery
12V 300CCA -
Engine: Spark Plug
NGK BPR4ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Engine Speed
3200±100 RPM -
Chassis: Height of Cut Range
1.5" - 5" (38-127mm) -
Chassis: Tire Pressure
13 psi / 90 kPa -
Engine: Engine Oil Type
filter change 2.2 qts. (2.1 L); no filter 1.9 qts. (1.8 L) SAE 30 -
Drive System: Gearbox Lubricant
HYPR-OIL 500 / 20w-50 Synthetic Motor Oil
