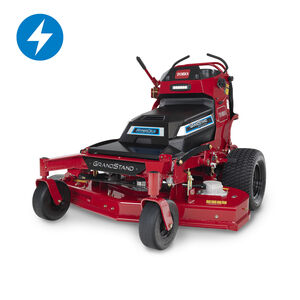

Revolution® GrandStand® 132 cm 18850TE
Product Information
- Model number: 18850TE
- Serial number: 414300000 - 999999999
- Product Type: Riding Products
Loading...
Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Product Warranty
-
Setup Instructions
-
EU/UK Declaration of Conformity
Leaf Bagging Enhancement Kit (Part number 107-1634)
HOC SET BLOCKS-GRANDSTAND (Part number 133-1439)
ANTI-SCALP KIT, 48/52 GRANDSTAND DECKS (Part number 133-1440)
OIL-GEAR, SYNTHETIC, QUART (Part number 144-6880)
BLADE-18.0IN, MED SAIL (Part number 145-3504-03)
BLADE-18.0IN, RECYCLER (Part number 145-3507-03)
KIT, STAND-ON WEIGHT (Part number 147-0200)
RECYCLER KIT-G3/GRANDSTAND, 52 (Part number 147-0310)
KIT, HARNESS-ADAPTER (Part number 147-1612)
3bu. Soft Bagger, 36" and Larger Mower Decks (Part number 30104)
-
Model number
18850TE -
Serial number
414300000 - 999999999 -
Product Name
Revolution® GrandStand® 132 cm 18850TE -
Product Brand
Toro -
Product Type
Riding Products -
Chassis Type
Stand On -
Swath
132 cm -
Discharge
Side Discharge -
Transmission Type
Electric/Gear -
Traction Type
Rear WD
-
Chassis: Height of Cut Range
1.5" - 5" (38-127mm) -
Drive System: Ground Speed
0-10 mph / 0-16kph -
Chassis: Tire Pressure
12-14psi (83-97kPa) -
Drive System: Gearbox Lubricant
5.0 Oz. TORO HV SYNTHETIC ELECTRIC MOTOR OIL
