14-38Z TimeCutter Z Riding Mower
Product Information
- Model #: 74301
- Serial #: 240000894 - 240999999
- Product Type: Riding Products
Loading...

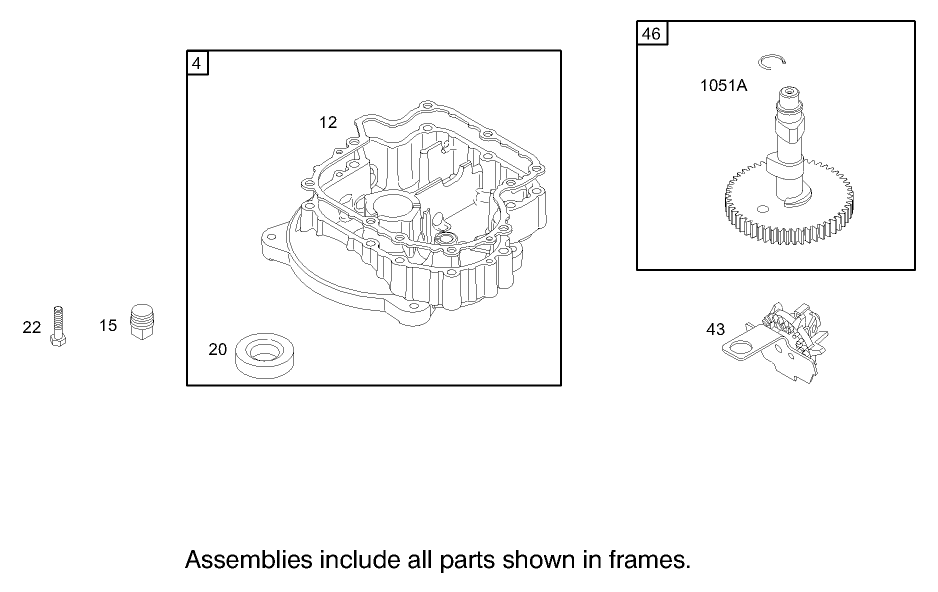

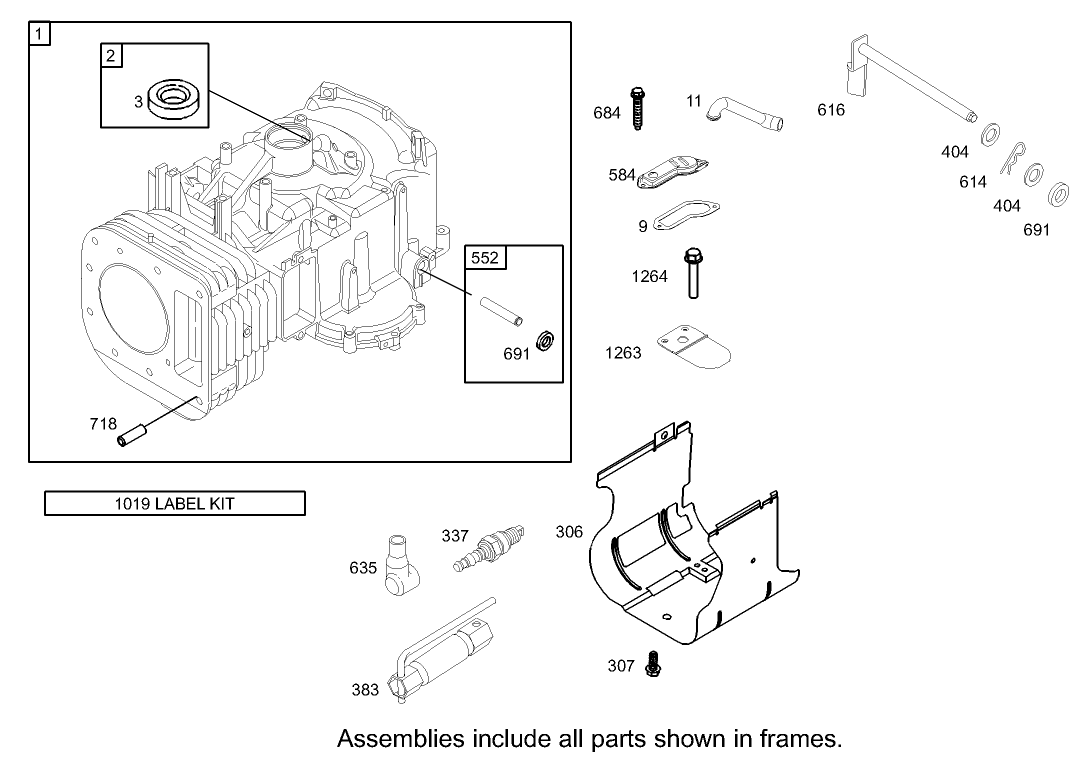

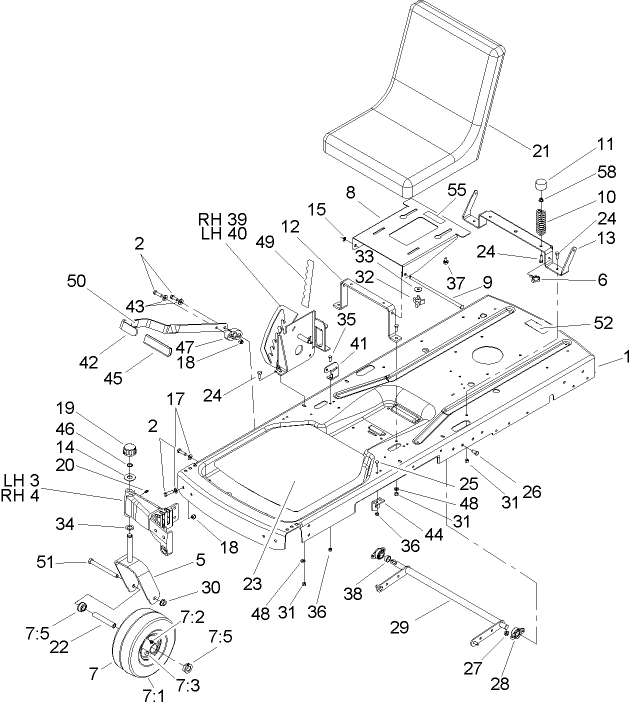

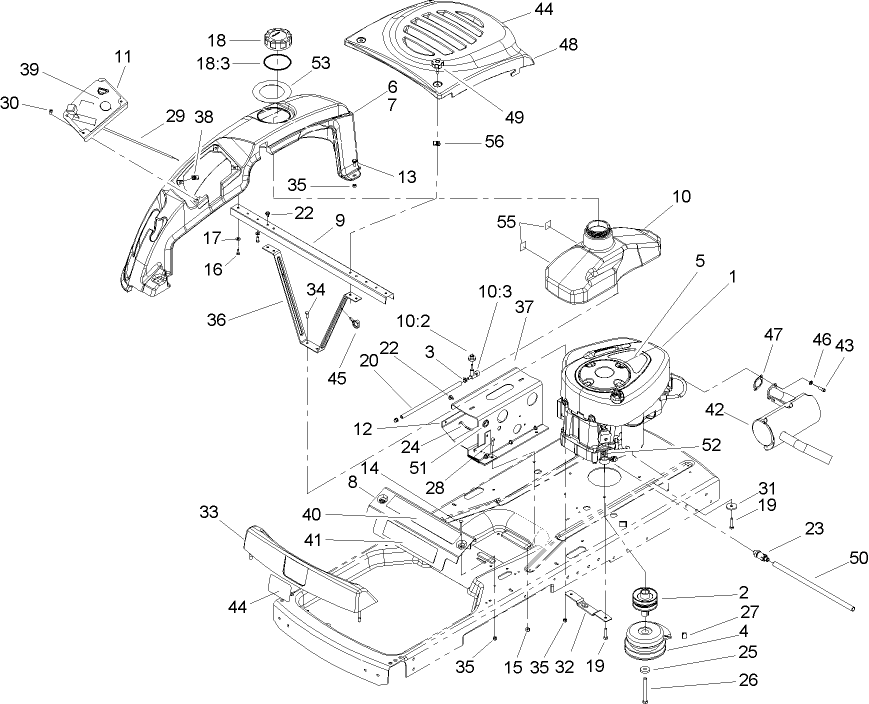

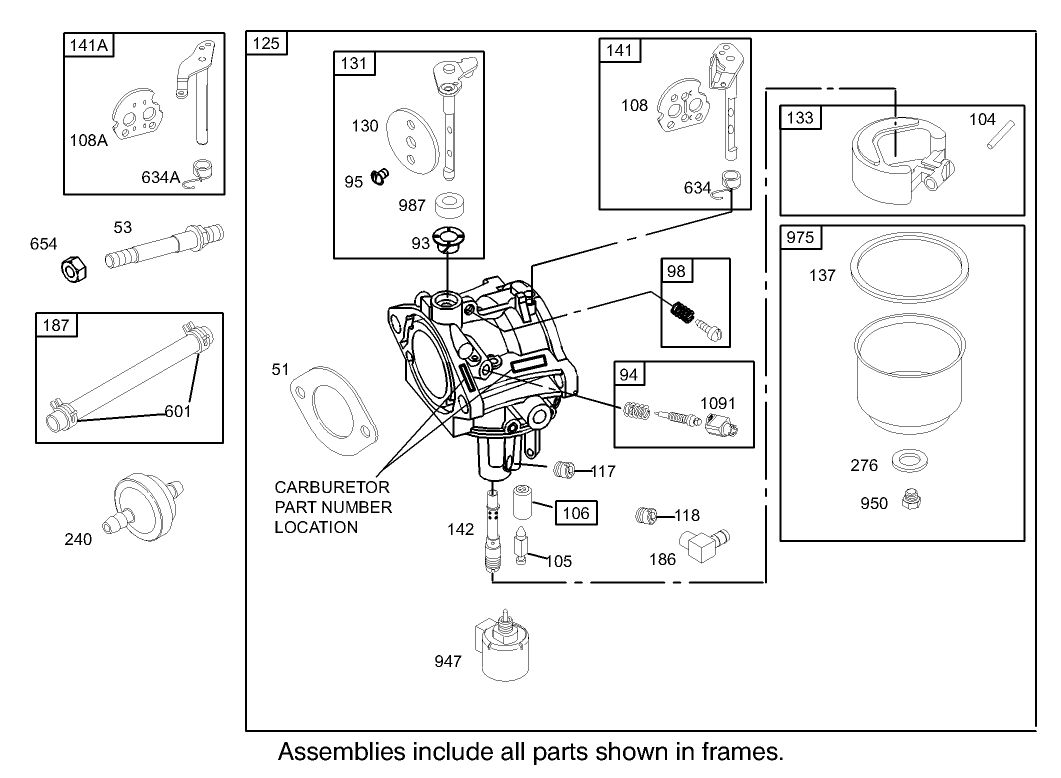

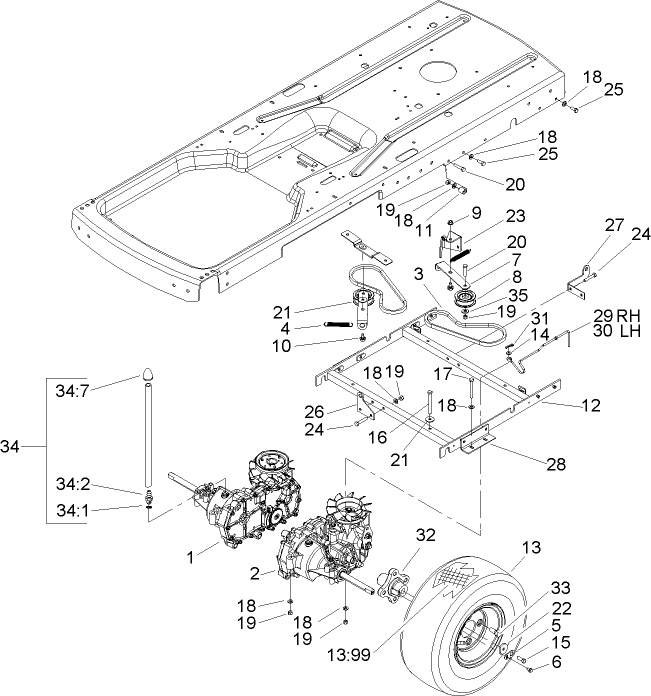

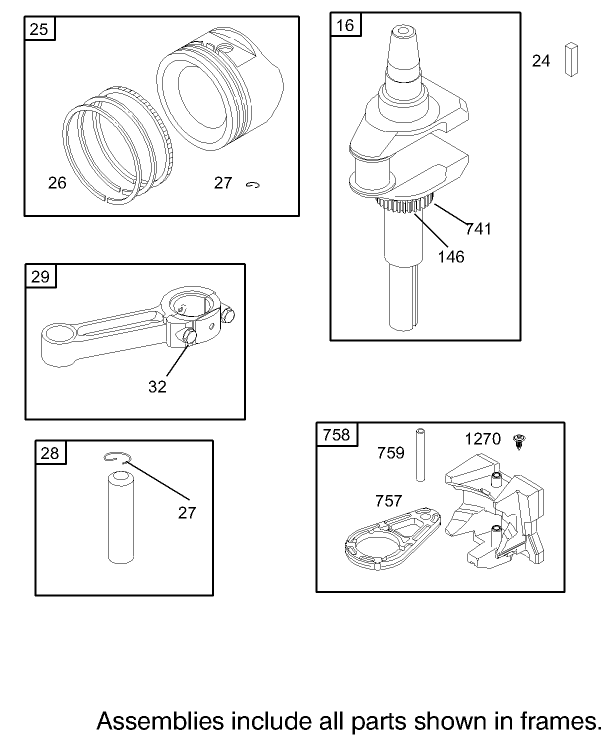

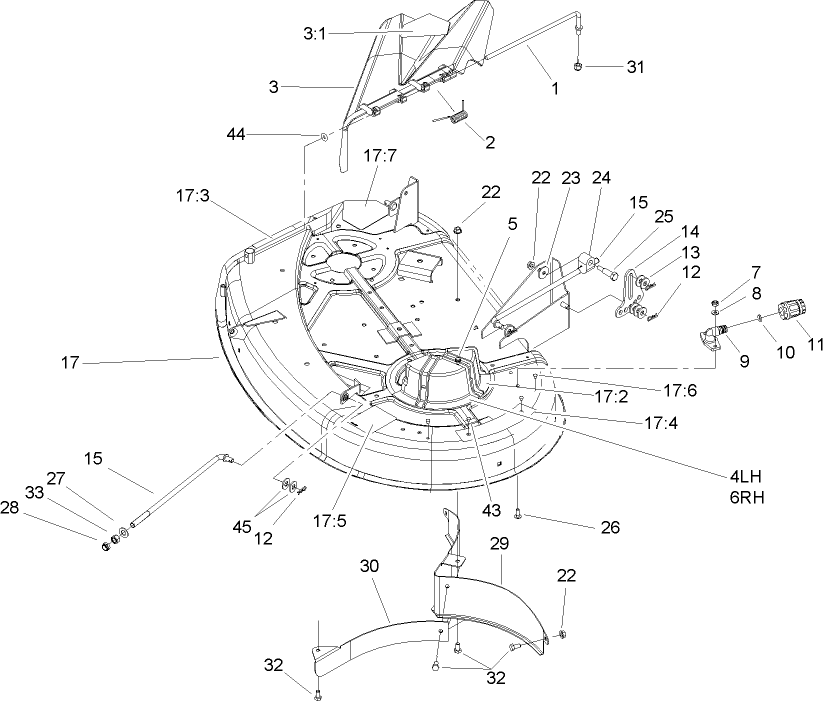

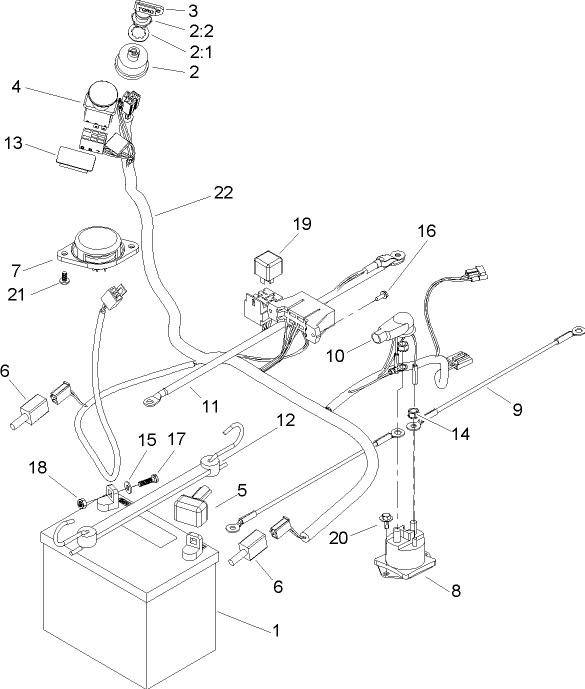

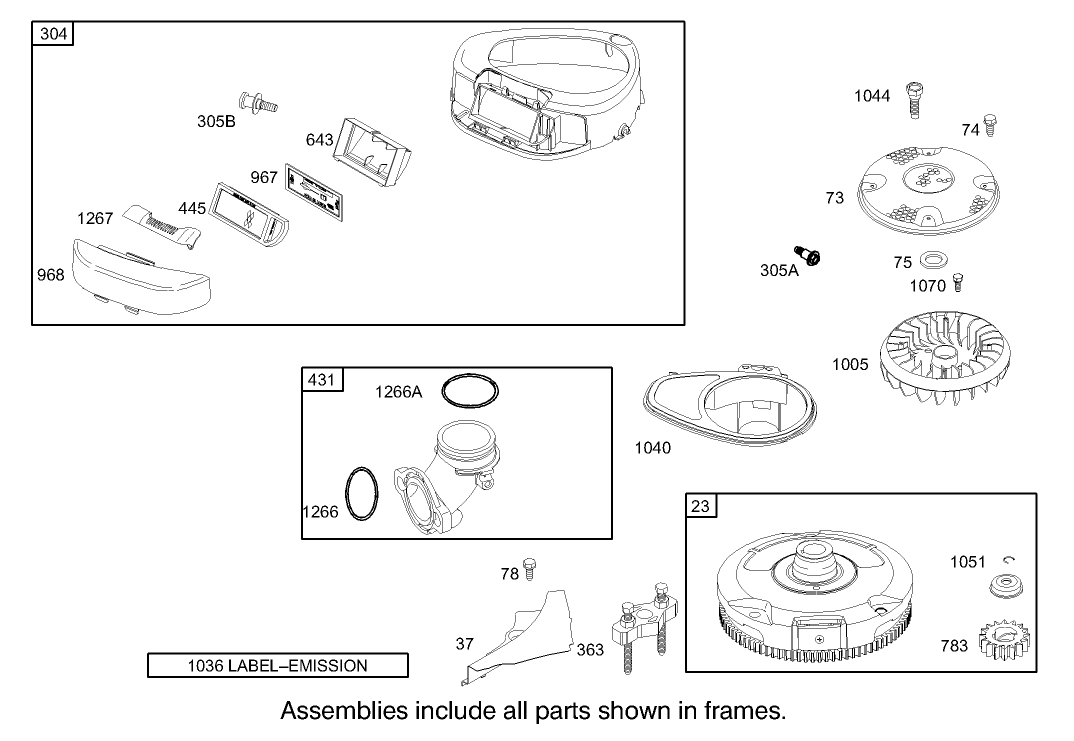

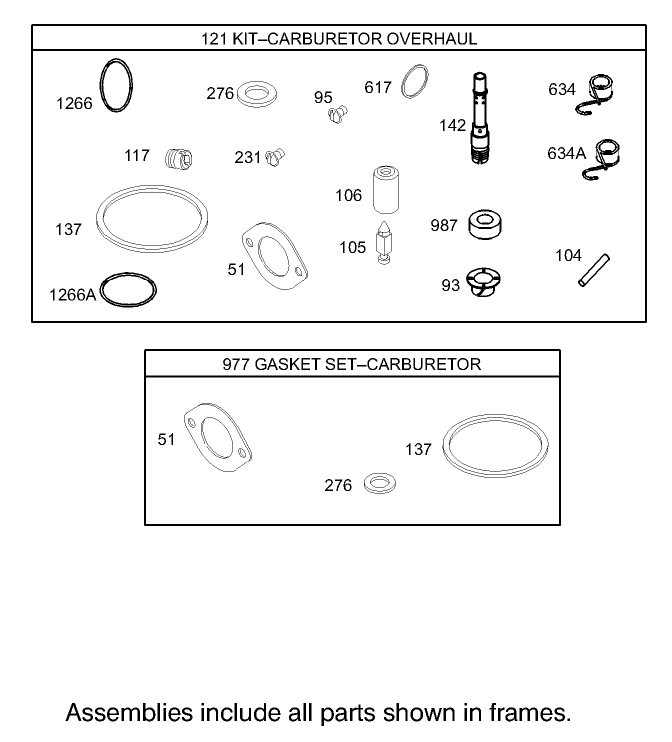

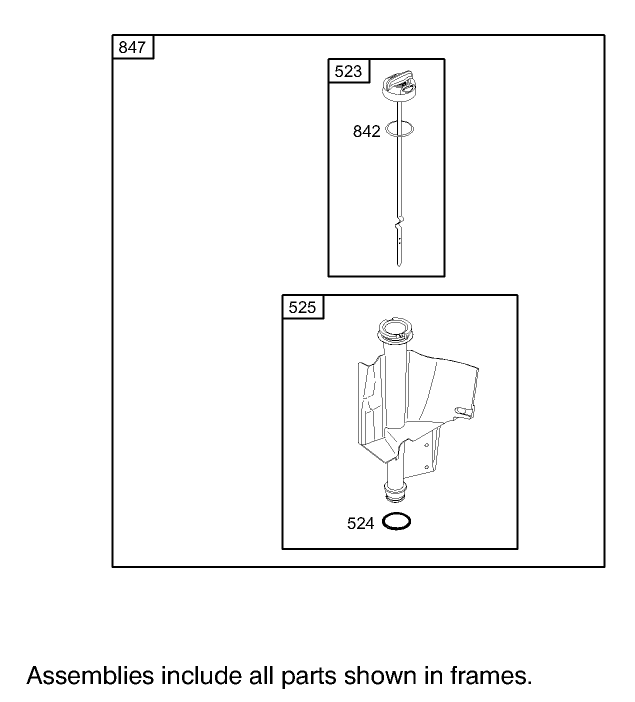

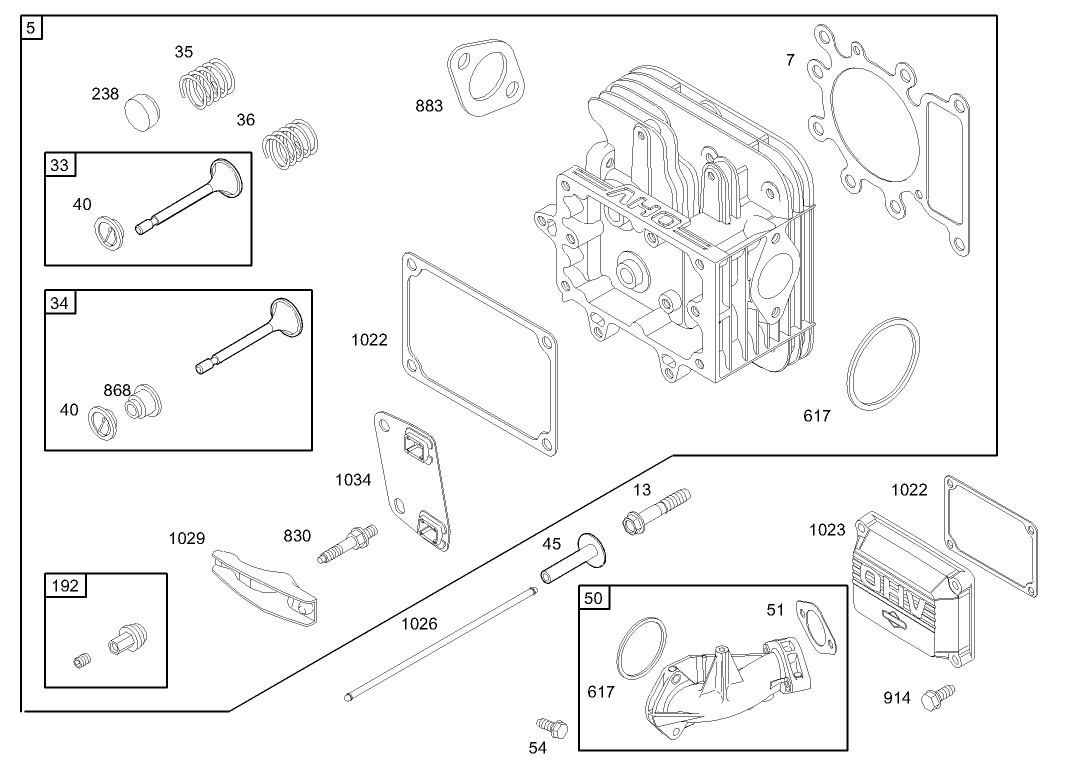

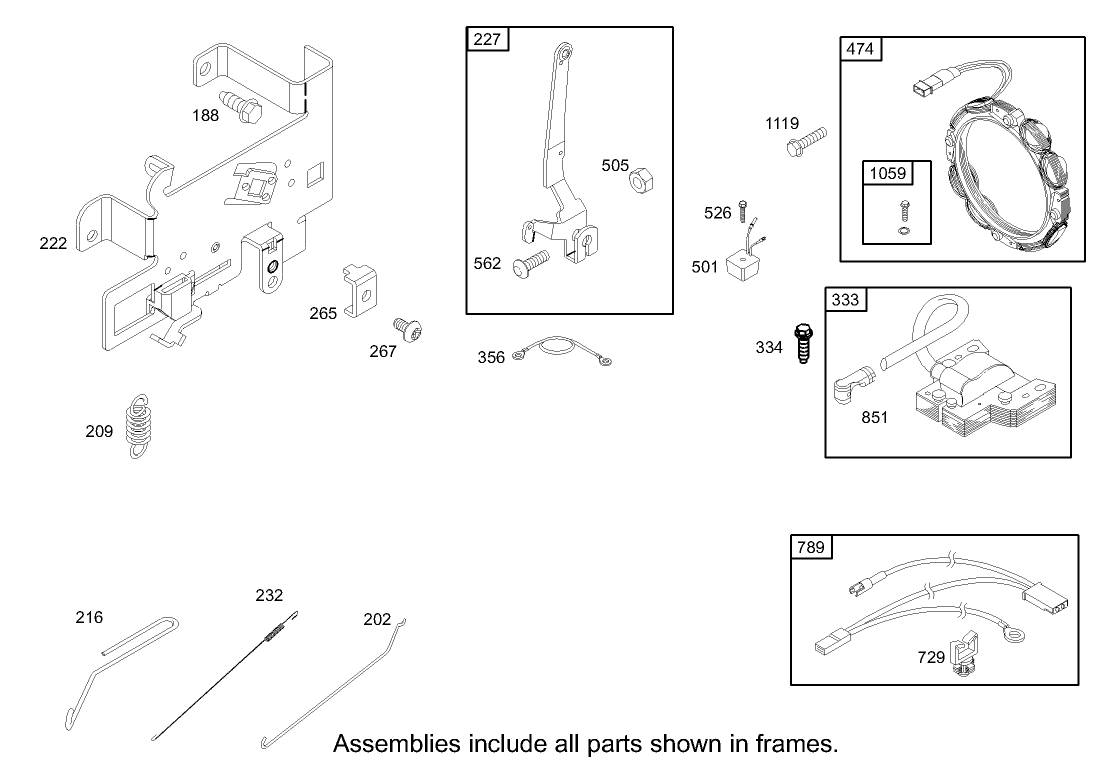

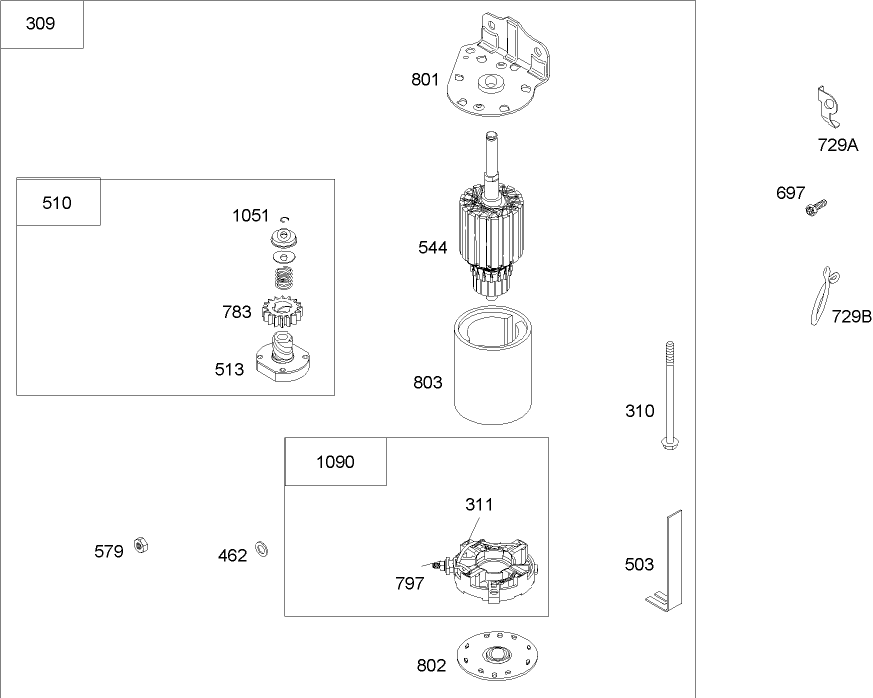

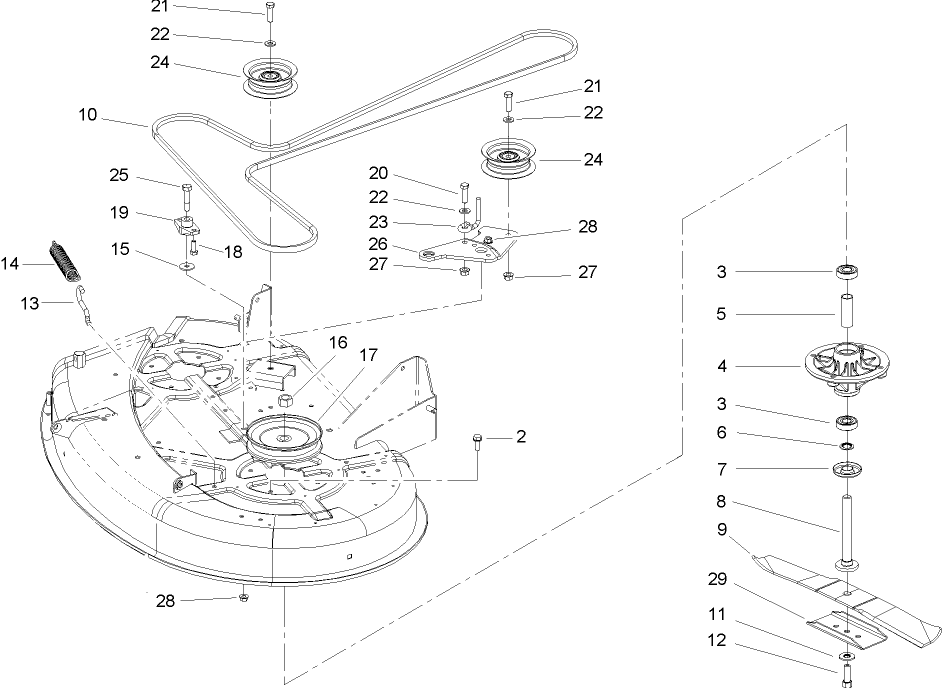

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Setup Instructions
-
Addendum
Smooth Caster Wheel Kit (Part # 105-1856)
Genuine OEM Part
Please contact your local dealer
TimeCutter Arm Rest Kit (Part # 105-6978)
The Toro Armrest kit provides extra comfort while using your Toro 32 and 42 in. TimeCutter SS, SW or MX manufactured in 2002 or later. The padded arm rests are contoured to provide comfortable support while still providing optimum motion for mower operation. The pivoting design provides easy seat access while getting on and off the mower.
38 inch Anti-Scalp Kit (Part # 106-7020)
Genuine OEM Part
Toro Red 12or aerosol can. (Part # 361-10)
Genuine OEM Part
Red Paint (Gallon) (Part # 361-11)
Genuine OEM Part
Red Paint (Part # 5340)
Genuine OEM Part
38 Inch Twin Bagger (Part # 79215)
48" Snow Blade (Part # 79216)
-
Model #
74301 -
Serial #
240000894 - 240999999 -
Product Name
14-38Z TimeCutter Z Riding Mower -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Consumer -
Chassis Type
ZRT - Consumer -
Swath
38 inch -
Discharge
Side -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Size
14 hp -
Engine/Motor Type
4 Cycle CARB2, EPA2 -
Engine Starter
Electric -
Transmission Type
Hydrostatic
-
Chassis: Tire Pressure
Front 35 PSI / 2.5kg sq. cm, Rear 13 PSI / .9kg sq. cm -
Drive System: Ground Speed
Fwd. 0 - 6.5 Rev. 0 - 3.4 mph -
Engine: Battery
12V 260CCA -
Engine: Engine Speed
High 3300, Low 1500 RPM -
Engine: Spark Plug
Champion RC12YC -
Engine: Spark Plug Gap
.035"/ .9mm
