53cm Recycler Mower
Product Information
- Model #: 20786
- Serial #: 8900001 - 8999999
- Product Type: Walk Behind Mowers
Loading...

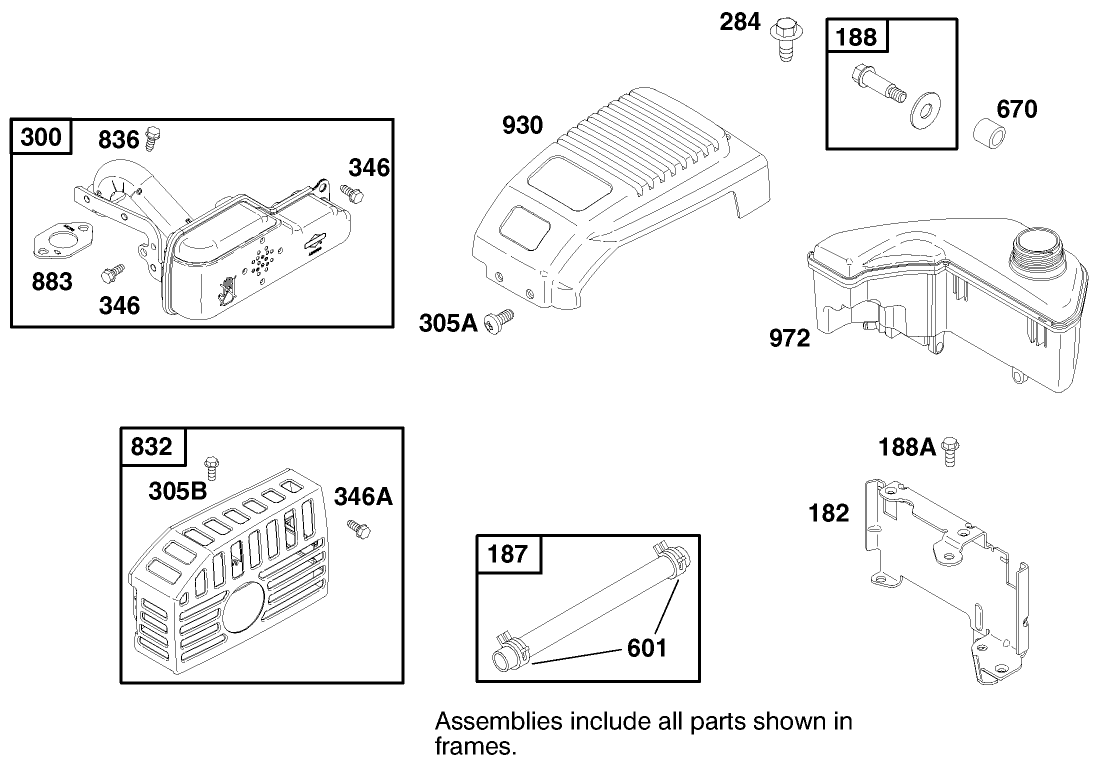

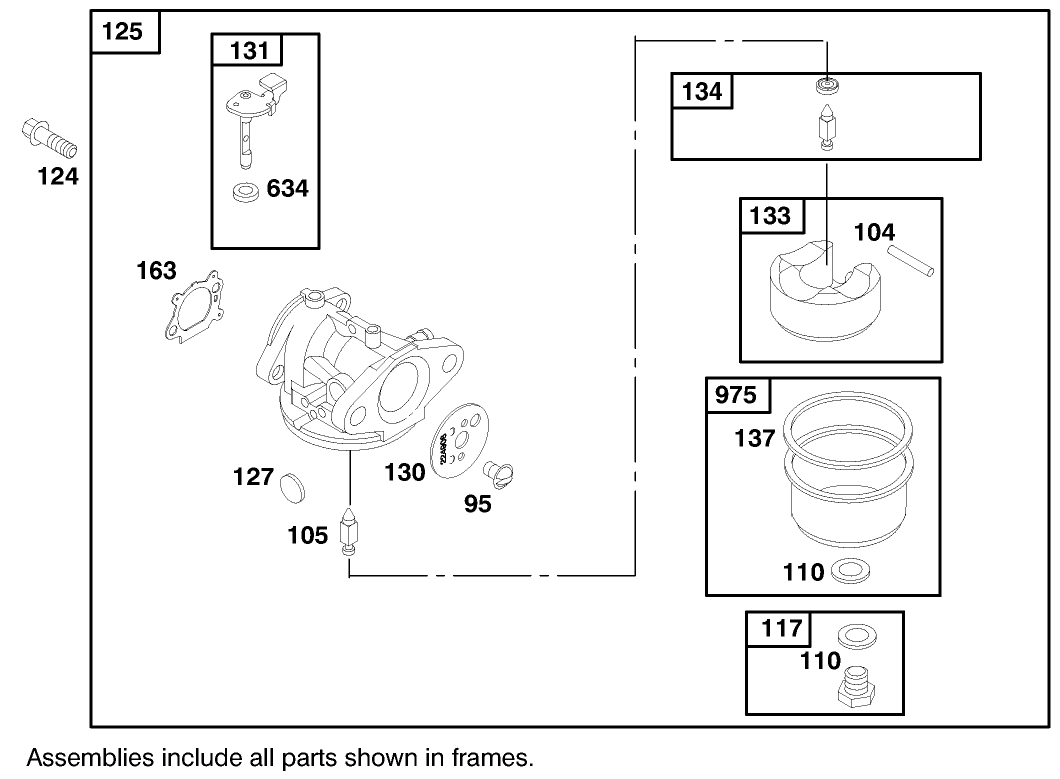

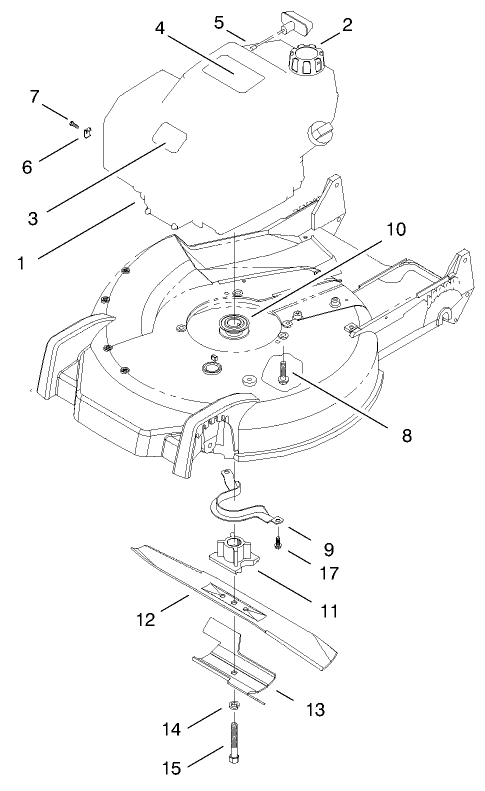

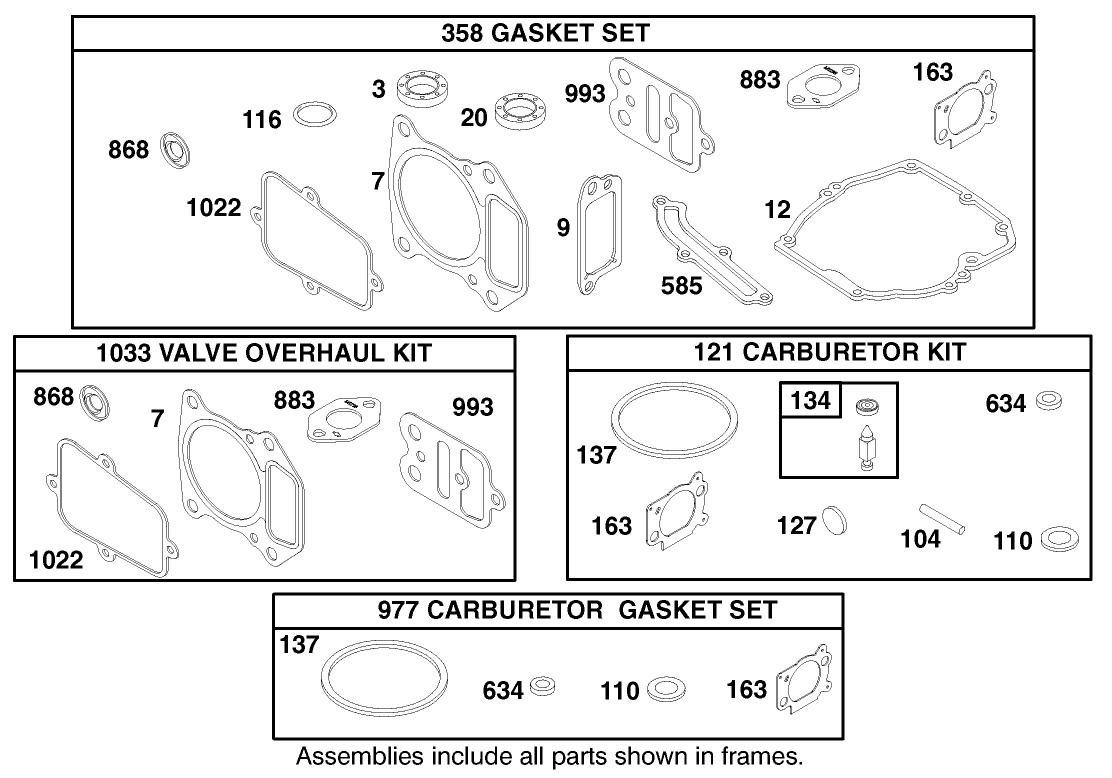

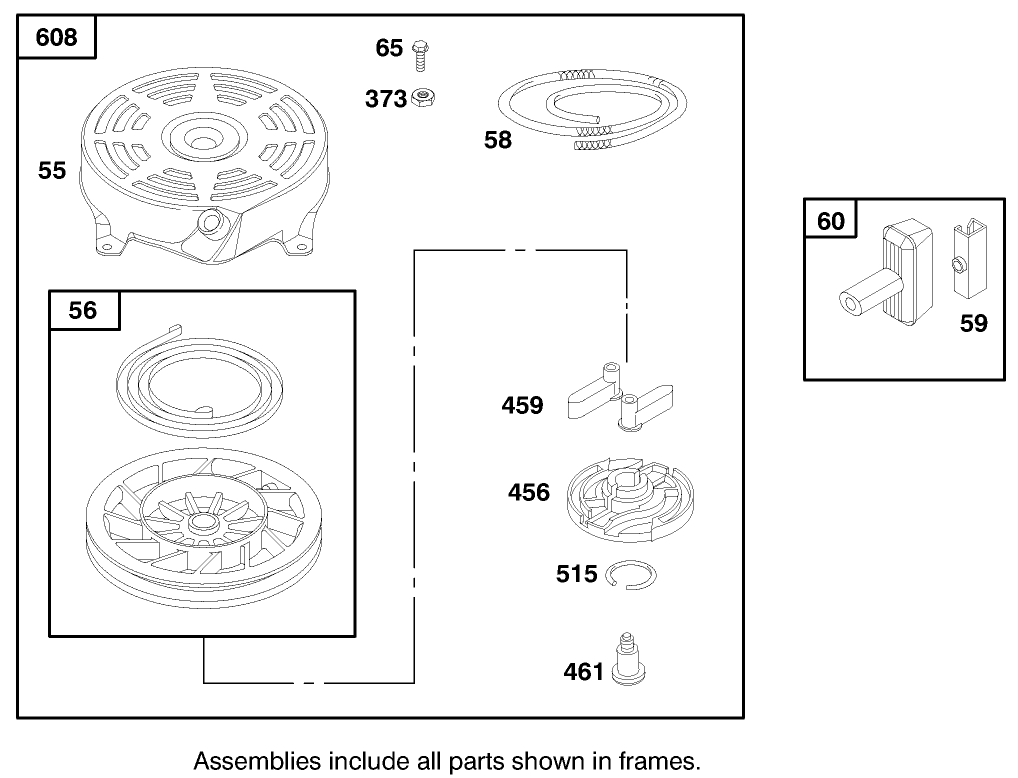

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
Side Discharge Kit (Part # 59113)
-
Model #
20786 -
Serial #
8900001 - 8999999 -
Product Name
53cm Recycler Mower -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
21" (53cm) 3 in 1 / Recycler -
Chassis Type
Cast Deck WPM -
Swath
53cm -
Discharge
Recycler -
Engine/Motor Manufacturer
Toro/Briggs & Stratton -
Engine/Motor Size
6 hp -
Engine/Motor Type
4 Cycle CARB1, EPA1 -
Engine Starter
Recoil -
Transmission Type
Gear
-
Chassis: Height of Cut Range
1-3"; 1/2" increments -
Drive System: Gearbox Lubricant
6 oz. (170gm) #2 Lithium grease -
Drive System: Ground Speed
1.8 / 2.7 / 3.8 mph -
Engine: Engine Oil Type
22 oz. (.65l) 30w or 10w-30 / API SH or higher -
Engine: Engine Speed
3000±150 RPM -
Engine: Ignition Coil Air Gap
.008-.012" / .2-.3mm -
Engine: Spark Plug
Champion RC12YC -
Engine: Spark Plug Gap
.030"/ .76mm
