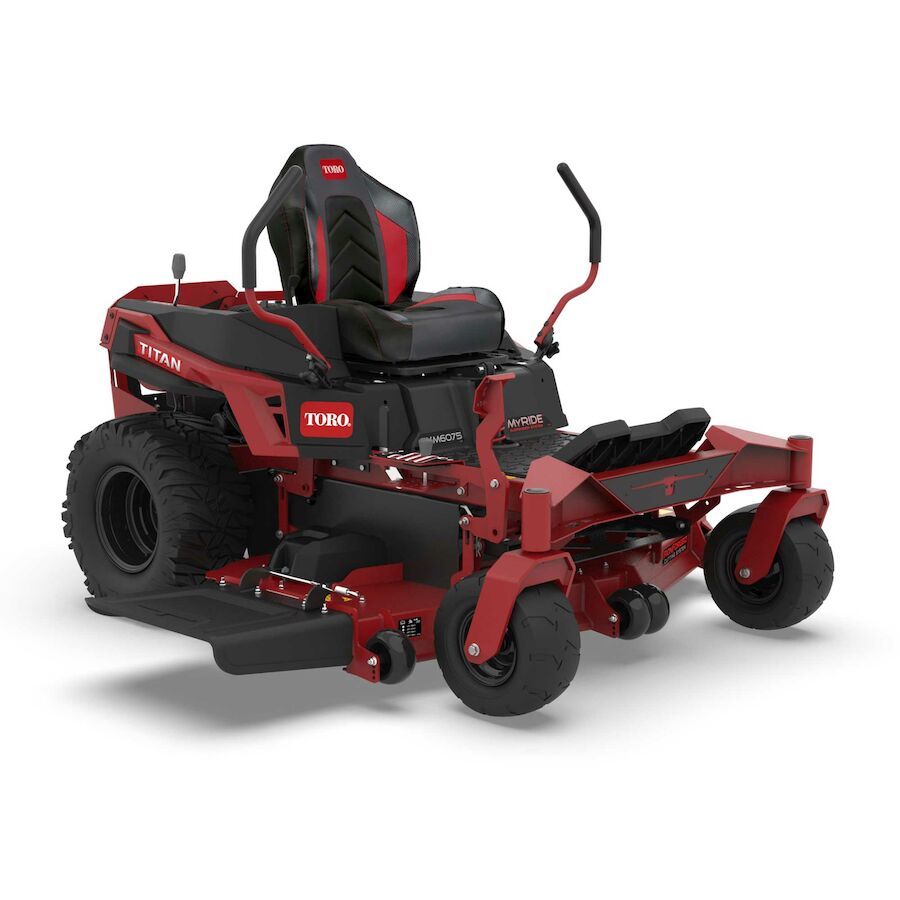

Titan® ZXM6075 152 cm Zero Turn Riding Mower 76635

Professional Grade Results In Comfort with Zero Turning Radius Technology
  • Model: 76635
  • UPC/EAN: 9310317766355
Find a Dealer
  • Keep comfortable with Toro's MyRIDE® Suspension System
  • Optional Hitch Kit turns your mower into a multi-tasking machine
  • Easily adjust height-of-cut with the deck lift pedal
  • Ultra-comfortable 46 cm high-back handcrafted seat with arm rests
  • Hourmeter makes determining when to service simple
  • Stay cool and hydrated with a built-in cup holder.

Overview

This petrol-powered Titan® ZXM6075 zero turn riding mower features a powerful Kohler® 725cc V-twin engine and a wide 152 cm cutting width, making it ideal for lawns as big as 10,000 square metres. Best of all, it keeps you comfortable while it does the work. The MyRide® Suspension System smooths out the bumps to help ensure a comfortable ride. Also smoothing the ride and delivering responsive manoeuvrability are dual hydrostatic drive systems with charge pumps that help keep the transmissions full of oil even when working at high speeds. A high-back seat and armrest add still more comfort. The three-blade Recycler deck makes quick work of even the thickest grass. A hitch kit comes standard, making it easy to attach a dump cart, fertiliser spreader and more (attachments sold separately).

Features

No more bumpy rides
No more bumpy rides
Save your body from the toughest terrain and avoid slow mowing speeds with the MyRIDE® Suspension System. Enjoy a more comfortable ride, keeping you productive and feeling fresh.
Optional Hitch Kit
Optional Hitch Kit
Transform your zero turn mower into a multi-tasking machine a with a Toro Hitch Kit. Easy to attach, you can pull a cart, spread, sweeper and more.
Easy Height-of-Cut Adjustment
Easy Height-of-Cut Adjustment
Easily adjust height of cut or lift the deck to clear unexpected obstacles and save your deck with the deck lift pedal.
Handcrafted Comfort
Handcrafted Comfort
Ride in style with a handcrafted 46 cm high-back seat with arm rests that provides the ultimate in padding and back support.
Stay on Top of Maintenance
Stay on Top of Maintenance
Keep your mower in peak condition with an hourmeter for determining when to service.
Convenient Cup Holder
Convenient Cup Holder
Stay cool and hydrated with a built-in cup holder.

Specifications

Air Filter Kohler Pro Cleaner Air Filter
Anti Scalp Wheels 4 Standard
Armrests Standard
Blade Design 4.17 mm Steel with Blade Stiffener
Blade Tip Speed 5,456 m/min
CARB Compliant Not CARB Compliant
Carrier Frame 7.6 cm x 3.8 cm x 0.3 cm, Wall Tubular Steel
Caster Tyres 13 x 6.50-6, Pneumatic
Clutch Electromagnetic
Comfort Platform MyRIDE® Suspension System
Cooling System Air Cooled
Crankshaft 1" (25 mm) w/Steel Protector
Cup Holder Standard
Cutting Width 52 cm
Deck Design 10-Gauge Steel IronForged®with Fully Weld Grade 50 Steel Bumper
Deck Material 10 Gauge Steel
Discharge Chute Rubber
Drive System Hydro
Drive Type Rear-Wheel Drive
Drive Tyres 13 x 6.50-6
Engine Kohler KT735 24 hp 725cc
Engine Brand Kohler
Engine Displacement (cc) 725 cc
Engine Horsepower 17.9 kW (24.0 hp)
Engine Power (kW) 16.6 kW
Foot Operated Height of Cut Standard
Forward Ground/Transport Speed Up to 8.5 mph
Forward Mowing Speed Up to 8.5 mph
Frame 3" x 1.5" (7.6 cm x 3.8 cm) Steel Tubing
Front Bumper Reinforced Bull-Nose
Fuel Capacity 5 gal. / 18.9 L / 20 Qt.
Fuel Type Petrol
Greasable Bearings Yes
Height of Cut 3.8 - 12.7 cm
Hitch Bracket Standard
Ignition Electric
Mulch, Bag, Side Discharge Bag optional, Mulch optional, Side discharge standard
Number of Blades 3
Operator Focus Comfortable, Easy to Use, Innovative, Time Saving
Product Features Anti-Scalp Rollers, Cup Holder, Deck Lift Assist, Deluxe Seat, Electric Start, Foot Operated Height of Cut, High Back Seat, Hitch Bracket, Hour Meter, IronForged Deck, MyRIDE Suspension System, Petrol Powered, Rear-Wheel Drive
Product Type Zero Turn Mowers
Product Use Residential
Recommended Oil Type 10W-30
Roll-Over Protection (ROPS) Optional
Seat Deluxe Seat with Armrests
Spindle Housing Cast-Aluminium
Start Type Electric
Steering Controls Twin Lever
Steering Dampeners Standard Dampers
Terrain Type Flat with Obstacles
Transmission Dual hydrostatic HG ZT2800
Tyres 13" x 6.5" (33 x 16.5 cm) Front, 22" x 11" (55.8 cm x 27.9 cm) Rear
Yard Size Up to 10,000 m2

Parts & Manuals

Select your model year from the options below to view parts & manuals.

76635 Serial number
417300000-999999999
417000000-417299999
415400000-416999999
400000000-415399999
