Dingo® TX 525 Track Loader, Narrow
Product Information
- Model number: 22323
- Serial number: 314000001 - 314999999
- Product Type: Compact Utility Loaders
Loading...

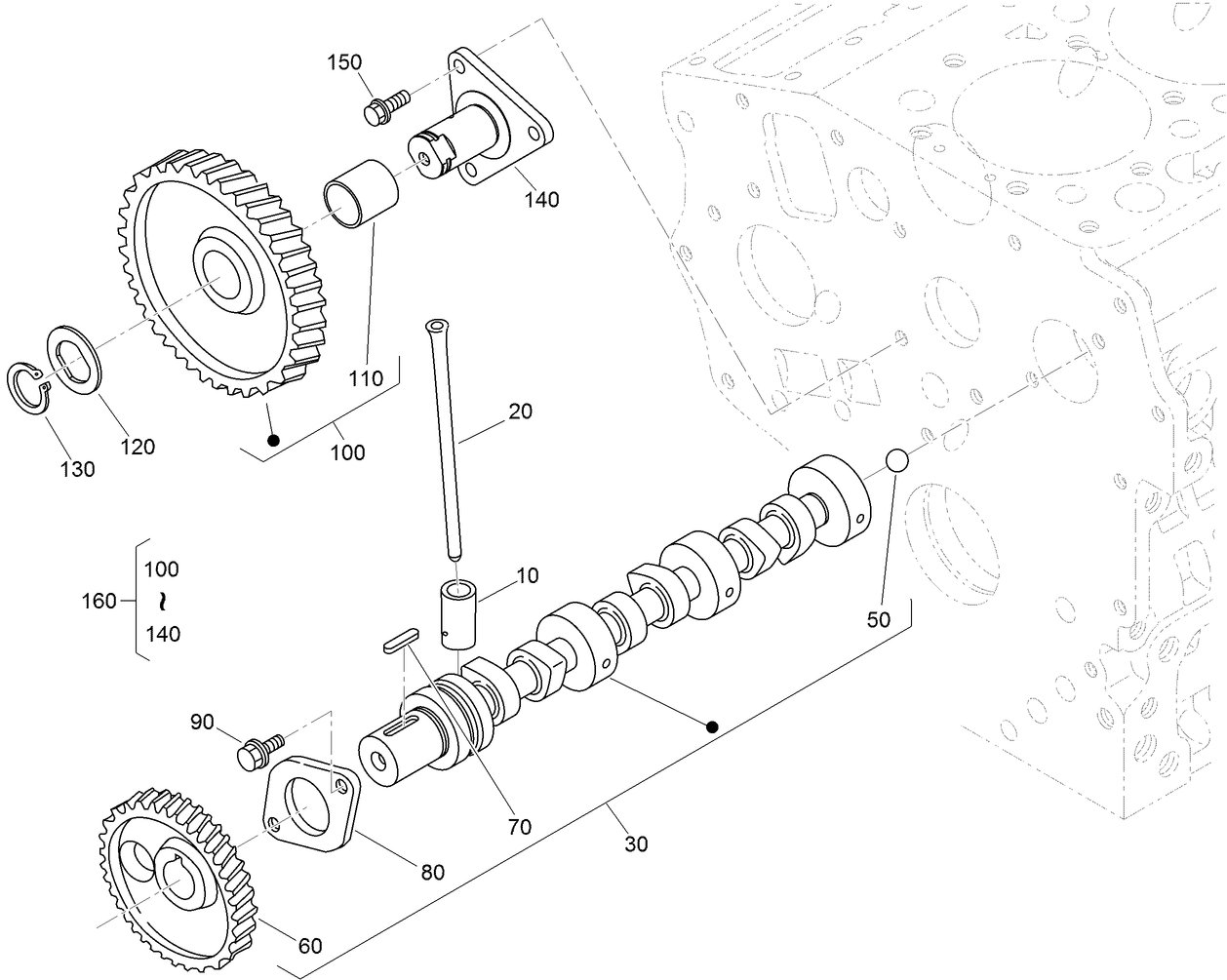

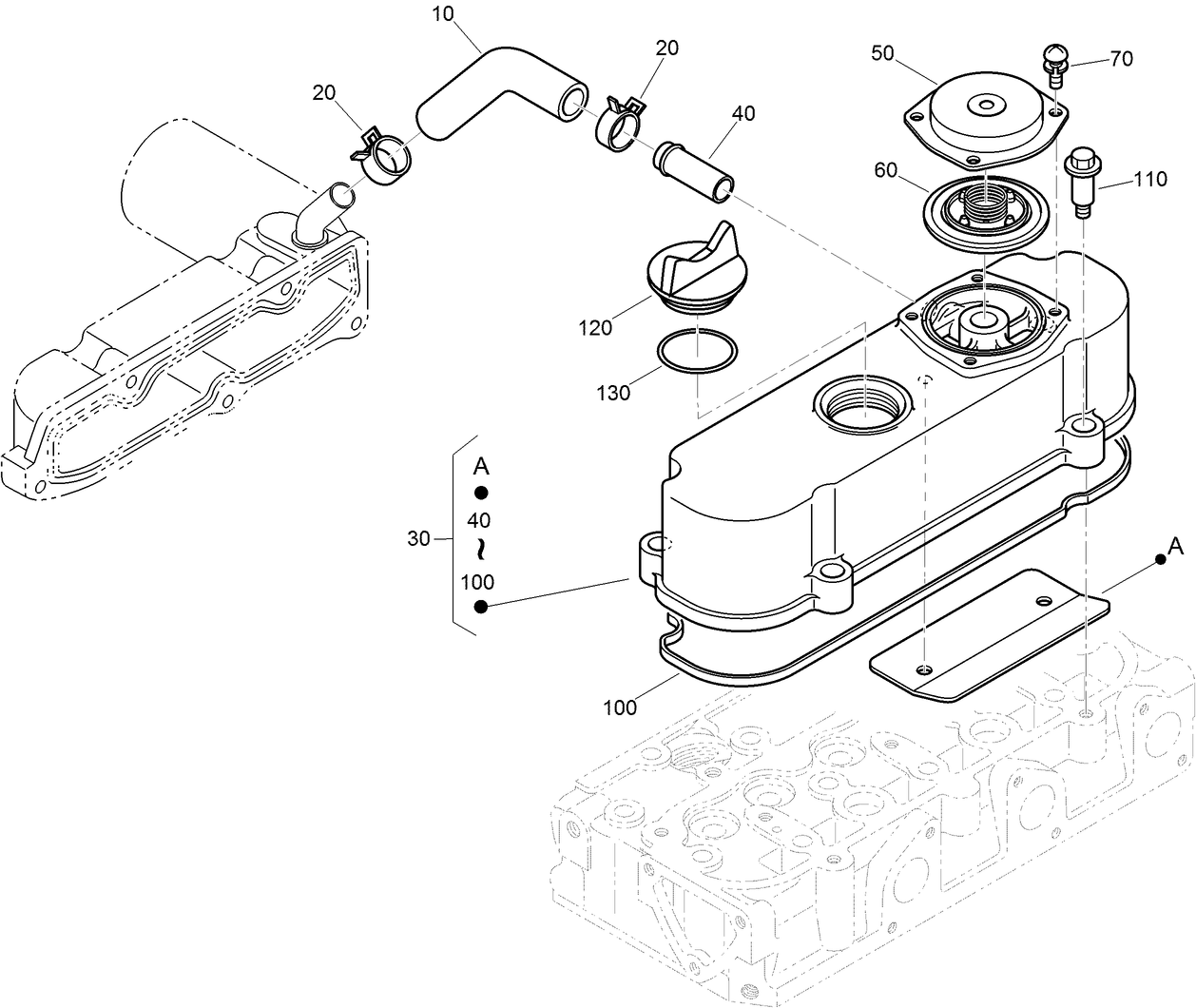

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
EU Declaration of Conformity
-
Setup Instructions
Light Kit, Dingo TX and 4-Paw Traction Units (Part number 100-8840)
Track Kit, Dingo TX 413 and 420 Compact Utility Loader (Part number 104-6106)
Road Wheel Kit, Dingo TX 413, 420 and 425 Compact Utility Loader (Part number 106-7620)
Reference Guide Kit, Dingo TX Compact Utility Loaders (Part number 107-9310)
TRACK-AGGRESSIVE TREAD, NARROW (Part number 108-5640)
PX HYD FLUID (5 GAL) (Part number 133-8086)
PX HYD FLUID (55 GAL) (Part number 133-8087)
OIL-30/10W-30 SYNTHETIC (Part number 138-6053)
PX HYDRAULIC FLUID-4 PK GALLON (Part number 138-9460)
Adjustable Forks, TX 1000 Compact Utility Loaders (Part number 22341)
Loader Bucket Attachment (Part number 22409)
Use this standard bucket for moving rock, dirt, sand or other materials off and around the job site. The hardened steel cutting edge offers improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear. Capacity = 1 m³ (4 cubic feet)
Light Materials Loader Bucket Attachment (Part number 22410)
Designed for moving light materials like chip-bark, mulch, snow and loam. The larger capacity bucket, 0.2 m³, is great for handling larger loads of lighter materials. The hardened steel cutting edge allows for improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear.
Utility Blade Attachment (Part number 22414)
The Toro Dingo hydraulic blade greatly increases the versatility of your Dingo system. This incredibly versatile attachment can be used for a variety of earth or snow moving jobs. Fill trenches where rows of trees have been planted or irrigation pipes have been installed. Keep your hydraulic blade working in the winter by pushing snow from pavements in one pass.
Rotary Broom, Dingo (Part number 22415)
Bore Drive Head Attachment (Part number 22420)
The Toro® Dingo® boring unit allows you to dig under pavements and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.
Rod and Reamer Kit (Part number 22421)
Easily bore under driveways and pavements to simplify irrigation and cable installations. Use with Bore Drive Head attachment model 22420. Working depth: 48 cm. Bits and reamers up to 8.9 cm (3.5") in diameter.
Multi-Purpose Tool, Dingo (Part number 22423)
Power Box Rake, Dingo Compact Utility Loader (Part number 22425)
Stump Grinder Attachment (Part number 22429)
The Toro® Dingo® Stump Grinder easily attaches to either Dingo or Dingo TX compact utility loaders. Make grinding stumps quicker and more productive with the stump grinder attachment for your Toro Dingo.
Tree Fork Attachment (Part number 22438)
The Toro Dingo hydraulic tree forks can help you plant trees and large shrubs quickly and effortlessly, plus move all sorts of materials around your garden center or nursery. The Dingo Compact Utility Loader is especially easy to manoeuvre, helping you transport and position trees or shrubs exactly where you want them.
Cement Mixer Attachment (Part number 22442)
This unique attachment will mix and pour up to 200 pounds (90.7 kg) of dry cement. The specially designed auger flighting inside the cement bowl keeps the cement in the bowl during mixing. This same auger design permits cement to be poured into fence post holes with the posts in place!
Tiller Attachment (Part number 22445)
The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 15 cm (6") deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.
Snowthrower, Dingo and Dingo TX (Part number 22456)
Trencher Crumber (Part number 22464)
Spring design, trencher accessory to help clean out trenches
Trencher Head, Dingo Compact Utility Loader (Part number 22470)
High-Speed Trencher Head, Dingo Compact Utility Loader (Part number 22471)
Trench Filler, Compact Utility Loader (Part number 22472)
TX Platform, Diesel-Powered TX Compact Utility Loader (Part number 22476)
Trencher Crumber (Part number 22477)
Trencher accessory to help clean out trenches
24" x 4" Soil Chain (61 cm x 10.2 cm) (Part number 22480)
2-pitch chain w/4-pitch tooth spacing (24 station)
24" x 4" Combo Chain (61 cm x 10.2 cm) (Part number 22481)
2-pitch chain w/soil and rock teeth (24 station)
24" x 4" Rock Chain (61 cm x 10.2 cm) (Part number 22482)
Welded shark chain 100% rock tooth (24 station)
24" x 6" Soil Chain (61 cm x 15.2 cm) (Part number 22483)
2-pitch chain w/4-pitch tooth spacing (24 station)
24" x 6" Combo Chain (61 cm x 15.2 cm) (Part number 22484)
2-pitch chain w/soil and rock teeth (24 station)
24" x 6" Rock Chain (61 cm x 15.2 cm) (Part number 22485)
Welded shark chain 100% rock tooth (24 station)
36" x 4" Soil Chain (91.4 cm x 10.2 cm) (Part number 22486)
2-pitch chain w/4-pitch tooth spacing (32 station)
36" x 4" Combo Chain (91.4 cm x 10.2 cm) (Part number 22487)
2-pitch chain w/soil and rock teeth (32 station)
36in x 4in Rock Tooth Chain (Part number 22488)
36" x 6" Rock Chain (91.4 cm x 15.2 cm) (Part number 22489)
Welded shark chain 100% rock tooth (32 station)
36" x 6" Soil Chain (91.4 cm x 15.2 cm) (Part number 22490)
2-pitch chain w/4-pitch tooth spacing (32 station)
36" x 6" Combo Chain (91.4 cm x 15.2 cm) (Part number 22491)
2-pitch chain w/soil and rock teeth (32 station)
48" x 4" Soil Chain (122 cm x 10.2 cm) (Part number 22492)
4-pitch chain w/4-pitch tooth spacing (20 station)
48in x 4in Combination Chain (Part number 22493)
48" x 6" Soil Chain (122 cm x 15.2 cm) (Part number 22494)
4-pitch chain w/4-pitch tooth spacing (20 station)
48" x 6" Combo Chain (122 cm x 15.2 cm) (Part number 22495)
4-pitch chain w/soil and rock teeth (20 station)
Narrow Loader Bucket Attachment (Part number 22520)
Handle compact construction and remodelling sites by moving through 91.4cm gates without a problem. This 87.6cm wide bucket allows you to get through narrow spaces, including gates and doorways. Move rock, dirt, sand or other materials off and around the job site. Great for use on any Dingo® model equipped with narrow wheels and tyres.
Grapple Rake, Compact Utility Loaders (Part number 22521)
Standard Bucket with Spacer (Part number 22522)
High Torque Auger Attachment (Part number 22805)
In any drive head, there is a trade-off between torque (power) and speed (revolutions per minute). The high torque head provides a large amount of torque to the auger at a slower speed. The high torque translates into the Dingo's capability to dig 30" (76.2 cm) holes up to 6' (1.8 m) deep in clay, gravel, sandstone and many other conditions where lower torque heads get stuck.
Mini Skid Steer Auger Attachment (Part number 22806)
This attachment swivels in all directions to create plumb holes on uneven terrain. The higher speed of this auger power head is ideal for augers up to 24" (61cm) in diameter. Quickly change between auger bit sizes to dig holes for fence posts, footings, irrigation heads and more!
6-Inch Auger Bit, Compact Utility Loader (Part number 22810)
9-Inch Auger Bit, Compact Utility Loader (Part number 22811)
12-Inch Auger Bit, Compact Utility Loader (Part number 22812)
15-Inch Auger Bit, Compact Utility Loader (Part number 22813)
18" Auger Bit (Part number 22814)
18" Auger Bit, requires 22805 or 22806
24" Auger Bit (Part number 22815)
24" Auger Bit, requires 22805 or 22806
30" Auger Bit (Part number 22816)
30" Auger Bit, requires 22805 or 22806
12" Auger Extension (Part number 22818)
12" Auger Extension - add onto any auger to increase depth
24" Auger Extension (Part number 22819)
24" Auger Extension - add onto any auger to increase depth
Vibratory Plough Attachment (Part number 22911)
The Toro® Dingo® vibratory plow attachment greatly reduces a contractor's time spent on irrigation and cable installations. Exclusively designed and built by Toro specifically for use on the Dingo, the vibratory plow optimizes pipe-pulling performance while minimizing turf damage during an installation. Also, use the chuted blade and spool carrier to install wire or cable.
24" Boom (Part number 22975)
24" Boom
36" Boom (Part number 22976)
36" Boom
48" Boom (Part number 22977)
48" Boom
Soil Cultivator, Dingo Compact Utility Loader (Part number 23101)
Concrete Breaker, Dingo Compact Utility Loaders (Part number 23135)
Backhoe Kit, Dingo TX (Part number 23162)
Backhoe, Dingo Compact Utility Loader (Part number 23163)
Adjustable Forks, Dingo Compact Utility Loader (Part number 23164)
Leveller Attachment (Part number 23165)
This versatile and highly productive tool is a must-have attachment for all job sites. Use to grade, finish, and spread landscape materials, backfill trenches, and break up the turf. Also great for carrying and transporting materials around the job site.
10W30 4-CYCLE ENGINE OIL 32 OZ BOTTLE (Part number 38280)
Spark Arrestor Screen (Part number 75-6880)
-
Model number
22323 -
Serial number
314000001 - 314999999 -
Product Name
Dingo® TX 525 Track Loader, Narrow -
Product Brand
Toro -
Product Type
Compact Utility Loaders -
Product Series
Compact Utility Loaders -
Engine/Motor Manufacturer
KUBOTA -
Engine/Motor Size
25 hp -
Engine Starter
Electric -
Transmission Type
Hydrostatic
