10” (25.4 cm) 2-Cycle 43cc Cultivator

Product Information

  • Model #: 58601
  • Serial #: 322300001 - 999999999
  • Product Type: Misc

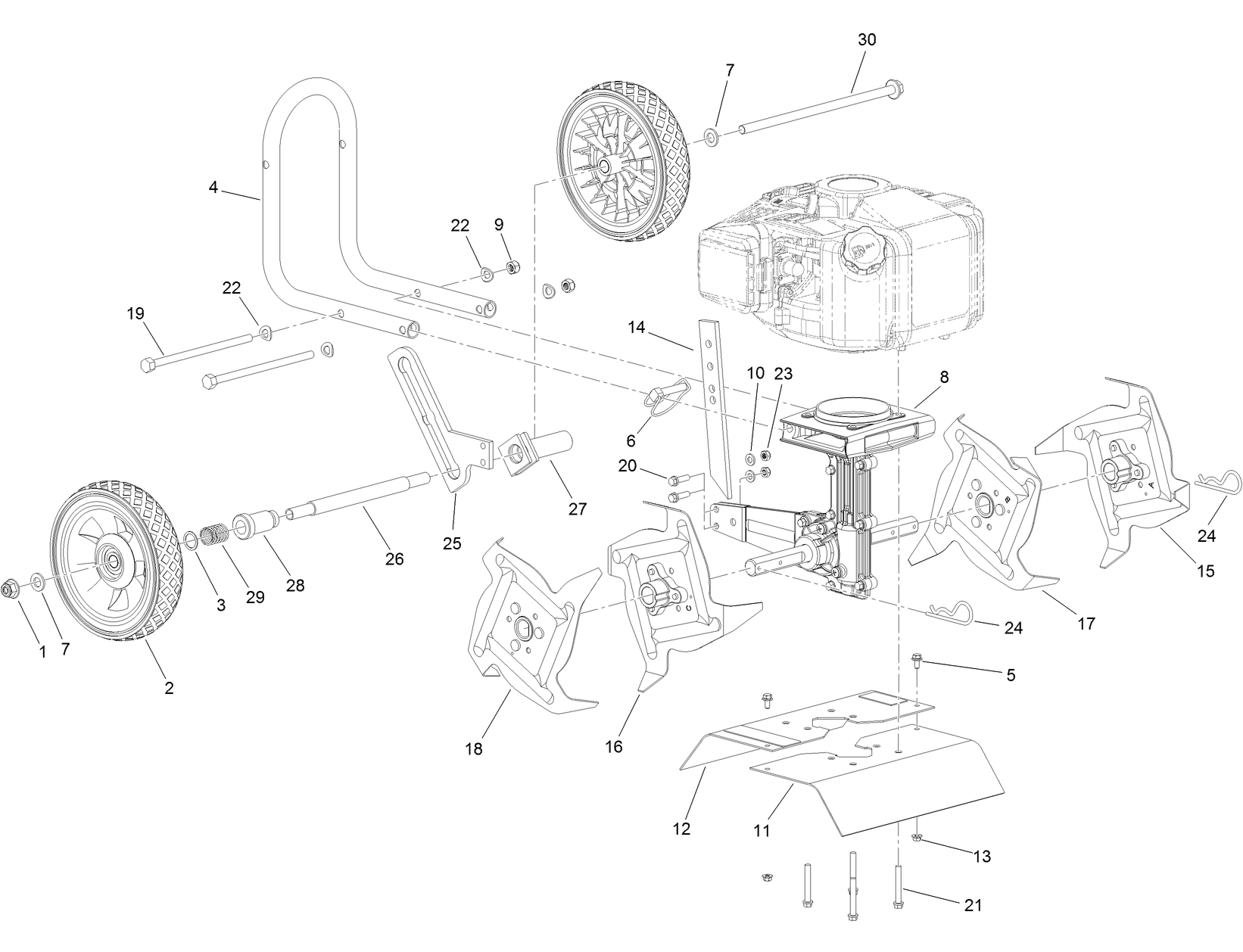

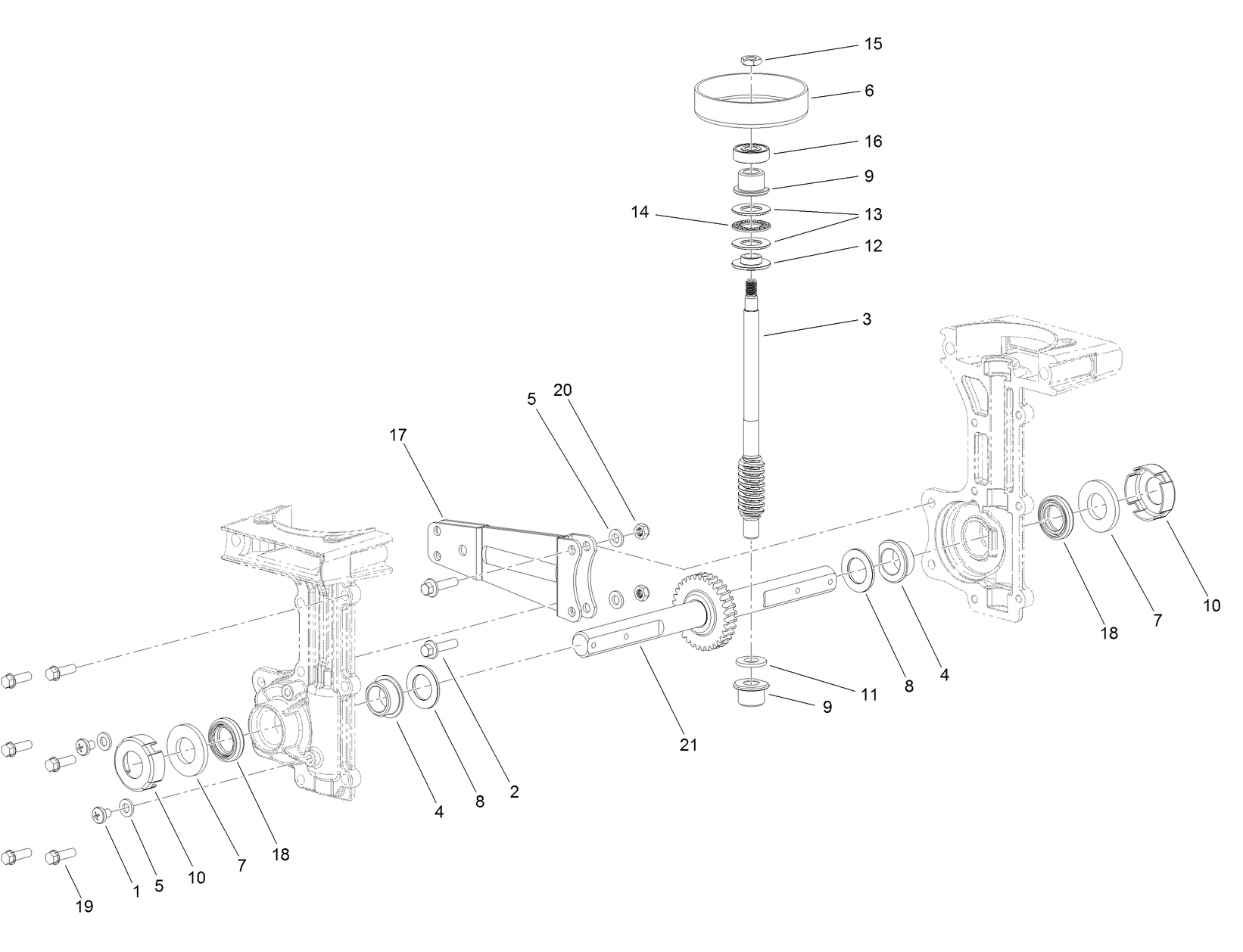

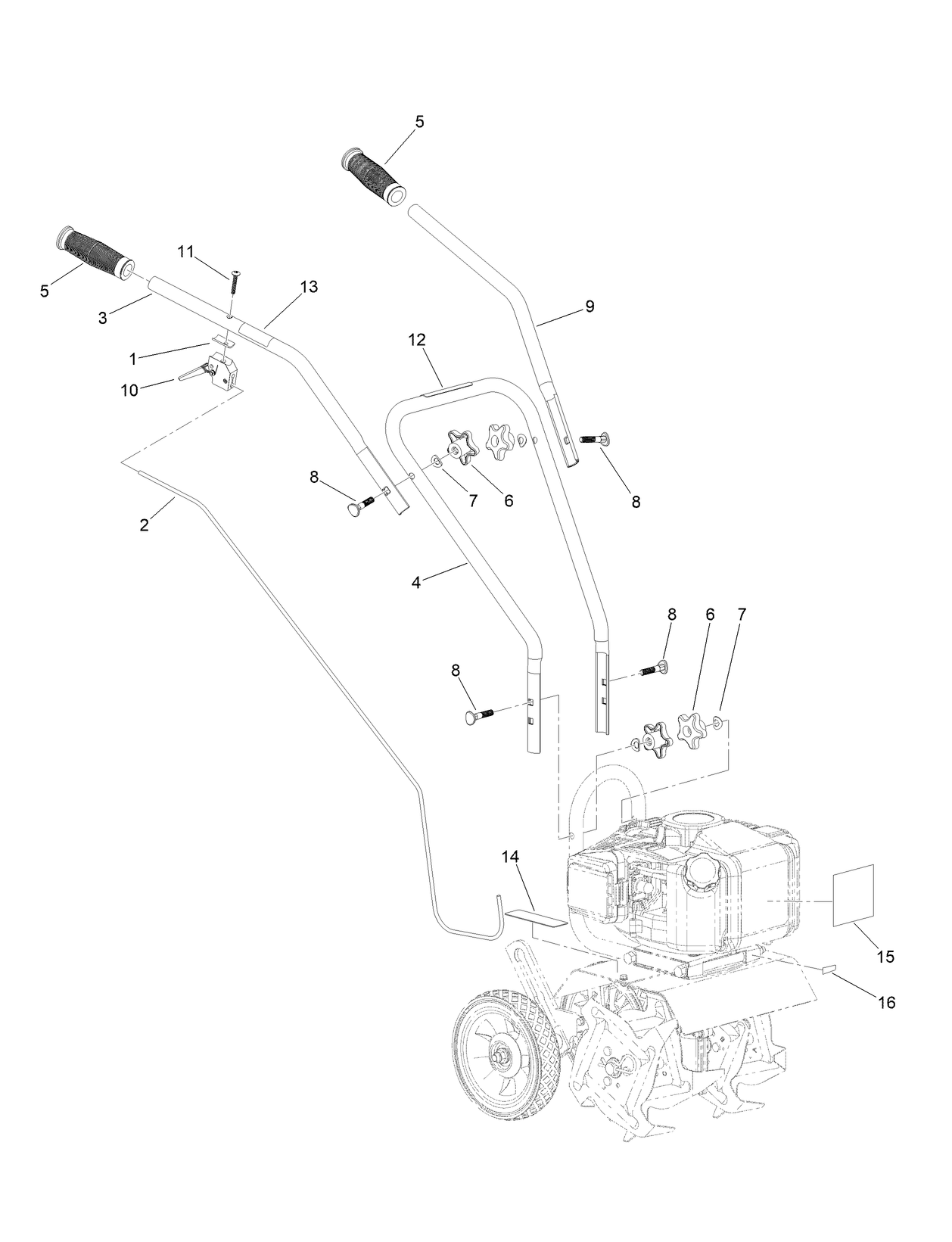

Assembly Drawings

Search for a part within assembly drawings:

  • Model #
    58601
  • Serial #
    322300001 - 999999999
  • Product Name
    10 in. (25.4 cm) 2-Cycle 43cc Cultivator
  • Product Brand
    Toro
  • Product Type
    Misc
  • Product Series
    Cultivator
  • Chassis Type
    Walk Behind
  • Swath
    10 inch
  • Engine/Motor Manufacturer
    Toro
  • Engine/Motor Size
    43cc
  • Engine/Motor Type
    2 Cycle
  • Engine Starter
    Recoil
  • Transmission Type
    NA
  • Traction Type
    NA
  • Engine: Engine Oil Type
    Toro 2 cycle / NMMA-TCW3
  • Engine: Mix Ratio
    50:1 (2.6 oz./gal.)
  • Engine: Spark Plug Gap
    .030"/ .76mm
  • Engine: Spark Plug
    NGK BPMR7A
  • Engine: Ignition Coil Air Gap
    0.011in (0.3mm)
  • Engine: Engine Speed
    High 8200-9200 RPM, Low 2400-3100 RPM
