71 cm snöslunga Power Max® HD 928 OAE 38850
Produktinformation
- Modellnr: 38850
- Serienr: 400000000 - 405578399
- Produkttyp: Snowthrowers
Laddar ...

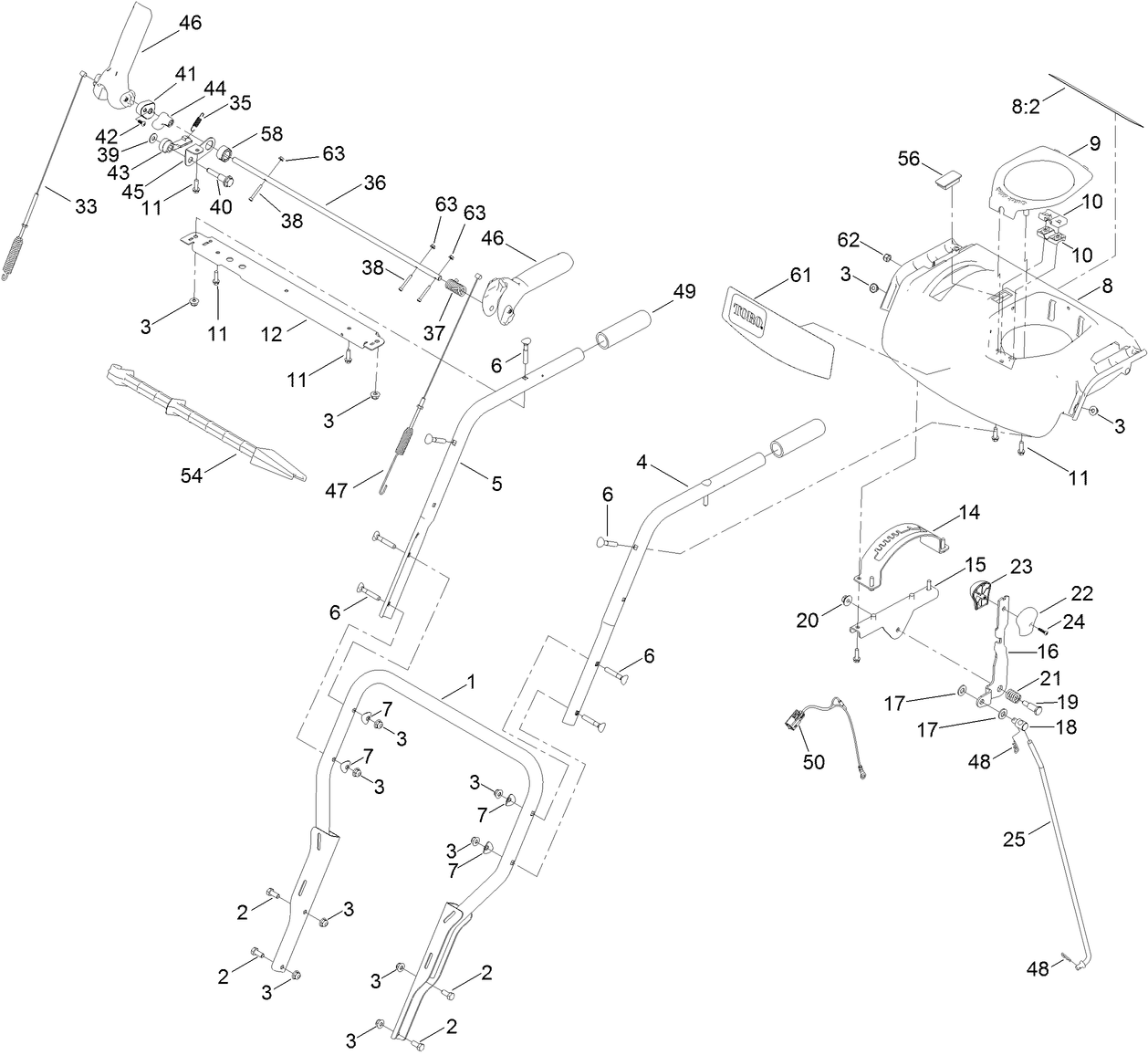

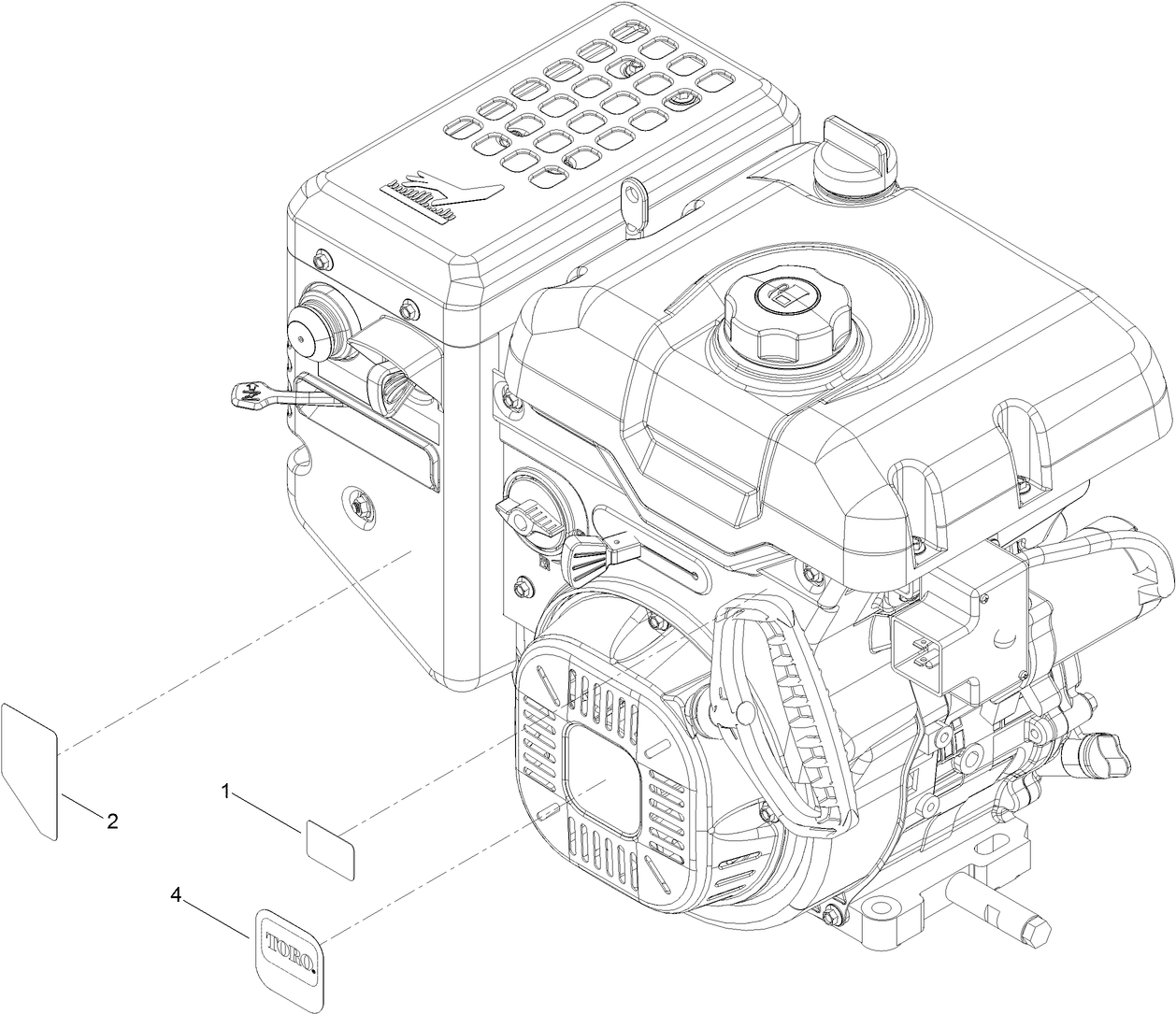

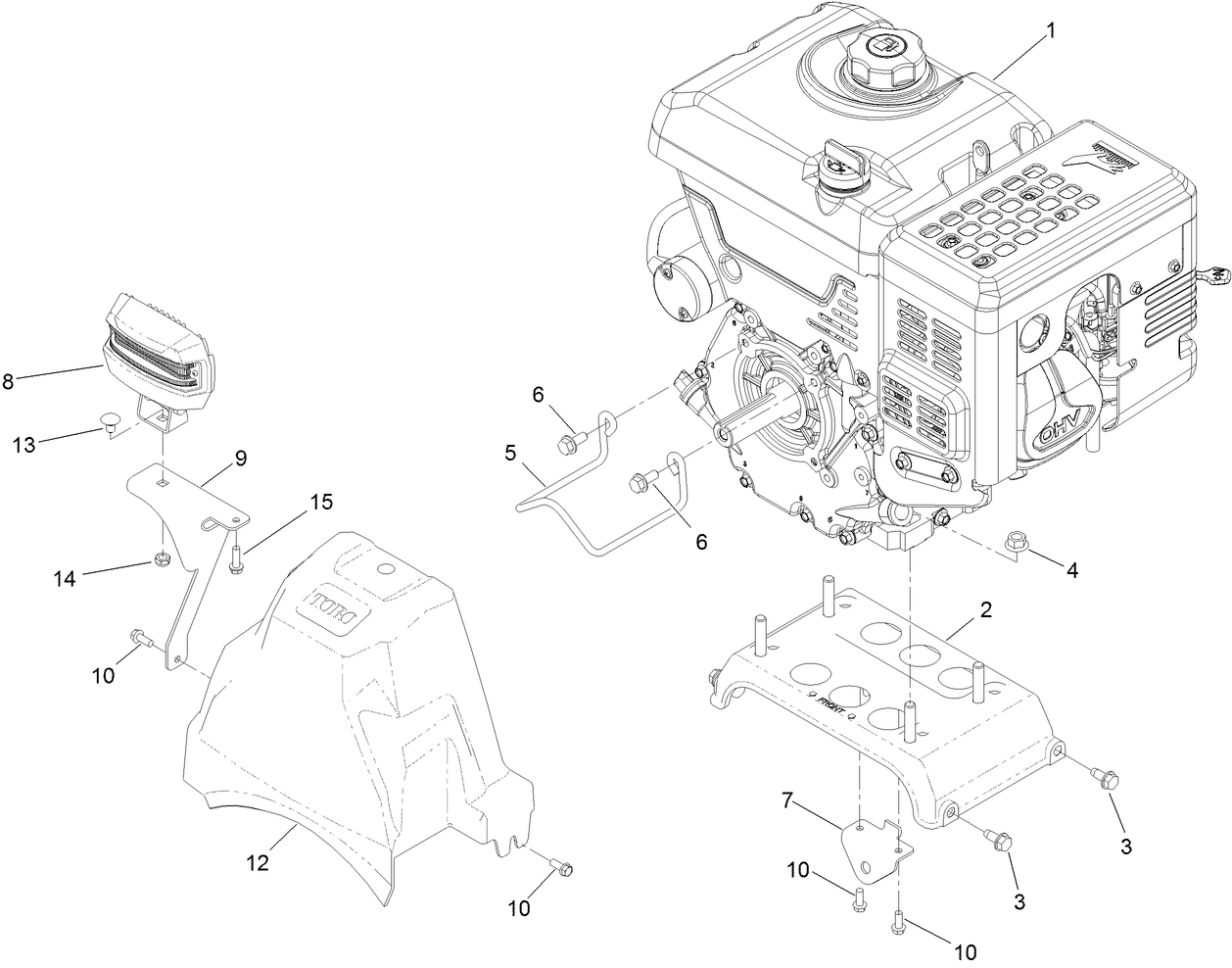

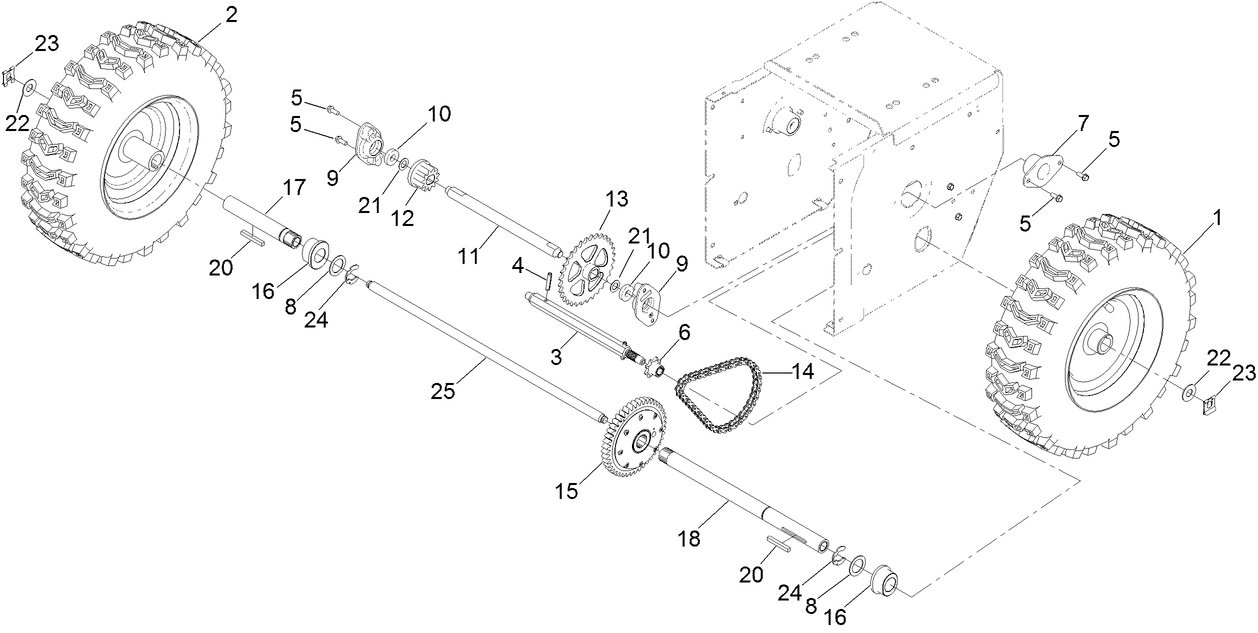

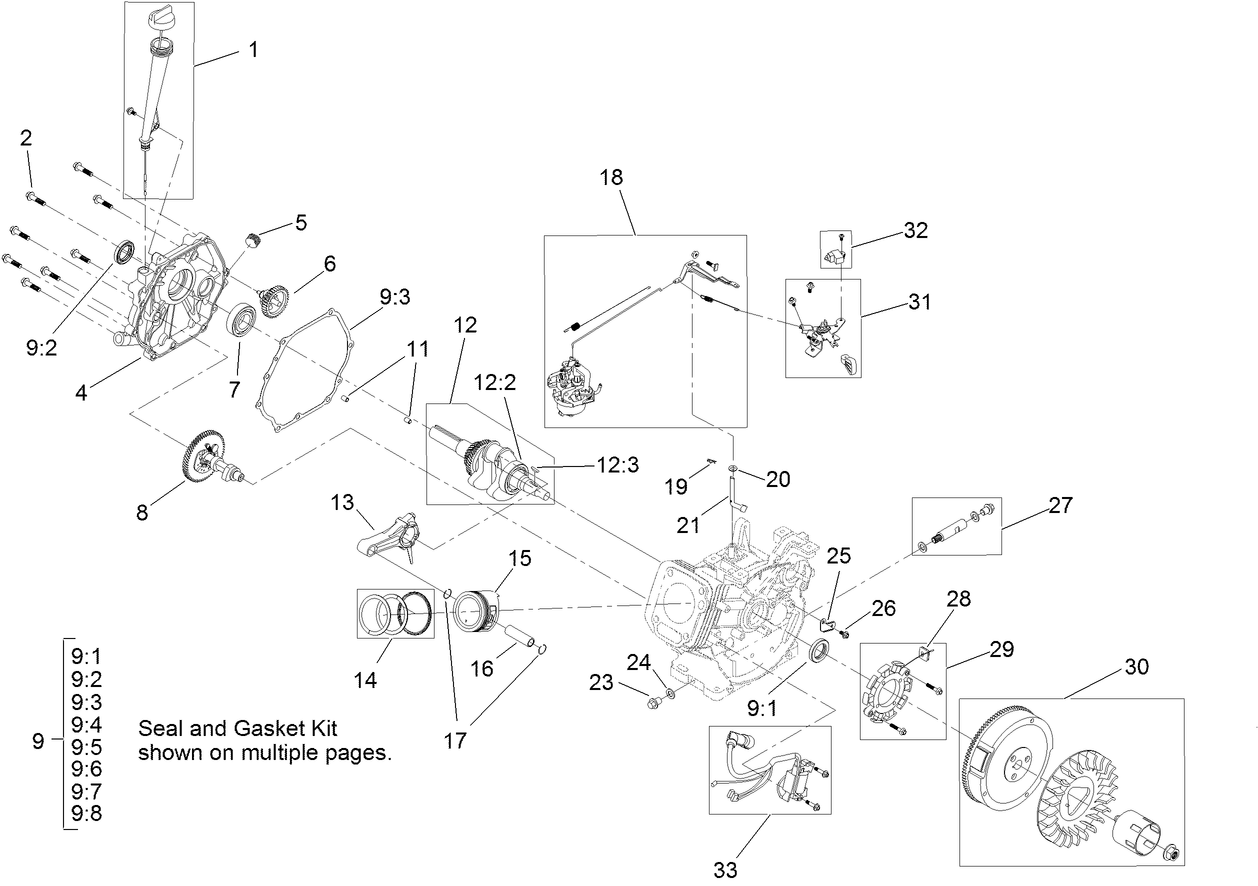

Monteringsritningar
Sök efter en artikel inom ritningar för montering:
-
Serviceanvisning
-
Bruksanvisning
-
Produktgaranti
-
EU-deklaration om överensstämmelse
-
Snabbstartsguide
High-Altitude Kit, Power Max 826/828/1028 Heavy Duty Snowthrower (Artikelnr 121-4241)
Heavy-Duty Skid Kit, Power Max Snowthrower (Artikelnr 125-1104)
Snow Cab Kit, Power Max Snowthrowers (Artikelnr 127-5960)
Non-Marking Skid Kit, Power Max Snowthrower (Artikelnr 38211)
Drift Breaker Kit, 24-inch and 26-inch Power Max Snowthrowers (Artikelnr 38213)
Tire Chain Kit, Snowthrowers with 16in (4.80-8) Tires (Artikelnr 38215)
TORO SNOW OIL 0W30 SYNTHETIC-20 OZ BT (Artikelnr 38913)
POWER MAX HD COVERS (2019) (Artikelnr 490-7415)
-
Modellnummer
38850 -
Serienr
400000000 - 405578399 -
Produktnamn
71 cm snöslunga Power Max® HD 928 OAE 38850 -
Produktmärke
Toro -
Produkttyp
Snowthrowers -
Produktserie
Snowthrower, PowerMax HD -
Chassityp
Two Stage -
Svep
28 inch -
Utkastare
Two Stage -
Motortillverkare
Toro -
Motorstorlek
265cc -
Motortyp
4 Cycle CARB -
Motorstart
Electric/Recoil -
Transmissionstyp
Friction Wheel -
Drivtyp
Rear WD
-
Drive System: Gearbox Lubricant
4.5 oz. (133ml) SAE 90 GL5 or higher -
Engine: Engine Oil Type
32 oz. (.95l) 5w-30 or 10w / API SH or higher -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
17-20 PSI / 116-137 kPa -
Engine: Engine Speed
3300±100 RPM -
Engine: Spark Plug
Champion RN9YC / NGK BPR6ES / NHPS F7RTC (OEM China)
