Greensmaster® e1021
Product Information
- Model #: 04835
- Serial #: 400000000 - 417399999
- Product Type: Walk Behind Mowers
Loading...

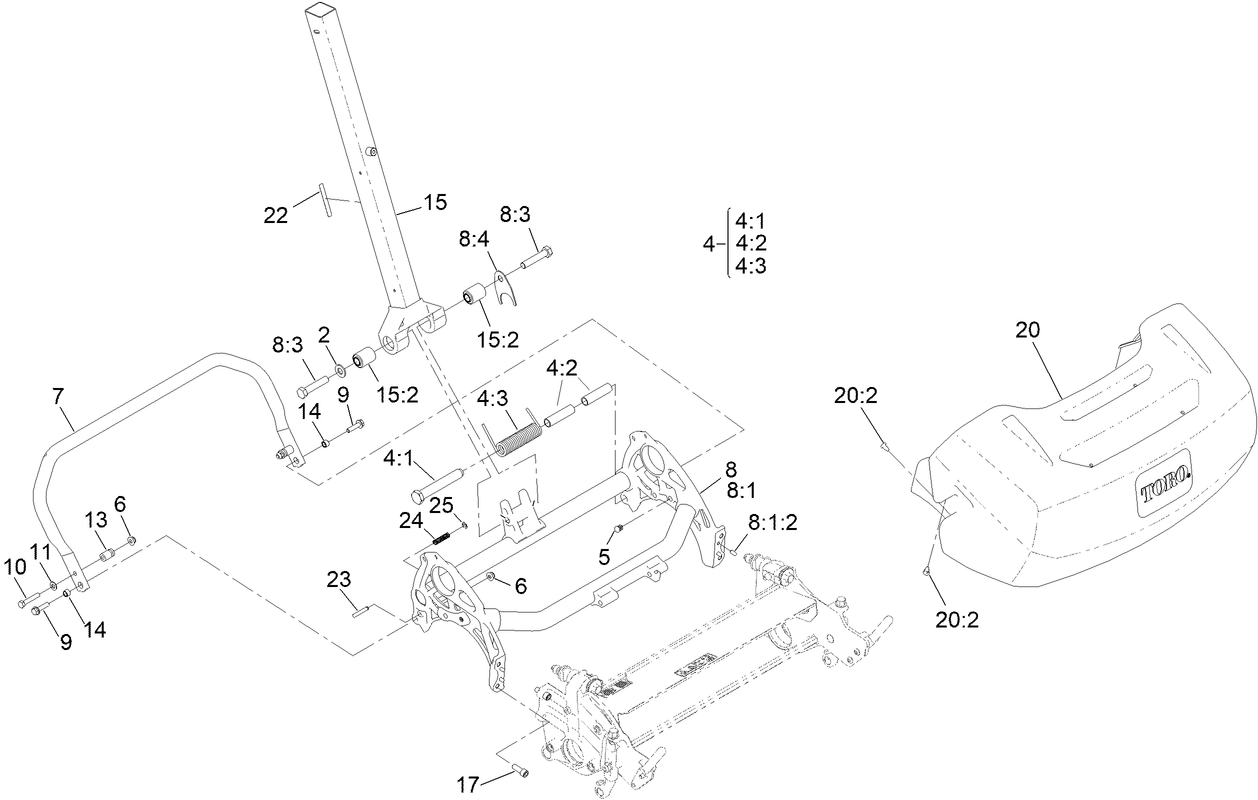

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Schematic Drawing - Electrical
-
ACMA Declaration of Conformity
-
EU/UK Declaration of Conformity
Paspalum Roller (Part # 04028)
Wheel Kit (Part # 04123)
To transport mower from green to green or in the shop.
Light Kit (Part # 04135)
Allows operator to mow in low light conditions.
Push Broom Brush (Part # 04136)
Conditions grass prior to cut.
Light Mount Kit (Part # 04138)
Allows user to move light mounting from the traction unit to the cutting unit.
Extended Narrow Wiehle Roller (Part # 04141)
Use on puffy turf to control bobbing marks. Adds weight to stabilize cutting unit over rough surfaces. Use in normal greens mowing conditions.
Wheel Loading Kit (Part # 04219)
Rail Loading Kit (Part # 04229)
TransPro™ 80 Trailer (Part # 04238)
Toro® TransPro® trailers safely and easily transport walk greens mowers to and from the mowing area. The unique design protects your mower investment and keeps adjustments intact. The TransPro 80 accommodates a single Greensmaster® with a Flat Ramp or Rail Ramp Kit.
TransPro™ 200 Trailer (Part # 04239)
Toro® TransPro® trailers safely and easily transport walk greens mowers to and from the mowing area. The unique design protects your mower investment, keeps adjustments intact, and gains time and productivity transporting two mowers at once (excluding Greensmaster 1600/1026).
Flat Ramp (Part # 04245)
Rail Ramp Kit (Part # 04247)
Soft Q Grooming Brush (Part # 04270)
Spiral rotating brush used to condition grass before cutting
Stiff QC Grooming Brush (Part # 04271)
Spiral rotating brush used to condition grass before cutting
Turf Evaluator (Part # 04399)
Mirror device used to assess turf conditions
Universal Groomer Drive (Part # 04707)
Groomer drive with forward, neutral and counter-rotating dial
Twin Tip Groomer Blade (Part # 04802)
Interlaced Narrow Wiehle Roller (Part # 04805)
Use on puffy turf to control bobbing marks. Adds weight to stabilize cutting unit over rough surfaces. Use in normal greens mowing conditions.
Full Front Roller (Part # 04815)
Wide Wiehle Roller (Part # 04825)
Recommended for use in off-greens applications on dense turf and high growth conditions to control growth
8-Blade Cutting Unit (Part # 04832)
Designed for mowing on higher heights of cut, such as approaches, fairways or tee boxes.
11-Blade Cutting Unit (Part # 04833)
Designed for mowing on lower heights of cut, such as greens.
14-Blade Cutting Unit (Part # 04834)
Designed for mowing extremely low heights of cut applications.
Wide Wiehle Steel Roller (Part # 107-3514)
Use on puffy turf to control bobbing marks. Adds weight to stabilize cutting unit over rough surfaces.
21.25 Inch Tournament Cut Standard Bedknife (Part # 108-4302)
Toro 21.25 Inch OEM Tournament Cut Standard Bedknife. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Micro Cut Standard Bedknife (Part # 108-4303)
Toro 21.25 Inch OEM Micro Cut Standard Bedknife. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Micro Cut EdgeMax™ Bedknife (Part # 115-1880)
Toro 21.25 Inch OEM Micro Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Tournament Cut EdgeMax™ Bedknife (Part # 115-1881)
Toro 21.25 Inch OEM Tournament Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Wireless Hourmeter System (Part # 115-4754)
1.00 Inch Auxiliary Roller Extension Kit (Part # 115-7361)
Contains 115-7362 @ 2, 108-4339 @ 2, 115-7369 @ 2, 115-7370 @ 2, 115-7371 @ 2
Wide Wiehle Roller Scraper Brush (Part # 115-7378)
Scraper brushes condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Full Roller Scraper Brush (Part # 115-7379)
Scraper brushes condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Wide Wiehle Roller Scraper Comb (Part # 115-7381)
Scraper combs condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Full Roller Scraper Comb (Part # 115-7382)
Scraper combs condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Dpa Rebuild Kit (Part # 121-2637)
Contains 106-5363 @ 2, 106-5344 @ 4, 119-4164 @ 2, 32120-93 @ 2, 137-6130 @ 2, 119-4155 @ 2, 119-4156 @ 2, 119-4039 @ 2, 99-2097 @ 2, 119-4067 @ 2
Wide Wiehle Roller Scraper (Part # 125-3504)
Wide Wiehle scrapers clear rollers of dirt, grass and debris buildup that may impact height of cut
Full Roller Scraper (Part # 125-3505)
Full roller scrapers clear rollers of dirt, grass and debris buildup that may impact height of cut
Paper Reel (Part # 125-5610)
Toro OEM Paper-Reel, Toro (10 Pack).
Soft Grooming Brush (Part # 127-1547)
Spiral rotating brush used to condition grass before cutting
Stiff Grooming Brush (Part # 127-1548)
Spiral rotating brush used to condition grass before cutting
Angle Indicator (Part # 131-6828)
Toro OEM Angle Indicator
Angle Indicator Mount (Part # 131-6829)
Toro OEM Angle Indicator Mount
Bedbar (Part # 133-4525-01)
Synthetic Grease (Part # 136-8595)
EdgeMax™ Fairway Bedknife (Part # 137-6092)
Fairway EdgeMax bedknives are made with a hardened tool steel insert that stays sharper longer for a crisper cut and less wear on your equipment.
Fairway Bedknife (Part # 137-6097)
Tool steel bedknife for extended wear.
Rail Ramp Kit (Part # 138-5011)
Rod Replacement Kit (Part # 139-2683)
21.25 Inch Micro Short Cut EdgeMax™ Bedknife (Part # 139-4320)
Toro 21.25 Inch OEM Micro Short Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement micro short cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Short Tournament Cut EdgeMax™ Bedknife (Part # 139-4321)
Toro 21.25 Inch OEM Short Tournament Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Short Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Backlap Access Kit (Part # 139-4342)
Required for auxiliary electric motor backlapping and to assist with adapting to most reel grinders
Interlaced Roller Scraper Brush (Part # 139-4383)
Scraper brushes condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Interlaced Narrow Wiehle Roller Scraper (Part # 139-4385)
Narrow Wiehle roller scrapers clear rollers of dirt, grass and debris buildup that may impact height of cut
Retention Straps Kit (Part # 139-6477)
Interlaced Narrow Wiehle Roller – Heavy (Part # 140-3363)
Use in normal greens mowing conditions
Toro Reel Shim (Part # 140-5531)
Check reel to bedknife contact
Twin Tip Groomer Blade (Part # 140-5580)
Helix Groomer Blade (Part # 140-5581)
High-strength, twin-tipped groomer blade.
Helix Groomer Blade (Part # 140-5582)
High-strength, twin-tipped groomer blade.
21.25 Inch Micro Cut Standard Bedknife (Part # 93-4262)
Toro 21.25 Inch OEM Micro Cut Standard Bedknife. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Tournament Cut Standard Bedknife (Part # 93-4263)
Toro 21.25 Inch OEM Tournament Cut Standard Bedknife. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Low Cut Standard Bedknife (Part # 93-4264)
Toro 21.25 Inch OEM Low Cut Standard Bedknife. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch High Cut Standard Bedknife (Part # 94-6392)
Toro 21.25 Inch OEM High Cut Standard Bedknife. You can count on the quality and reliability of this replacement High Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Height of Cut Kit (Part # 94-9010)
Height of cut range 0.285”– 1.00” (7.2 – 25.4 mm), set of one
Extended Height of Cut Bracket (Part # 99-4286)
Enables heights of cut up to .94” (23.8mm)
-
