36 in. (91 cm) Power Broom Commercial Gas Power Brush
Product Information
- Model #: 38701
- Serial #: 408800000 - 411699999
- Product Type: Sweepers
Loading...

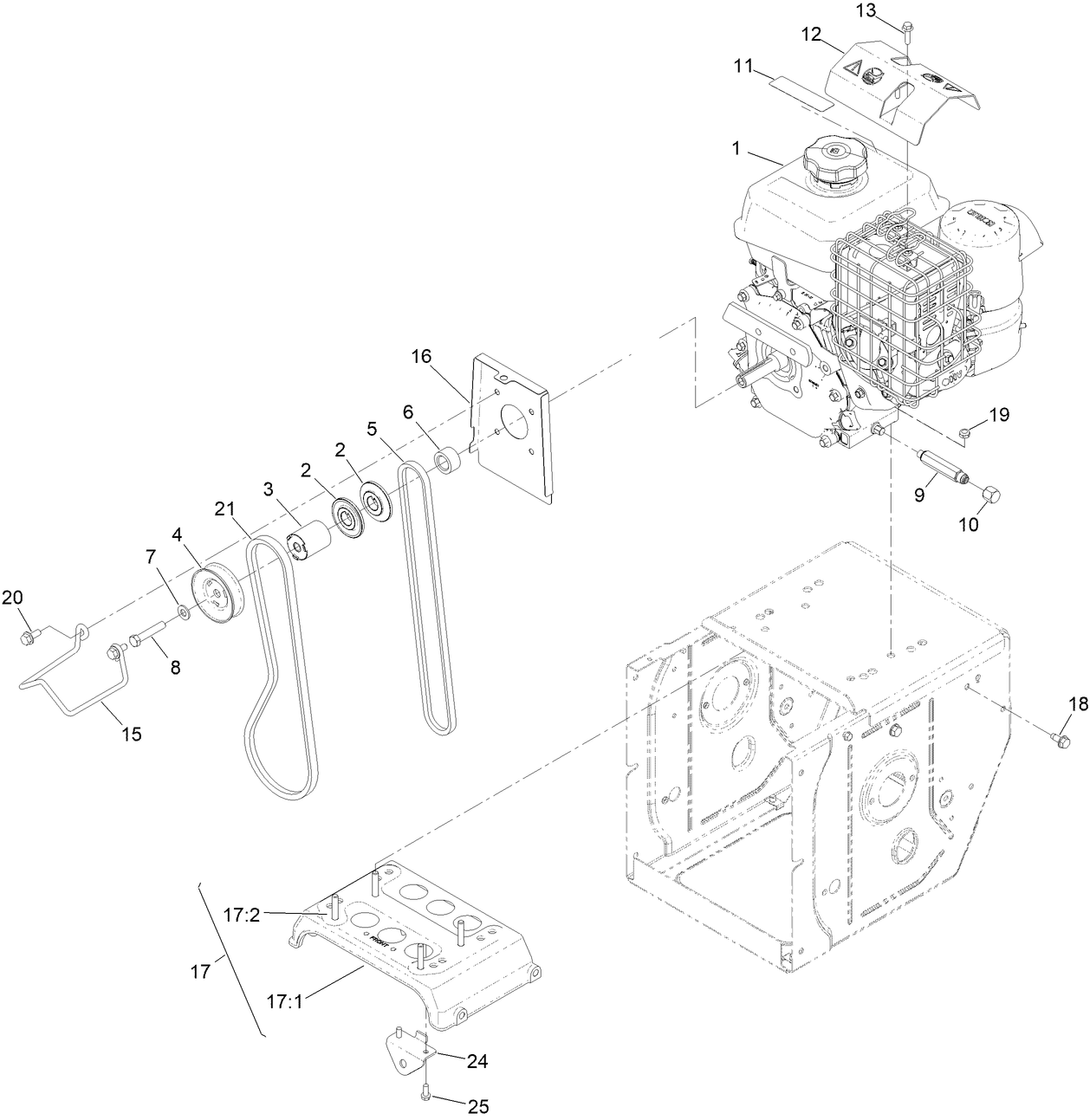

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
Snow Blower Snow Cab Kit (Part # 139-1640)
The Toro snow blower cab is the perfect addition to your Toro 2-stage snow blower. This easy-to-install cab protects you in the front, both sides and from above from blowing and swirling snow, sleet and wind. The Toro snow blower cab has clear, shatter resistant windows on 3 sides to ensure excellent visibility. In addition, the light-weight and tough, nylon reinforced, vinyl fabric resists tearing, abrasion, mold, mildew and rot. It's all designed to enhance your snow removal experience by making you more comfortable.
16 inch Snow Blower Tire Chains (Part # 38215)
Toro tire chains give you an advantage over the elements. They supply the extra traction needed for ice, packed snow, deep snow and uneven surfaces. Toro's 2-link spacing design provides substantially more surface contact, providing the best possible traction in tough conditions. Toro's easy-to-install chains are a must-have for any two stage Power Max HD snowblower and specifically designed to ensure you get the best performance from your Toro.
-
Model #
38701 -
Serial #
408800000 - 411699999 -
Product Name
36 in. (91 cm) Power Broom Commercial Gas Power Brush -
Product Brand
Toro -
Product Type
Sweepers -
Product Series
Turf Maintenance Equipment -
Chassis Type
Walk Behind -
Swath
36 inch -
Engine/Motor Manufacturer
Kohler -
Engine/Motor Type
4 Cycle -
Engine Starter
Recoil -
Transmission Type
Friction Disc -
Traction Type
2wd
-
Engine: Engine Speed
3600±100 RPM -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
17-20 PSI / 116-137 kPa -
Engine: Spark Plug
Champion RC12YC or Champion Premium Gold 2071 -
Engine: Engine Oil Type
20 oz. (.6 L) 5w-30 synthetic or 5w-30 below 40F (4c) or 10w-30 above 0F (-20c) -
Engine: Ignition Coil Air Gap
0.011in (0.3mm)
