TimeMaster 30in Lawn Mower
Product Information
- Model #: 20199
- Serial #: 314200001 - 314999999
- Product Type: Walk Behind Mowers
Loading...

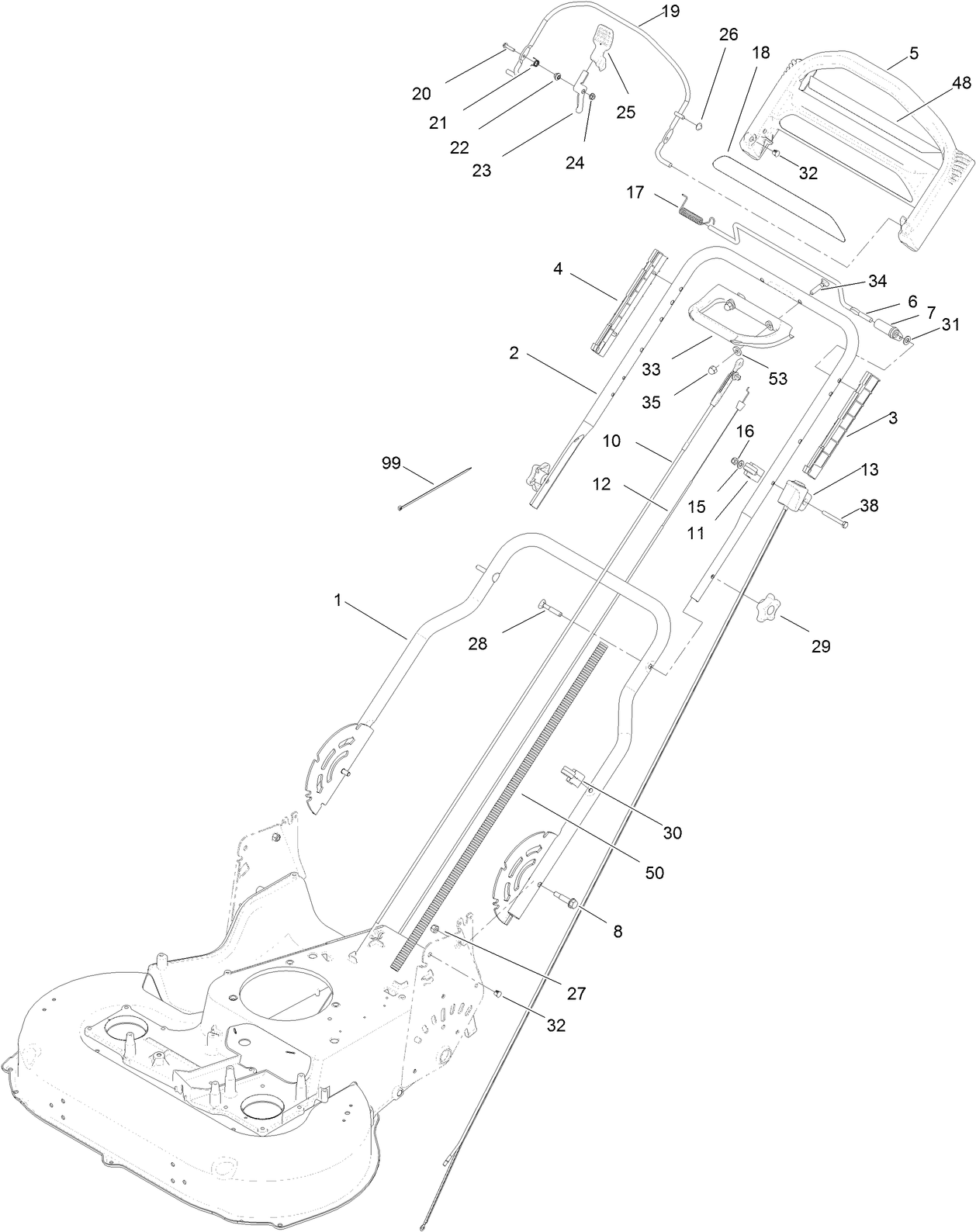

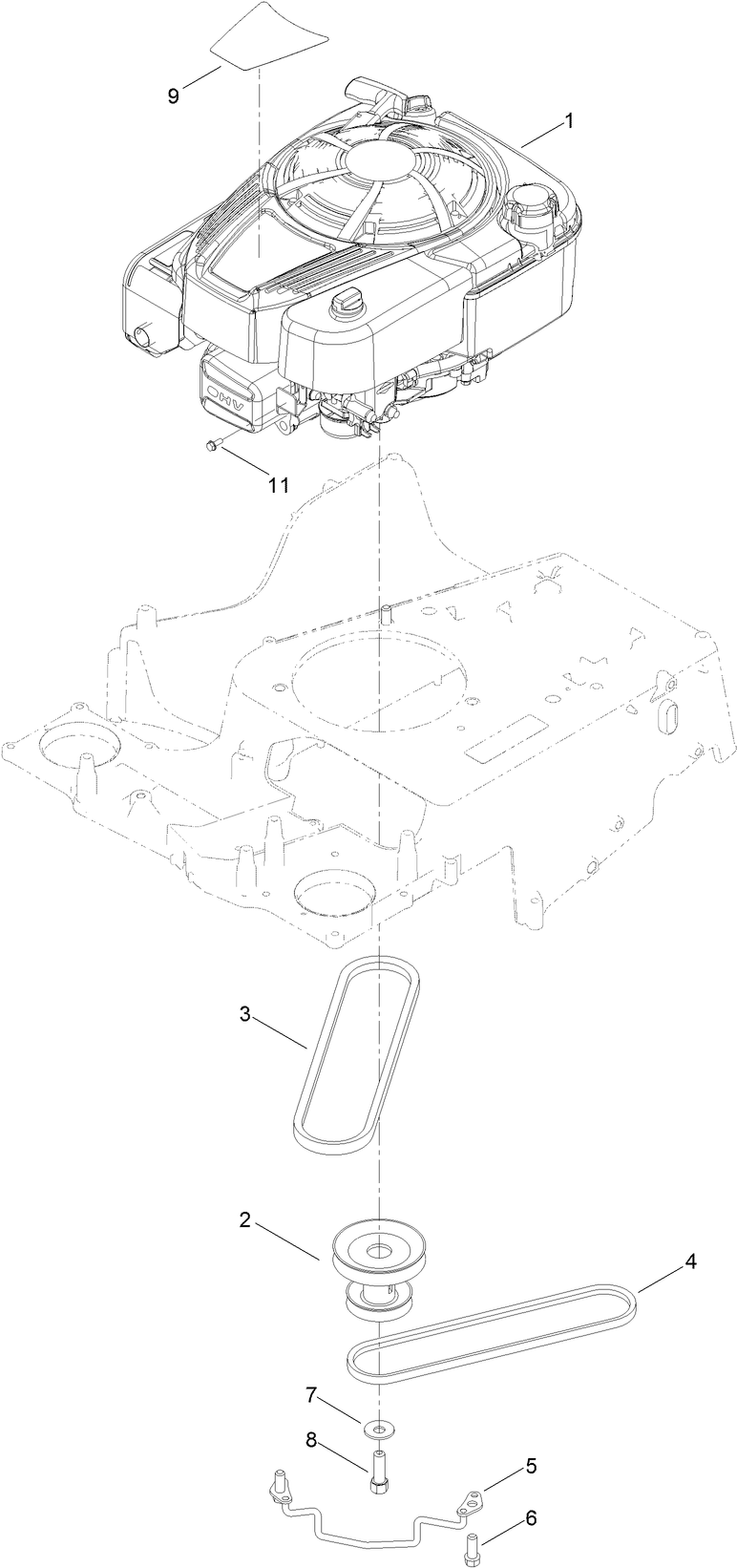

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
Engine Maintenance Kit for Walk-Behind Power Mower (Part # 130-8146)
Keep your mower running smoothly, season after season. This kit is for Toro TimeMaster walk power mowers with Briggs & Stratton 875/1000 Series engines. The easy-to-use kit includes a Toro replacement air filter, a replacement spark plug, a 18 oz. bottle of Toro SAE 30 walk-behind power mower engine oil and a packet of fuel stabilizer.
15.4 Inch Hi-Lift Replacement Blade Kit (TimeMaster) (Part # 20122P)
This Replacement Blade keeps your lawn mower in peak performance. The blade is designed for a High quality cut and long-lasting durability. The steel blade cuts your lawn finer for easier mulching and bagging. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
-
Model #
20199 -
Serial #
314200001 - 314999999 -
Product Name
TimeMaster 30in Lawn Mower -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
30" Steel Deck -
Chassis Type
Steel Deck WPM -
Swath
30 inch / 76 cm -
Discharge
Recycler & Side Discharge with Rear Bag -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Type
4 Cycle -
Engine Starter
Recoil -
Traction Type
Rear WD
-
Engine: Ignition Coil Air Gap
.010" / .25mm -
Engine: Spark Plug Gap
.020"/ .5mm -
Engine: Spark Plug
Champion QC12YC -
Chassis: Height of Cut Range
1.25-4.25", 1/2" increments -
Engine: Engine Speed
3400±100 RPM -
Engine: Engine Oil Type
20 oz. (0.59 L) SAE 30 / API SF, SG, SH, SJ, SL, or higher
