Professional 6000 Series MyRIDE® Petrol Z Master® 132 cm 72942TE
Product Information
- Model number: 72969TE
- Serial number: 412900000 - 999999999
- Product Type: Riding Products
Loading...

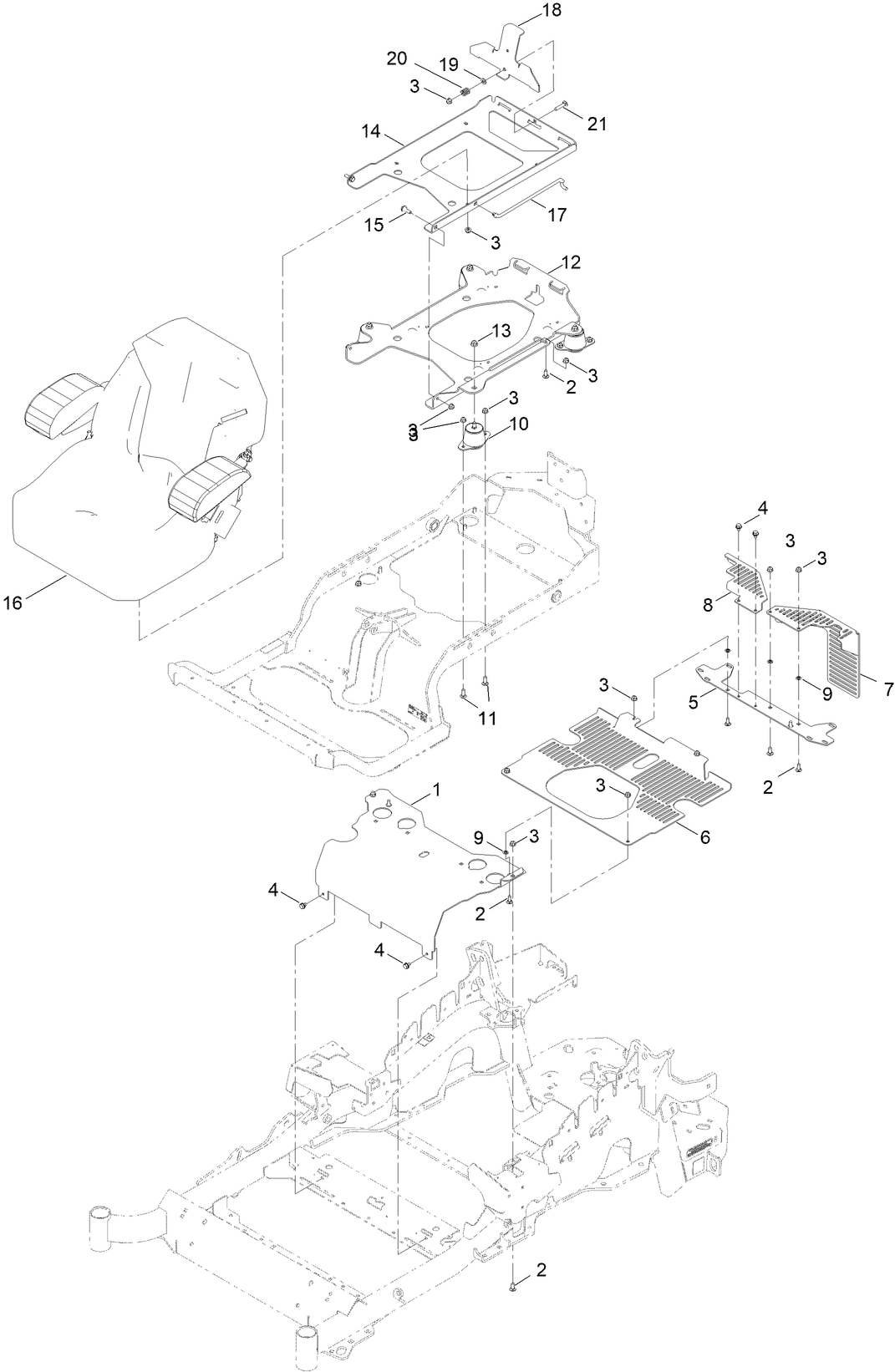

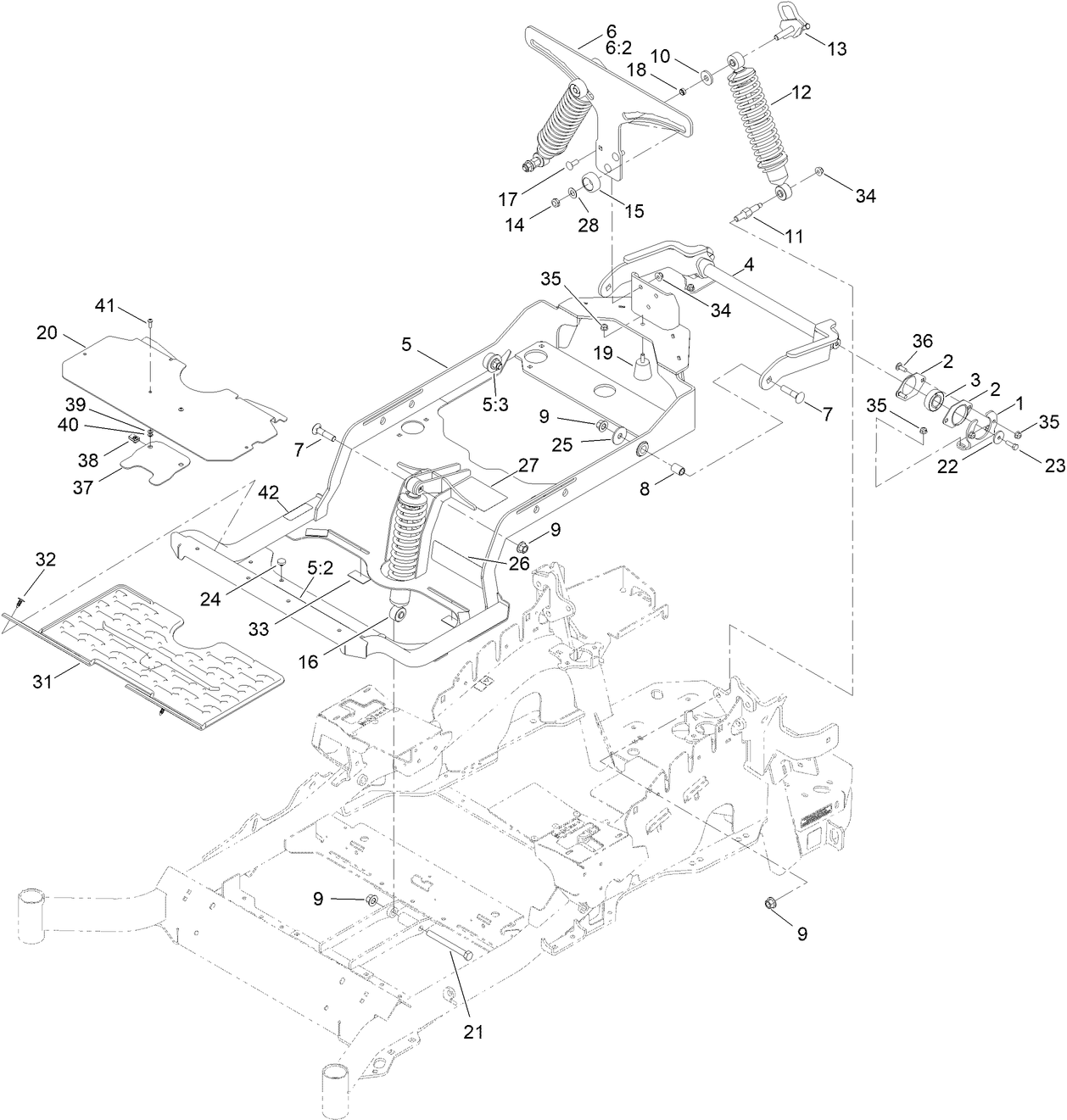

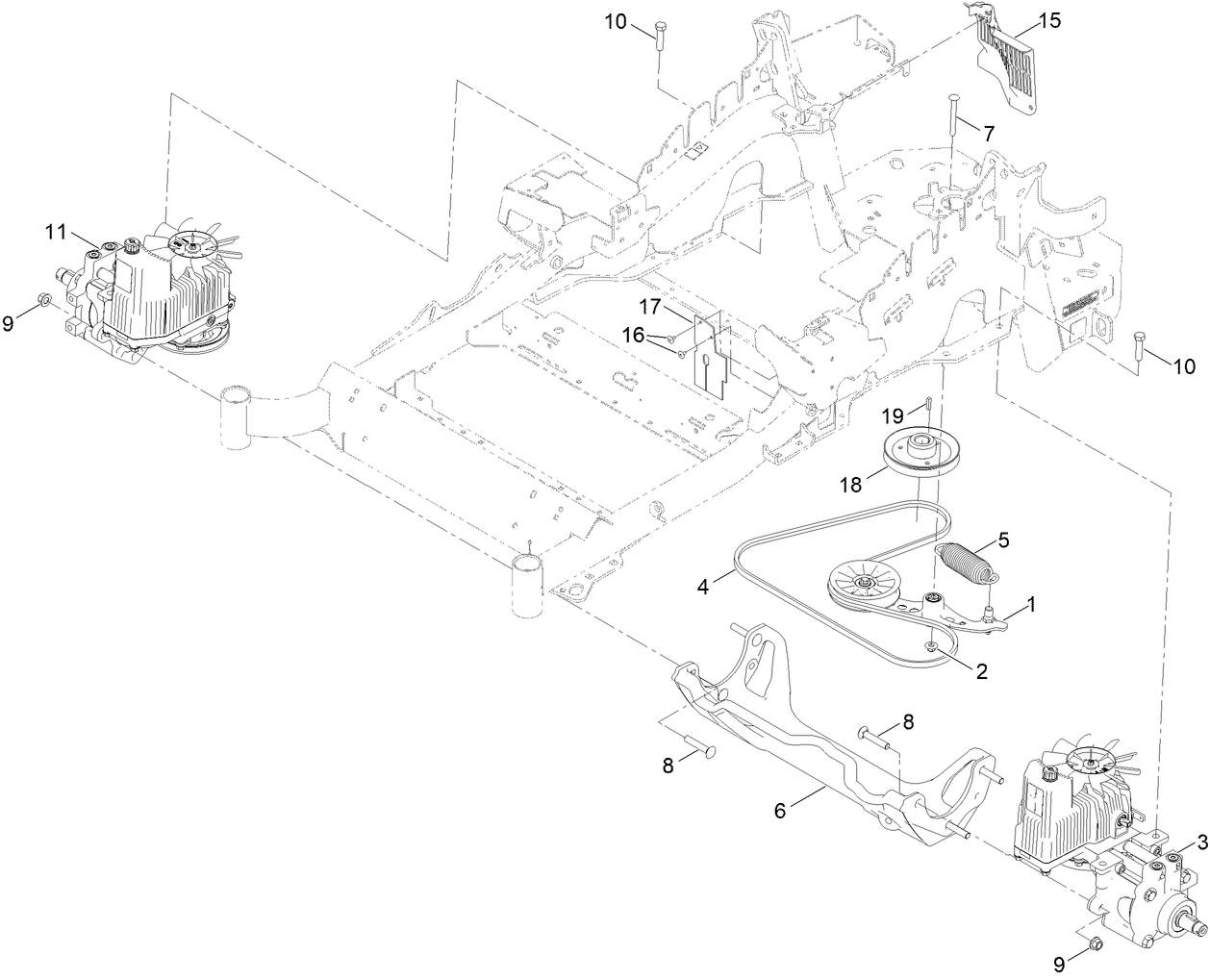

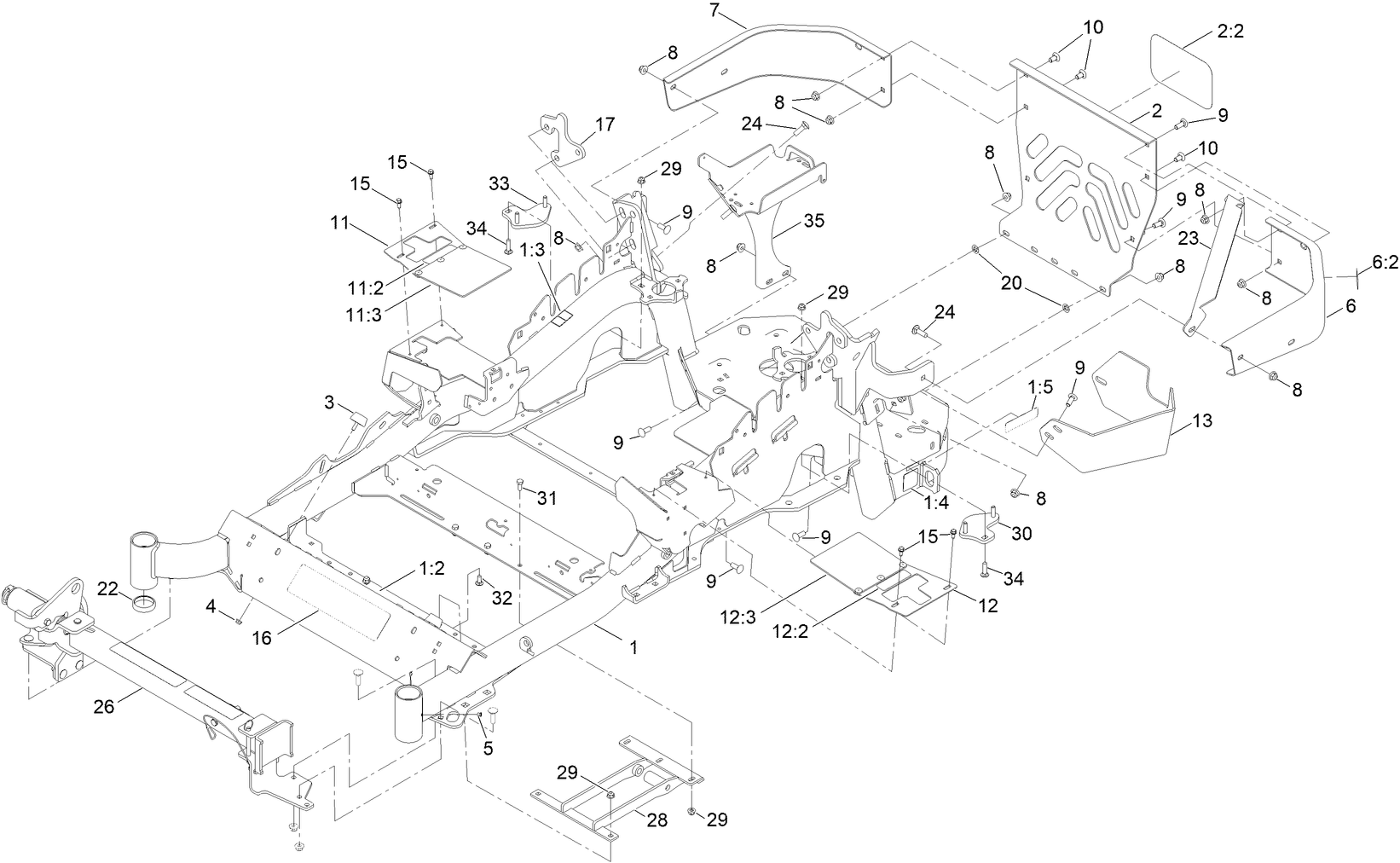

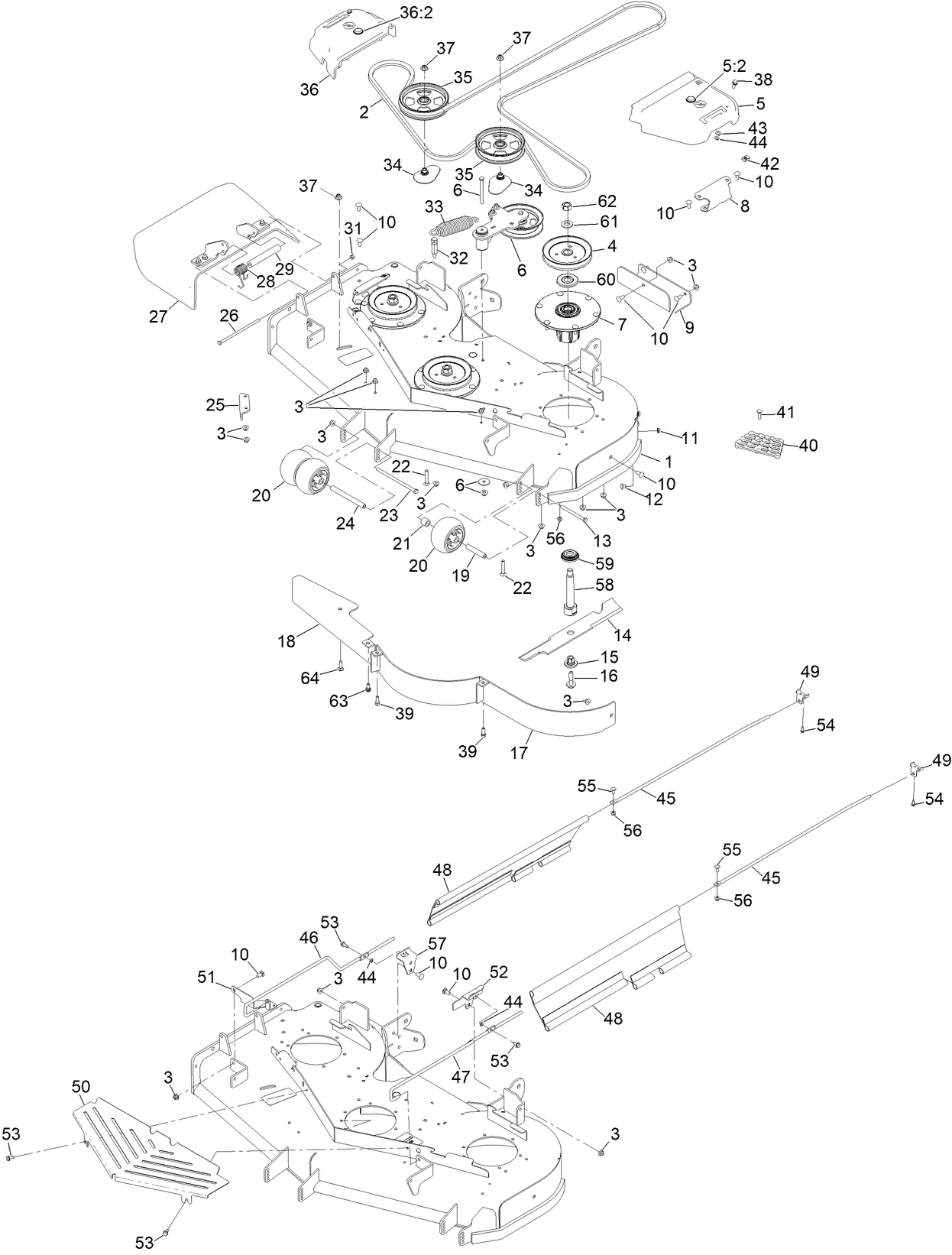

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Product Warranty
-
Setup Instructions
-
EU/UK Declaration of Conformity
Leaf Bagging Enhancement Kit (Part number 107-1634)
Anti-Scalp Kit, LH 400 and 500 Series w/TF Decks (Part number 108-4140)
Hitch Kit (Part number 109-9487)
HYPR-OIL 500 -QUART (Part number 114-4713)
HYPR-OIL 500-GALLON (Part number 114-4714)
HYPR-OIL 500-5 GALLON (Part number 114-4715)
BIMINI FOLDING SHADE ASM (Part number 115-4510)
G3 Roller Striping Kit, 48",52",60" (Part number 115-7470)
KIT,FRPS LIGHT (Part number 116-1154)
SEAT COVER W/ARM REST - Z MASTERS (Part number 117-0095)
Operator-Controlled Discharge Chute Kit (Part number 117-3600)
KIT-ROPS LOCK TORO (Part number 126-4064)
CE Bagger Compliance Kit, 52in Z Master G3 Mower (Part number 127-0337)
Jack Mount Kit, Zero-Turn-Radius Side-Discharge or Rear-Discharge Ridi (Part number 127-6665)
Jack Kit, Zero-Turn-Radius Side-Discharge or Rear-Discharge Riding Mow (Part number 127-6666)
Worklight Kit (Part number 135-7320)
SHOCK/SPRING ASM (Part number 136-8993)
BUCKET MOUNT KIT- Z-MASTER (Part number 137-9216)
TRIMMER MOUNT, Z-MASTER (Part number 137-9769)
RECYCLER KIT-G3/GRANDSTAND, 52 (Part number 139-6653)
BLADE-FLOW, HIGH (Part number 140-1242)
BLADE-18.00 MEDIUM FLOW (Part number 140-4856)
BLADE-18.00 LOW FLOW (Part number 140-4857)
BLADE-18.00 ATOMIC (Part number 140-4858)
BLADE-18.00 RECYCLER (Part number 140-4859)
6 PACK-BLADE, 18.00 HIGH FLOW (Part number 140-4882)
6 PACK-BLADE, 18.00 MED FLOW (Part number 140-4883)
6 PACK-BLADE, 18.00 LOW FLOW (Part number 140-4884)
6 PACK-BLADE, 18.00 ATOMIC (Part number 140-4885)
6 PACK-BLADE, 18.00 RECYCLER (Part number 140-4886)
WEIGHT KIT, UNDER TOE BOARD (Part number 140-4958)
TORO RIDER OVER SEAT BAG (Part number 490-7317)
Toro Deluxe Z Cover (Part number 490-7319)
TORO RIDER ARM REST BAG (Part number 490-7320)
Spark Arrestor Screen (Part number 75-6880)
Blower and Drive Kit, 52in E-Z Vac for Z Master G3 Mower (Part number 78552)
48in and 52in E-Z Vac Twin Bagging System, Z Master G3 Mower (Part number 78562)
48in and 52in E-Z Vac DFS Collection System, Z Master G3 Mower (Part number 78566)
Filter Minder Gauge (Part number 99-4664)
KIT, TRASH HOLDER (Part number TC26)
-
Model number
72969TE -
Serial number
412900000 - 999999999 -
Product Name
Professional 6000 Series MyRIDE® Petrol Z Master® 132 cm 72942TE -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Professional 6000 Series -
Chassis Type
ZRT - LCE -
Swath
52in/132cm -
Discharge
Side Discharge -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
726cc -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Battery
12V 300CCA -
Engine: Spark Plug
NGK BPR4ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
13 psi / 90 kPa -
Drive System: Ground Speed
Fwd. 0 - 10 Rev. 0 - 6.3 mph -
Engine: Ignition Coil Air Gap
.008-.016" / .2-.4mm -
Chassis: Height of Cut Range
1" - 5.5" (25-140mm) -
Engine: Engine Oil Type
68 oz. (2.0 Liter) SAE 30 -
Drive System: Gearbox Lubricant
HYPR-OIL 500 / Mobil 1 15w-50; 52oz. (1.5L) per side with filter change -
Engine: Engine Speed
3750+/-50 RPM
