GrandStand® HDX 60 in. 31 hp 999 cc
Product Information
- Model #: 72510
- Serial #: 414500000 - 416799999
- Product Type: Riding Products
Loading...

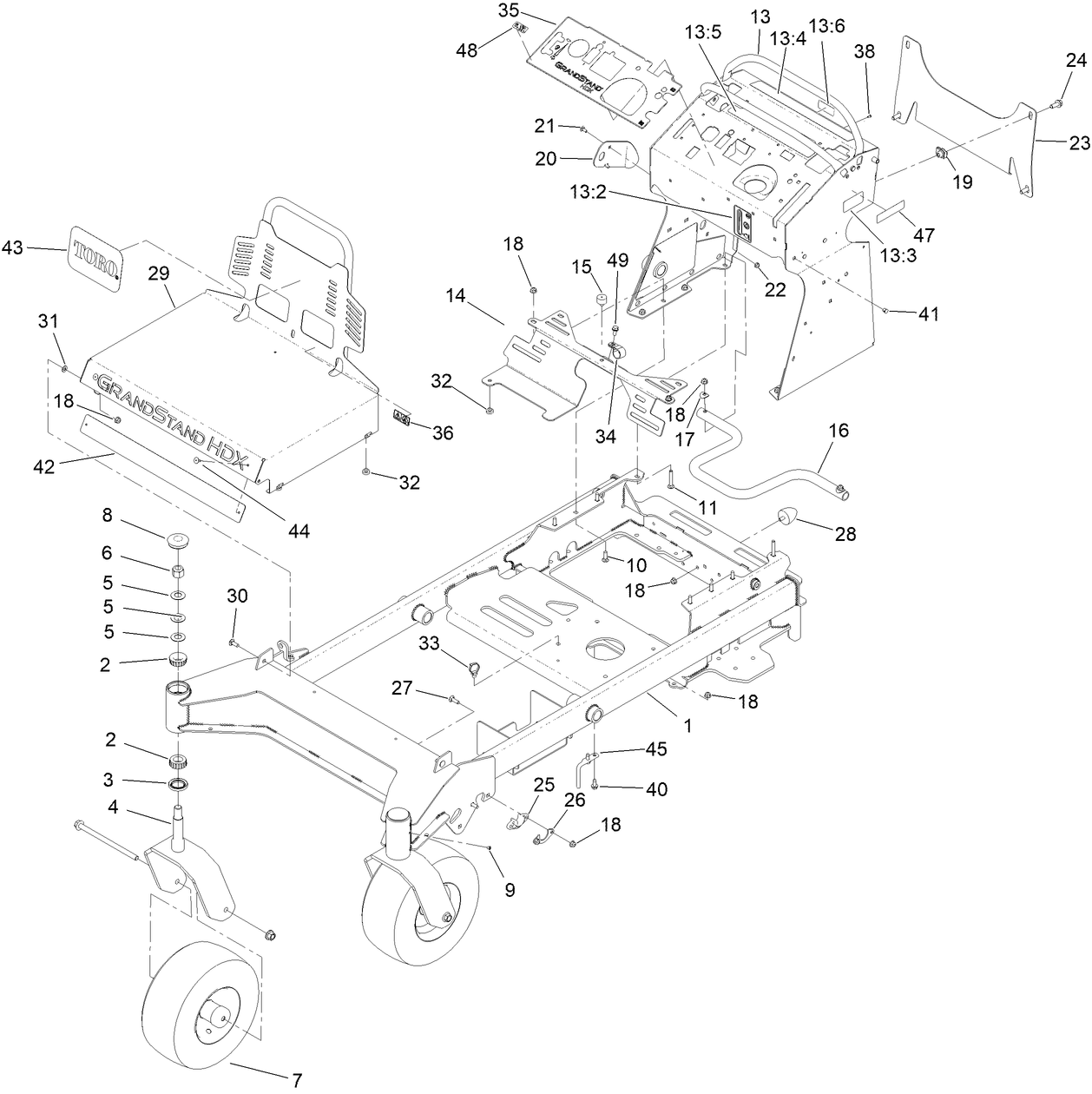

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Product Warranty
HYPR-OIL 500 -QUART (Part # 114-4713)
HYPR-OIL 500-GALLON (Part # 114-4714)
HYPR-OIL 500-5 GALLON (Part # 114-4715)
HARNESS-WIRE, SPLITTER (Part # 121-5988)
Toro Premium Fuel Treatment (Part # 131-6572)
Speed Setting Tool (Part # 132-7595)
Chute Gate Kit - GrandStand (Part # 133-1434)
Trash Bag Asm - GrandStand (Part # 133-1435)
Light Kit - GrandStand (Part # 133-1437)
HOC SET BLOCKS-GRANDSTAND (Part # 133-1439)
OIL CHANGE KIT (Part # 133-1457)
Flasher Light Kit (Part # 133-1495)
BUCKET-5 GALLON (Part # 133-2533)
HYDRAULIC CAP LOCK KIT (Part # 136-5420)
Bucket Mount Kit, Grandstand Mower (Part # 136-5681)
TWEEL-TURF (Part # 139-3649)
RECYCLER KIT-G3/GRANDSTAND/GM 3300 60 (Part # 139-6655)
BLADE (Part # 140-1240)
BLADE-20.50 ATOMIC (Part # 140-1241)
BLADE-20.50 MEDIUM FLOW (Part # 140-4853)
BLADE-20.50, LOW FLOW (Part # 140-4854)
BLADE-20.50 RECYCLER (Part # 140-4855)
6 PACK-BLADE, 20.5 HIGH FLOW (Part # 140-4877)
6 PACK-BLADE, 20.5 MED FLOW (Part # 140-4878)
6 PACK-BLADE, 20.5 LOW FLOW (Part # 140-4879)
6 PACK-BLADE, 20.5 ATOMIC (Part # 140-4880)
6 PACK-BLADE, 20.5 RECYCLER (Part # 140-4881)
2 TRANSMISSION FILTER KIT (Part # 144-3842)
SPARK ARRESTOR, 1.5" (Part # 146-0561)
13X6.5N6 CASTER TWEEL ASM (Part # 147-6294)
10W30 4-CYCLE ENGINE OIL 32 OZ BOTTLE (Part # 38280)
TORO 4-CYCLE SAE 30 OIL (32OZ BOTTLE) (Part # 38903)
-
Model #
72510 -
Serial #
414500000 - 416799999 -
Product Name
GrandStand® HDX 60 in. 31 hp 999 cc -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Professional Grade Stand-on Mowers -
Chassis Type
Stand On -
Swath
60 inch / 152 cm -
Discharge
Side -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
31 hp -
Engine/Motor Type
4 Cycle AC EFI -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Battery
12V 300CCA -
Engine: Engine Speed
3600±100 RPM -
Engine: Spark Plug
NGK BPR5ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Height of Cut Range
1.5" - 5" (38-127mm) -
Engine: Ignition Coil Air Gap
.008-.016" / .2-.4mm -
Engine: Engine Oil Type
64 oz. (1.9 Liter) SAE 30 or 10W-30 or 10W-40 -
Drive System: Ground Speed
0-10 mph / 0-16kph -
Chassis: Tire Pressure
12-14psi (83-97kPa) -
Drive System: Gearbox Lubricant
HYPR-OIL 500 4.7 L (159 fl. oz.)
