2000 Series 52 in. (132 cm) 24.5 hp 708cc
Product Information
- Model #: 77283
- Serial #: 415500000 - 417399999
- Product Type: Riding Products
Loading...

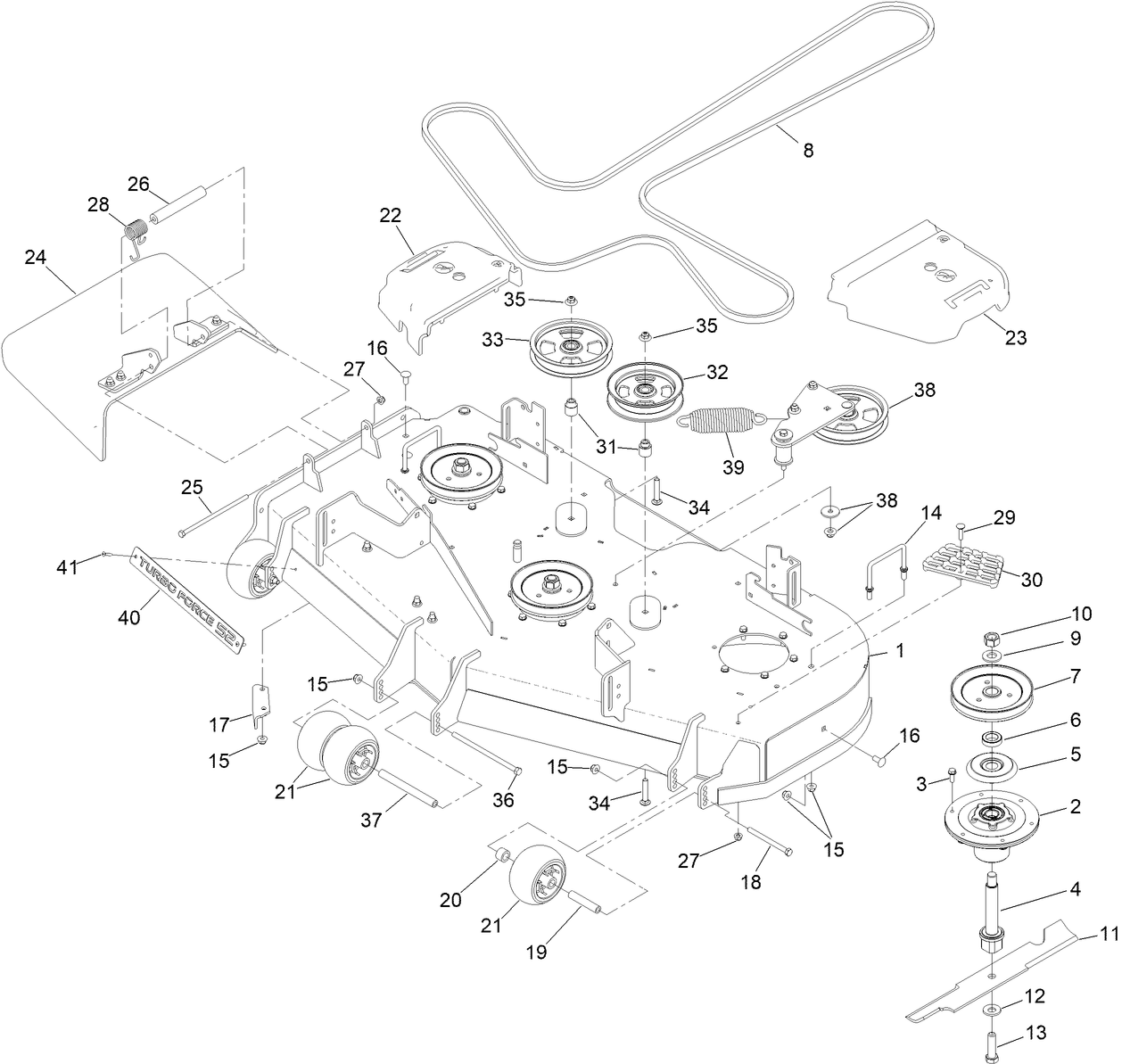

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Product Warranty
-
Setup Instructions
KIT-ELEC DECK LIFT (Part # 147-7867)
MAINTENANCE KIT TORO V-TWIN W/ HD AC (Part # 20295)
-
Model #
77283 -
Serial #
415500000 - 417399999 -
Product Name
2000 Series 52 in. (132 cm) 24.5 hp 708cc -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Commercial 2000 Series -
Chassis Type
ZRT - LCE -
Swath
52 inch / 132 cm -
Discharge
Side Discharge -
Engine/Motor Manufacturer
Toro -
Engine/Motor Size
24.5 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Battery
12V 300CCA -
Engine: Engine Speed
3600±100 RPM -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Height of Cut Range
1.5" - 5" (38-127mm) -
Chassis: Tire Pressure
13 psi / 90 kPa -
Drive System: Ground Speed
0-10 mph / 0-16kph -
Engine: Spark Plug
Champion RN9YC / NGK BPR6ES -
Engine: Engine Oil Type
2.5 qts (80 oz. or 2.4L) 10W-30 with filter change -
Drive System: Gearbox Lubricant
HYPR-OIL 500 / 20w-50 Synthetic Motor Oil
