42 in. (107 cm) TimeCutter® MyRIDE® Zero Turn Mower
Product Information
- Model #: 75747
- Serial #: 414376482 - 415299999
- Product Type: Riding Products
Loading...

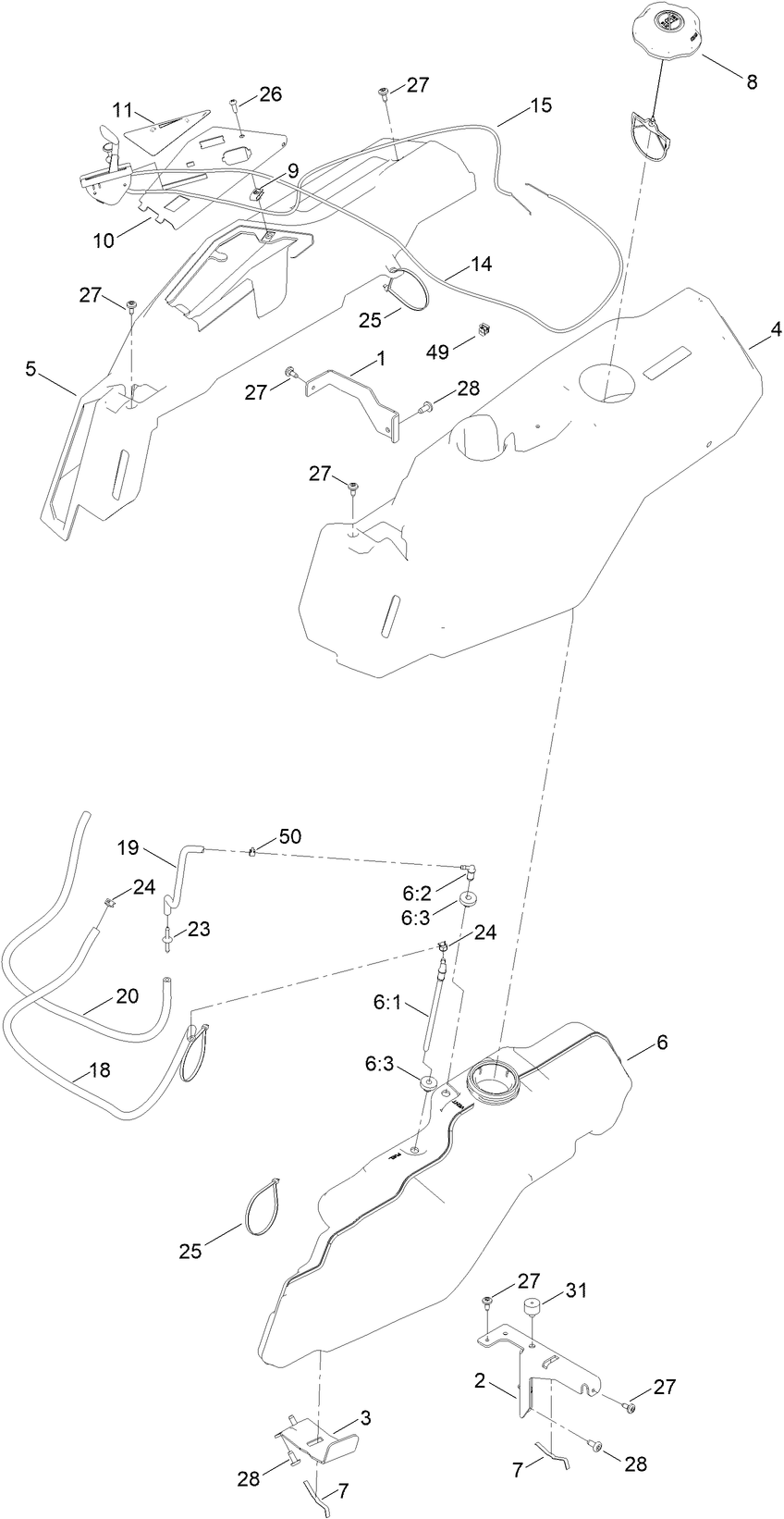

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Product Warranty
-
Setup Instructions
Hourmeter Kit for Timecutter Mowers (Part # 116-5461)
The Toro Hour meter kit provides fractional engine hour tracking to easily track usage and service intervals. Easy to install into pre-existing slot and connects with the wiring harness leading to the seat switch.
Please contact your local dealer
Seat Cover for Arm Rest Models (Part # 117-0097)
Protect your investment with a customized seat cover. Toro's seat cover for use on TimeCutter 18 in. seats with armrests will make old seats look new and protects new seats from future wear and tear. The fabric is coated for maximum water resistance and repellency and is cushioned for extra comfort.
Please contact your local dealer
Riding Mower Jack Kit (Part # 127-6666)
Genuine Toro jack mount kit. Mounts to the front of the mower and allows the owner to raise the mower to gain access to the underside of the deck to check blades or wash the deck. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
Please contact your local dealer
Premium Fuel Treatment (0.5 oz.) (Part # 130-2393)
Toro Premium Fuel Treatment helps ensure clean, reliable engine performance and protection. Good for your lawnmowers, snow blowers, weed wickers, leaf blowers and other small engine power equipment. Using Toro Fuel Treatment with every fill up provides protection for two and four cycle small engines.
All Season 4-Cycle Fuel for Lawn Mowers and Snow Blowers 32 oz. (Part # 131-3823)
4-cycle ethanol free fuel, engineered for maximum performance. Highly recommended for gas engines to maintain smooth performance. Advantages include cleaner fuel system, better fuel economy, longer shelf life and less wear and tear on internal engine parts. 92 plus octane for fast starts and optimal equipment performance.
Premium Fuel Treatment (12 oz.) (Part # 131-6572)
Toro Premium Fuel Treatment helps ensure clean, reliable engine performance and protection. Good for your lawnmowers, snow blowers, weed whackers, leaf blowers and other small engine power equipment. Using Toro Fuel Treatment with every fill up provides protection for two and four cycle small engines.
Maintenance Kit TORO V-Twin (Part # 139-0646)
TimeCutter Zero Turn Mower Twin Cylinder Engine Maintenance Kit includes everything the do-it-yourselfer needs to keep a Toro machine running like new. This lawn mower engine maintenance kit is an easy and convenient way to ensure your Toro equipment will run its best year after year. All components included in the lawn mower engine maintenance kit are approved by Toro engineers for use with the Toro engines on the Toro TimeCutter zero turn mower.
Toro V-Twin Engine Maintenance Kit (Titan HD/ Z Master 2000 Series) (Part # 139-0649)
Toro maintenance kits contain everything the do-it-yourselfer needs to keep a Toro machine running like new. It's an easy and convenient way to ensure your Toro equipment will run its best year after year. All components are approved by Toro engineers for use with the Toro engines on the Toro TimeCutter chassis.
TimeCutter 42 in. Bagging Enhancement Kit (Part # 139-7478)
This bagging enhancement kit can be used with 42 in. Toro TimeCutter MX and SWX fabricated deck model 2012 and newer. It will enhance bagging performance in extreme conditions such as heavy, wet grass or autumn leaf bagging. Refer to the operator manual for installation and use.
TimeCutter Front Weight Kit (Part # 140-2050)
This weight kit is required to get the best performance of Toro attachments such as the Cargo Carrier (79030) or the Brinly-Hardy rear mounted spreader or sprayer. The weight balances the machine installed with an attachment. The kit contains one 35 lb. weight and the hardware needed to install it. Can be easily removed when the attachment is not in use. The weight kit is included with the TimeCutter baggers (see baggers for details)
TimeCutter Heavy Duty Spring Kit (Part # 140-2051)
Toro heavy duty spring kit keeps your TimeCutter more stable over rough terrain. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
Assist Bar and Mount Kit for TimeCutter Mowers (Part # 140-2052)
Toro's Assist Bar and Mount Kit Kit will help you to step in and out of your TimeCutter with ease. The telescoping bar adjusts to your height and will assist you when entering and exiting the machine. The non-slip step gives offers additional support.
TimeCutter Sunshade Kit (Part # 140-2054)
Keep cool and dry while you mow. The Toro TimeCutter sunshade increases operator comfort by shielding you from the elements. Assembles easily and offers a clean line of sight across your entire mowing area. Genuine Toro Parts and accessories are designed specifically for your machine and built to exacting standards with tight tolerances. Other parts simply don't stack up to the quality, performance, and value of Genuine Toro Parts.
TimeCutter LED Light Kit (Part # 140-2056)
The LED Light kit illuminates your mowing area during lowlight conditions and making moving easier and more efficient. This LED Light kit mounts to Toro Time Cutter models and is a genuine Toro LED Light Kit. The kit includes hardware, wire harness and instructions.
TimeCutter SS Foot Assist HOC System (Part # 140-2059)
The Toro Foot-Assist Height-of-Cut System allows operators to easily raise and lower the mower deck using their foot. This option is ideal for situations where the deck height or height-of-cut needs to be adjusted frequently. Specifically designed for Toro TimeCutter SS mowers, this product provides mechanical leverage to add convenience to your mower.
TimeCutter MyRide Rubber Floor Mat Kit (Part # 140-2061)
The Toro Floor Mat is custom designed for the floor of Toro TimeCutter Level Steer models. The floor mat provides a cushioned surface for the operator's feet and reduces vibration and dampen noise. The floor mat is constructed of thick rubber to provide years of trouble-free use and can be easily removed for washing or mower service.
Riding Mower Jack Mount Kit (Part # 140-2711)
Genuine Toro jack mount kit. Mounts to the front of the mower and allows the owner to raise the mower to gain access to the underside of the deck to check blades or wash the deck. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
42 Inch TimeCutter Stripping Kit (Part # 140-5159)
The Toro Striping Kit allows you to create "ballpark" stripes and patterns in your lawn while you mow. Striping kits lay the grass down in the direction of travel. The differences in direction reflect light to provide vivid light and dark stripes in your lawn. Adjustable to increase or decrease downward pressure.
10W30 4-Cycle Engine Oil - 32 oz. Bottle (Part # 38280)
The Toro 38280 Premium 4-Cycle Lawn Mower Engine Oil 10W-30 is specially formulated to meet specific 4-cycle engine manufacturer requirements calling for 10W-30. This lawn mower engine oil provides the ultimate protection for all 4-cycle OPE engines. The lawn mower engine oil is developed with Toro engineering to meet the standards for all air-cooled, liquid-cooled and diesel engines. To maximize the performance of your Toro lawn mower, we highly recommend using this Toro lawn mower engine oil, which has been specifically formulated for best results. The lawn mower engine oil provides extreme performance in all temperatures, enhancing the life of your lawn mower's engine.
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz (Part # 38903)
Toro SAE 30 4-cycle engine oil passed the strictest requirements in thousands of hours of testing in hundreds of engines before you filled your lawn mower. This oil meets or exceeds performance requirements of all OEM engines (Toro, Briggs & Stratton, KOLHER, Honda, and Tecumseh). The use of Toro SAE 30 4-cycle lawn mower oil minimizes molecular shearing for extended life in hot-air-cooled applications vs multi-grades (i.e., 10W-30).
Please contact your local dealer
Cover for TimeCutter Models (Part # 490-7516)
The Toro Z mower cover protects your investment by offering all-season protection. Toro covers are constructed of tough, waterproof, tear and abrasion-resistant 600-Denier polyester and will provide years of carefree protection for your mower. Toro covers protect against snow, sun damage, rain, dust, birds, tree sap and more. Toro covers also feature vents to minimize condensation and heat build-up and an elastic opening to ensure a snug, secure fit.
Please contact your local dealer
TimeCutter SS 42 inch Deck Belt (Part # 79004)
Genuine Toro deck belt for 42 inch. TimeCutter model years 2011 and newer. This replacement deck drive belt is a Kevlar corded Aramid fiber belt. Genuine Toro parts ensure your Toro mower performs as it's intended by providing the perfect fit and maximum performance.
TimeCutter 42 in. IronForged Deck Twin Bagger (Part # 79411)
The Toro TimeCutter Twin Bagger with its 6.43 bushel (8 cu. ft.) capacity makes quick work of taking care of grass clippings or fallen leaves. When paired with one of Toro's top discharge decks, its performance can't be beat. It assembles easily and once initially installed, can be removed and put back on without tools. Includes bagger, mount kit and front weights.
Toro Rollover Protection System Kit For TimeCutter Riding Mower (Part # 79485)
Toro ROPS rollover protection system kit 79485 and the use of an accompanying seatbelt can prevent an operator from being thrown from a machine or pinned under the mower should it overturn. There is no rollover protection when the roll bar is in the down position. Do not wear the seat belt when the roll bar is in the down position.
Timecutter Slope Sensor Kit (Part # 79486)
Genuine Toro slope sensor for sensing a tilt angle representing the orientation of the lawnmower with respect to a horizontal level plane. An signal indicator may provide a notice signal when the tilt angle exceeds a pre-determined check angle. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
-
Model #
75747 -
Serial #
414376482 - 415299999 -
Product Name
42 in. (107 cm) TimeCutter® MyRIDE® Zero Turn Mower -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Consumer -
Chassis Type
ZRT - Consumer -
Swath
42 inch -
Discharge
Side -
Engine/Motor Manufacturer
Kohler -
Engine/Motor Size
725cc -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
2wd
-
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
13 psi / 90 kPa -
Engine: Engine Oil Type
64 oz. (1.9 Liter) SAE 10W-30 or 10W-40 -
Chassis: Height of Cut Range
1.5-4.5"; 1/2" increments -
Engine: Spark Plug
Champion XC12YC -
Engine: Engine Speed
3300±100 RPM -
Engine: Battery
12V 230CCA -
Engine: Ignition Coil Air Gap
0.011in (0.3mm) -
Drive System: Ground Speed
Forward: 0-7 mph -
Drive System: Gearbox Lubricant
HYPR-OIL 500 / 20w-50 Synthetic Motor Oil
