Stand-On 24 Gallon SprayMaster
Product Information
- Model #: 34246
- Serial #: 400000000 - 415299999
- Product Type: Sprayers
Loading...

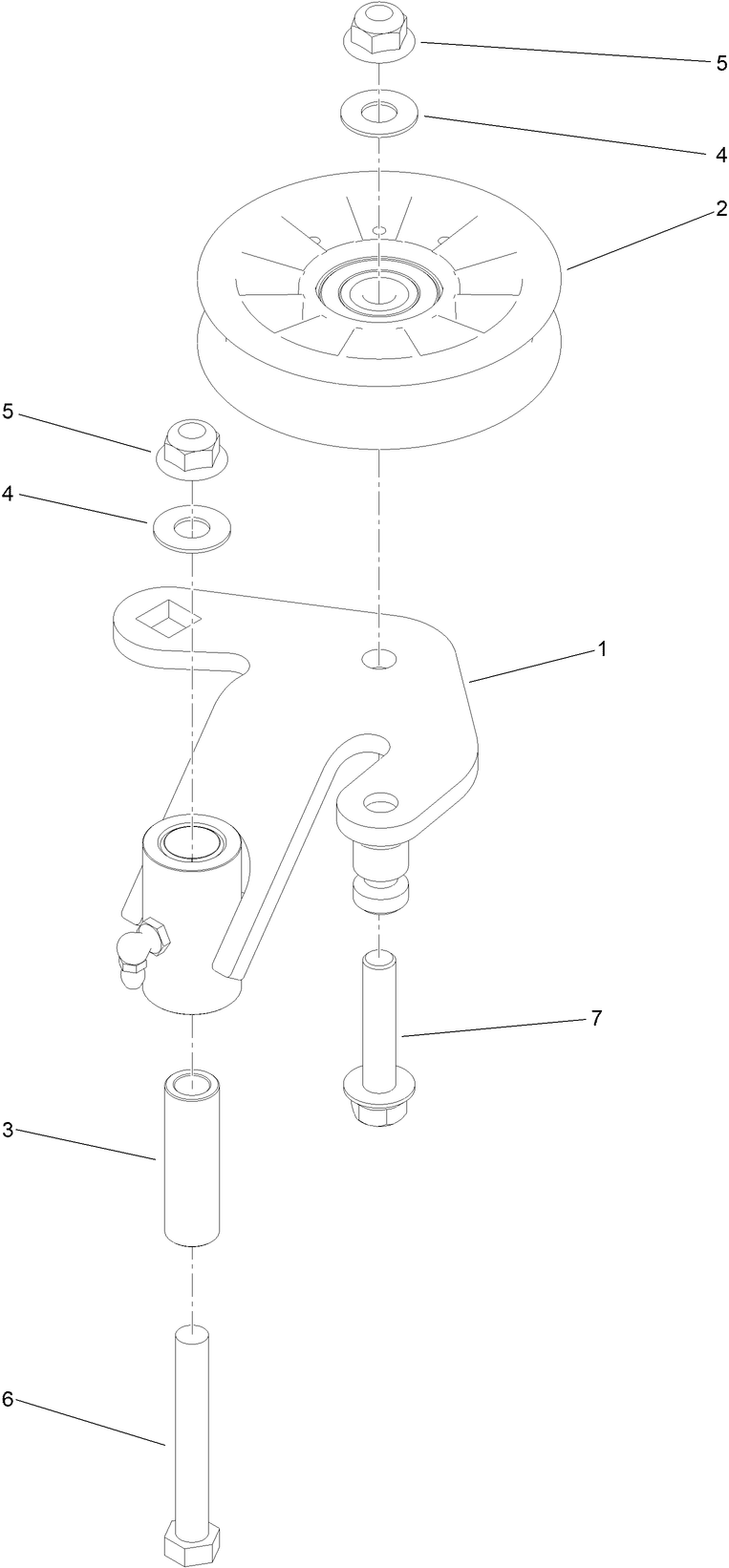

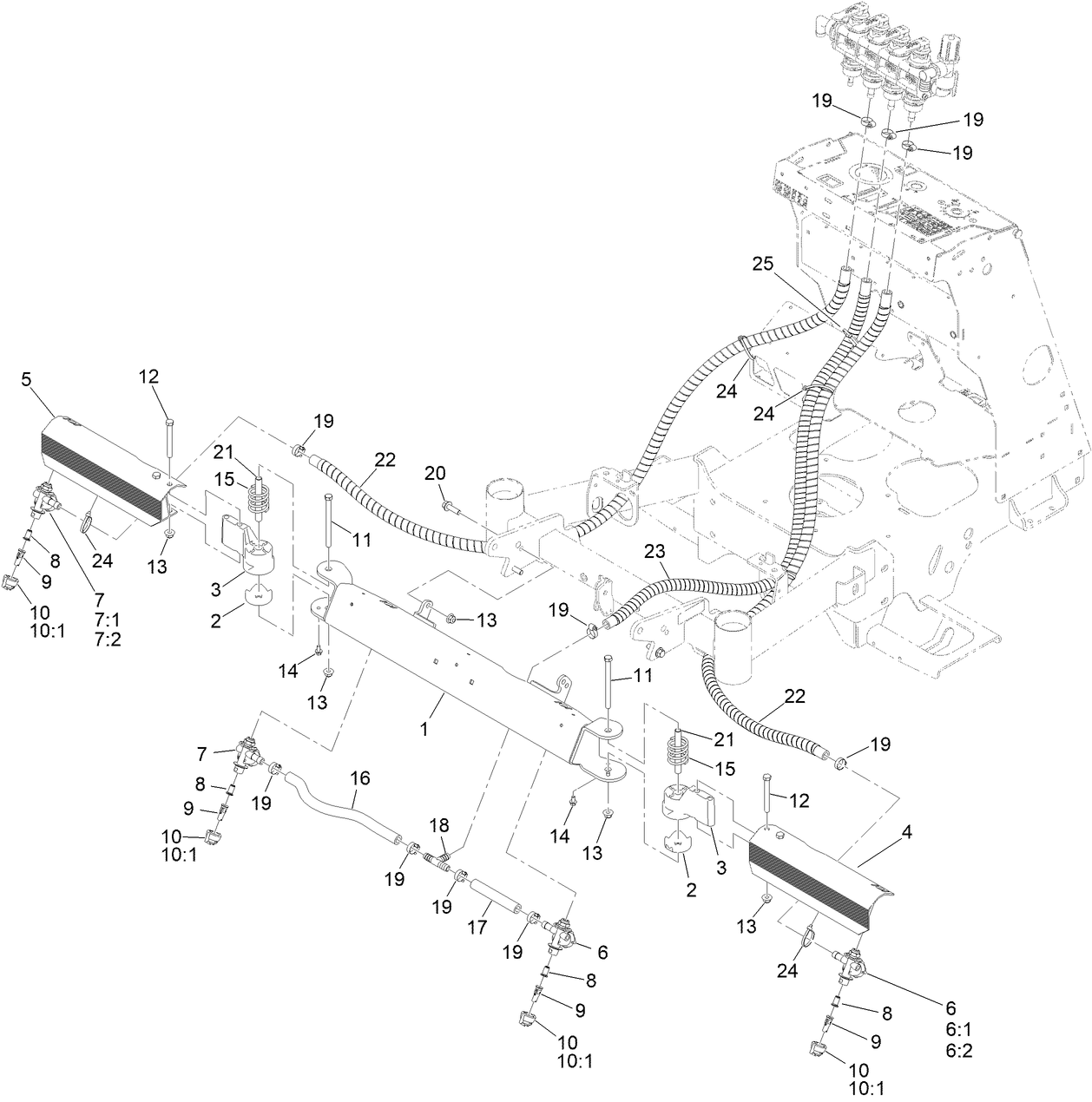

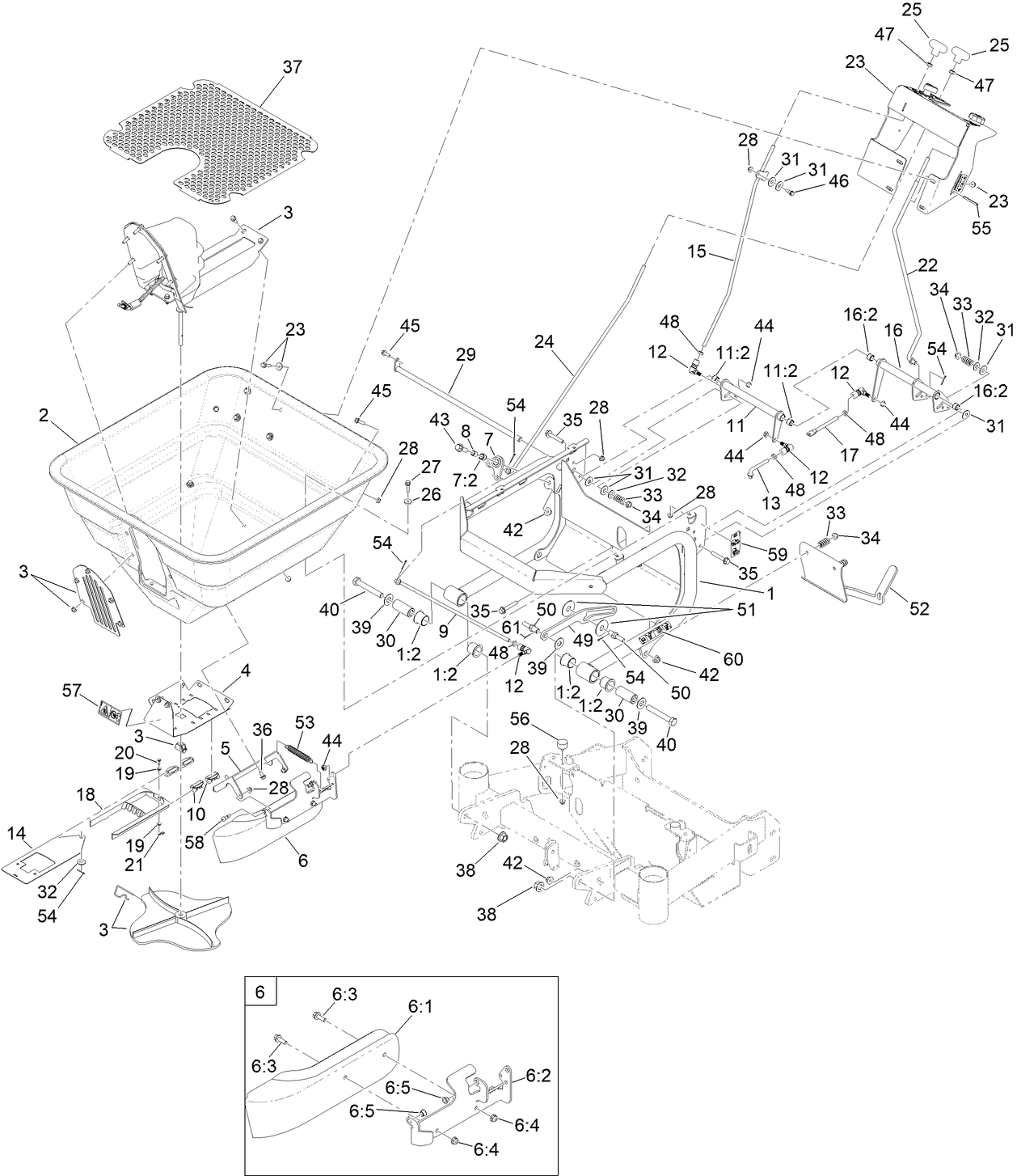

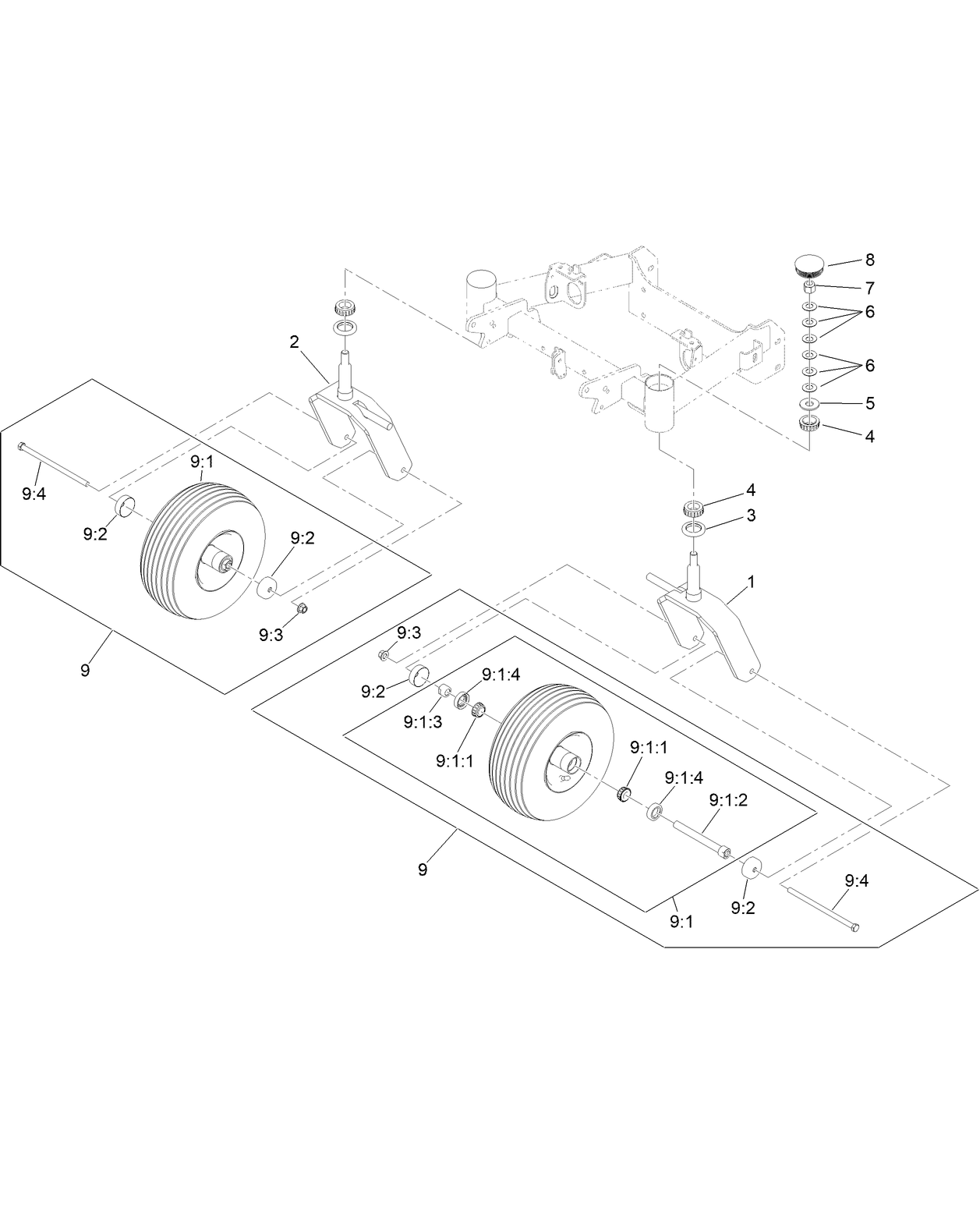

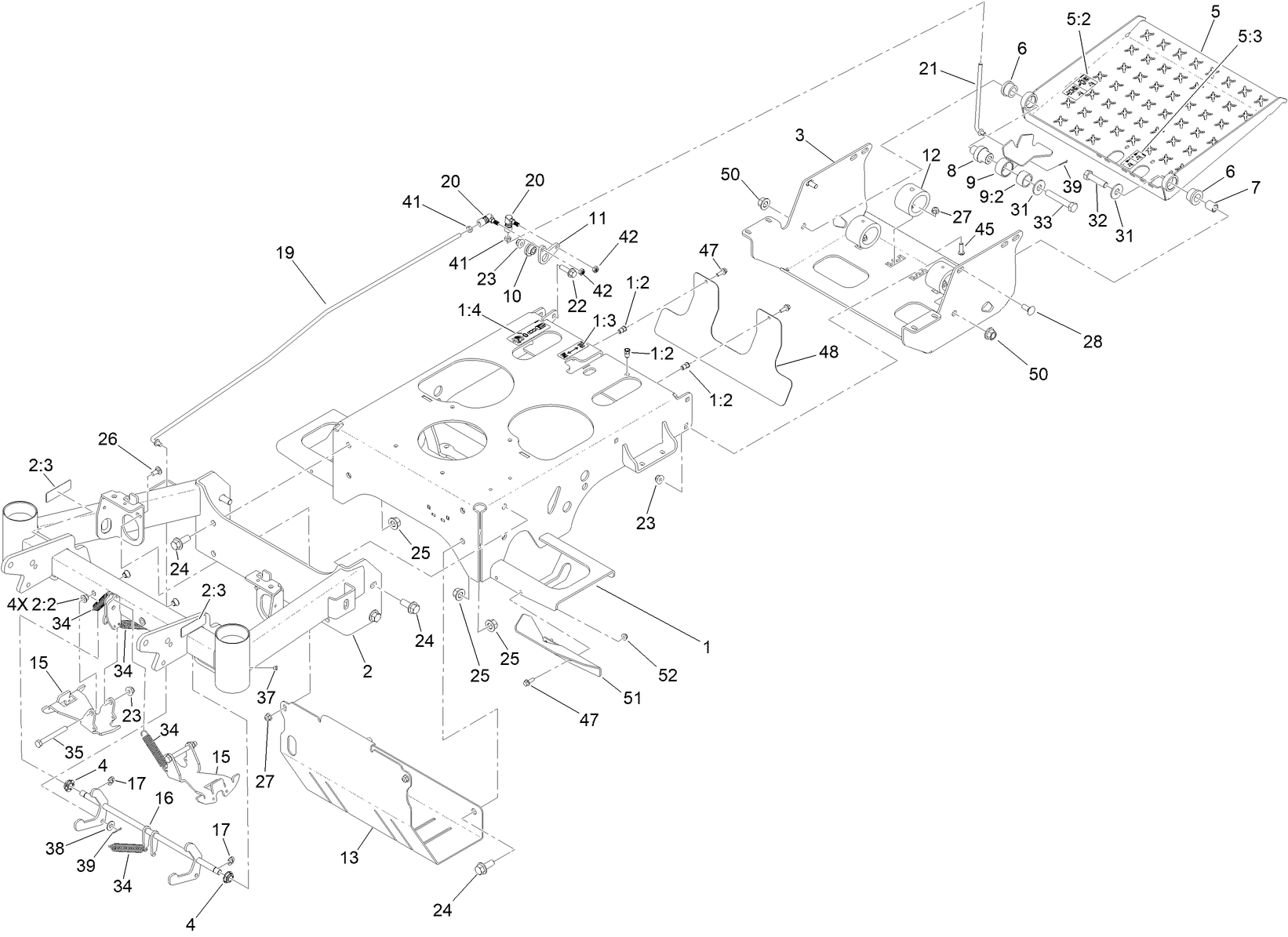

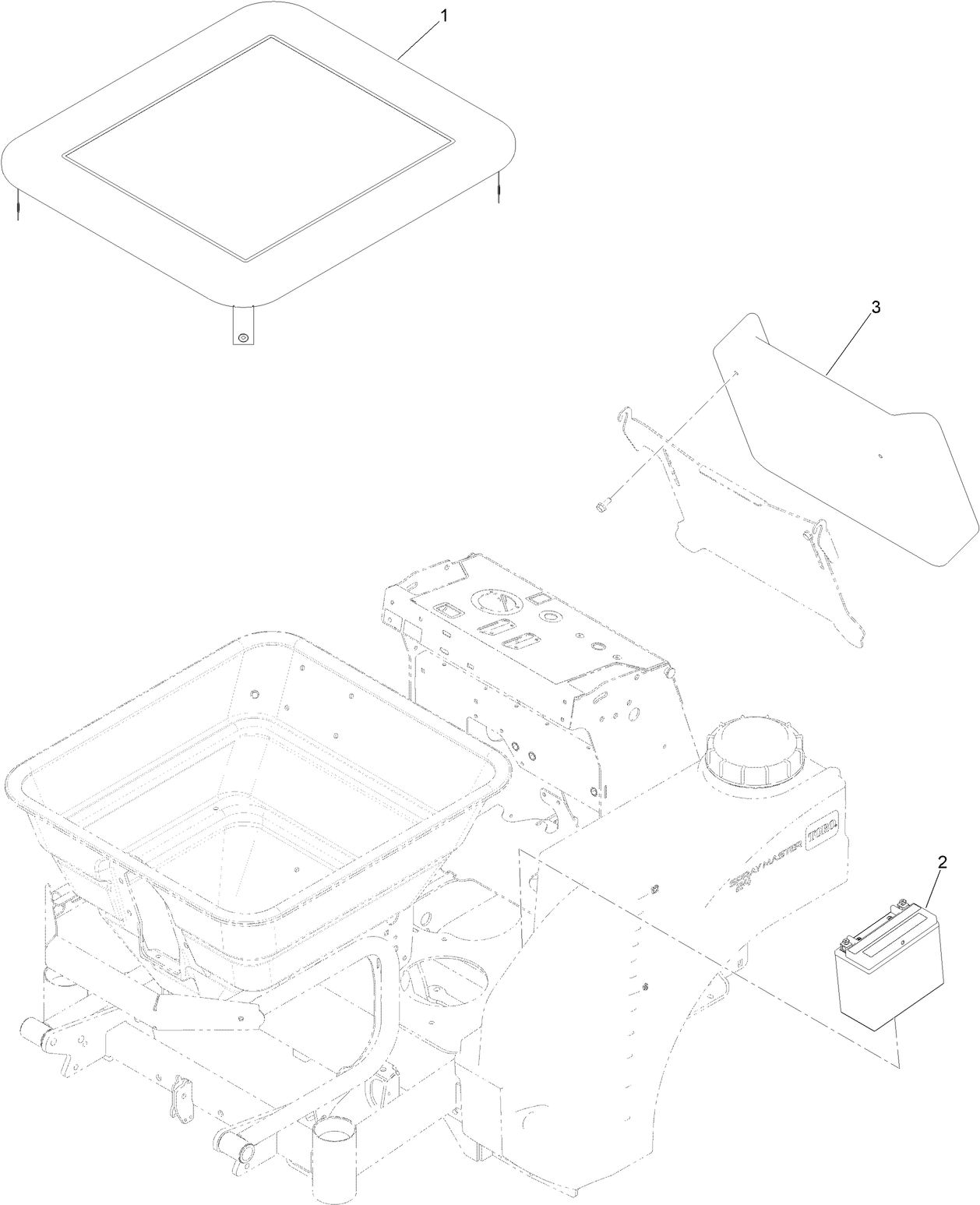

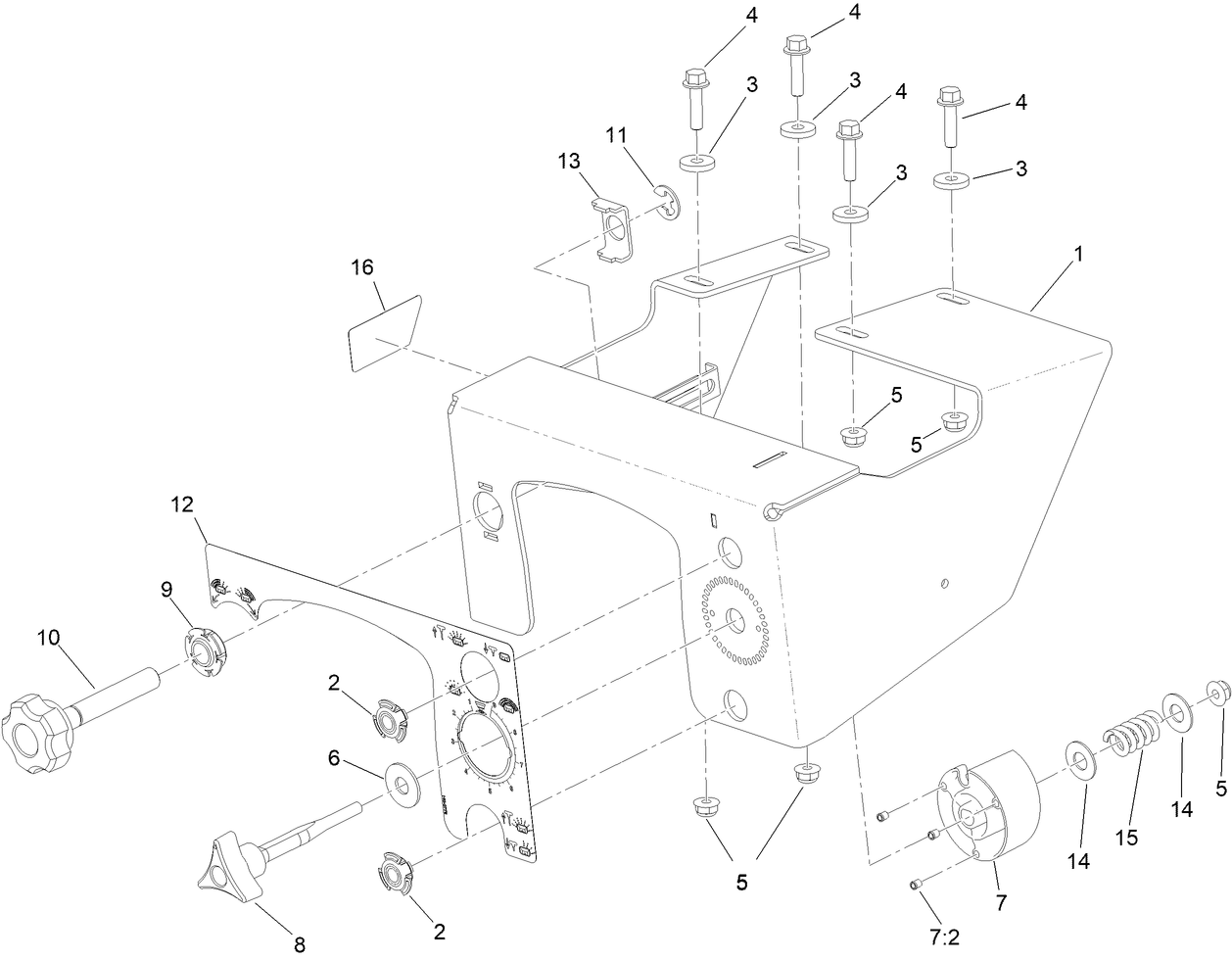

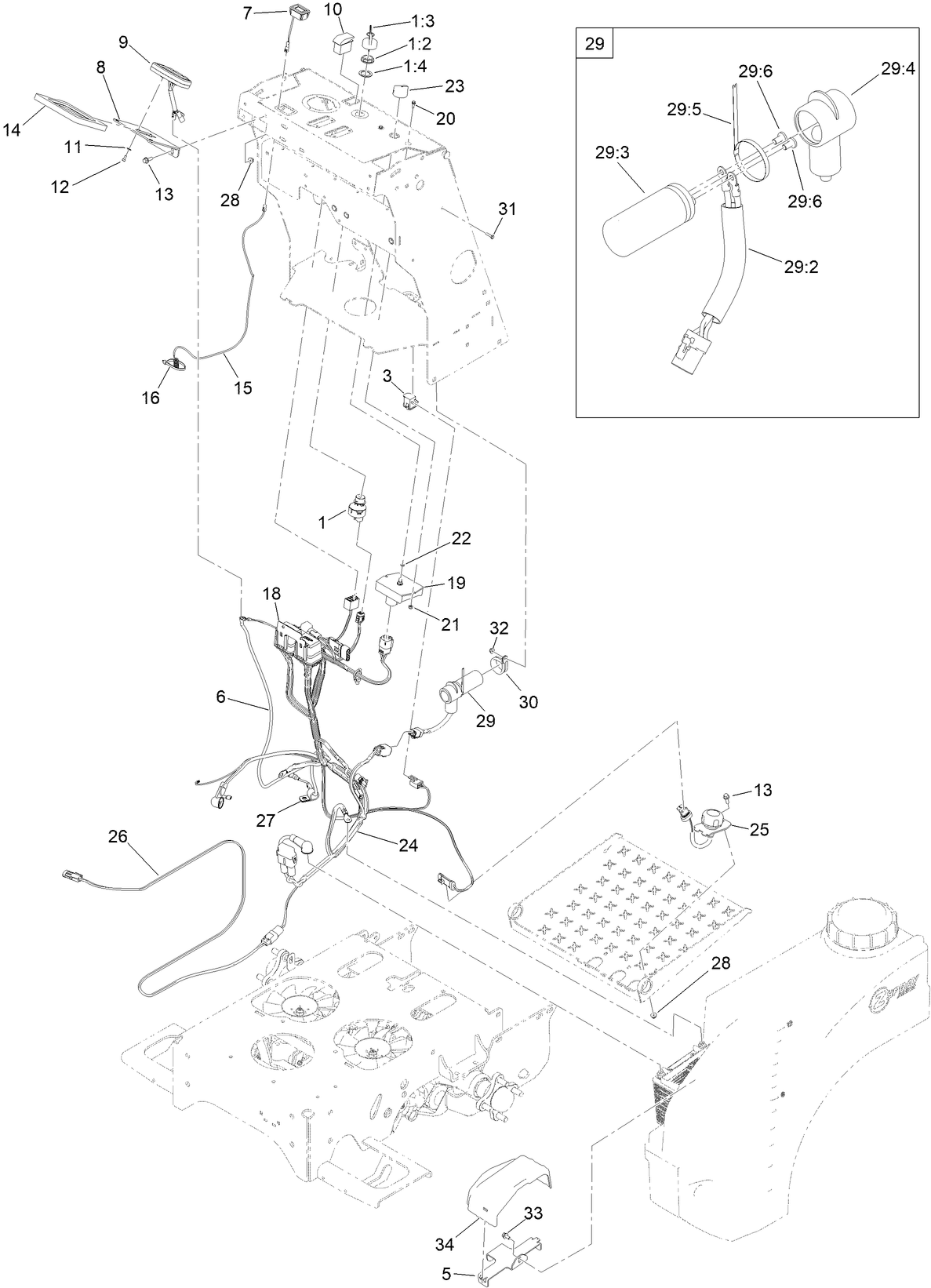

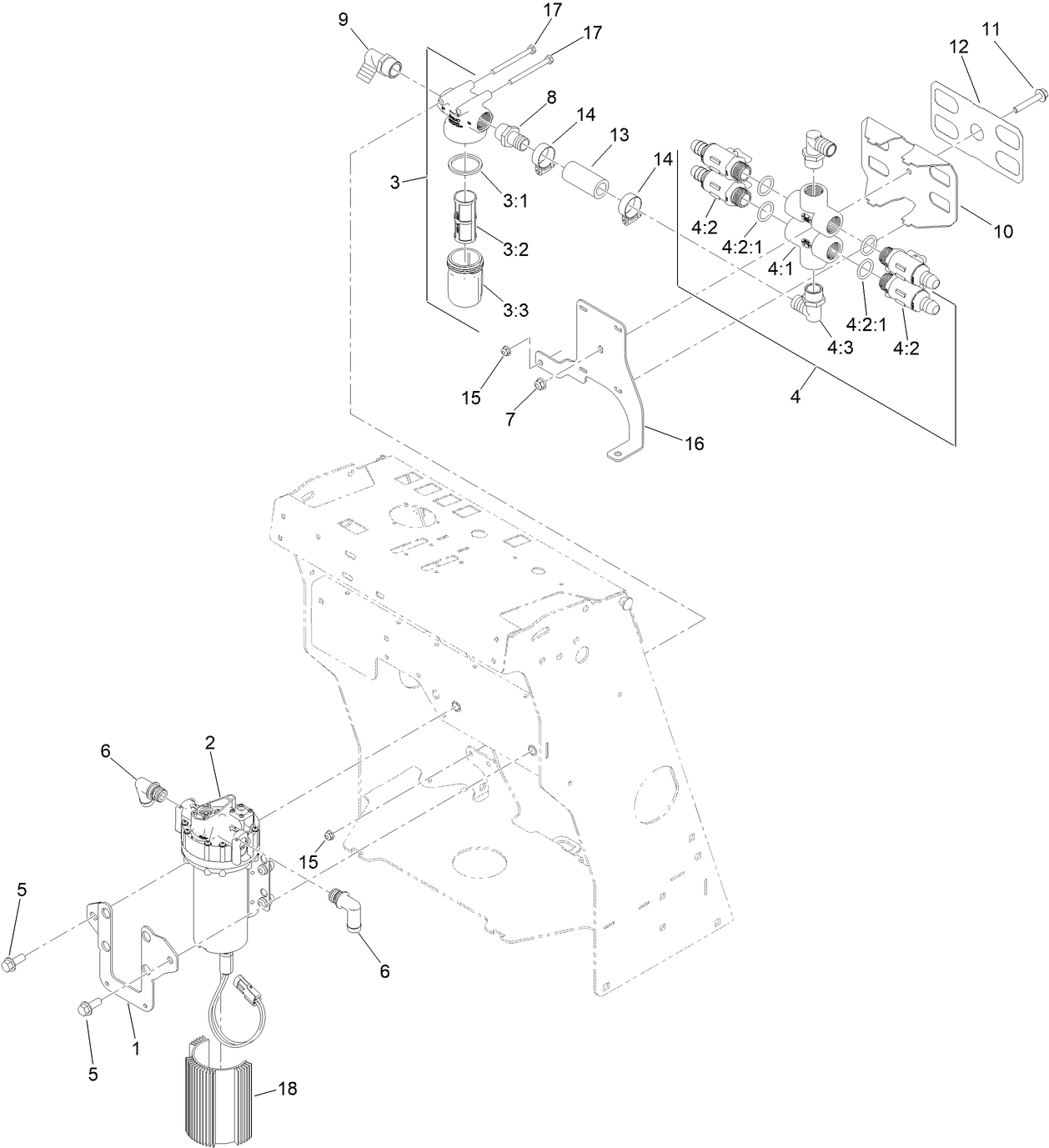

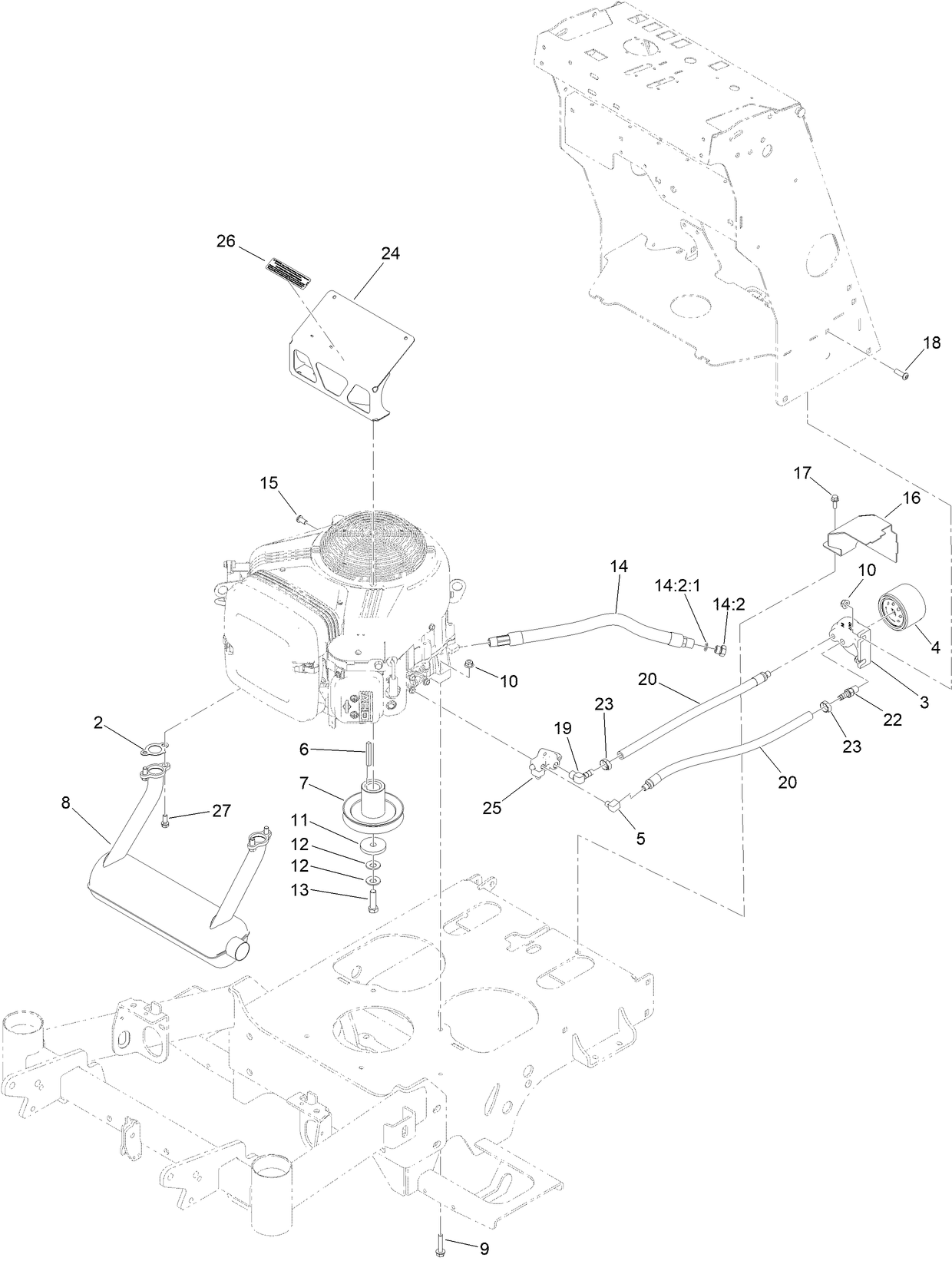

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Product Warranty
-
Setup Instructions
Sprayer Nozzle (Part # 117-5838)
Toro OEM Sprayer Nozzle
Sprayer Nozzle (Part # 117-5839)
Toro OEM Sprayer Nozzle
5 PSI CHECK VALVE\N11750-PP-5 (Part # 135-8385)
TIP-SPRAY, 015 (Part # 142-3306)
TIP-SPRAY, 02 (Part # 142-3307)
TIP-SPRAY, 025 (Part # 142-3308)
TIP-SPRAY, 03 (Part # 142-3309)
TIP-SPRAY, 04 (Part # 142-3310)
TIP-SPRAY, 05 (Part # 142-3311)
TIP-SPRAY, 06 (Part # 142-3312)
Wide Application Nozzle Kit (Part # 142-5488)
15FT Hose Reel Kit (Part # 142-6680)
Foam Marker Kit-Jr36 (Part # 142-6681)
Light Kit (Part # 142-7876)
Vibratory Motor (Part # 142-7877)
Pump Kit, 7 Gallon (Part # 142-7879)
20 Gallon Auxiliary Tank Kit, 36in SprayMaster (Part # 146-0604)
7 Gallon Isolated Tank Kit, 36in SprayMaster (Part # 146-0605)
7 Gallon Auxiliary Tank Kit, 36in SprayMaster (Part # 146-0606)
TIP-SPRAY, XRC11020 (Part # 146-0633)
-
Model #
34246 -
Serial #
400000000 - 415299999 -
Product Name
Stand-On 24 Gallon SprayMaster -
Product Brand
Toro -
Product Type
Sprayers -
Product Series
Turf Maintenance Equipment -
Chassis Type
ZRT - LCE -
Swath
36 inch / 91 cm -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Size
16 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
2wd
-
Engine: Battery
12V 300CCA -
Engine: Spark Plug
Champion RC12YC -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
13 psi / 90 kPa -
Drive System: Ground Speed
0-6 mph -
Engine: Engine Oil Type
48 oz. (1.4 Liter) SAE 10w-30 /API SF or higher -
Engine: Engine Speed
3300±100 RPM -
Engine: Ignition Coil Air Gap
0.011in (0.3mm) -
Drive System: Gearbox Lubricant
HYPR-OIL 500
