21 in. (53 cm) Heavy Duty Variable Speed Zone Start Kohler® 2-Bail
Product Information
- Model #: 22287
- Serial #: 400000000 - 407699999
- Product Type: Walk Behind Mowers
Loading...

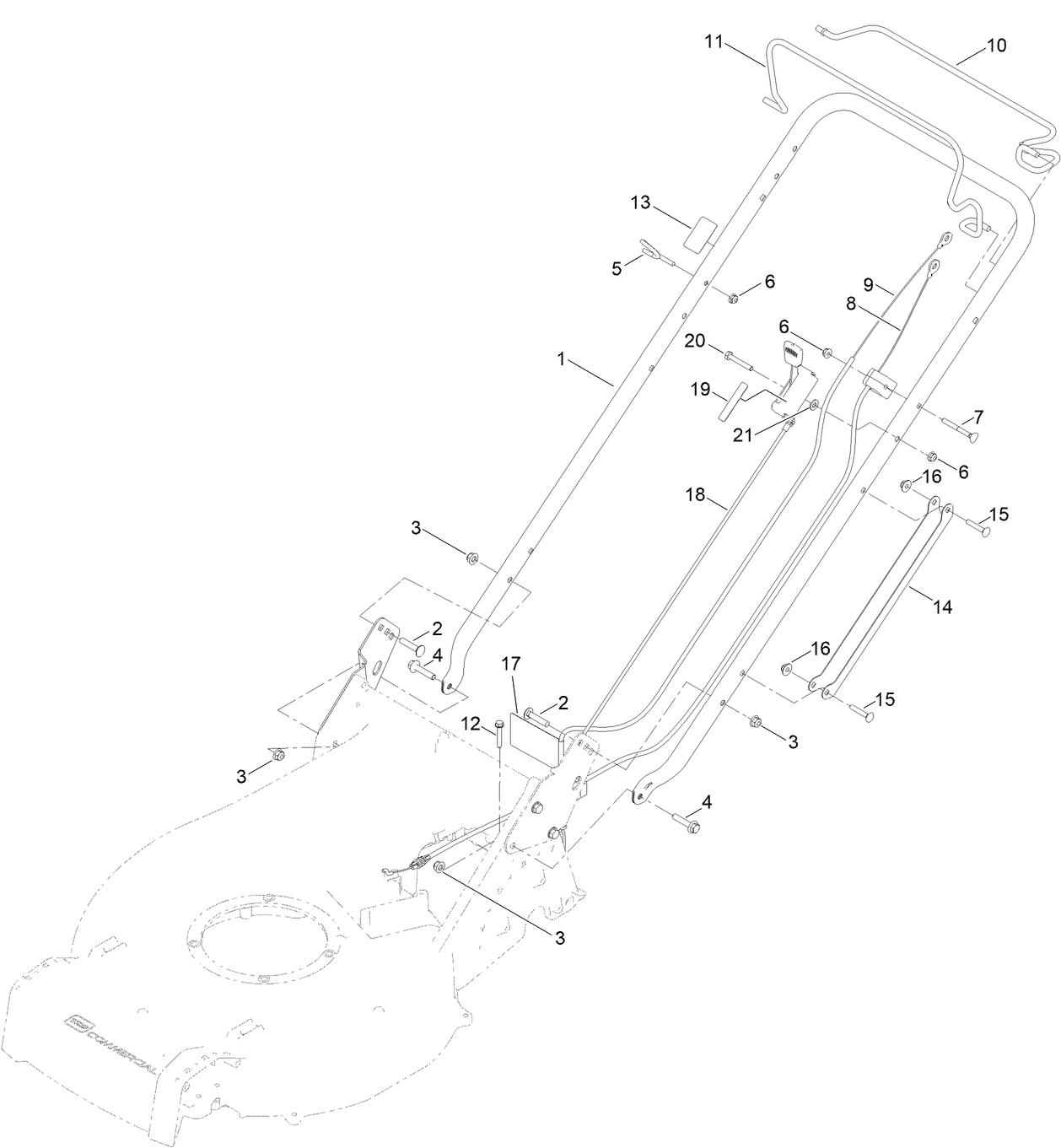

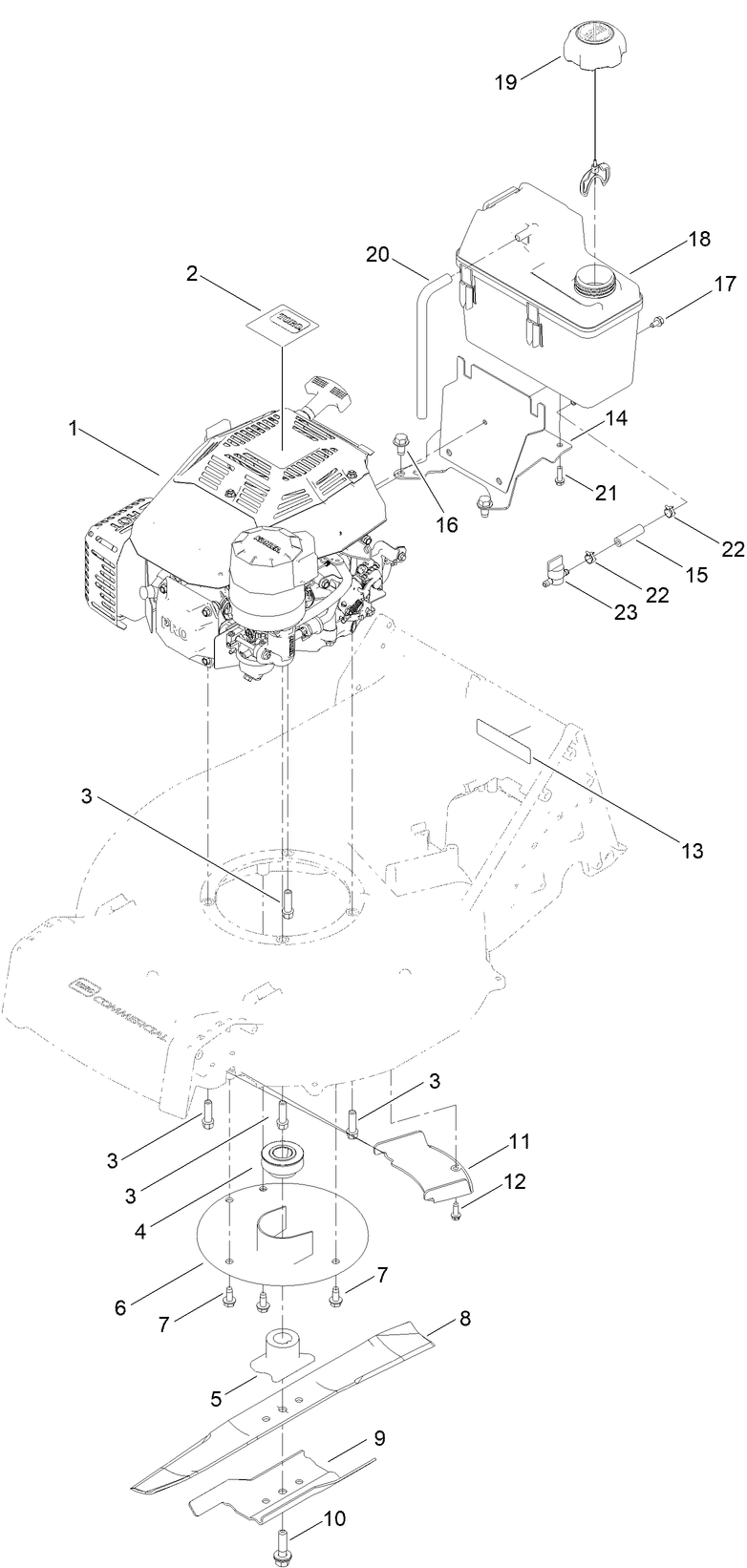

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Product Warranty
-
Quick Start Guide
21 Inch Bagging Blade (Part # 125-1072-03)
Toro bagging 21 Inch blade. Toro bagging lawn blades have a straight and more aerodynamic body that cuts grass which then allow for either discharge or bagging of the clippings. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Anti-Scalp Cup (Part # 125-8440)
Toro OEM walk power mower anti-scalp cup. These cups help prevent the lawn mower deck from coming in contact with the ground when passing over a high spot, thus preventing the blade from slicing off or "scalping" large clumps of grass. To best protect your investment and maintain optimal performance of your equipment, count on Toro genuine parts.
Rear Discharge Kit (Part # 130-9734)
The discharge kit easily converts bagging mowers to a side discharge mower. Directs the grass clippings away from the lawn mower deck. To best protect your investment and maintain optimal performance of your equipment, count on Toro genuine parts.
-
Model #
22287 -
Serial #
400000000 - 407699999 -
Product Name
21 in. (53 cm) Heavy Duty Variable Speed Zone Start Kohler® 2-Bail -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
21" Commercial -
Chassis Type
Walk Behind -
Swath
21 inch -
Discharge
Recycler & Rear Bagger -
Engine/Motor Manufacturer
Kohler -
Engine/Motor Type
4 Cycle -
Engine Starter
Recoil -
Transmission Type
Gear -
Traction Type
Rear WD
-
Engine: Engine Oil Type
24 oz. (.7l) 5w-30 or 10w / API SH or higher -
Engine: Spark Plug
NGK BPR5ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Engine Speed
3200±100 RPM -
Chassis: Height of Cut Range
1" - 4.5" (25-114mm)
