Greensmaster® TriFlex™ 3400
Product Information
- Model #: 04520
- Serial #: 401390001 - 403099000
- Product Type: Riding Products
Loading...

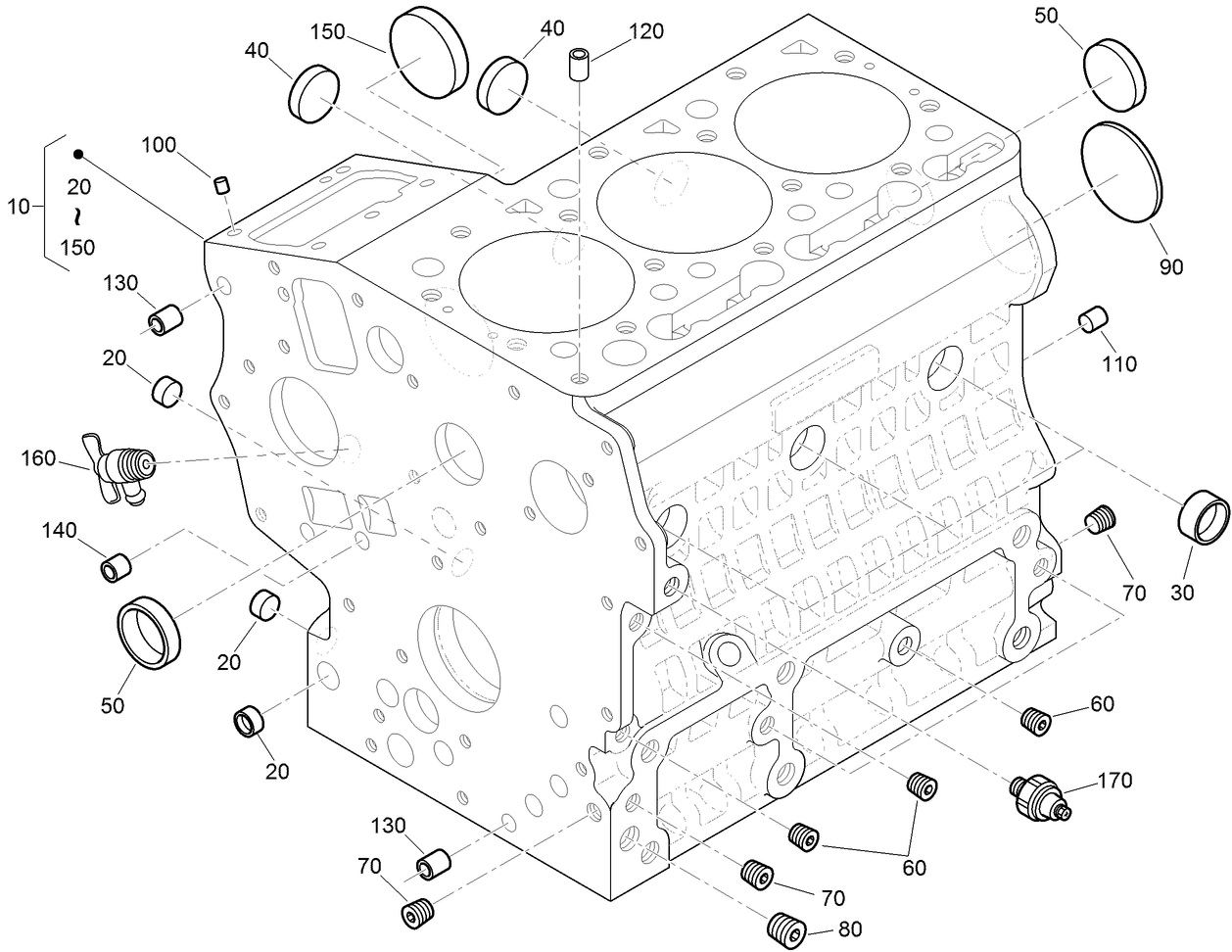

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
EU Declaration of Conformity
-
Schematic Drawing - Electrical
-
Schematic Drawing - Hydraulic
-
Service Bulletin
Turf Evaluator (Part # 04399)
Mirror device used to assess turf conditions
CE Guard Kit (Part # 04442)
Light Kit (Part # 04554)
Allows operator to mow in low light conditions
8-Blade Cutting Unit (Part # 04651)
Designed for mowing on higher heights of cut, such as approaches, fairways or tee boxes.
11-Blade Cutting Unit (Part # 04653)
Designed for mowing on lower heights of cut, such as greens.
14-Blade Cutting Unit (Part # 04655)
Designed for mowing extremely low heights of cut applications.
3WD Kit (Part # 04714)
Off-Greens Kit (Anti-Bobbing) (Part # 04716)
Patent-pending design with unprecedented results to
reduce bobbing and reduce bobbing marks.
Standard Seat Kit, Greensmaster 3300/3400 Series TriFlex Traction Unit (Part # 04718)
Premium Seat Kit, Greensmaster 3300/3400 Series TriFlex Traction Unit (Part # 04719)
Thatching Reel Kit (Part # 04720)
Vertically cuts into turf to reduce thatch and control horizontal grass growth
Greens Tri-Roller Kit (Part # 04722)
Used to roll greens and smooth surface of turf for an
improved after cut appearance and ball roll
Greens Spiker Kit (Part # 04723)
Used to relieve soil compaction, control organic matter, and
maintain turf health
Leak Detector (Part # 04730)
Alerts operator if leak exists to safely transport mower off the turf
Toro 55 Gallon Premium All-Season Hydraulic Fluid (Part # 108-1177)
Toro 55 Gallon Premium All-Season Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.
Toro 5 Gallon Premium All Season Hydraulic Fluid (Part # 108-1178)
Toro 5 Gallon Premium All Season Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.
Bimini Folding Sunshade Assembly (Part # 115-4510)
Toro genuine Optional fabric sun shade provides protection and comfort by shielding the operator from the elements.
Diesel Hydraulic Oil Cooler (Part # 117-9314)
Used in extreme climates to regulate hydraulic oil
temperature
Bag Kit (Part # 119-1715)
Toro 5 Gallon Premium Synthetic Biodegradable Hydraulic Fluid (Part # 119-2157)
Toro 5 Gallon Premium Synthetic Biodegradable Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial Number search to verify that this is the correct oil type for your equipment.
Premium Synthetic Hydraulic Fluid (Part # 119-2158)
Premium Armrest Kit (Part # 119-7105)
Enhance operator comfort.
Spark Arrestor (Part # 120-1951)
Toro 55 Gallon Premium Engine Oil 10W-30 (Part # 121-6392)
Toro 55 Gallon Premium Engine Oil 10W-30. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.
Toro 5 Gallon Premium Engine Oil 10W-30 (Part # 121-6393)
Toro 5 Gallon Premium Engine Oil 10W-30. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.
Weight Kit (Part # 121-6665)
400 Hour Maintenance Kit: GR3400/3420 (Part # 30043)
Contains 108-3811 @ 2, 108-5194 @ 1, 115-8189 @ 3
LH ARMREST ASM (Part # 92-7307)
Height of Cut Kit (Part # 94-9010)
Height of cut range 0.285”– 1.00” (7.2 – 25.4 mm), set of one
20 x 10 - 8 4-Ply Turf Mate Tire (Part # 99-4506)
Toro 20 x 10 - 8 4-Ply OEM Turf Mate Tire. Toro OEM replacement pneumatic tire. This tire delivers superior traction on turf, grass & pavement. Ideal replacement tire for your riding equipment.
-
Model #
04520 -
Serial #
401390001 - 403099000 -
Product Name
Greensmaster® TriFlex™ 3400 -
Product Brand
Toro -
Product Type
Riding Products
