22in Recycler Lawn Mower
Product Information
- Model #: 20337
- Serial #: 315000001 - 315999999
- Product Type: Walk Behind Mowers
Loading...

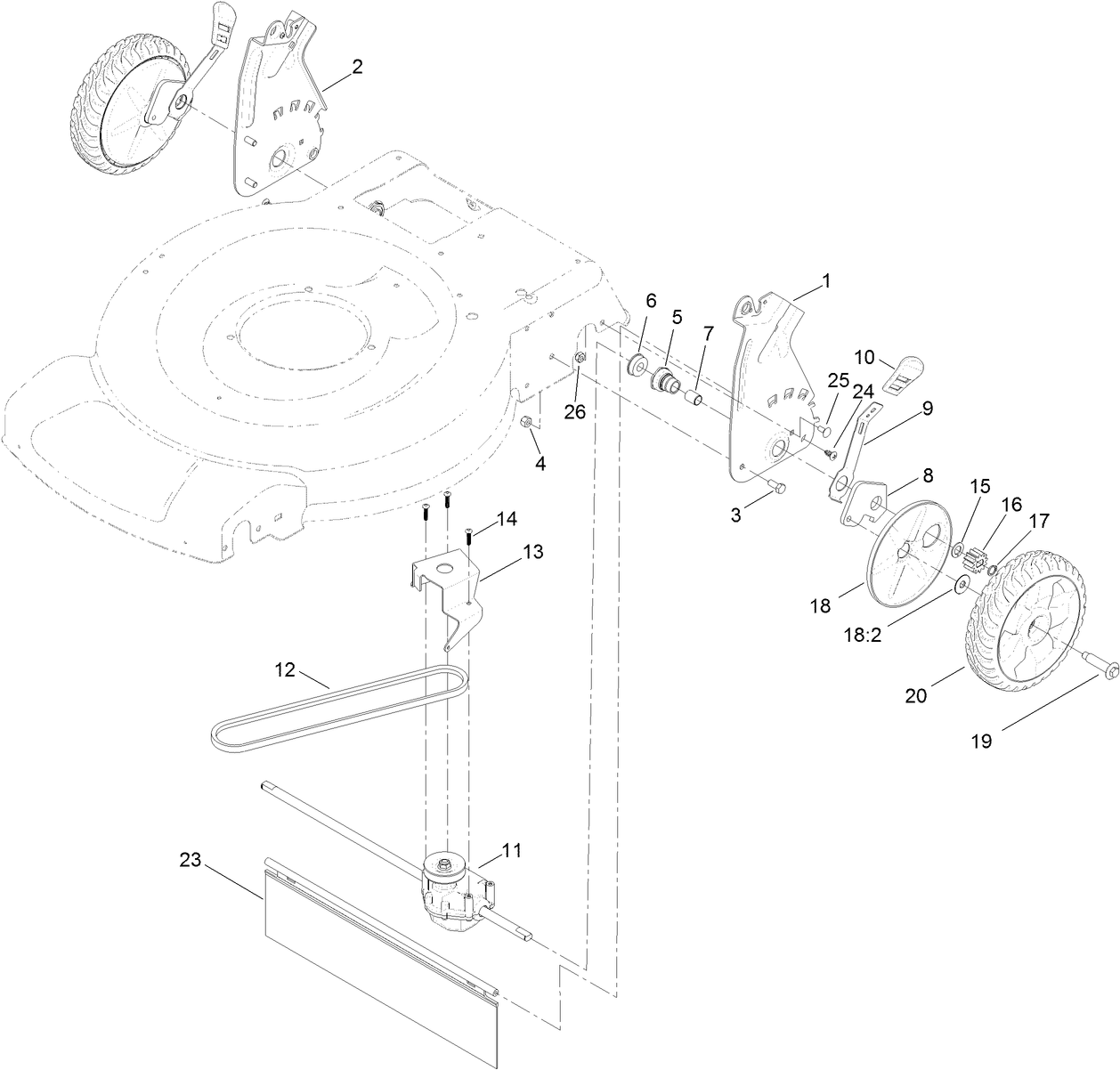

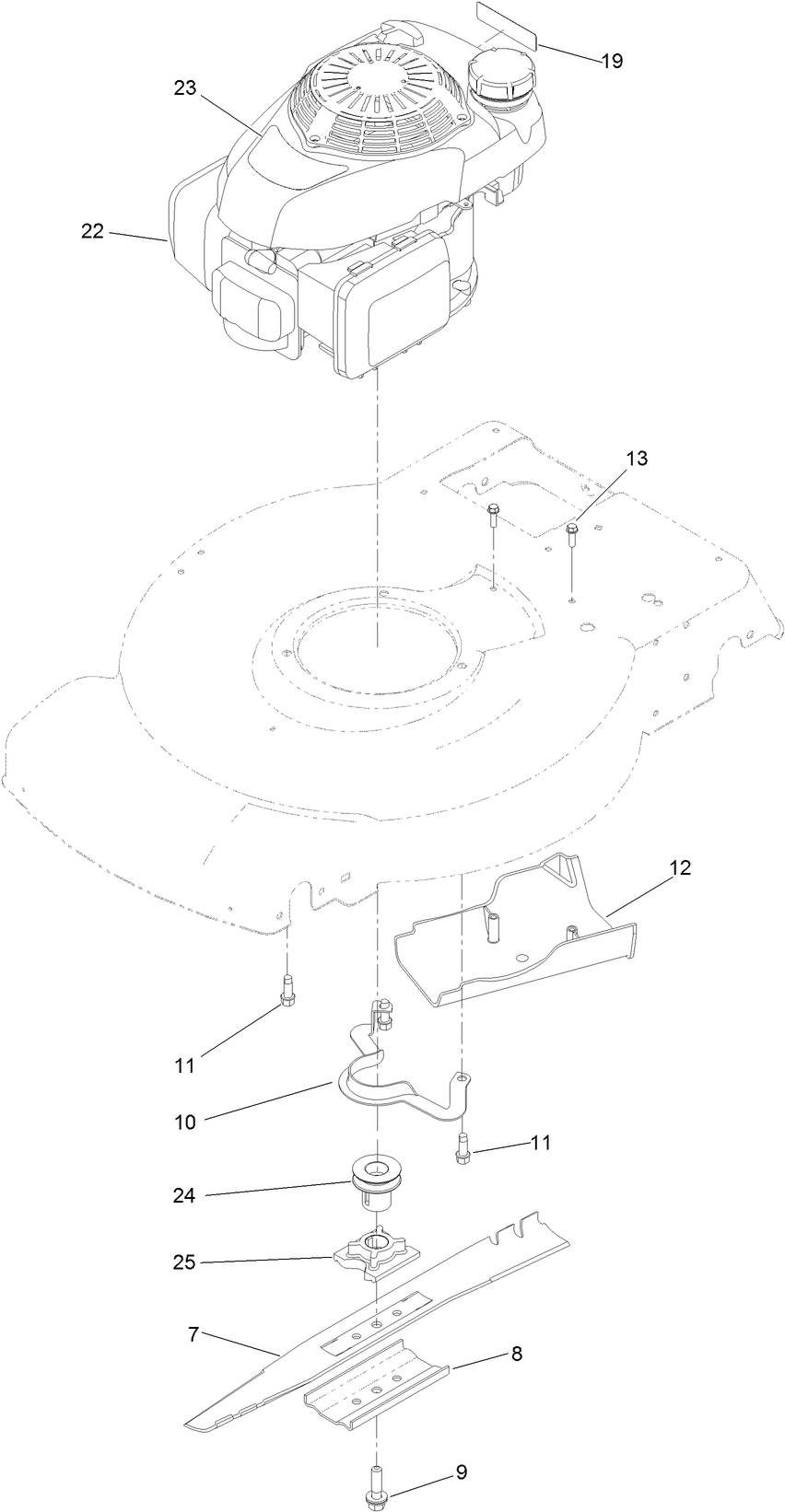

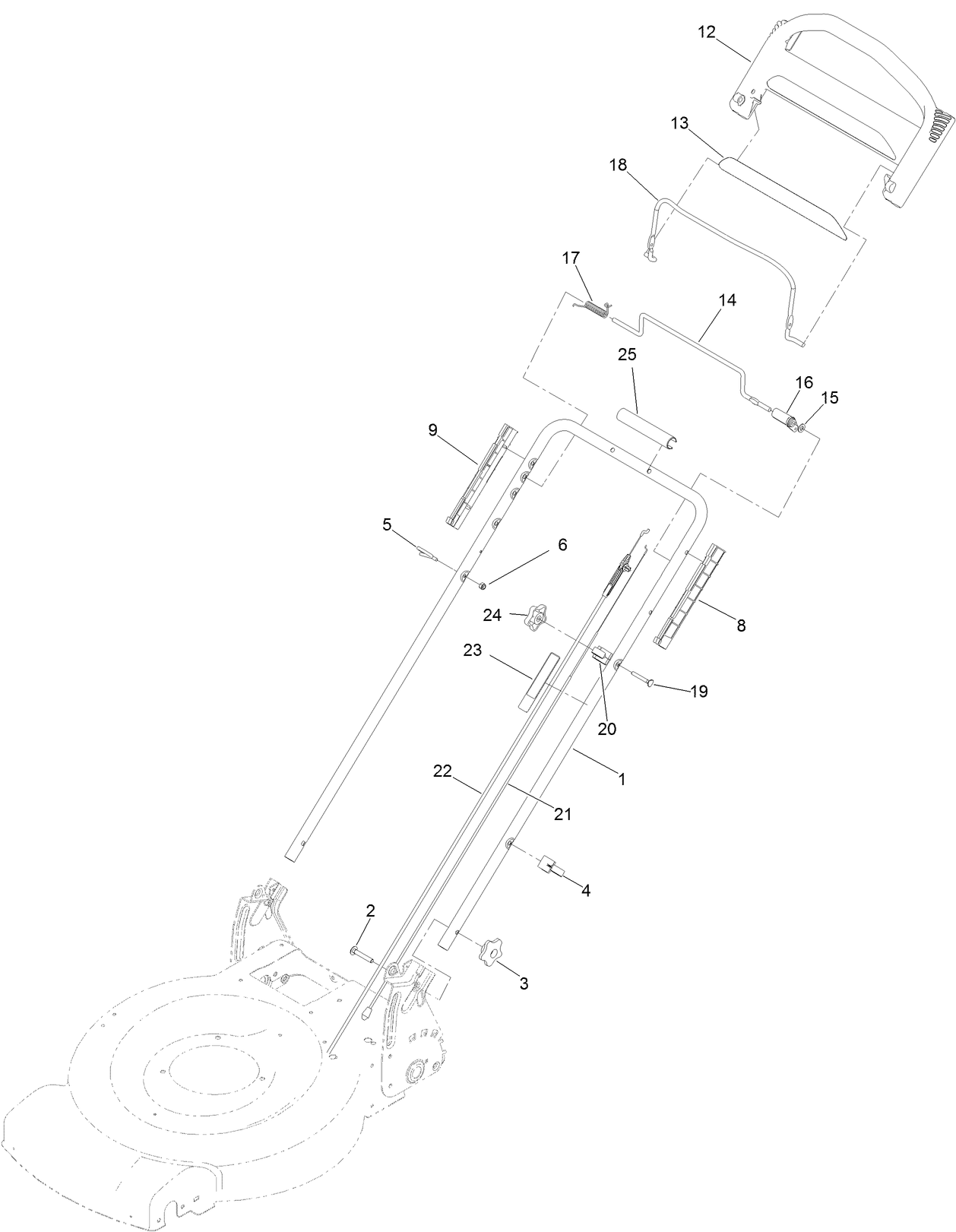

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
Walk-Behind Power Mower Maintenance Kit for Honda GCV 160 LA0S3B/S3H Engines (Part # 130-8134)
Keep your mower running smoothly, season after season. This kit is for Toro walk power mowers with Honda GCV 160cc engines. The easy-to-use kit includes a Toro replacement air filter (#132-0369), a replacement spark plug (#81-3250), an 18 oz. bottle of Toro SAE 30 walk-behind power mower engine oil (#38916) and a packet of fuel stabilizer (#130-2393).
Replacement Bag (Part # 59310)
Genuine OEM Part
22 Inch Recycler Blade (Part # 59534P)
Toro 22 Inch OEM Recycler blade. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify make and serial number to ensure the correct part. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
-
Model #
20337 -
Serial #
315000001 - 315999999 -
Product Name
22in Recycler Lawn Mower -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
22" Steel Deck -
Chassis Type
Steel Deck WPM -
Swath
22 inch -
Discharge
Recycler & Side Discharge with Rear Bag -
Engine/Motor Manufacturer
Honda -
Engine/Motor Type
4 Cycle -
Engine Starter
Recoil -
Transmission Type
Gear -
Traction Type
Rear WD
-
Engine: Spark Plug
NGK BPR5ES -
Engine: Spark Plug Gap
.028"/ .7mm -
Engine: Ignition Coil Air Gap
.008-.024" / .2-.6mm -
Chassis: Height of Cut Range
1" - 4" (2.5-10 cm) -
Engine: Engine Speed
3050±150 RPM -
Engine: Engine Oil Type
18.6 oz. (0.55 L) SAE 30 or SAE 10W-30 / API SF, SG, SH, SJ, SL, or higher
