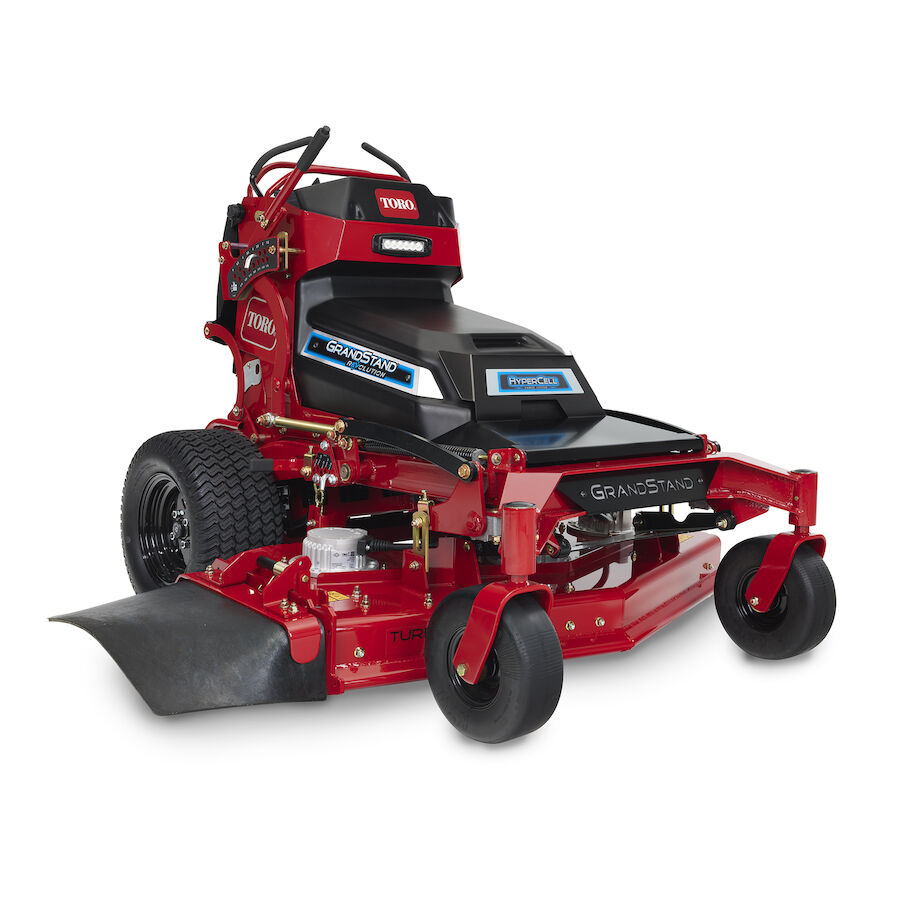

Revolution® GrandStand® 132 cm 18850TE

  • Model: 18850TE
  • UPC/EAN: 9310317984612
Find a Dealer
  • Optimize machine feel and response, including speed control, with patent-pending software controls.
  • Toro's Hypercell Battery is designed to operate with the machinery and meet landscaper needs.
  • Optimize run time and quality of cut with the adjustable deck rake.

Overview

The future of lawn care and your business is here. The new Revolution Series GrandStand is built on the same proven GrandStand chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime. With all-day runtime from the Toro developed HyperCell battery system, you can expect to power through your day, every day.

Features

Software Controls
Patent-Pending Software Controls
Optimize machine feel and response, including speed control, with patent-pending software controls.
All Day Runtime
All Day Runtime
Toro's Hypercell Battery is designed to operate with the machinery and meet landscaper needs.
Deck Rake Adjustment
Deck Rake Adjustment
Optimize run time and quality of cut with the adjustable deck rake.

Specifications

Battery Capacity 18.4 kWh
Battery Charge Time (hours) 14
Battery Power Toro HyperCell
Battery Run Time (Hours) 4.5 - 7+ hours
Blade Tip Speed Adjustable
Blades 5.18 mm
CARB Compliant CARB Compliant
Caster Tyres 11 x 4.00-5, Semi-pneumatic
Charge Type 1.2 kW 120 V
Cutting Width 132 cm
Deck Design 7-gauge 132 cm TURBO FORCE®
Deck Material 7 Gauge Steel
Discharge Chute Rubber
Drive Tyres 20 x 10.50-12, Super Turf
Forward Ground/Transport Speed Up to 10.0 mph
Fuel Type Battery
Height of Cut 3.8 - 14.0 cm
Hour Meter Standard
Lighting LED Headlights
Motor Traction Motor: Commercial High Torque
Mowing Deck: Mid-Mount Commercial High Torque
Number of Batteries Included 8
Product Features Battery Powered
Product Type Stand-On Mowers
Product Use Commercial
Spindle Housing 22.9 cm (9") Diameter Die-Cast Aluminium with Blade Retainer
Steering Controls Twin Lever
Transmission Planetary Gearset

Accessories

Leaf Bagging Enhancement Kit (Part number 107-1634)
HOC SET BLOCKS-GRANDSTAND (Part number 133-1439)
ANTI-SCALP KIT, 48/52 GRANDSTAND DECKS (Part number 133-1440)
OIL-GEAR, SYNTHETIC, QUART (Part number 144-6880)
BLADE-18.0IN, MED SAIL (Part number 145-3504-03)
BLADE-18.0IN, RECYCLER (Part number 145-3507-03)
KIT, STAND-ON WEIGHT (Part number 147-0200)
RECYCLER KIT-G3/GRANDSTAND, 52 (Part number 147-0310)
KIT, HARNESS-ADAPTER (Part number 147-1612)
3bu. Soft Bagger, 36" and Larger Mower Decks (Part number 30104)

Parts & Manuals

Select your model year from the options below to view parts & manuals.

18850TE Serial number
414300000-999999999
400000000-414299999
