TRX-300 Walk-Behind Trencher

  • Model: 22984
  • UPC/EAN: 21038229843
See All Items in Walk Behind Trenchers
  • Low center of gravity and large footprint, offer stability and increased maneuverability
  • Exclusive Intelli-Trench® Technology
  • Fewer parts than previous models simplifies maintenance

Overview

Toro TRX walk-behind trenchers are now more efficient and powerful than ever. We’ve improved our lineup with two new models that combine the groundbreaking maneuverability the TRX walk-behind trencher is known for with even better performance and serviceability.

Features

White male wearing a ball cap and blue shirt operating TRX-250.
Track Design
The track drive design provides a low center of gravity and large footprint, offering stability and increased maneuverability without causing damage to existing turf.
Control system for the TRX 250.
Easy-to-Use Controls
The TRX’s streamlined controls are easy to learn and operate. Designed to include the familiar TRX trencher valve handle and boom lift lever, as well as independent traction control for the left track and the right track.
White male operating TRX-300 wearing a long sleeve white shirt with a ball cap.
Exclusive Intelli-Trench® Technology
Intelli-Trench automatically diverts the hydraulic flow from the traction motors to the trencher motor when needed, delivering higher torque while reducing trenching times. Track speed is also adjusted faster and more accurately, eliminating the need for constant manual adjustment of the traction controls.
Boom Motion
Boom Motion
The boom lift and lower function has been enhanced hydraulically, allowing the boom to move up and down smoothly.
Simplified Service
Simplified Service
The new TRX design has significantly fewer parts than previous models, simplifying maintenance and potentially reducing service needs.

Specifications

Boom Depths 24 in., 36 in., & 48 in. / 60.9 cm, 91.4 cm & 121.9 cm
Boom Widths 4 in. 6 in. & 8 in. / 10.1 cm, 15.2 cm & 20.3 cm
Cooling System Air Cooled
Engine Horsepower 26.5 hp (19.8 kW) @ 3600 rpm
Engine Make Kohler
Engine Model ECV749, EFI
Fuel Tank 4 gal. / 15.1 L
Fuel Type Gasoline
Ground Pressure w/ 24" (60.9 cm) Boom 4.1 PSI
Ground Pressure w/ 36" (91.4 cm) Boom 4.4 PSI
Ground Pressure w/ 48" (121.9 cm) Boom 4.5 PSI
Headshaft Speed 210 rpm with 498 ft/lbs of torque
Hour Meter Standard
Hydraulic Flow Traction - Transport 16.2 GPM (61.3 LPM)
Hydraulic Flow Traction - Trenching 3.0 GPM (11.4 LPM)
Hydraulic Flow Trencher 13.2 GPM (50 LPM)
Hydraulic Oil Cooler Standard
Hydraulic Pressure 2,610 PSI (17,995.3 kPa)
Oil Capacity 2 qt / 1.9 L
Overall Height w/ 24" Boom Up & Chain 46 in. / 116.8 cm
Overall Length w/ 24" Boom Up & Chain 82.5 in. / 209.5 cm
Overall Width w/ 24" Boom Up & Chain 33.8 in. / 85.8 cm
Reservoir Capacity 6.3 gal. / 23.8 L
Start Method Electric
Tracks Drive Sprocket-drive, Three Road Wheels Per Side
Tracks Material Endless Nylon Reinforced Rubber
Tracks Traction Two-section Hydraulic Pump With Two Hydraulic Motors (one for each track)
Tracks Width 5.9 in. / 14.9 cm
Transport Speed - Forward Up tp 2.3 mph / 3.7 km/h
Transport Speed - Reverse Up to 1.2 mph / 2.4 km/h
Weight 1,114 lbs / 505 kg
Wheelbase 23 in. / 58.4 cm

Accessories

8-inch Chain Conversion Kit, Model 22490 36-inch Soil Chain (Part # 117-3480)
PX HYD FLUID (5 GAL) (Part # 133-8086)
PX HYD FLUID (55 GAL) (Part # 133-8087)
OIL-30/10W-30 SYNTHETIC (Part # 138-6053)
PX HYDRAULIC FLUID-4 PK GALLON (Part # 138-9460)
Empty Image Container
Trencher Crumber (Part # 22477)
Empty Image Container
24" x 4" Soil Chain (Part # 22480)
Empty Image Container
24" x 4" Combo Chain (Part # 22481)
Empty Image Container
24" x 4" Rock Chain (Part # 22482)
Empty Image Container
24" x 6" Soil Chain (Part # 22483)
Empty Image Container
24" x 6" Combo Chain (Part # 22484)
Empty Image Container
24" x 6" Rock Chain (Part # 22485)
Empty Image Container
36" x 4" Soil Chain (Part # 22486)
Empty Image Container
36" x 4" Combo Chain (Part # 22487)
Empty Image Container
36" x 4" Rock Chain (Part # 22488)
Empty Image Container
36" x 6" Rock Chain (Part # 22489)
Empty Image Container
36" x 6" Soil Chain (Part # 22490)
Empty Image Container
36" x 6" Combo Chain (Part # 22491)
Empty Image Container
48" x 4" Soil Chain (Part # 22492)
Empty Image Container
48" x 4" Combo Chain (Part # 22493)
Empty Image Container
48" x 6" Soil Chain (Part # 22494)
Empty Image Container
48" x 6" Combo Chain (Part # 22495)
24IN X 4IN BULLET CHAIN (Part # 22496)
24IN X 6IN BULLET CHAIN (Part # 22497)
36IN X 4IN BULLET CHAIN (Part # 22498)
36IN X 6IN BULLET CHAIN (Part # 22499)
Empty Image Container
24" Boom (Part # 22975)
Empty Image Container
36" Boom (Part # 22976)
Empty Image Container
48" Boom (Part # 22977)

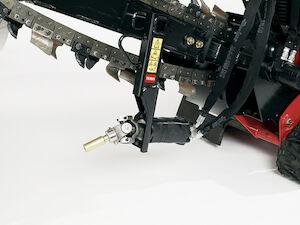

Bore Drive Head
Bore Drive Head (Part # 22978)

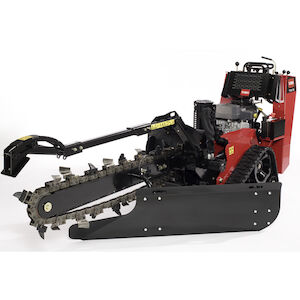

Backfill blade for TRX trenchers
Backfill Blade (Part # 22980)
Red Spray Paint - Case of 6 (Part # 361-10)
Red Paint - Gallon Can (Part # 361-11)
PAINT-SPRAY, TORO SEMI-GLOSS BLACK (Part # 361-9)
10W30 4-CYCLE ENGINE OIL 32 OZ BOTTLE (Part # 38280)
SCREEN - SPARK ARRESTOR (Part # 94-8157)

Documents

Title Documents
TRX Trenchers Sell Sheet PDF - Sellsheet-en-CA
Walk-Behind Trenchers Brochure PDF - Brochure-en-CA

Parts & Manuals

Select your model year from the options below to view parts & manuals.

22984 Serial #
417025991-999999999
414500000-417025990
408000000-414499999
407680000-407999999
405600000-407679999
400000000-405599999



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
