Dingo® TX 1000 TURBO Track Loader, Narrow

  • Model: 22587
  • UPC/EAN: 21038225876
See All Items in Dingo® TX 1000 TURBO Track Loader
  • Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
  • Compact footprint fits through standard 36" gates
  • Maximum height and reach easily clears the side of a 30-yard dumpster
  • Patented traction control

Overview

The Dingo TX 1000 TURBO is a turbocharged marvel that not only enhances the unmatched success and superior performance of its predecessor but also incorporates the innovative Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, providing users with an unparalleled compact utility loader experience. With a width of under 35 inches, the Dingo TX 1000 TURBO narrow track effortlessly navigates through standard 36-inch gates, ensuring versatility and accessibility across a range of job sites.

Features

TX 1000 TURBO with auger.
Smart Power®
Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.

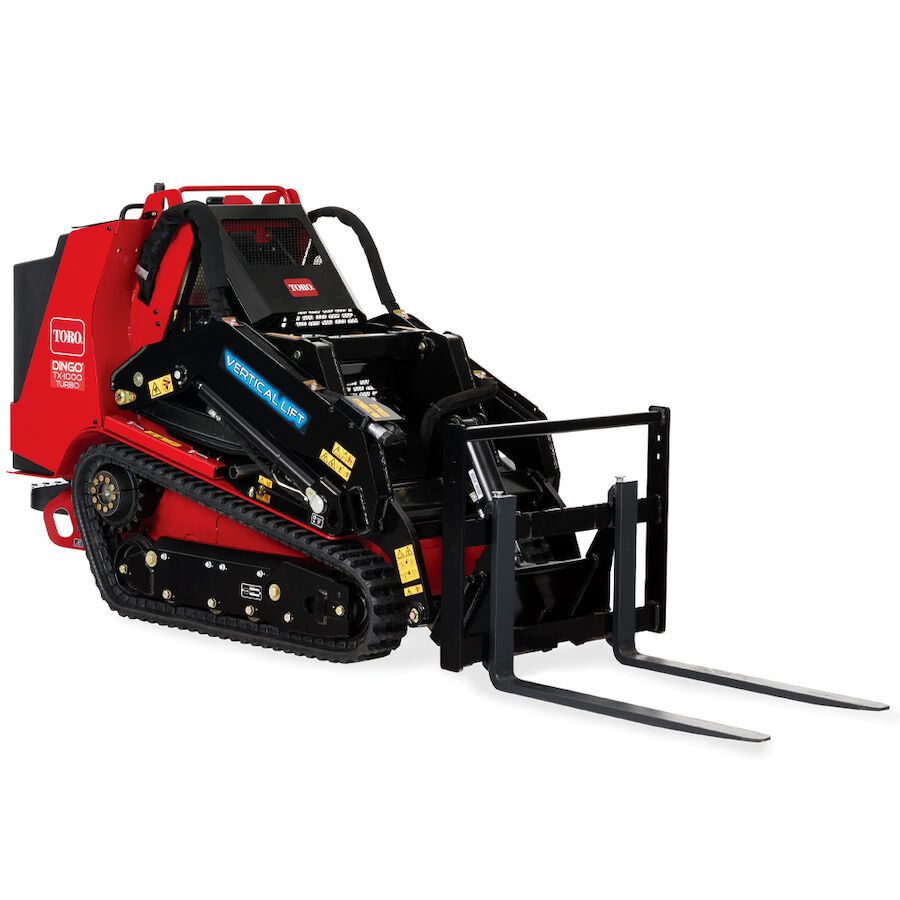

TX 1000 TURBO with forks attachment.
Compact Size
Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.
TX 1000 TURBO controls
Traction Control System
Toro's patented traction control system allows intuitive user operation for all skill levels now includes the integration of a digital display.
White male operating the Dingo TX 1000 with a bucket attach dumping sod.
Maximum Height & Reach
The 81” (206 cm) hinge pin height allows attachments to easily clear the side of 30-yard dumpsters or one-ton trucks.
TX 1000 TURBO wide with a bucket dumping rock.
Easy Operation
The auxiliary foot pedal maintains hydraulic flow to the attachment, freeing the operator's hands to focus on ground speed an attachment positioning.

Specifications

Air Filter Remote: Primary and Safety Elements
Cooling System Combo Crossflow Radiator and Oil Cooler
Dump Angle 40 deg
Dump Height 60.3 in. / 153.2 cm
Engine Horsepower 24.7 hp (18.4 kW)
Engine Make Yanmar
Engine Model 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant
Fuel Tank 10.25 gal. / 38.8 L
Fuel Type Diesel
Ground Clearance 5.9 in. / 14.9 cm
Ground Pressure 6.1 PSI
Ground Speed - Forward Up to 4.1 mph / 6.6 km/h
Ground Speed - Reverse Up to 4.1 mph / 6.6 km/h
Height 54.6 in. / 138.7 cm
Height - With Bucket 54.6 in. / 138.7 cm
Hinge Pin Height 81 in. / 205.7 cm
Hydraulic Flow - Traction 12.3 GPM
Hydraulic High Flow 13.2 GPM
Hydraulic Low Flow 4.9 GPM
Hydraulic Pressure 3,000 PSI
Length 83 in. / 210.8 cm
Length - With Bucket 104 in. / 264.2 cm
Loader Arms Vertical Lift
Max Operating Height 106.2 in. / 269.7 cm
Oil Capacity 3.8 qt / 3.6 L
Rated Operating Capacity* 1,000 lbs / 454 kg
Reach - Fully Raised 23.3 in. / 59.2 cm
Reservoir Capacity 8.6 gal. / 32.5 L
System Capacity 11.5 gal. / 43.5 L
Track Length 126.6 in. / 321.5 cm
Track Width 5.9 in. / 14.9 cm
Tracks MERT Track With “B” Style Tread
Traction Dual Hydrostatic Pump
Weight 2,826 lbs / 1,282 kg
Wheelbase 39 in. / 99.0 cm
Width 34.6 in. / 87.8 cm
Width - With Bucket 42.2 in. / 107.2 cm

Disclaimer

*Per ISO 14397-1
**As rated by the engine manufacturer. Starting January 1, 2025 the specifications on this engine will change to 23.2hp and 17.3kW

Documents

Title Documents
Dingo TX 1000 TURBO Sell Sheet PDF - Sellsheet-en-CA

Parts & Manuals

Select your model year from the options below to view parts & manuals.

22587 Serial #
418037000-999999999
417300000-418036999
416800000-417299999
416698677-416799999
415300000-416698676
400000000-415299999



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
