50 in. (127 cm) TimeCutter® MyRIDE® Zero Turn Mower
Product Information
- Model #: 75755
- Serial #: 414170000 - 999999999
- Product Type: Riding Products
Loading...

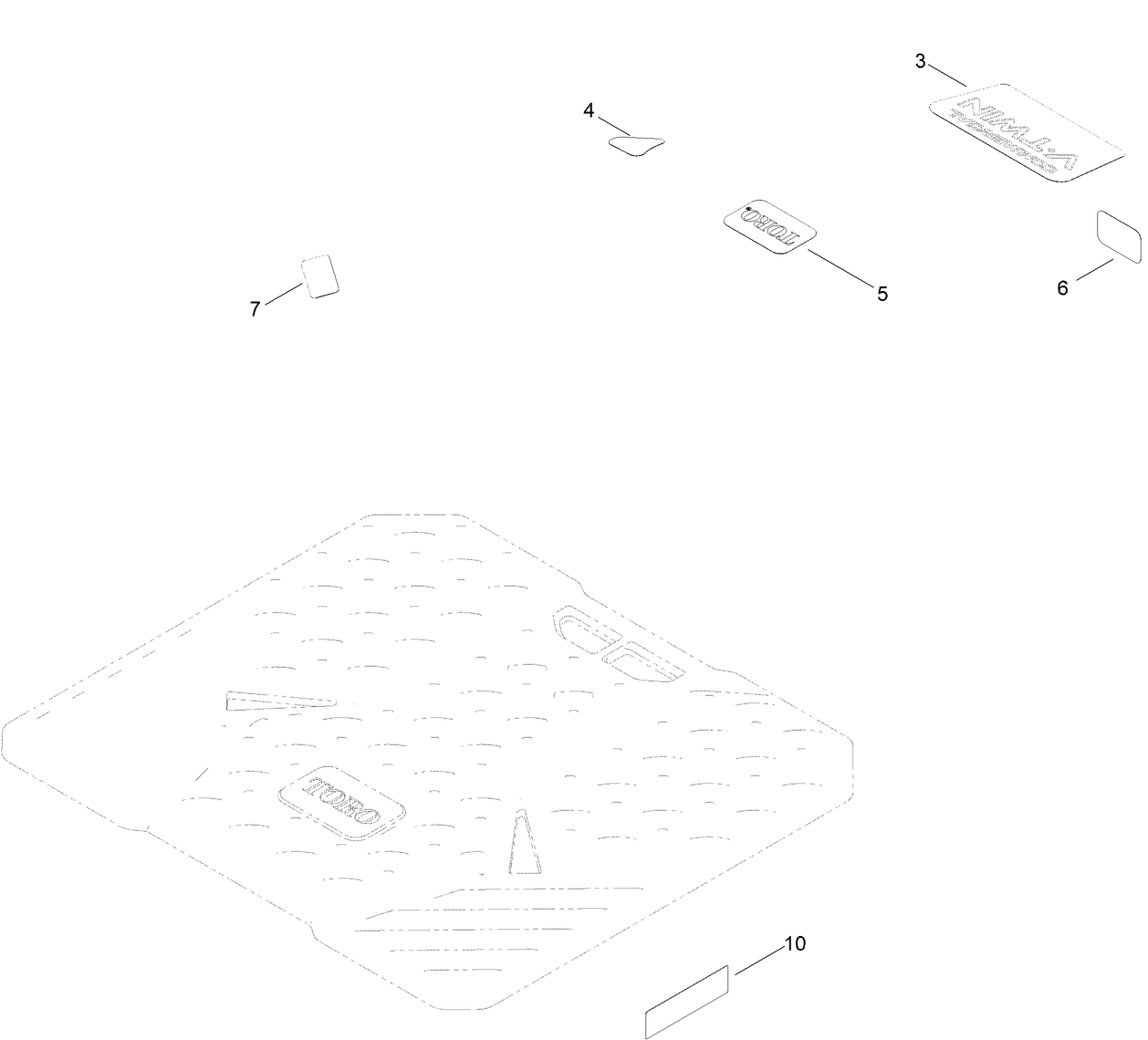

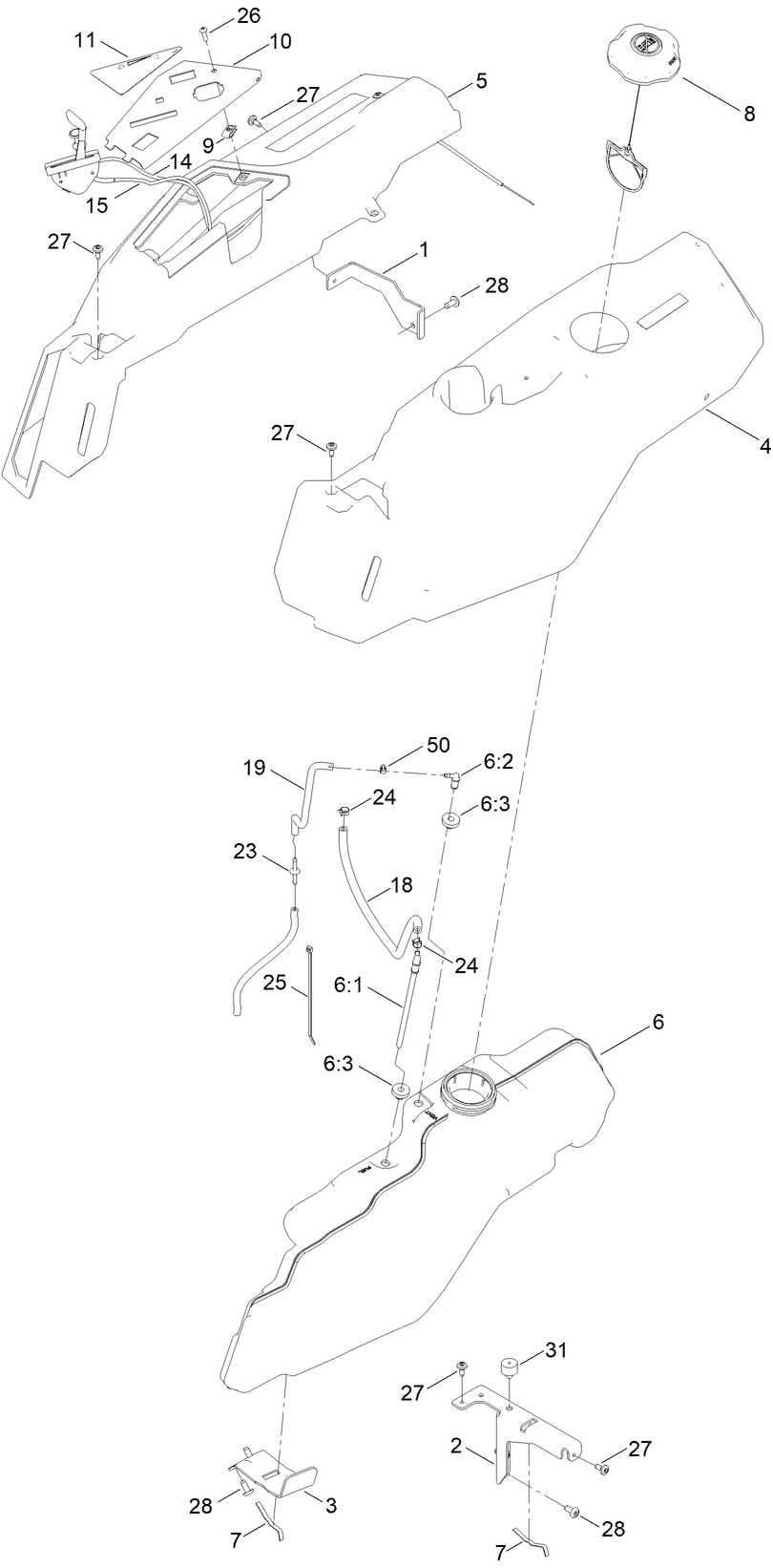

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Product Warranty
-
Setup Instructions
Hourmeter Kit, 2011 and After Zero-Turn-Radius Riding Mower (Part # 116-5461)
SEAT COVER W/ARM REST - TC, TITAN 18I (Part # 117-0097)
Jack Kit, Zero-Turn-Radius Side-Discharge or Rear-Discharge Riding Mow (Part # 127-6666)
Fuel Stabilizer .05 oz (Part # 130-2393)
4-CYCLE FUEL, SNOW AND LAWN, 32OZ CAN (Part # 131-3823)
Toro Premium Fuel Treatment (Part # 131-6572)
Heavy Duty Air Cleaner Kit (Part # 135-6195)
MAINTENANCE KIT TORO V-TWIN ENGINE CK (Part # 139-0646)
MAINTENANCE KIT TORO V-TWIN HD ENG CK (Part # 139-0649)
50" RECYCLER KIT (Part # 139-3240)
50 INCH BAGGING ENHANCEMENT KIT (Part # 139-7459)
FRONT WEIGHT KIT (Part # 140-2050)
HEAVY DUTY SPRING KIT (Part # 140-2051)
ASSIST BAR KIT (Part # 140-2052)
SUNSHADE KIT (Part # 140-2054)
LED Light Kit (Part # 140-2056)
FLOORMAT KIT (Part # 140-2061)
JACK MOUNT KIT (Part # 140-2711)
50 INCH STRIPING KIT (Part # 140-5160)
KIT-CASTER WHEEL (Part # 145-0488)
STRIPER-KIT (Part # 146-0404)
10W30 4-CYCLE ENGINE OIL 32 OZ BOTTLE (Part # 38280)
TORO 4-CYCLE SAE 30 OIL (32OZ BOTTLE) (Part # 38903)
COVER (Part # 490-7516)
Mower Deck Drive Belt, TimeCutter SS Riding Mower with 50-inch Mowing (Part # 79005)
BLADE KIT - TIMECUTTER 50IN (Part # 79016P)
TimeCutter Twin Bagger for 50"/54" Fabricated Deck 2020 and Newer (Part # 79412)
The Toro TimeCutter Twin Bagger with its 6 bushel (8 cu. ft.) capacity makes quick work of taking care of grass clippings or fallen leaves. It assembles easy and once initially installed, can be removed and put back on without tools. Includes bagger, mount kit and front weight.
ROPS KIT (Part # 79485)
SLOPE SENSOR KIT, TIMECUTTER (Part # 79486)
-
Model #
75755 -
Serial #
414170000 - 999999999 -
Product Name
50 in. (127 cm) TimeCutter® MyRIDE® Zero Turn Mower -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Consumer -
Chassis Type
ZRT - Consumer -
Swath
50 inch -
Discharge
Side Discharge -
Engine/Motor Manufacturer
Toro -
Engine/Motor Size
24.5 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
2wd
-
Engine: Spark Plug
NGK BPR6ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
13 psi / 90 kPa -
Chassis: Height of Cut Range
1.5-4.5"; 1/2" increments -
Engine: Engine Speed
3300±100 RPM -
Engine: Battery
12V 230CCA -
Engine: Engine Oil Type
77 oz. (2.3L) with filter change SAE 10w30/10w40 -
Engine: Ignition Coil Air Gap
0.011in (0.3mm) -
Drive System: Ground Speed
Forward: 0-7 mph -
Drive System: Gearbox Lubricant
HYPR-OIL 500 / 20w-50 Synthetic Motor Oil
