GrandStand® HDX 52 in. 31 hp 999 cc
Product Information
- Model #: 72506
- Serial #: 400000000 - 414499999
- Product Type: Riding Products
Loading...

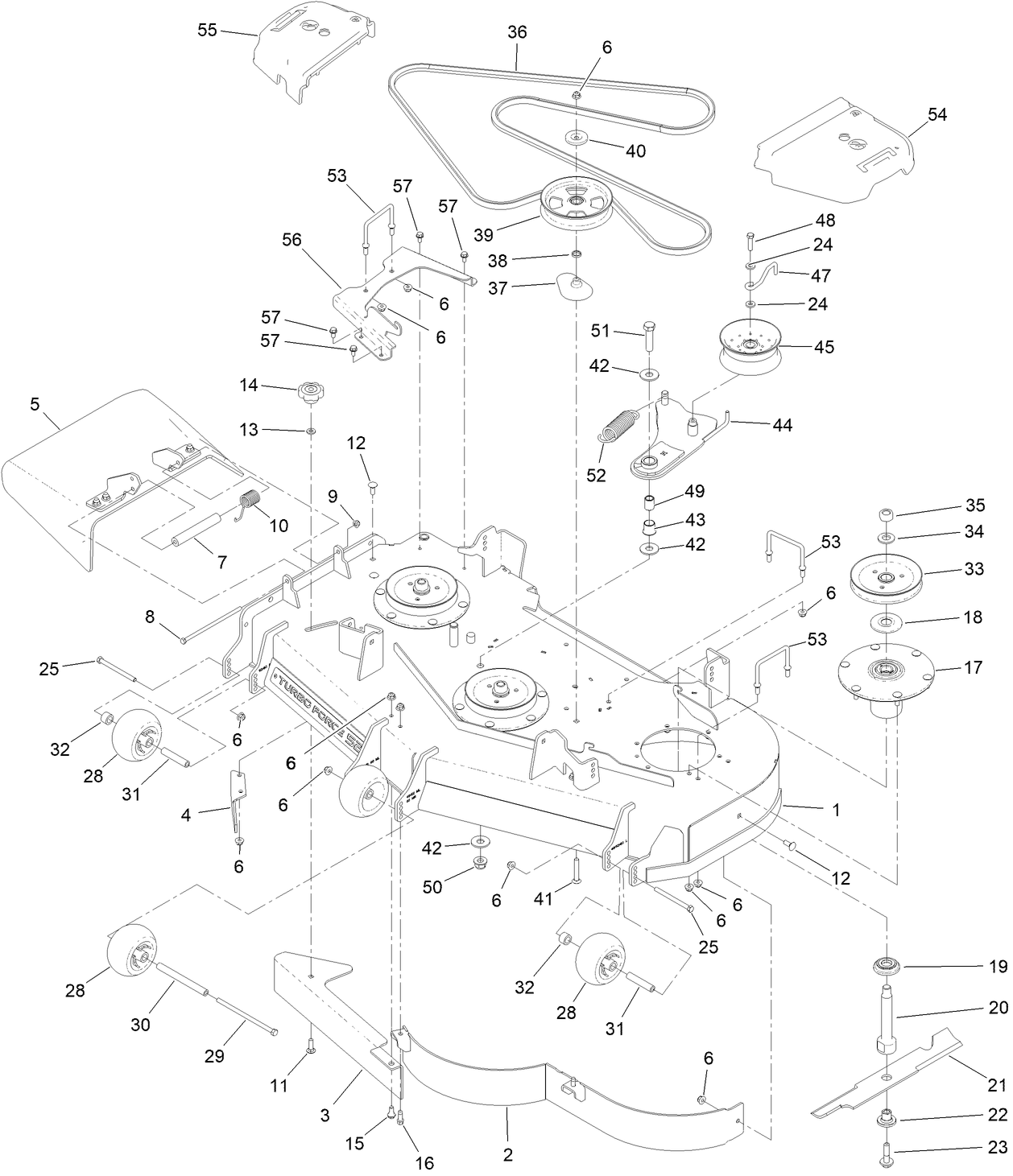

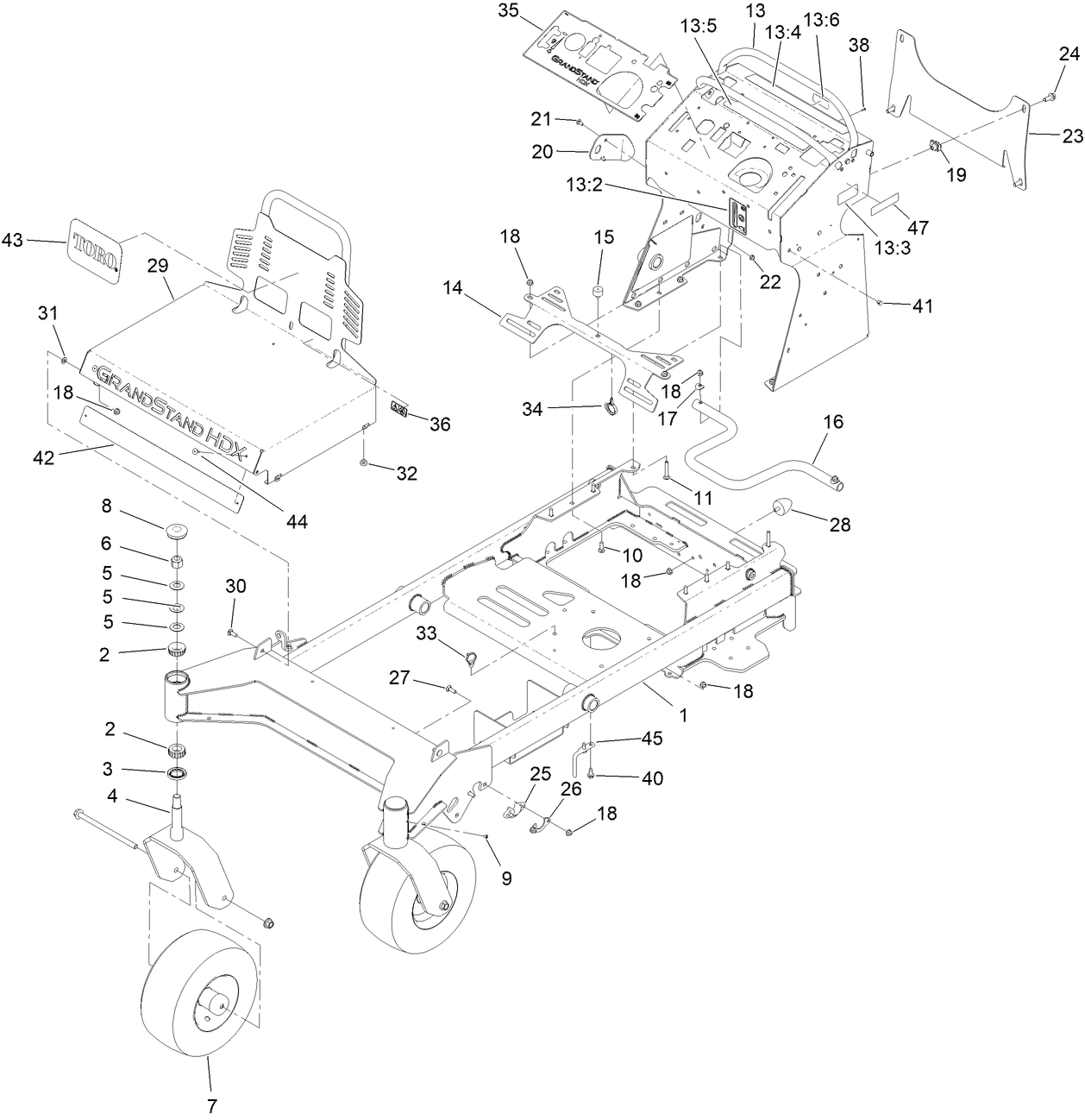

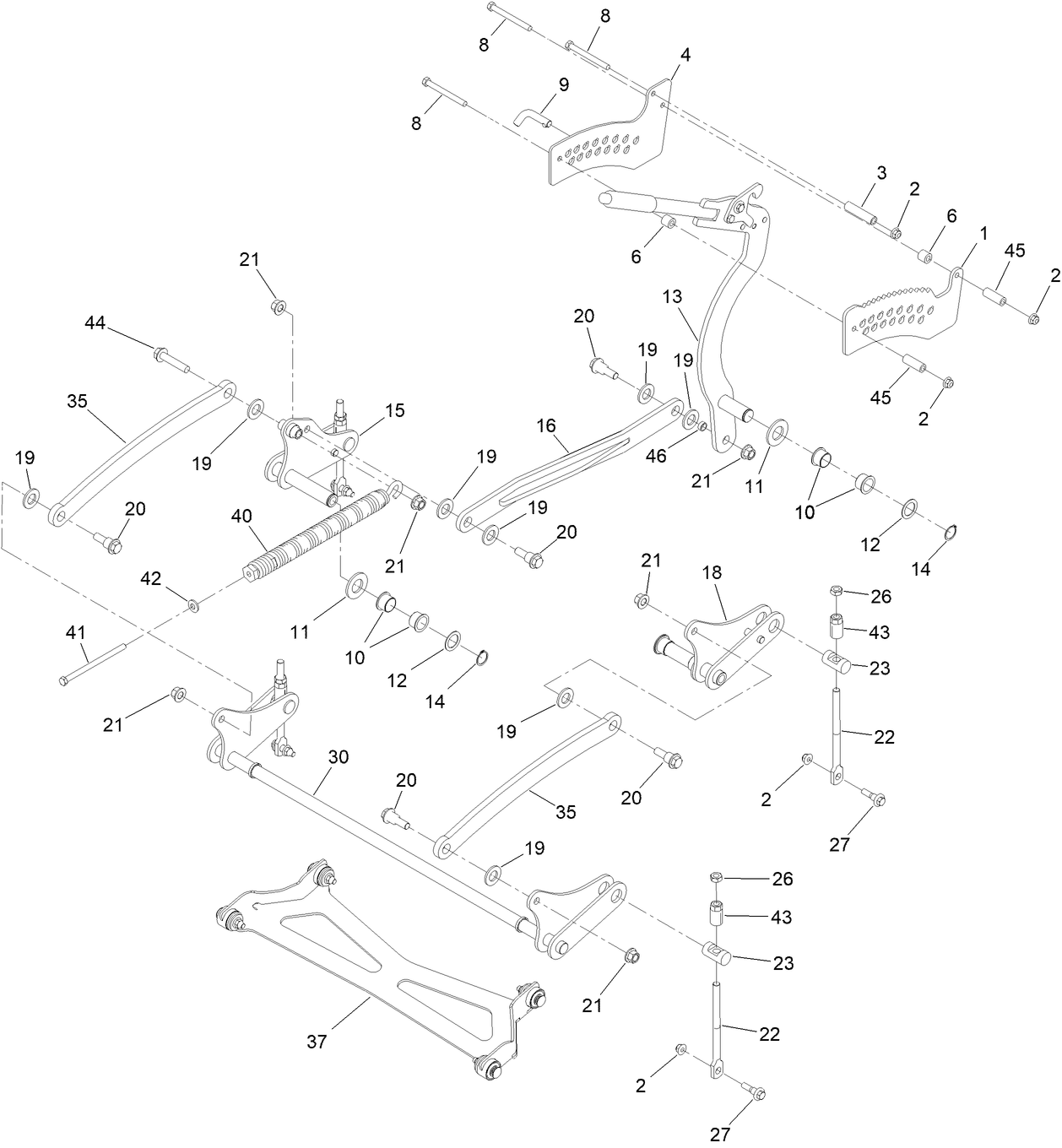

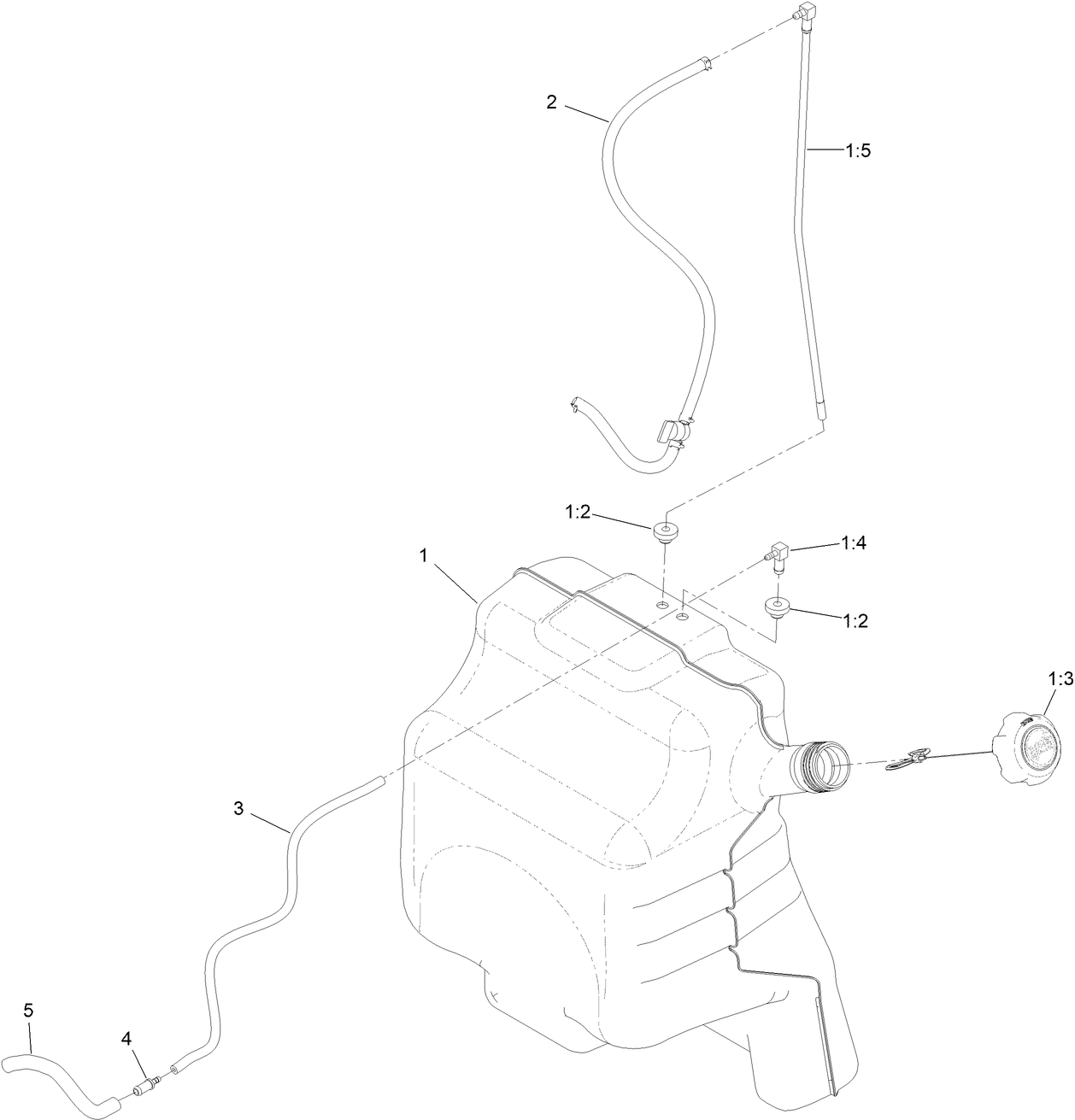

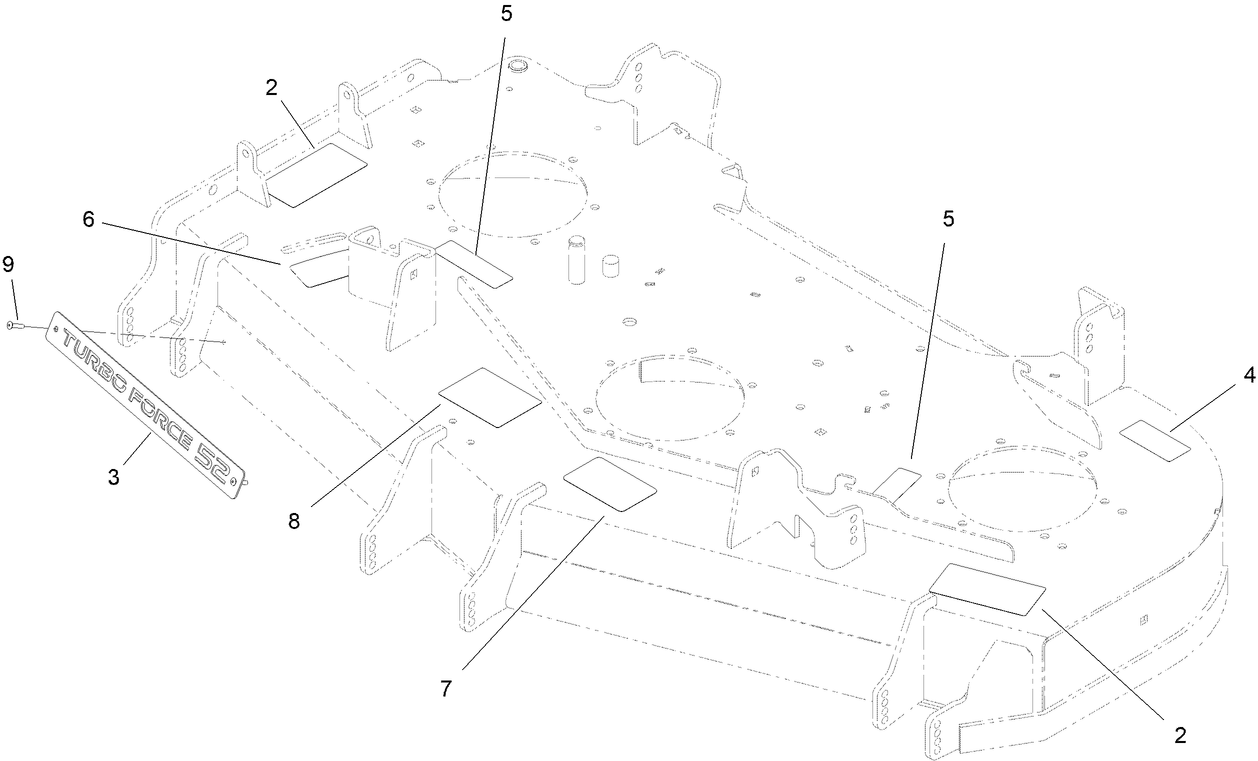

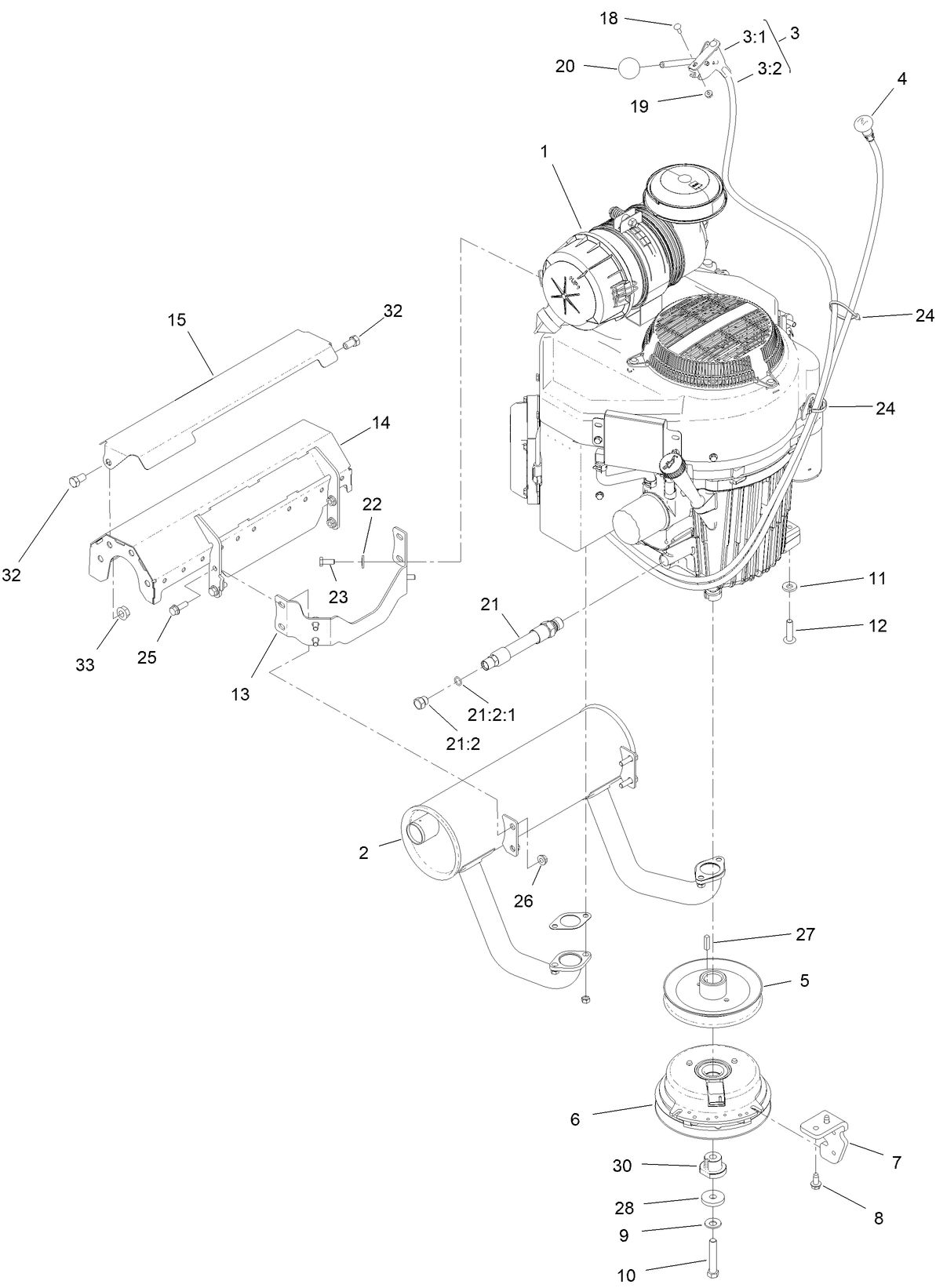

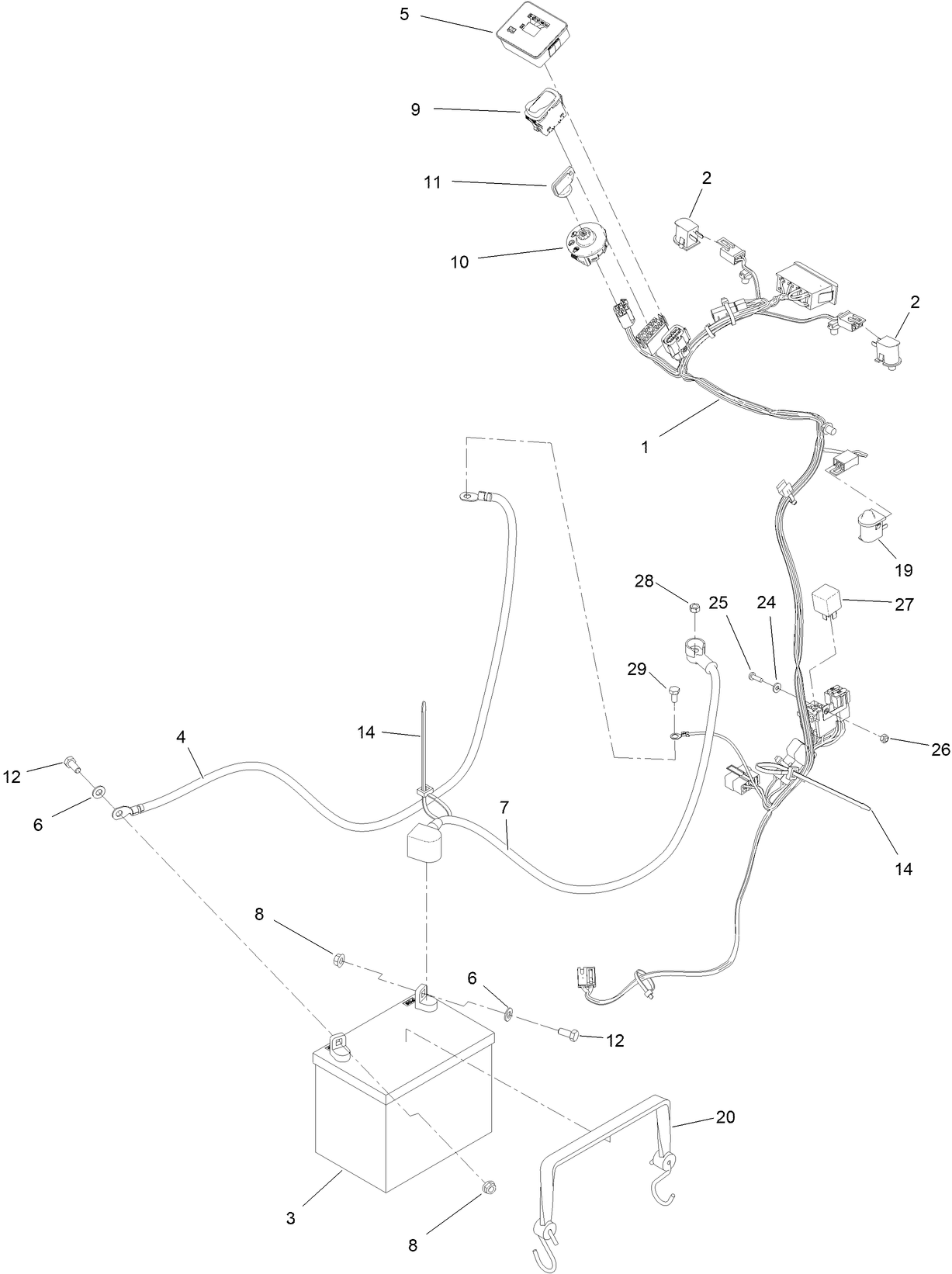

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Product Warranty
BLADE-FLOW, HIGH (Part # 140-1242)
BLADE-18.00 MEDIUM FLOW (Part # 140-4856)
BLADE-18.00 LOW FLOW (Part # 140-4857)
BLADE-18.00 ATOMIC (Part # 140-4858)
BLADE-18.00 RECYCLER (Part # 140-4859)
6 PACK-BLADE, 18.00 HIGH FLOW (Part # 140-4882)
6 PACK-BLADE, 18.00 MED FLOW (Part # 140-4883)
6 PACK-BLADE, 18.00 LOW FLOW (Part # 140-4884)
6 PACK-BLADE, 18.00 ATOMIC (Part # 140-4885)
6 PACK-BLADE, 18.00 RECYCLER (Part # 140-4886)
-
Model #
72506 -
Serial #
400000000 - 414499999 -
Product Name
GrandStand® HDX 52 in. 31 hp 999 cc -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Professional Grade Stand-on Mowers -
Chassis Type
Stand On -
Swath
52 inch / 132 cm -
Discharge
Side -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
31 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Battery
12V 300CCA -
Engine: Engine Speed
3600±100 RPM -
Engine: Spark Plug
NGK BPR5ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Height of Cut Range
1.5" - 5" (38-127mm) -
Engine: Ignition Coil Air Gap
.008-.016" / .2-.4mm -
Engine: Engine Oil Type
64 oz. (1.9 Liter) SAE 30 or 10W-30 or 10W-40 -
Drive System: Ground Speed
0-10 mph / 0-16kph -
Chassis: Tire Pressure
12-14psi (83-97kPa) -
Drive System: Gearbox Lubricant
HYPR-OIL 500 4.7 L (159 fl. oz.)
