On Sale

2000 Series MyRIDE® HDX 60 in. (152 cm) 23.5 hp 726 cc

  • Model: 77294
  • UPC/EAN: 21038772943
See All Items in Z Master® Gas 2000 Series

For a limited time only

$10,549.00 USD

$11,299.00 USD

Also available at select retailers:

  • TURBO FORCE® Cutting Deck - Built to last. Enjoy years of reliable performance with an upgraded 7-gauge steel, 5.5" deep deck.
  • MyRIDE® Suspension System - Save your body from the toughest terrain with the MyRIDE Suspension System featuring up to 3 inches of travel.
  • 24" Voodoo Trac™ Drive Tires - Get the ultimate in aggressive tread and styling with 24" Voodoo Trac™ Drive Tires.
  • Get commercial-grade performance with a 23.5 hp* Kawasaki® FX engine.
  • Customize your ride with optional lights, bucket holder, trimmer mount, baggers, mounts, and up to 20 attachments.
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Free Shipping

Expert Setup & Delivery

Cannot ship to the following states: AK, HI

Ground Shipping Only

Overview

Take on any task with the Z Master® 2000 zero-turn mower. Constructed for professional use with a 7 gauge steel TURBO FORCE® cutting deck for fast, clean work. With the customizable MyRIDE Suspension System to isolate bumps and vibrations, you'll stay comfortable even on the longest days.

Features

TURBO FORCE® Cutting Deck
TURBO FORCE® Cutting Deck
Enjoy years of reliable performance with an upgraded 7-gauge steel, 5.5" deep deck.
MyRIDE® Suspension System
MyRIDE® Suspension System
Save your body from the toughest terrain with the MyRIDE suspension system.
24

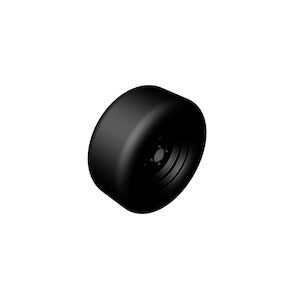

24" Voodoo Trac™ Drive Tires
Get the ultimate in agressive tread and styling with 24" Voodoo Trac™ Drive Tires.
23.5 HP* Kawasaki® Engine
23.5 HP* Kawasaki® Engine
Enjoy top-line performance from the professional-grade 23.5 HP* Kawasaki engine.
Commercial-Grade Hydro-Gear ZT-3400
Commercial-Grade Hydro-Gear ZT-3400
Fast, clean work with commercial-grade ZT-3400 hydros.
Rubber Discharge Chute
Rubber Discharge Chute
Trim close without damaging landscape structures or your chute.
Horizon360 system used by contractor
Horizon360® Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.

Specifications

Anti Scalp Wheels Standard
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Box Dimensions 91 in. x 70 in. x 52.5 in. / 231.1 cm x 177.8 cm x 133.4 cm
CARB Compliant CARB Compliant
Caster Tires 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic
Clutch Electromagnetic
Comfort Platform MyRIDE® Suspension System
Deck Design 5.5” (14 cm) deck depth, 7-Gauge High-Strength Steel TURBO FORCE® w/ bull-nose bumper
Deck Size 60 in / 152 cm
Discharge Chute Rubber
Drive Tires Voodoo Trac 24 in. x 9.5 in. - 12 in. (61 x 24.1 - 30.5 cm)
Engine Kawasaki FX730V
Engine Brand Kawasaki
Engine Displacement (cc) 747 cc
Engine Horsepower 23.5 hp
Foot Operated Height of Cut Standard
Forward Ground/Transport Speed Up to 10.0 mph / 16.0 kph
Fuel Capacity 7 gal. / 26.5 L / 28 Qt.
Fuel Type Gasoline
Height of Cut 1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.25 in (0.64 cm) increments
Hitch Bracket Standard
Hour Meter Standard
Ignition Electric
Lighting LED Headlights
Notes Hitch: Integrated Receiver Hitch - 2 in. x 2 in. 80 lbs. (36.3 kg) max tongue, 250 lbs. (113.4 kg) max tow
Product Type Zero Turn Mowers
Product Use Commercial
Roll-Over Protection System (ROPS) Folding; Standard
Seat Deluxe Comfort Seat
Spindle Housing 8 in / 20.3 cm Diameter Aluminum (Non Greasable) Ball Bearing, 1 in / 2.5 cm Shaft
Start Type Electric
Steering Controls 1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened
Tool Mounting Capability Side Console / Rear Guard Ready
Transmission Hydro-Gear ZT-3400
Weight 1,135 lbs / 514.8 kg

Disclaimer

Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
*The gross horsepower of these engines was laboratory rated by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.

Parts & Manuals

Select your model year from the options below to view parts & manuals.

77294 Serial #
418040000-999999999
418026700-418039999
417400000-418026699
415500000-417399999
415260647-415499999
415163890-415260646
414800762-415163889
400000000-414800761



Warranty

4-year / 1000 Hours

**See dealer for Warranty details.
