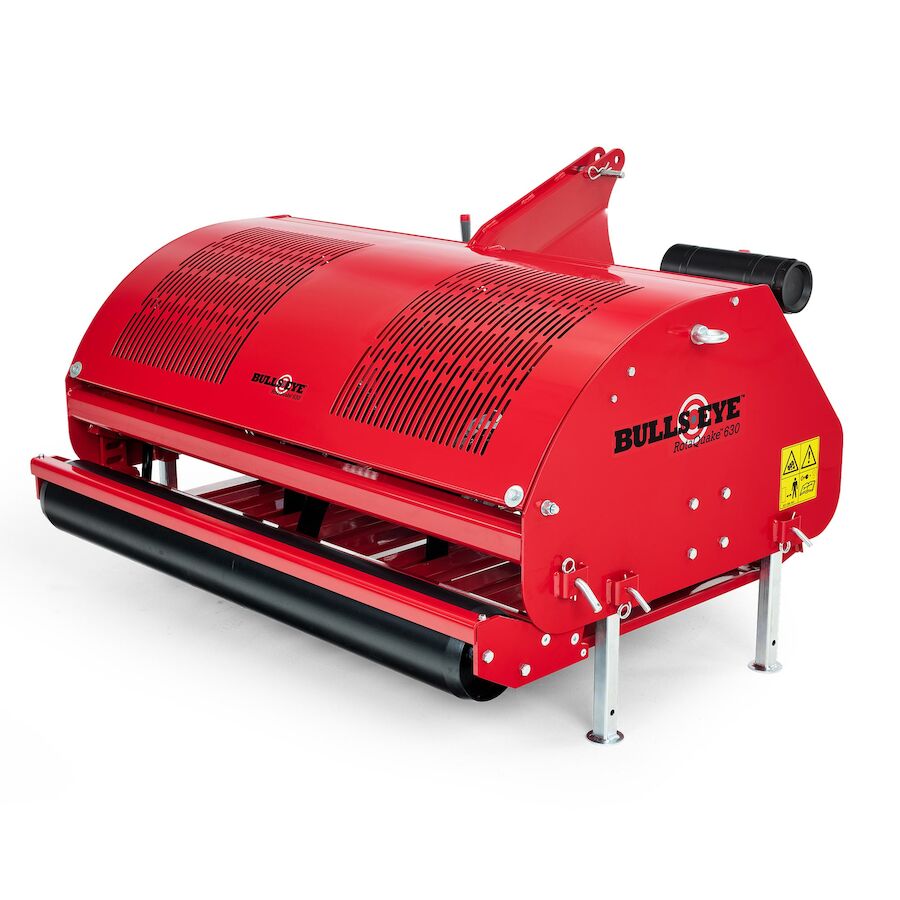

Bullseye RotaQuake™ 630

  • Model: 46454
See All Items in Bullseye RotaQuake™ 630 Series
  • Causes soil to shift from side to side as blades rotate through it.
  • Minimize down time by allowing clutch to slip rather than shearing a bolt when striking an object underground.
  • Adjust to aerate up to 10" (25.4 cm) deep.
  • Tremendous Underground Benefit – Creates cracks, fissures and space for air, water, nutrients and root growth.
  • Robust gear box, spindle, and blade mount.

Overview

The Bullseye RotaQuake™ 630 is an aerator that decompacts the soil using a set of rotating steel blades. As these blades cut cleanly through the soil, they create a wave action that shatters compacted areas and opens up the subsoil. The RotaQuake™ can work at depths up to 10” (25.4 cm) with minimal to no surface disruption to keep your turf ready for play. The rear roller smooths surface behind rotating blades and the integrated legs make unhooking and storage easy.

Features

Tapered Blade Design
Tapered Blade Design
Causes soil to shift from side to side as blades rotate through it.
Cam-Style Clutch
Cam-Style Clutch
Minimize down time by allowing clutch to slip rather than shearing a bolt when striking an object underground.
Adjustable Depth Control
Adjustable Depth Control
Adjust to aerate up to 10" (25.4 cm) deep.
Minimal Surface Disruption
Minimal Surface Disruption
Tremendous Underground Benefit – Creates cracks, fissures and space for air, water, nutrients and root growth.
Durable Design
Durable Design
Robust gear box, spindle, and blade mount.

Specifications

3-Point Hitch Category 1 & 2
Aeration Type Linear
Blade Spacing 10" (25.4 cm)
Blade Thickness 0.5" (12.7 mm), tapered
Height 42" (106.6 cm)
Length 59" (149.8 cm)
Maximum Operating Depth (Working Depth) Adjustable depth, up to 10" (25.4 cm).
Maximum PTO Speed 540 RPM
Number of Blades 18
Operating Speed 0.3 - 1.0 mph (.048 - 1.6 km/h)
Operating Width (Working Width) 63" (160 cm)
Productivity Up to 27,720 square feet per hour (2,560 square meters per hour)
Recommended Tow Vehicle Requirement 35 hp (26 kW), lift capacity 1,654 lbs. (750 kg)
Weight 1,355 lbs (615 kg)
Width 71" (180.3 cm)

Documents

Title Documents
Bullseye RotaQuake 630 Sell Sheet PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

46454 Serial #
321000001-329999999



Warranty

1-Year Limited

**See dealer for Warranty details.
