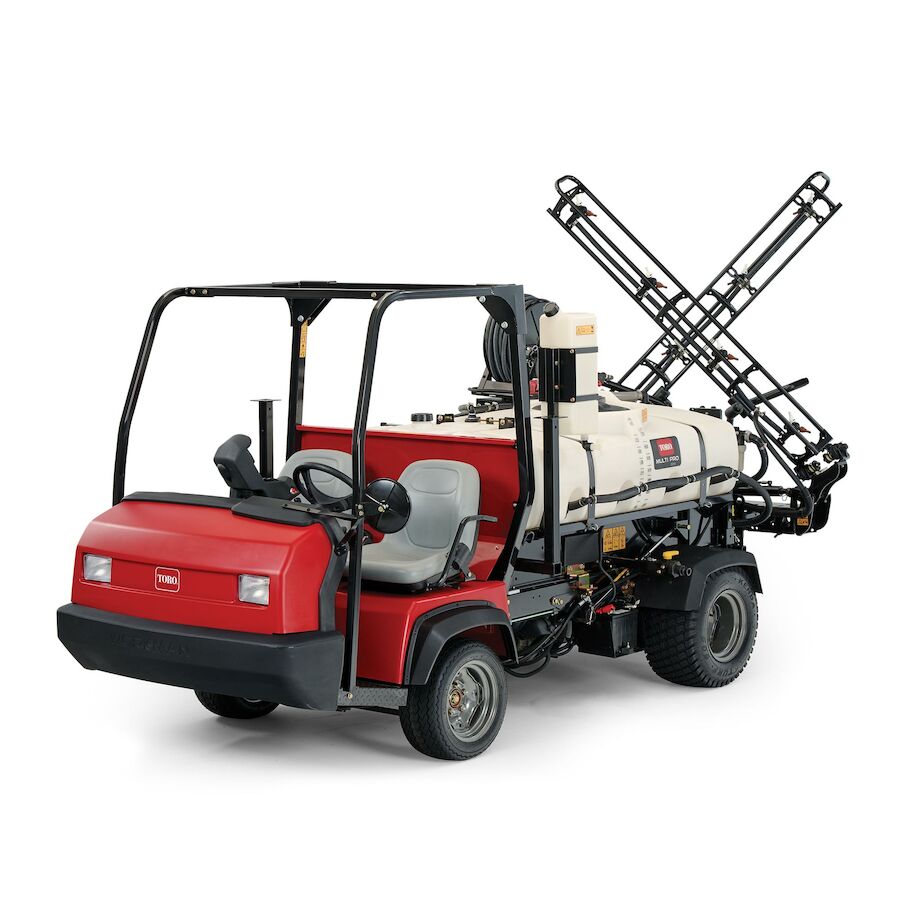

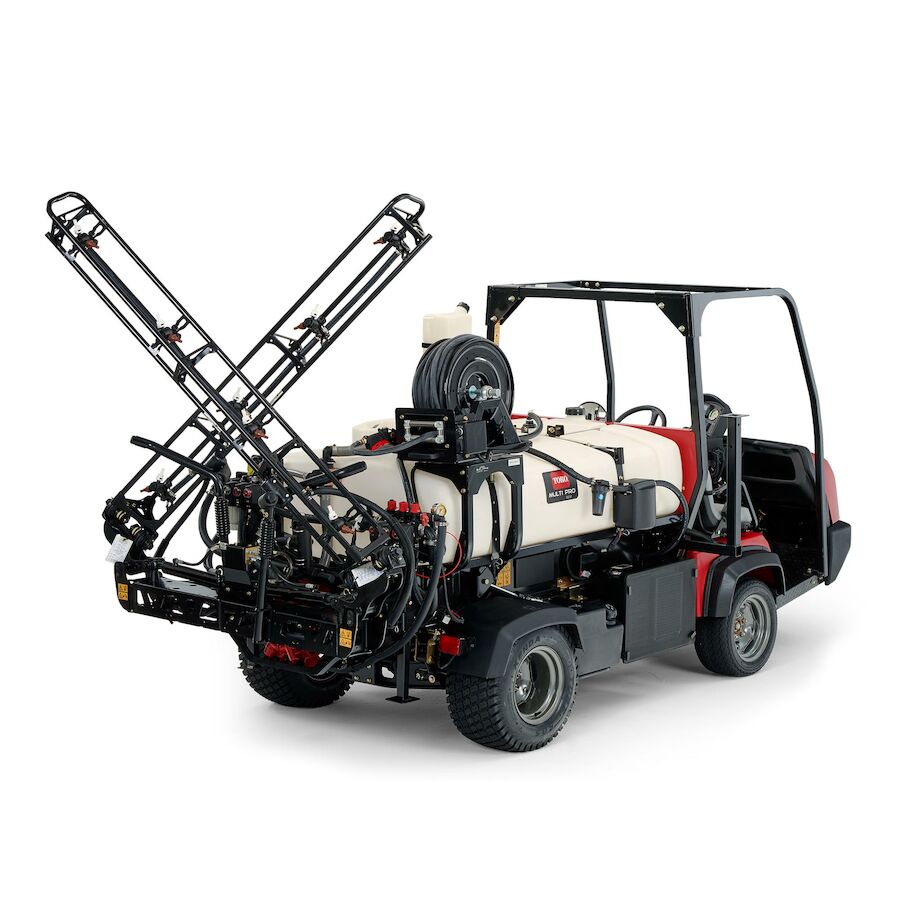

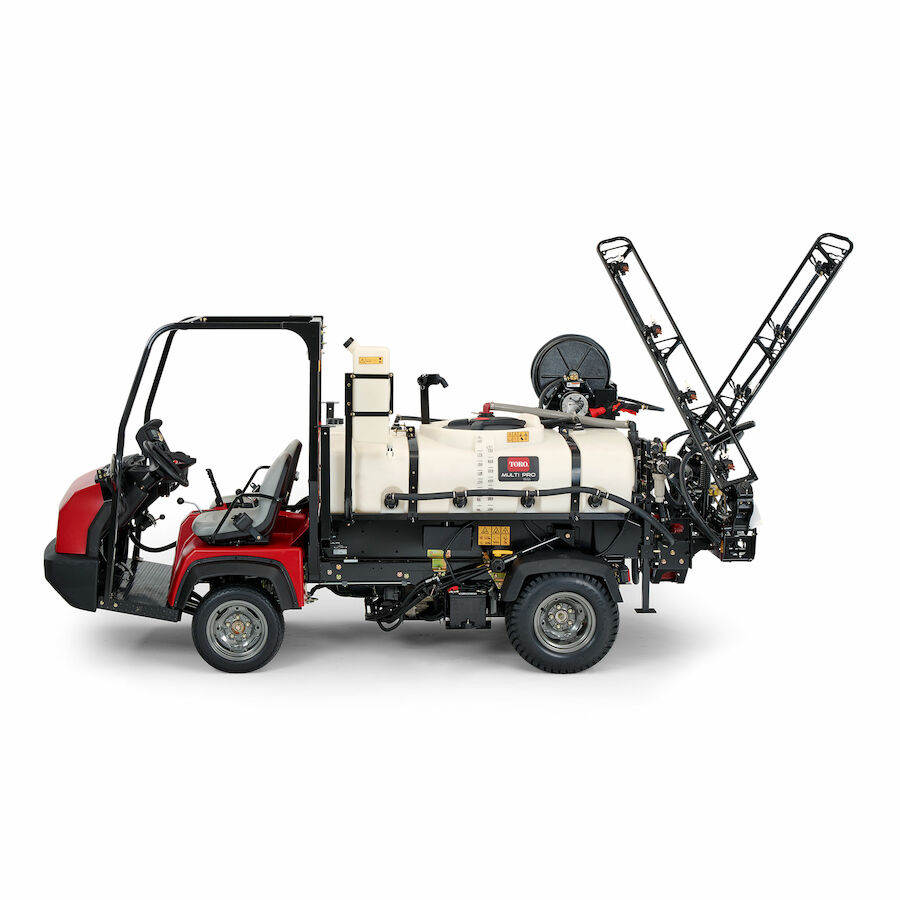

Multi Pro® WM Turf Sprayer

  • Model: 41240
See All Items in Multi Pro® Series Turf Sprayers
Request a Demo
  • Elliptical tank design prevents chemicals from building up in 'dead spots'.
  • The Quick Find™ Console places all key vehicle and sprayer systems at the operator's fingertips.
  • Oversized pump satisfies the highest spray rates while simultaneously supplying aggressive agitation flow.
  • Four, 30°, side-mounted agitation nozzles continuously 'roll' the tanks contents and are serviceable from outside of the spray tank.
  • Full range of contact, systemic and low drift nozzles are available.

Overview

The Multi Pro WM spray system for Toro’s Workman® HD Series utility vehicles leverages the advanced spray system capability of Toro’s Multi Pro line and combines functionality with cutting-edge and intuitive sprayer controls. The result is the most advanced, efficient and accurate 200-gallon bed-mounted sprayer accessory for a utility vehicle on the market. Aggressive agitation, faster response times, consistent and accurate application rates, and intuitive rate set up, makes this the sprayer that has it all.

Features

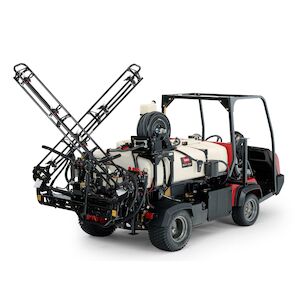

Chemical Tank
Chemical Tank
Elliptical tank design prevents chemicals from building up in 'dead spots'. Square tanks with interior ledges can lead to misapplication or residual chemicals left in the tank after the spray application. The tank incoporates a 16" side-offset fill well for easy access when loading chemicals. Durable polyethylene material won't crack, dent, rust, chip or peel. Three, 30°, side-mounted, agitation nozzles continuously 'roll' the tanks contents. Agitation nozzles are serviceable from outside of the spray tank.

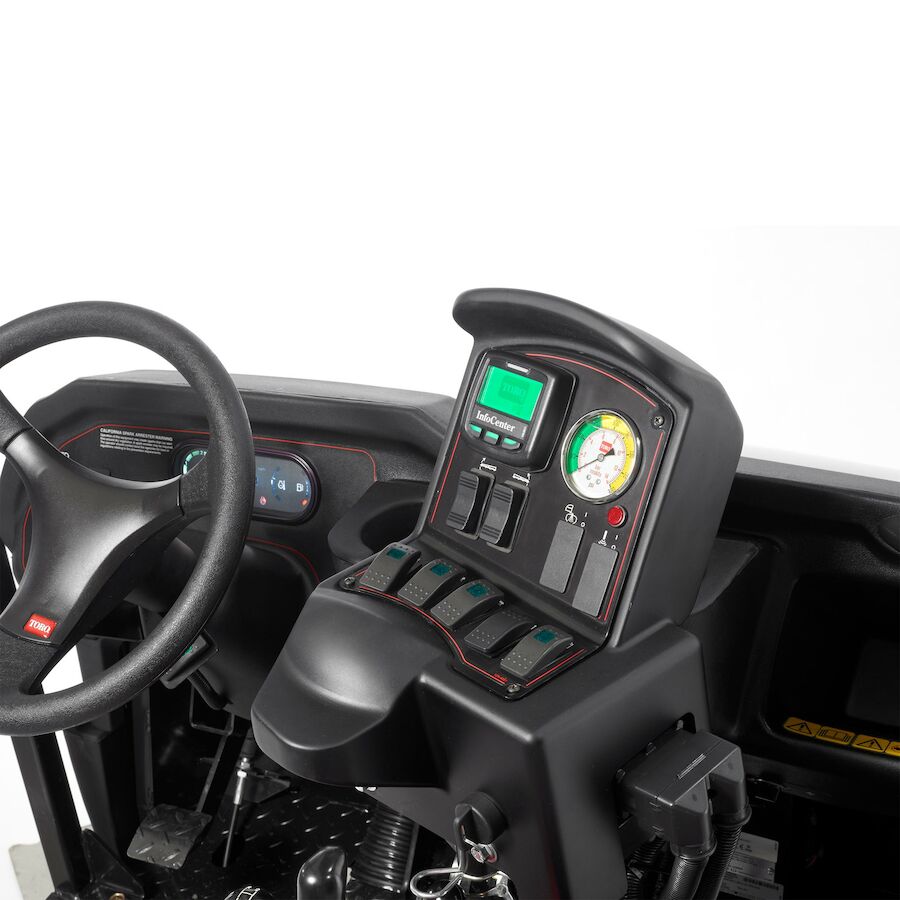

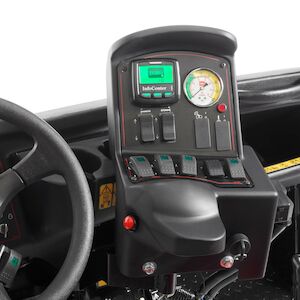

Quick Find™ Console
Quick Find™ Console
The Quick Find™ Console helps the operator intuitively find boom and actuator switches with the palm of their hand and places command of all key vehicle and sprayer systems at the operator's fingertips for ease-of-use and improved control. The Info Center display and the analog pressure gauge, which are convieniently located just above the boom section and actuator switches, keeps all key sprayer operation data in the operator's line of sight.
Six Diaphragm Pump
Six Diaphragm Pump
An industry exclusive! This oversized pump satisfies the highest spray rates while simultaneously supplying aggressive agitation flow. The self-priming, positive displacement design means the pump can be run dry without damage. Its dry sump means there's no risk of oil/lubricant contaminating the spray application.

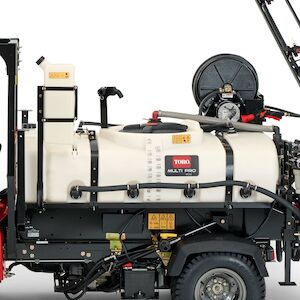

Side-Agitation Nozzles
Side-Agitation Nozzles
Four, 30°, side-mounted agitation nozzles continuously 'roll' the tanks contents and are serviceable from outside of the spray tank.
Spray Nozzles
Spray Nozzles
Full range of contact, systemic and low drift nozzles are available. Air inclusion nozzles provide improved accuracy, uniform droplet size, and reduced drift and even coverage.Find the right nozzle for your application with our Nozzle Selector Tool

Specifications

Agitator Four side-mounted jet agitation nozzles for full tank agitation.
Boom Actuators Heavy Duty hydraulic lift actuators with nitro-steel plated shafts; 1-3/4" Bore x 10.06" Stroke. Add spray actuator specifics
Boom Assembly 18.5' (5.6 m) three section, triangular truss style open booms. Optional 20.5' (6.25 m) booms available. Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves. Twelve nozzle turrets with optional kit.
GeoLink® Capable No
Optional Accessories NozzAlert™, Pro Foam™marking kit, Pro Foam™, CleanLoad™ eductor kit, fresh water rinse kit, electric hose reel kit, Ultra Sonic Boom™ kit, covered boom kit, air induction turbo twin jet nozzles, contact & systemic nozzles
Rated Capacity 200 U.S. gal. (757.1 L)
Solution Tank High-density, impact-resistant polyethylene with large 16" (41 cm) fill opening, tapered bottom and sump with drain.
Spray Controls Spray pump control switch, agitator jet switch, rate switch, individual boom On/Off switches, boom actuator switches, indicator lights on pump, agitation and boom switches, throttle lock.
Spray Pump Hardi 364/10.0, 6-diaphragm positive displacement pump w/1" (2.5 cm) input shaft; input speed 0~540 rpm; Flow rate 45 gpm (170.3 lpm) @ 40 psi (540 rpm).
Valve Actuators Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves. Twelve nozzle turrets with optional kit.
