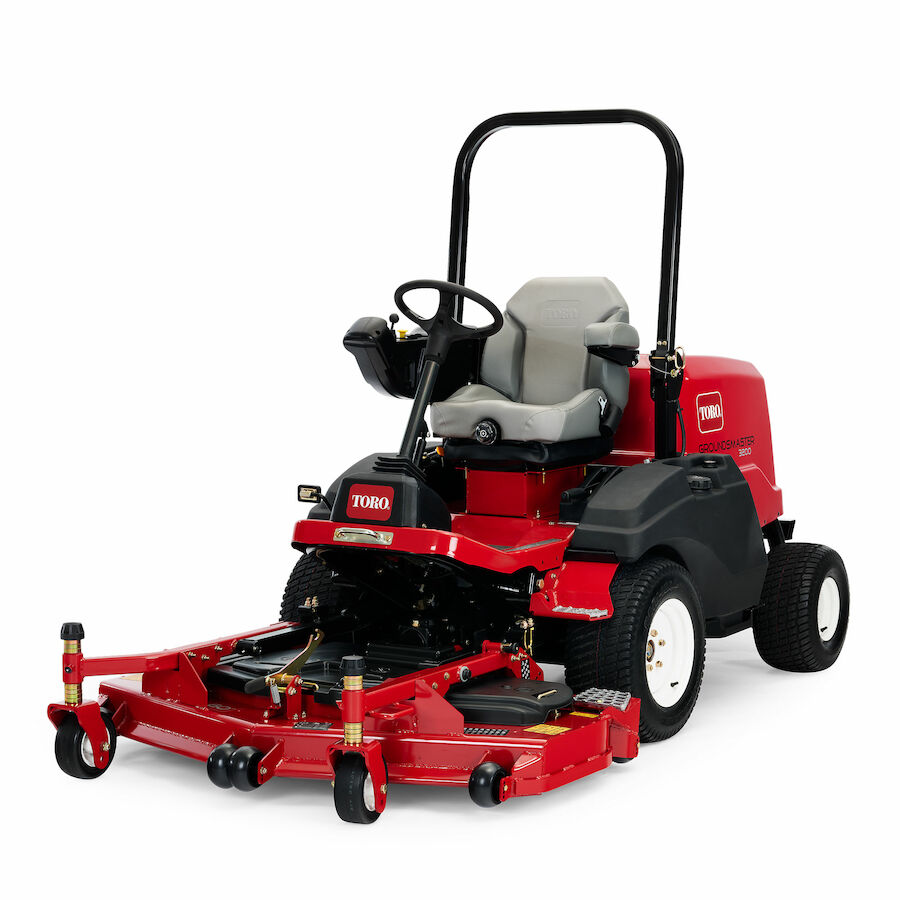

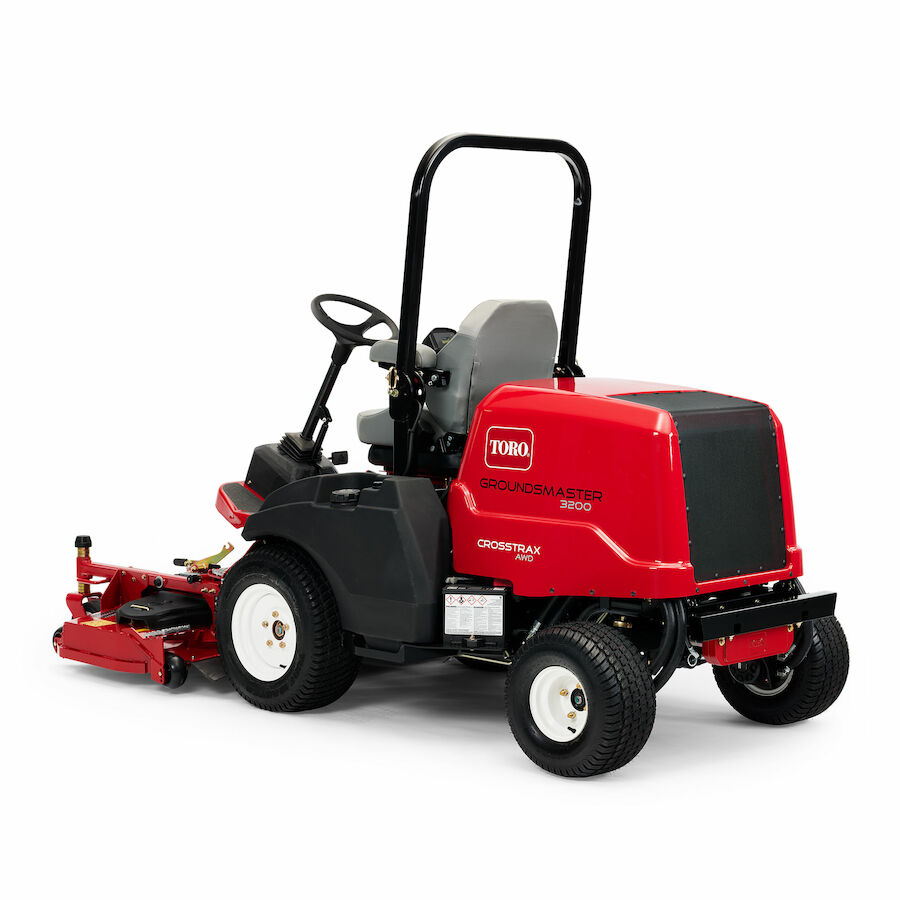

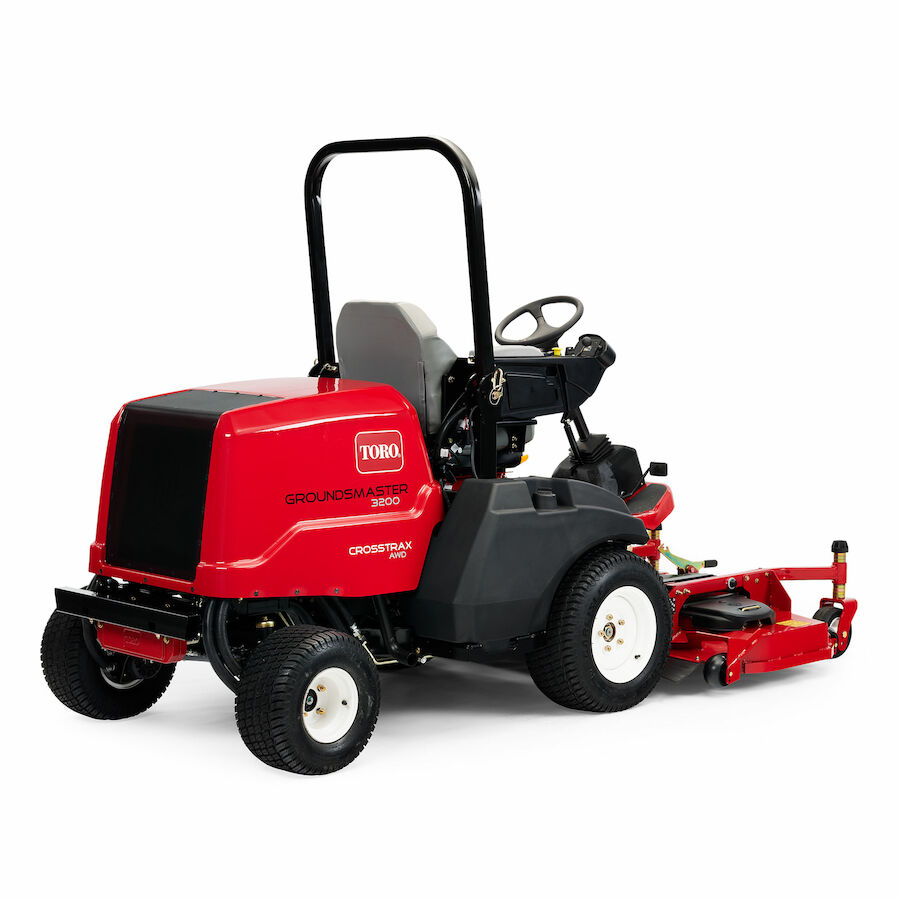

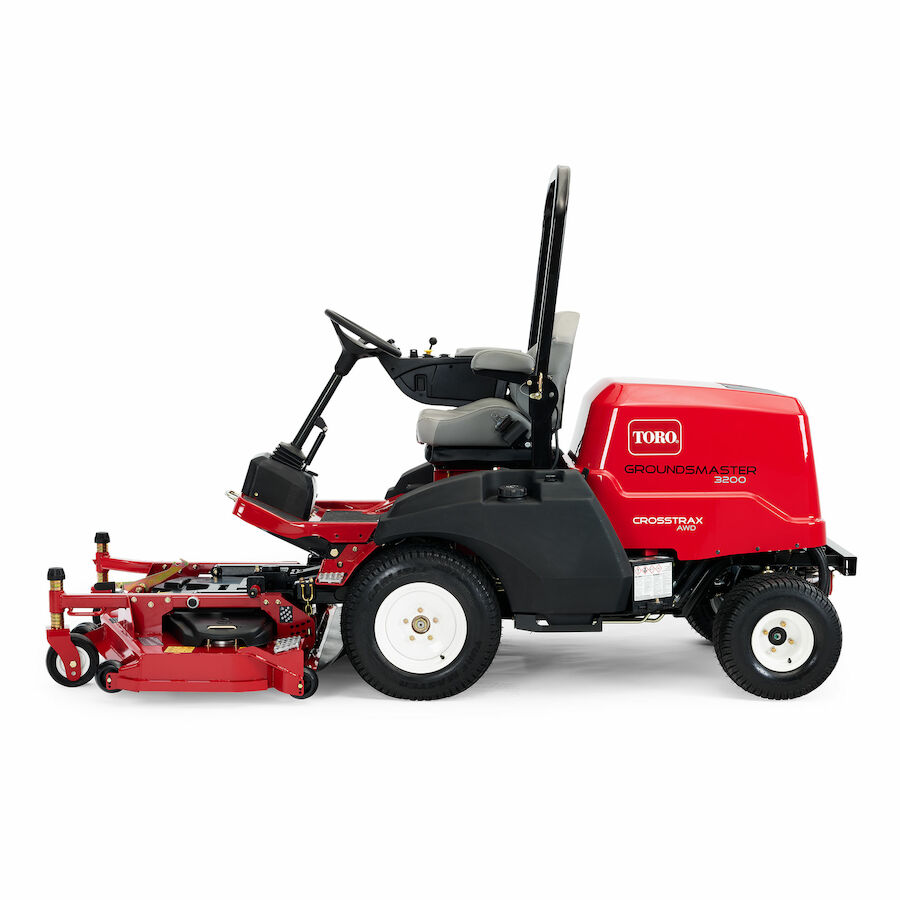

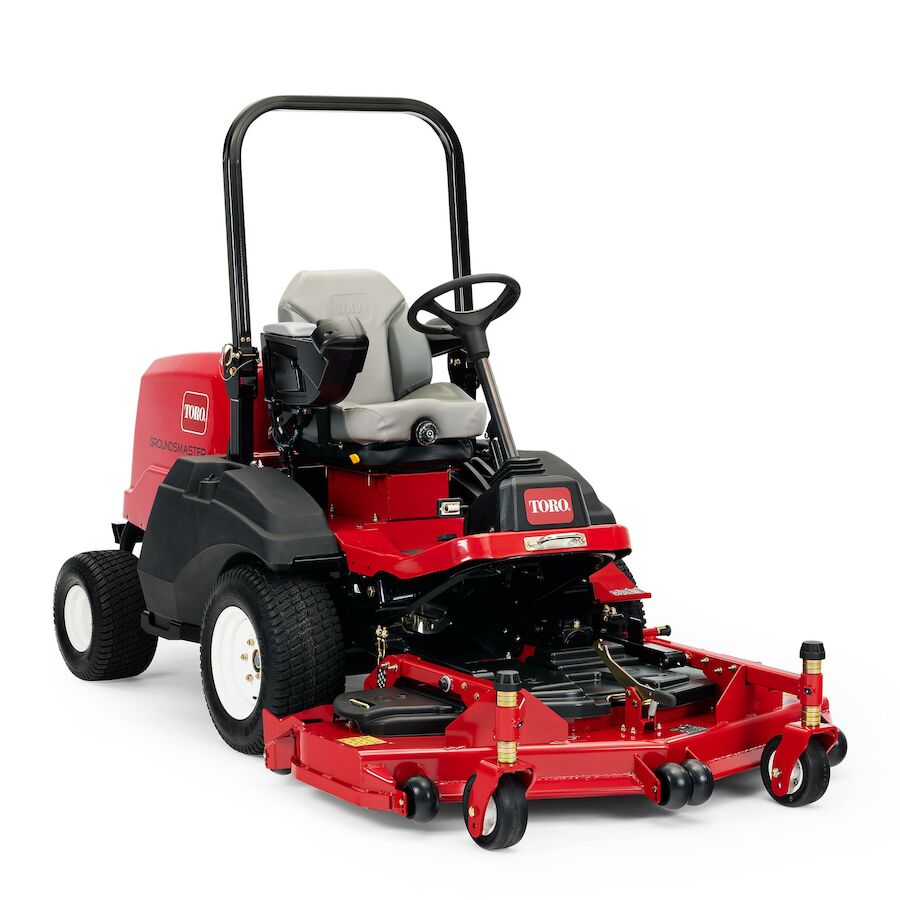

Groundsmaster® 3200

  • Model: 31900A
See All Items in Groundsmaster® 3200/3300/e3200/e3300 Series
Request a Demo
  • Adjustable seating, tilt steering, and accessible controls ensure optimal operator comfort, with standard mechanical and air ride seat options available
  • The deck shells are made from durable 7-gauge welded steel for enhanced longevity
  • A standard Rollover Protection System (ROPS) with a seat belt protects operators during rollovers and tipovers. It can be temporarily unlocked and folded down when vertical clearance is limited, such as when loading onto an enclosed trailer
  • With speeds up to 15 mph (24 km/h) and ground clearance of 7.8" (19.8 cm) or 8.3" (21.1 cm), you can easily navigate curbs and reach job sites that other mowers can't access
  • Innovative tilt-up design allows rotary decks to tilt nearly 90º for easy maintenance and cleaning while keeping the driveline intact
  • Bullnose bumper, rugged spindles, and 7-gauge high-strength steel decks are designed for all mowing applications
  • Choose between a 24.7 hp (18.4 kW) or a 37.4 hp (27.9 kW) Tier 4/Stage V emission-compliant Yanmar diesel engine
  • Move snow or clear debris... all from the comfort of the optional heated cab
  • Real-time service reminders, alerts, and diagnostic information are easily accessible to the operator for better control
  • Cast iron spindle housings result in greater stability and strength, providing longer deck and spindle life
  • The ¼ inch (6 mm) heat-treated alloy steel blades resist flexing and wear, ensuring a crisp cut consistently

Overview

The Groundsmaster® 3200 delivers unparalleled productivity. Featuring a powerful 24.7hp (18.4 kW) diesel engine and legendary Groundsmaster decks, the Groundsmaster 3200 makes quick work in even the toughest terrain while delivering an exceptional quality of cut. From the fully adjustable suspension seat and steering column to the fingertip engine controls, this new mower is designed for all-day comfort. Routine maintenance is also easy with the Groundsmaster 3200 with the innovative tilt-up deck design making blade maintenance and deck cleaning simple. Productivity, comfort, reliability. That’s the Groundsmaster 3200.

Features

Superior Operator Comfort
Superior Operator Comfort
Adjustable seating, tilt steering, easy access controls provide optimal operator comfort. Standard, mechanical suspension, and air ride seat options available.
7-Gauge Welded Steel Decks
7-Gauge Welded Steel Decks
The deck shells are constructed from high-strength 7-gauge welded steel, for greater durability and long life.
Folding Rollover Protection System (ROPS)
Folding Rollover Protection System (ROPS)
A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.
Easily Move Between Jobsites
Easily Move Between Jobsites
With ground speeds up to 12.5 or 15 mph (20 km/h or 24 km/h) and either 7.8" (19.8 cm) or 8.3" (21.1 cm) of ground clearance, you can easily climb curbs and get to job sites other mowers simply can’t access.
Simple Maintenance
Simple Maintenance
Innovative tilt-up design makes maintenance and cleaning simple. Rotary decks tilt almost 90º while keeping the driveline intact.
Tackle Any Terrain
Tackle Any Terrain
Bullnose bumper, rugged spindles, and 7-gauge high strength steel decks are built for all mowing applications.
Powerful Yanmar® Engines
Powerful Yanmar® Engines
Choice of efficient 24.7hp (18.4 kW) or powerful 37.4hp (27.9 kW) Tier 4/Stage V emission compliant Yanmar diesel engines.
Optional Cab
Optional Cab
Move snow or clear debris... all from the comfort of the optional heated cab.
InfoCenter™ Control Panel
InfoCenter™ Control Panel
Real-time information such as service reminders, alerts, and diagnostic information are delivered to the operator’s fingertips for ultimate control.
Industry's Toughest Spindle Assembly
Industry's Toughest Spindle Assembly
The cast iron spindle housings feature a massive 9" (22.9 cm) diameter base and eight-bolt mounting pattern that spread impact loads across a broader area of the robust deck shell. The high-efficiency, tapered roller bearings offer greater durability, which means more stability and strength, resulting in longer deck and spindle life.
Steel Blades
Steel Blades
The high-strength one-quarter inch (6 mm) thick heat-treated alloy steel blades resist flexing and abrasive wear. The result is a crisp cut time after time.

Specifications

Air Filter Remote-mounted Donaldson® air cleaner
Armrests Standard
Battery 12V
Blade Style/Type Rotary
Cab Unit N/A
Controls Foot-operated pedal for forward and reverse. Manually adjustable forward speed limiter. Control arm includes hand-operated throttle, PTO switch, deck/implement lift lower switch, ignition switch, glow plug switch.
Cooling System Description Rear-mount, cross flow radiator with 8.5 fins per 1" (25 mm), 7 quart (6.6 liter) capacity
Cup Holder Standard
Cutting Unit Type/Configuration 60" (152 cm) Side Discharge Deck
Drivetrain Diesel
Electrical System 12V maintenance-free battery with 540 cold cranking amps at 0 degrees F (-18 degrees C). 80 minute reserve capacity at 80 degrees F (27 degrees C). 40-amp alternator. Easy access to fuse panel.
Engine Cooling Liquid Cooled
Fuel / Power Source Diesel
Fuel Capacity 12 U.S. gal. (45.4 L)
Fuel Filter Fuel filter/water separator.
Gauges/Instrumentation InfoCenter™: LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates coolant temps, oil pressure, alternator voltage, engine hours.
Ground Clearance 7.8" (19.8 cm)
Ground Speed - Forward 0 - 12.5 mph (0 - 20 km/h)
Ground Speed - Reverse 0 - 5.5 mph (0 - 8.9 km/h)
Height 79" (200.6 cm) with ROPS up
Hydraulic Cylinders Twin 2.5" (6.4 cm) bore, 1.25" (3.2 cm) rod hydraulic cylinders operate lift arms. Hydraulic counterbalance for optimum traction and stability.
Hydraulic Fluid Type Toro PX™ Extended Life Hydraulic Fluid
IntelliDash™ Capable No
Interlocks Seat, PTO, lift/lower, traction, parking brake
Lighting Optional
Main Frame/Chassis All welded tubular and formed steel
Max Slope Angle Refer to operator's manual
Mowing Rate (Productivity) Up to 6.1 acres/hr (2.4 hectacres/hr) with 60" deck Up to 7.3 acres/hr (2.9 hectacres/hr) with 72" deck
Oil Capacity 3.6 U.S. qt. (3.4 L)
Operator Area Operator step, beverage holder, controls on right armrest
Optional Accessories LED kits: work light, road light, beacon; recycler kits, slope sensor kit, heat only cab, accs control kit, storage box kit, USB charging kit, aux hydraulic kit, hydraulic hose kit, SMV kit, storage bag kit, power harness kit, ROPS-certified heat-only cab
Overall Width 52" (132 cm)
Parking/Service Brakes Dynamic braking through hydrostat and foot pedal. Parking Brake: Hand-actuated drum type on front left and right traction wheels.
Power Steering Yes
Power Train (Engine Description) Yanmar®, 3-cylinder, liquid-cooled diesel. Power: 24.7 hp (18.4kW) @ 3000 rpm, Torque peak: 50.9 ft-lbs. (69 Nm) @ 2100 rpm. Displacement 1267cc. EPA Tier IV / Stage V compliant.
Product Length 107" (271.7 cm)
PTO Clutch Engine mounted 350 ft. lb. (475 Nm) rated electro-magnetic PTO clutch drives 2" (5 cm) telescoping shaft. Rotary deck connection allows for tip-up service position without disconnection of PTO.
Seat Deluxe bolstered seat with retractable seat belt
Starting Key Start
Steering System Description Hydraulic power steering. Tilt steering wheel released and locked by a foot-actuated lever.
Tires - Front 23" x 10.5" - 12", 4-ply, Turf Tire
Tires - Rear 16" x 6.5" - 8", 4-ply, Turf Tire
Tool Box Optional
Traction Drive 2WD
Traction Drive (System) 2WD Parallel hydraulic traction system. Parallel hydraulic flow between the front wheel motors powered by hydrostatic pump.
Weight 1,751 lbs. (794 kg)
Wheelbase 52" (132 cm)
Width of Cut 60" (152 cm)
