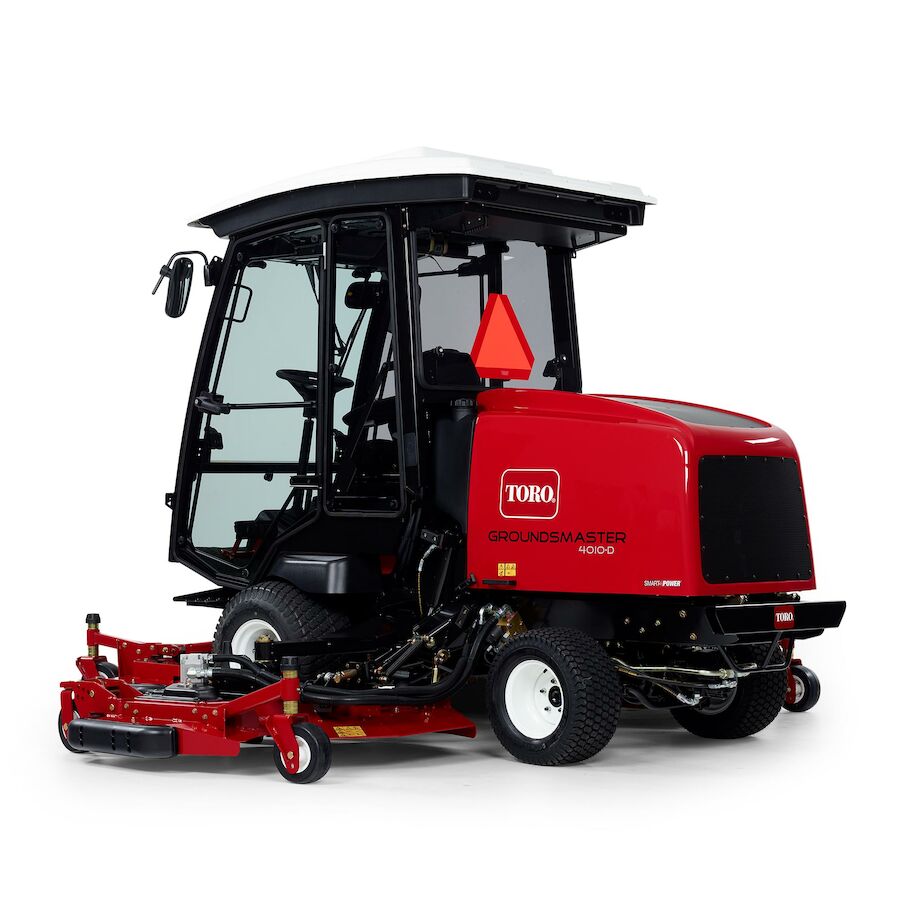

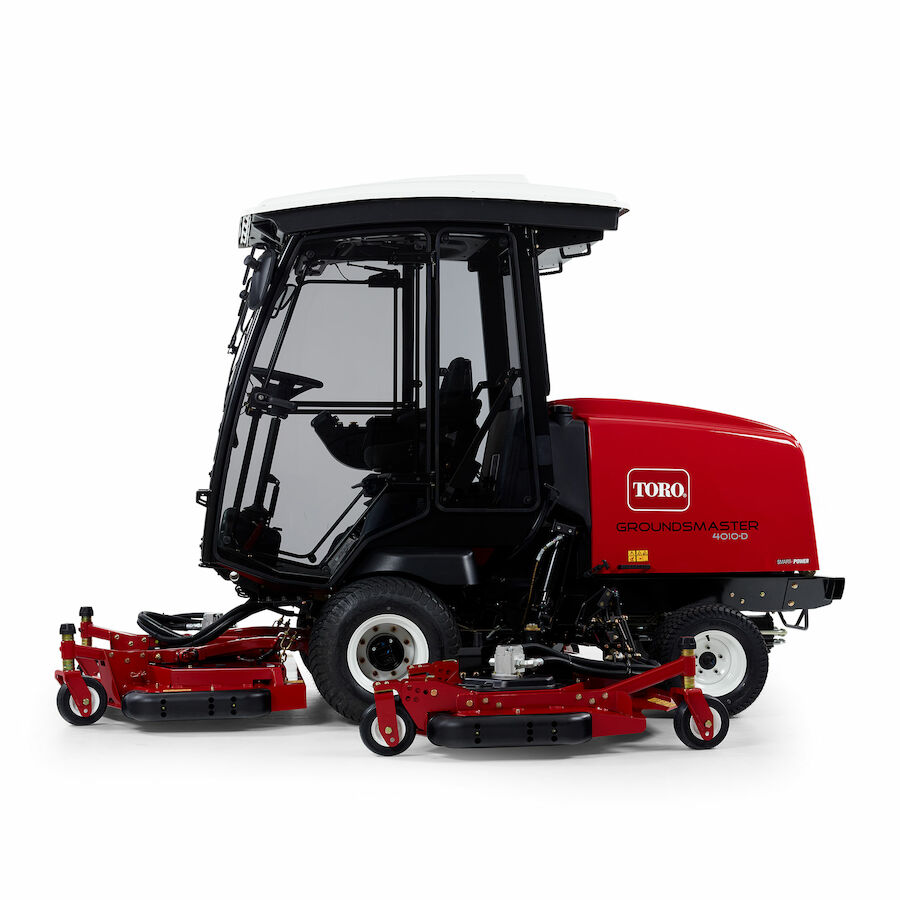

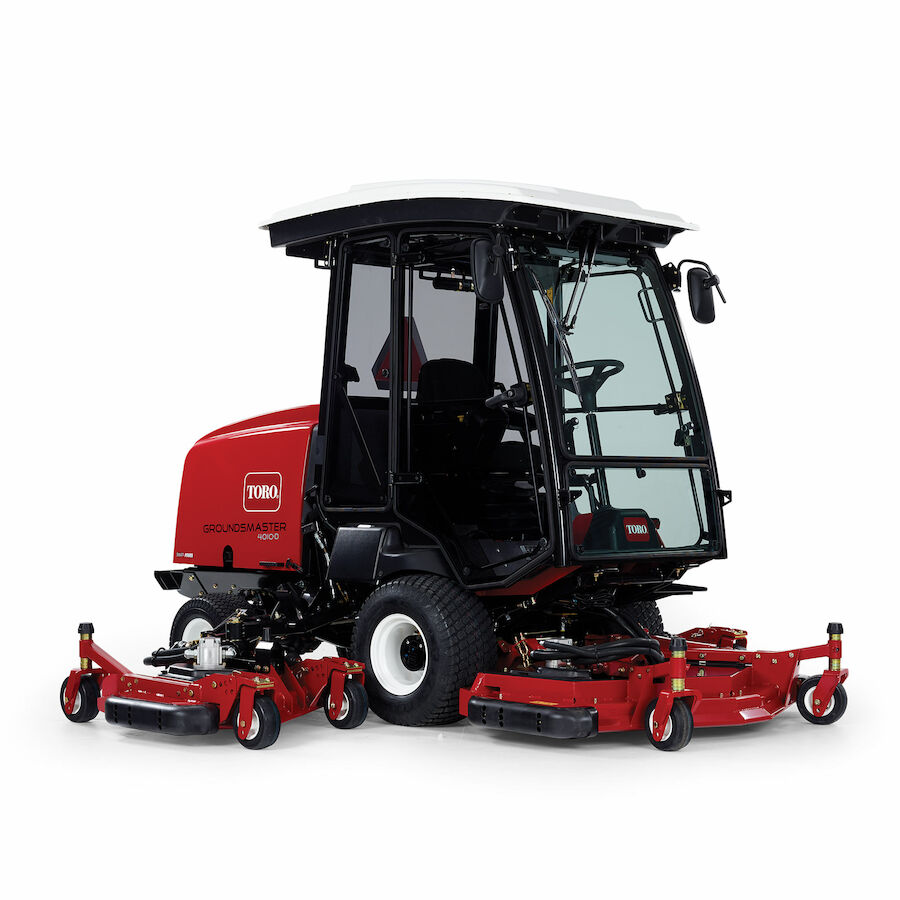

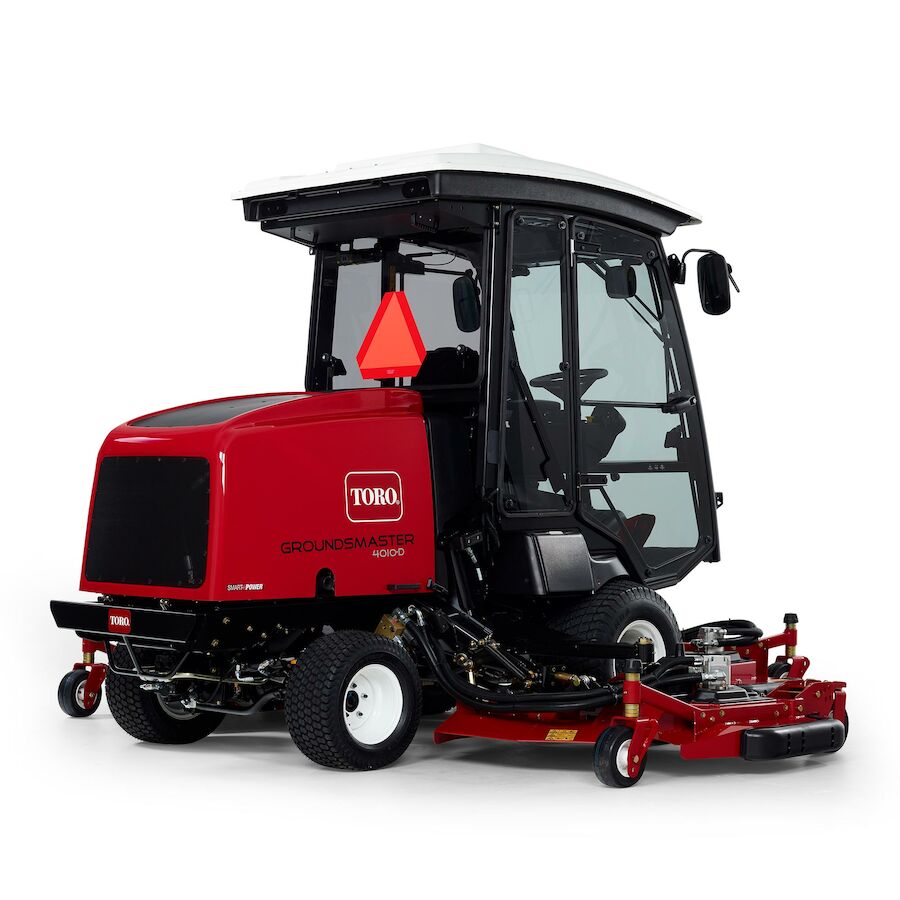

Groundsmaster® 4010-D

  • Model: 30636
See All Items in Groundsmaster® 4000 Series
Request a Demo
  • The Groundsmaster® 4000-D/4010-D effectively mows a 62" to 11' (157.5 cm to 3.4 m) swath with fast wing lifts and allows trimming with one, two, or all three decks engaged as needed
  • The exceptional trimming capability allows maneuvering around small objects, while the unique ability to mow a 0" uncut circle—without wheel brakes—enables easy striping without leaving any grass uncut
  • Smart Power Traction enables even inexperienced operators to achieve a consistent cut on hills and thick patches by automatically adjusting ground speed in heavy cutting conditions, maintaining optimal blade speed
  • The variable speed, temperature actuated reversing fan blows chaff off the intake screen to prevent overheating, saving time by reducing the need for operators to stop and clean the back hood
  • Heavy-duty welded steel decks and frames ensure durability and longevity. Each wing deck features a bi-directional impact absorption system that flexes upon hitting an object, protecting components and minimizing downtime for greater productivity
  • Allows setting the traction unit for continuous operating speed, with automatic override when the operator presses the drive pedal or applies the brakes
  • The parallel hydraulic flow between front and rear wheels ensures full-time 4-wheel drive, while individual wheel brakes enhance traction on wet turf
  • Accessories for added value and versatility include a rotary broom, 2-stage snowthrower, debris blower, and road package kit

Overview

The Groundsmaster® 4010-D rotary mower boasts a powerful turbo-charged 55 hp (41 kW), Tier 4 Final and Stage V compliant diesel engine. Featuring Smart Power™ technology, high engine torque and patented, HybridDrive™ cutting deck system, the Groundsmaster 4010-D delivers power where you need it most, no matter how tough the conditions. With its excellent trimming capability and an ability to mow a 0” uncut circle, the Groundsmaster 4010-D is an extremely efficient mower.
The parallel hydraulic traction system maintains consistent hydraulic flow between the front and rear wheels to assure full time 4-wheel drive. This allows you to mow with confidence, even on hills and wet grass. Operators can enjoy mowing productivity in a climate-controlled, all-season safety cab with the Groundsmaster 4010-D.

Features

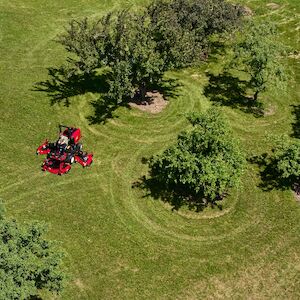

Superb Trimming
Superb Trimming
In addition to effectively mowing a 62" to 11' (157.5 cm to 3.4 m) swath with its fast wing lifts, the Groundsmaster® 4000-D/4010-D offers incredibly tight trimming, allowing you to use one, two, or all three decks. The 4000-D/4010-D also features a unique, patent pending, parallel hydraulic traction system in forward and reverse that makes it much easier to trim around a tree or object without scuffing even while traversing a hill.
Nimble Maneuvering
Nimble Maneuvering
The impressive trimming capability means you can get around even the smallest object. The rare ability to mow a 0" uncut circle - without wheel brakes - allows you to easily mow striping patterns without leaving any grass uncut. Smooth turning is made possible by a tight 55.5" (141 cm) wheelbase and an inner, rear-steering turning angle of 53.5 degrees.
Smart Power® Traction
Smart Power® Traction
Smart Power Traction allows even an inexperienced operator to achieve a consistent cut, even on hills and thick patches. By automatically adjusting ground speed when encountering heavy cutting conditions, optimum blade speed is maintained.
Easier Maintenance
Easier Maintenance
The Groundsmaster® 4000-D/4010-D mowers are easy to service and requires fewer parts to stock. That's because the four drive belts, and the deck motors, blades, spindles, idlers, and spindle pulleys are all interchangeable. While rear discharge decks come standard, you can easily convert to Guardian® Recycler® decks which offer improved clipping management and additional safety.
SmartCool™ System with Auto-Reversing Cooling Fan
SmartCool™ System with Auto-Reversing Cooling Fan
Variable speed, temperature actuated reversing fan. Blows chaff off intake screen to help reduce overheating. Big time saver which reduces the amount of times an operator has to stop and exit the unit to clean the back hood.
Durable Design
Durable Design
Heavy-duty welded steel decks and frames provide extra durability and long life. Each wing deck features a bi-directional, impact absorption system. If a deck hits an object, a spring-loaded cylinder allows the deck to flex on impact, protecting deck components so you have less down time and more productivity.

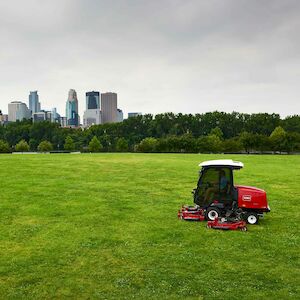

Cruise/Speed Control
Cruise/Speed Control
Lets you set traction unit for a continuous operating speed with automatic override when operator moves drive pedal or operates brakes.

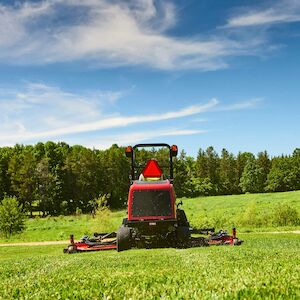

Major Mowing Capacity
Major Mowing Capacity
The Groundsmaster® 4000-D/4010-D delivers 55 hp (41 kw). With so much power at your disposal, it's easy to digest even a large amount of wet, thick grass. With its unmatched engine torque and patented hydraulic motors that directly drive spindles on each deck, the 4000-D/4010-D delivers power where you need it most to cut tough grass. Plus, the shallow deck design forces quicker clipping dispersal, allowing the decks to accept more grass on a faster basis.
Reliable Powertrain
Reliable Powertrain
The engine throttle-by-wire makes it easier to get to high or low idle and the electronic isochronous engine governor allows for a faster engine recovery time with no engine droop. The two speed drive motors improves hydraulic efficiency allowing the mower to operate at 4WD in mow and transport, improving fuel economy.
Reliable Traction
Reliable Traction
There's no need to worry about mowing around objects while traversing hills, even in wet terrain. The parallel hydraulic flow between front and rear wheels assures full-time 4-wheel drive. And the individual wheel brakes provide effective traction assistance on wet turf.

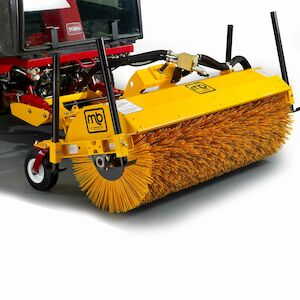

Versatility
Versatility
Accessories for added value and versatility: rotary broom, 2-stage snowthrower, debris blower, and road package kit.

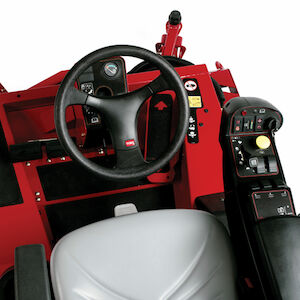

Operator Comfort
Operator Comfort
Operators will like the Groundsmaster® 4000-D/4010-D because it is amazingly quiet. Its low engine speed, low-noise technology gear motors, and a variable-speed cooling fan clutch all contribute to greatly reduced noise levels. Plus, amenities like air ride seat suspension, a multi-size beverage holder, 12-volt power outlet, and a portable radio holder make work more comfortable.

Specifications

Air Filter Dry, replaceable primary and safety elements
Armrests Standard
Battery 12V
Blade Style/Type Rotary
Blade Type (Description) Standard Blades: 21.75" (55.2 cm) long, 2.5" (6.4 cm) wide, 0.25" (0.64 cm) thick

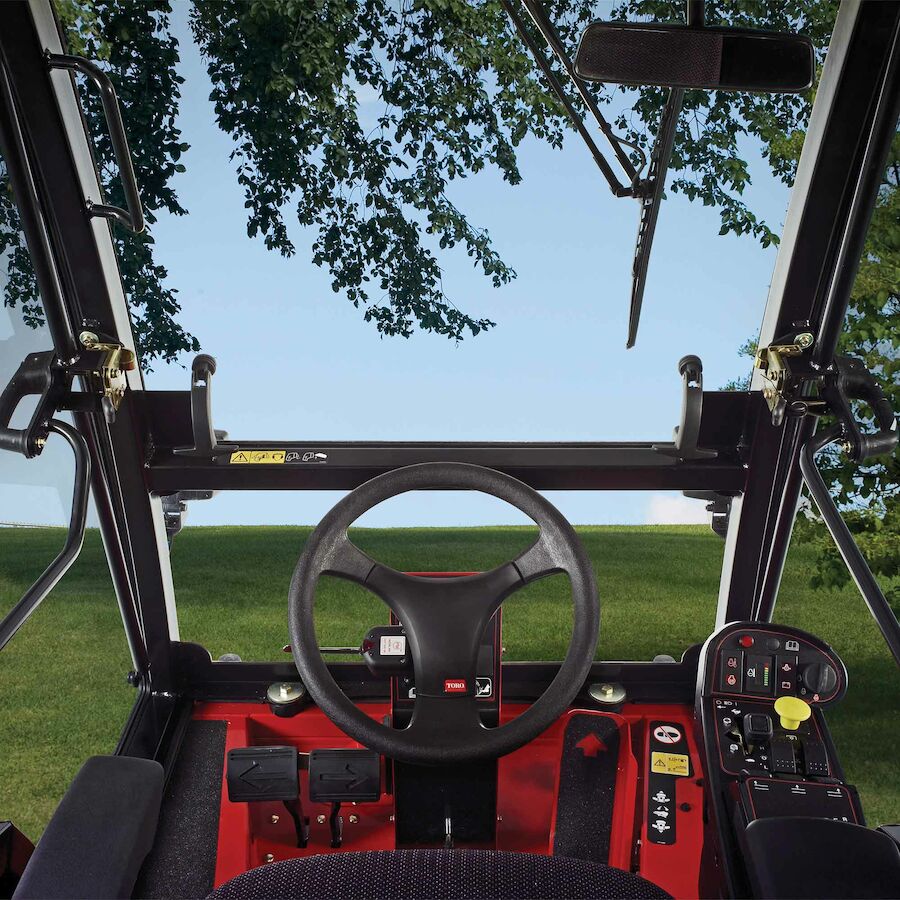

Cab Unit Heat & Air-Conditioned Safety Cab
Cab Unit Description All-season, ROPS certified cab includes: climate system pressurized cab, front windshield wiper and washer, interior mirror, folding side mirrors, right, left and rear windows have tinted (50%) glass, quick release window latches act as emergency exit, rubber sound isolator cab mounts, textured neoprene floor mat and interior dome light.
Controls Tilt steering, ignition, throttle, traction pedal, lockable brake pedals, parking brake lock, mow/transport speed selector, individual deck lift/lower, counterbalance adjustment, tow valves, cup holder, toolbox, radio holder, fan and 12-volt outlet.
Cooling System Description Single pass cooler, 6.3 fins per inch, Smart Cool™ variable speed radiator cooling fan with automatic and manual reversing capabilities. Rear-mount, cross-flow radiator with 6.3 fins per inch, 9 quart (8.5 liters) capacity.
Cruise Control Cruise control standard
Cup Holder Standard
Cutting Unit Accessories Recycler Kit, Mulching Kit, 8 Inch Foam Filled Caster Wheel, Bumper Skid (White)
Cutting Unit Lift/Lower Two position switches for individual deck lift/lower
Cutting Unit Type/Configuration Overall: 132" (335 cm), Front: 62" (157.5 cm), Wings: 42" (106.7 cm), Overlap: 7" (12.8 cm)
Deck Caster Wheels 8 x 3.50-4, 4-ply, smooth, pneumatic, sealed precision ball bearings
Deck Construction Welded 0.100" (25 mm) steel with 7 and 10-gauge steel channel and plate reinforcements, bullnose bumpers
Deck Wing Protection Bi-directional, impact absorption device on each wing deck
Drivetrain Diesel
Electrical System 12-volt, 690 CCA battery and 80 amp alternator. Overload protection with automotive type fuses.
Engine Cooling Liquid Cooled
Fuel / Power Source Diesel / Biodiesel
Gauges/Instrumentation InfoCenter™: LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates fuel level, coolant temp, intake temperature, low oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage
Ground Clearance 6.5" (16.5 cm)
Ground Following 6" anti-scalp cups on each blade, adjustable skids on each deck, 4 anti-scalp rollers on front deck and 1 on each wing
Ground Speed - Forward 0 - 16.2 mph (0 - 26.1 km/h)
Ground Speed - Reverse 0 - 8.1 mph (0 - 13 km/h)
Height 85" (216 cm) with ROPS up 93.9" (237 cm) with cab
Height of Cut Range 1" - 5" (25 mm - 127 mm) in 0.5" (13 mm) increments
Hydraulic Fluid Capacity 8.75 U.S. gal. (33.1 L)
Hydraulic Fluid Type Toro PX™ Extended Life Hydraulic Fluid
Implement Drive Direct mounted hydraulic motor into spindle. Remaining spindle(s) driven by individual B section Kevlar belt. Quick release belt covers.
Interlocks Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat while moving or deck is engaged, traction and/or deck stops. Mowing only permitted in low range. Traction not allowed if parking brake engaged and pedal moved out of neutral. Deck transport latches.
Lighting Optional
Main Frame/Chassis All welded formed-steel frame with integral tie-down anchors
Max Slope Angle Refer to operator's manual
Mowing Rate (Productivity) Up to 11.0 acres/hr (4.5 hectacres/hr)
Mowing Speed 0 - 8.3 mph (0 - 13.4 km/h)
Number of Blades 7
Oil Capacity 8 U.S. qt. (7.6 L)
Optional Accessories Road Light Kit (includes LED headlights, brake lights, tail lights, amber turn signals, flashers and slow moving vehicle sign), LED Work Lights, Additional Turn Signals, Sunshade, Beacon, Slope Sensor, Horn Kit, 4WD Flow Divider Kit
Overall Width 136" (346 cm) with decks down
Parking/Service Brakes Mechanically actuated, internal wet disc brakes on input to each planetary drive. Individual foot-operated steering brake control left and right wheel. Lock pedals together & latch to engage parking brake.
Power Steering Yes
Power Train (Engine Description) Yanmar® 4-cylinder, liquid-cooled, turbo-charged diesel. 127 cu. in. (2.1 liter) displacement. Engine rated at 55 hp (41 kW) net and 125 ft.-lbs. (169 Nm) torque at 2,000 rpm. EPA Tier IV Final and Stage V compliant.
Product Length 135" (343 cm) with decks down
Safety/Operator Safety ROPS certified cab, front and rear windows open, quick release window latches act as emergency exit, seat belt. <80 dB sound pressure at operator's ear when Quiet Mode activated by Toro Distributor.
Seat 4-way adjustable seat, right armrest travels with seat and suspension
Spindle Assembly 1.25" (3.17 cm) diameter spindle shafts, 9" (22.9 cm) diameter conical ductile iron housing, and 2 greaseable tapered roller bearings
Starting Key Start
Steering System Description Power steering with dedicated power source. Steering wheel tilts to desired operator position.
Tires - Front 26" x 12" - 12", 6-ply, Tubeless Multi-Trac
Tires - Rear 20" x 10" - 10", 6-ply, Tubeless Multi-Trac
Tool Box Standard
Traction Drive 4WD
Traction Drive (System) Parallel hydrostatic, closed loop system with full-time 4WD. Forward/reverse in low (mow) and high (transport) range with full-time, automatic traction assist (forward only).
Transport Width 71" (180 cm) @ 2" (5 cm) HOC
Turning Circle (Diameter) Uncut circle: 0" diameter
Weight 4759 lbs. (2159 kg) with full fluids
Wheelbase 55.5" (140 cm)
Width of Cut 132" (335 cm)
