Limited Quantity

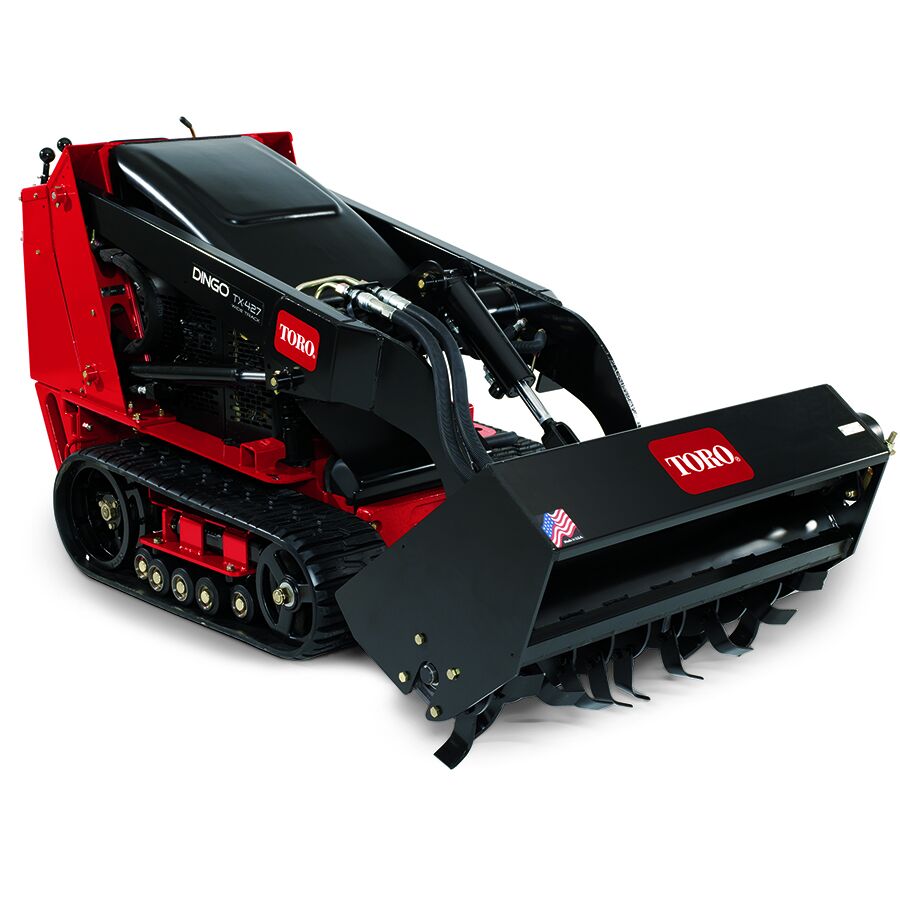

Dingo® TX 427 Track Loader, Wide

Model: 22322

See All Items in Dingo® TX 427 Track Loader

Find a Dealer

Patented TX control system
Reinforced tracks disperse weight evenly

Top

Find a Dealer

Overview

The Toro® Dingo® TX 427 Wide Track extends your versatility, while improving your productivity when faced with a variety of landscapes and ground conditions. The TX 427 Wide Track offers amazing hydraulic power and with only 3.6 psi ground pressure, the Dingo TX 427 is extremely gentle on delicate turf. All of this awesome power is harnessed with only 3 easy-to-use hand controls. These simple controls coupled with walk behind operator position translate into extremely short learning curves, 360° visibility and instant productivity.

Features

Simple Controls

Three simple controls let operators get to work fast.

Dingo TX427 with the forks attachment carrying rolls of landscape covering material

Low Impact Footprint

Long-lasting, aramid reinforced tracks disperse weight evenly for a light footprint on tur, while delivering better traction in sandy or wet ground conditions.

Dingo TX427 with the bucket hauling blocks of cement

4-Pump Hydraulic System

4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!

Dingo TX427 Auger attachment digging a hole near a house

Air-Cooled Gasoline Engine

A 27 hp (20 kw) Kohler® engine provides the necessary power to drive any one of the multitude of Toro attachments available for the Dingo TX.

Dingo 525 in Florida using the trencher attachment near a sidewalk

Exclusive TX Track Drive

Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.

Specifications

Air Filter	Two-stage, heavy-duty, remote
Cooling System	Air Cooled
Dump Angle	38 deg
Dump Height	46.1 in. / 117.0 cm
Engine Discplacement	725 cc (44 cu. in.)
Engine Horsepower	25 hp (18.6 kW) @ 3,600 rpm
Engine Make	Kohler
Engine Model	Command Pro Series CH740
Fuel Tank	6 gal. / 22.7 L
Fuel Type	Gasoline
Ground Clearance	4.6 in. / 11.56 cm
Ground Pressure	3.5 psi
Ground Speed - Forward	Up to 4.5 mph / 7.2 km/h
Ground Speed - Reverse	Up to 2.0 mph / 3.2 km/h
Height	46.1 in. / 117.0 cm
Height - With Bucket	46.1 in. / 117.0 cm
Hinge Pin Height	65.8 in. / 167.1 cm
Hydraulic Flow - Auxiliary	11.4 GPM
Hydraulic Flow - Traction	16.9 GPM
Hydraulic Pressure	3,000 psi
Length	70.7 in. / 179.5 cm
Length - With Bucket	92 in. / 233.6 cm
Loader Arms	Radial
Max Operating Height	90.1 in. / 228.8 cm
Oil Capacity	2 qt / 1.9 L
Rated Operating Capacity*	535 lbs / 242.67 kg
Reach - Fully Raised	21.8 in. / 55.3 cm
Reservoir Capacity	10 gal. / 37.8 L
Tip Capacity	1,530 lbs / 694 kg
Track Length	96.6 in. / 245.3 cm
Track Width	9.5 in. / 24.1 cm
Tracks	Sprocket-drive, 10 road wheels per side
Traction	Dual Hydrostatic Pump
Weight	1,990 lbs / 903 kg
Wheelbase	31.2 in. / 79.2 cm
Width	41 in. / 104.1 cm
Width - With Bucket	41 in. / 104.1 cm

Disclaimer

*Per ISO 14397-1

Accessories

TX Road wheel kit (Part # 106-7620)

Road Wheel Kit for TX 427 and 525 models.

Reference Guide Kit, Dingo TX Compact Utility Loaders (Part # 107-9310)

TRACK-AGGRESSIVE TREAD, WIDE (Part # 108-9749)

Toro 5 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8086)

Toro 5 Gallon PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 55 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8087)

Toro 55 Gallon PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Dingo TX 427 50-hour filter kit (Part # 136-4774)

Dingo TX 427 50-hour filter kit includes:
• oil filter (hydraulic) 86-3010
• air filter 108-3811
• engine oil filter 108-3847

Dingo TX 427 200-hour filter kit (Part # 136-4775)

Dingo TX 427 50-hour filter kit includes:
• oil filter (hydraulic) 86-3010
• air filter 108-3811
• engine oil filter 108-3847

Toro Full Synthetic 10W-30 Engine Oil (32 oz.) (Part # 138-6053)

Toro full synthetic 10W-30 engine oil. The easy engine oil choice for any outdoor power equipmentto increase performance and reliability.

Toro PX Extended Life Hydraulic Fluid - 1 Gallon/4pack (Part # 138-9460)

Toro PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

SCREEN-SPARK ARRESTOR (Part # 142-7683)

KIT-TX427/525 SNOW THROWER POWER (Part # 144-2512)

Light Kit (Part # 144-7101)

Light kit fits: Dingo TX 427, TX 525 - LED (650 LM)

DECAL KIT - HERC (Part # 145-6941)

SPOT 2 GPS KIT (Part # 161-6885)

Adjustable Forks, TX 1000 Compact Utility Loaders (Part # 22341)

Loader Bucket Attachment (Part # 22409)

Use this standard bucket for moving rock, dirt, sand or other materials off and around the job site. The hardened steel cutting edge offers improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear. Capacity = 4 cubic feet (1 cu. m.).

Light Materials Loader Bucket Attachment (Part # 22410)

Designed for moving light materials like chip-bark, mulch, snow and loam. The larger capacity bucket, 6.4 cubic feet (.2 cu. m.), is great for handling larger loads of lighter materials. The hardened steel cutting edge allows for improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear.

Utility Blade Attachment (Part # 22414)

The Toro Dingo hydraulic blade greatly increases the versatility of your Dingo system. This incredibly versatile attachment can be used for a variety of earth or snow moving jobs. Fill trenches where rows of trees have been planted or irrigation pipes have been installed. Keep your hydraulic blade working in the winter by pushing snow from sidewalks in one pass.

Bore Drive Head Attachment (Part # 22420)

The Toro® Dingo® boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.

Rod and Reamer Kit (Part # 22421)

Easily bore under driveways and sidewalks to simplify irrigation and cable installations. Use with Bore Drive Head attachment model 22420. Working depth: 19". Bits and reamers up to 3.5" in diameter.

Multi-Purpose Tool, Dingo (Part # 22423)

Power Box Rake Attachment (Part # 22426)

The Toro Power Box Rake is the perfect tool for seed bed and sod bed preparation. The rotary drum on the power box rake pulverizes rough soil, cuts high spots and fills low spots in one pass; while removing rocks and debris. Pure carbide teeth design produces the best possible seeded sub-soil, which promote superior moisture retention and rapid seed growth.

Stump Grinder Attachment (Part # 22429)

The Toro® Dingo® Stump Grinder easily attaches to either Dingo or Dingo TX compact utility loaders. Make grinding stumps quicker and more productive with the stump grinder attachment for your Toro Dingo.

Tree Fork Attachment (Part # 22438)

The Toro Dingo hydraulic tree forks can help you plant trees and large shrubs quickly and effortlessly, plus move all sorts of materials around your garden center or nursery. The Dingo Compact Utility Loader is especially easy to maneuver, helping you transport and position trees or shrubs exactly where you want them.

Cement Mixer Attachment (Part # 22442)

This unique attachment will mix and pour up to 200 pounds (90.7 kg) of dry cement. The specially designed auger flighting inside the cement bowl keeps the cement in the bowl during mixing. This same auger design permits cement to be poured into fence post holes with the posts in place!

Tiller Attachment (Part # 22445)

The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6" (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.

Trencher Crumber (Part # 22464)

Spring design, trencher accessory to help clean out trenches

Trench Backfiller Attachment (Part # 22472)

Designed for time and money-saving efficiency, this attachment lets operators fill trenches in a single pass. Two sets of opposing augers direct the spoils from the sides of the trench back into the hole, while the filler levels off the work area and fluffs the turf on each side of the trench minimizing its footprint

High Torque Trencher Attachment (Part # 22473)

High-torque trencher head with heavy-duty drive system guarantees performance in the toughest soil conditions from rock to caliche. Dig trenches up to 50" (127 cm) below grade. Heavy-duty nose roller bearing and reversible abrasion-resistant boom give you years of dependable use.

High Speed Trencher Attachment (Part # 22474)

Ideal for fast, efficient trenching in most soil conditions. Great for cable, pipe or irrigation installations.

4-in-1 Bucket Loader Bucket Attachment (Part # 22478)

Designed to be used on the Dingo 323, 320-D, e-Dingo, TX 427, TX 525 and TX 1000 models, this attachment offers the versatility of 4 attachments. Use as a standard bucket, a leveler, a grapple rake and a blade.

Narrow Loader Bucket Attachment (Part # 22520)

Handle compact construction and remodeling sites by moving through 36" (91.4 cm) gates without a problem. This 35" (88 cm) wide bucket allows you to get through narrow spaces, including gates and doorways. Move rock, dirt, sand or other materials off and around the job site. Great for use on any Dingo® model equipped with narrow wheels and tires.

Grapple Rake Attachment (Part # 22577)

The Toro grapple rake attachment allows operators to grab, drag, lift, and place materials with ease. The grapple has two heavy-duty cylinders capable of producing 3000 pounds of clamping force at the tine tips, insuring you can "grab-ahold" and not let go.

eDingo 500 with 30 inch floor scraper attachment

30" Floor Scraper Attachment (Part # 22673)

Discover the ultimate solution for effortless flooring removal - the Toro 30” Floor Scraper. Crafted with a laser-cut, all-steel construction frame, this tool ensures high performance and durability. At just under 30” width, the floor scraper effortlessly maneuvers through doorways and tight spaces, streamlining your flooring removal tasks.

Operational efficiency is a priority, which is why the frame is specifically designed to allow operators clear visibility of the blade, enhancing precision and effectiveness.

The Toro 30” Floor Scraper tackles any challenge with ease. From vinyl, quarry, and ceramic tiles to carpet squares, paint, glue, and more, no stubborn flooring material stands a chance against its power. Say farewell to tedious and time-consuming removal processes.

High Torque Auger Attachment (Part # 22805)

In any drive head, there is a tradeoff between torque (power) and speed (revolutions per minute). The high torque head provides a large amount of torque to the auger at a slower speed. The high torque translates into the Dingo's capability to dig 30" (76.2 cm) holes up to 6' (1.8 m) deep in clay, gravel, sandstone and many other conditions where lower torque heads get stuck.

Mini Skid Steer Auger Attachment (Part # 22806)

This attachment swivels in all directions to create plumb holes on uneven terrain. The higher speed of this auger power head is ideal for augers up to 24" (61cm) in diameter. Quickly change between auger bit sizes to dig holes for fence posts, footings, irrigation heads and more!

18" Auger Bit (Part # 22814)

18" auger bit requires auger power head attachment 22805 or 22806.

24" Auger Bit (Part # 22815)

24" auger bit requires auger power head attachment 22805 or 22806.

30" Auger Bit (Part # 22816)

30" auger bit requires auger power head attachment 22805.

12" Auger Extension (Part # 22818)

Add extension to any auger to increase depth.

24" Auger Extension (Part # 22819)

Add extension to any auger to increase depth.

6" Full Flight Auger Bit (Part # 22820)

6" full flight auger bit requires auger power head attachment 22805 or 22806.

9" Full Flight Auger Bit (Part # 22821)

9" full flight auger bit requires auger power head attachment 22805 or 22806.

12" Full Flight Auger Bit (Part # 22822)

12" full flight auger bit requires auger power head attachment 22805 or 22806.

15" Full Flight Auger Bit (Part # 22823)

15" full flight auger bit requires auger power head attachment 22805 or 22806.

Vibratory Plow Attachment (Part # 22911)

The Toro® Dingo® vibratory plow attachment greatly reduces a contractor's time spent on irrigation and cable installations. Exclusively designed and built by Toro specifically for use on the Dingo, the vibratory plow optimizes pipe-pulling performance while minimizing turf damage during an installation. Also, use the chuted blade and spool carrier to install wire or cable.

Soil Cultivator Attachment (Part # 23102)

The soil cultivator is the ultimate attachment for soil preparation! This incredibly versatile attachment can be used to cultivate and level soil as well as blend landscape materials, compost and fertilizer. This attachment will also bury debris such as stones, soil clods and grass. It transforms rough terrain into a perfect planting bed in one pass.

Concrete Breaker, Dingo Compact Utility Loaders (Part # 23135)

Dingo TX Unit Fit-up Kit (Part # 23162)

Allows 23126 to fit to Dingo TX units 22321, 22322, 22323, 22324, 22327, and 22328.

Backhoe, Dingo Compact Utility Loader (Part # 23163)

Leveler Attachment (Part # 23165)

This versatile and highly productive tool is a must have attachment for all job sites. Use to grade, finish, and spread landscape materials, backfill trenches, and break up the turf. Also great for carrying and transporting materials around the job site.

30" Standard Bucket Attachment on the eDingo 500.

30" Standard Bucket (Part # 23174)

The 30" Standard Bucket is a powerhouse when it comes to moving concrete, rock, dirt, sand, or any other materials around the job site. Its slim 30" width allows for easy navigation through doorways and tight spaces, optimizing efficiency.

Designed with a hardened steel cutting edge, this bucket delivers exceptional cutting and digging capabilities, ensuring top-notch performance even in challenging digging conditions. Its superior wear resistance guarantees long-lasting durability.

With a generous capacity of just under 3 cubic feet (0.08 cu. m.), the 30" Standard Bucket is the perfect tool to tackle various material handling tasks on your project.

30" Adjustable Forks Attachment for the eDingo 500.

30” Adjustable Forks Attachment (Part # 23175)

Unlock the full potential of your Dingo system with the Toro Dingo 30” Adjustable Forks. Tailored specifically for the eDingo 500, these forks are the ultimate solution for seamless maneuvering through tight spaces during indoor construction and demolition tasks, elevating your productivity to new heights.

Versatility is the key to success, and these adjustable forks deliver just that. Perfectly suited for a wide range of material handling jobs, effortlessly move debris, pallets, and more around the job site with ease and efficiency. It's like having a reliable roving workstation that effortlessly transports heavy materials without causing fatigue.

Compatible with all Dingo models, except Dingo TXL 2000, our 30” Adjustable Forks are designed to integrate seamlessly with your existing equipment, saving you valuable time and effort.

30" Grapple Bucket attachment for the eDingo 500.

30" Grapple Bucket (Part # 23176)

The 30” Grapple Bucket is designed for contractors looking for a bucket to grab, drag, lift and remove demolition debris and materials on residential, commercial and demolition sites. With its slim 30” width, the bucket effortlessly maneuvers through doorways and tight spaces, streamlining your material handling tasks. Compatible with all Dingo models, except Dingo TXL 2000, our 30” Grapple Bucket is designed to integrate seamlessly with your existing equipment, saving you valuable time and effort.

10W30 4-Cycle Engine Oil - 32 oz. Bottle (Part # 38280)

The Toro 38280 Premium 4-Cycle Lawn Mower Engine Oil 10W-30 is specially formulated to meet specific 4-cycle engine manufacturer requirements calling for 10W-30. This lawn mower engine oil provides the ultimate protection for all 4-cycle OPE engines. The lawn mower engine oil is developed with Toro engineering to meet the standards for all air-cooled, liquid-cooled and diesel engines. To maximize the performance of your Toro lawn mower, we highly recommend using this Toro lawn mower engine oil, which has been specifically formulated for best results. The lawn mower engine oil provides extreme performance in all temperatures, enhancing the life of your lawn mower's engine.

Documents

Title	Documents
Dingo® Full Line Brochure	PDF - Brochure-en-us
Dingo® TX 427 Sell Sheet	PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

22322 Serial #
415300000-999999999
412800000-415299999
410000000-412799999
409445442-409999999
408000000-409445441
407400000-407999999
405700000-407399999
404720000-405699999
402000000-404719999
400000000-401999999
316000001-316999999
315000001-315999999
314000001-314999999
313000001-313999999
312000201-312999999
312000001-312000200
311000001-311999999
310000001-310999999
290000001-290999999
280000001-280999999

Warranty

For complete product warranty information contact Toro Customer Service

22322 Product Warranty

**See dealer for Warranty details.

Dingo® TX 427 Track Loader, Wide

Related Products

Overview

Features

Simple Controls

Low Impact Footprint

4-Pump Hydraulic System

Air-Cooled Gasoline Engine

Exclusive TX Track Drive

Specifications

Accessories

TX Road wheel kit (Part # 106-7620)

Reference Guide Kit, Dingo TX Compact Utility Loaders (Part # 107-9310)

TRACK-AGGRESSIVE TREAD, WIDE (Part # 108-9749)

Toro 5 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8086)

Toro 55 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8087)

Dingo TX 427 50-hour filter kit (Part # 136-4774)

Dingo TX 427 200-hour filter kit (Part # 136-4775)

Toro Full Synthetic 10W-30 Engine Oil (32 oz.) (Part # 138-6053)

Toro PX Extended Life Hydraulic Fluid - 1 Gallon/4pack (Part # 138-9460)

SCREEN-SPARK ARRESTOR (Part # 142-7683)

KIT-TX427/525 SNOW THROWER POWER (Part # 144-2512)

Light Kit (Part # 144-7101)

DECAL KIT - HERC (Part # 145-6941)

SPOT 2 GPS KIT (Part # 161-6885)

Adjustable Forks, TX 1000 Compact Utility Loaders (Part # 22341)

Loader Bucket Attachment (Part # 22409)

Light Materials Loader Bucket Attachment (Part # 22410)

Utility Blade Attachment (Part # 22414)

Bore Drive Head Attachment (Part # 22420)

Rod and Reamer Kit (Part # 22421)

Multi-Purpose Tool, Dingo (Part # 22423)

Power Box Rake Attachment (Part # 22426)

Stump Grinder Attachment (Part # 22429)

Tree Fork Attachment (Part # 22438)

Cement Mixer Attachment (Part # 22442)

Tiller Attachment (Part # 22445)

Trencher Crumber (Part # 22464)

Trench Backfiller Attachment (Part # 22472)

High Torque Trencher Attachment (Part # 22473)

High Speed Trencher Attachment (Part # 22474)

4-in-1 Bucket Loader Bucket Attachment (Part # 22478)

Narrow Loader Bucket Attachment (Part # 22520)

Grapple Rake Attachment (Part # 22577)

30" Floor Scraper Attachment (Part # 22673)

High Torque Auger Attachment (Part # 22805)

Mini Skid Steer Auger Attachment (Part # 22806)

18" Auger Bit (Part # 22814)

24" Auger Bit (Part # 22815)

30" Auger Bit (Part # 22816)

12" Auger Extension (Part # 22818)

24" Auger Extension (Part # 22819)

6" Full Flight Auger Bit (Part # 22820)

9" Full Flight Auger Bit (Part # 22821)

12" Full Flight Auger Bit (Part # 22822)

15" Full Flight Auger Bit (Part # 22823)

Vibratory Plow Attachment (Part # 22911)

Soil Cultivator Attachment (Part # 23102)

Concrete Breaker, Dingo Compact Utility Loaders (Part # 23135)

Dingo TX Unit Fit-up Kit (Part # 23162)

Backhoe, Dingo Compact Utility Loader (Part # 23163)

Leveler Attachment (Part # 23165)

30" Standard Bucket (Part # 23174)

30” Adjustable Forks Attachment (Part # 23175)

30" Grapple Bucket (Part # 23176)

10W30 4-Cycle Engine Oil - 32 oz. Bottle (Part # 38280)

Documents

Parts & Manuals

Warranty

For complete product warranty information contact Toro Customer Service
