Sand Pro® 3040

Model: 08743

See All Items in Sand Pro® Series

Request a Demo

This unit was designed with the mechanic in mind, to simplify and increase access to all scheduled maintenance. The majority of scheduled maintenance projects can be accessed by lifting the operator seat. For increased access, the side and center quarter panels can be taken off by removing just a few bolts.
The 3WD Series/Parallel™ traction drive improves traction in wet or heavy working conditions to get the job completed quickly. In traditional 3WD units all traction effort is lost as soon as one wheel slips. Series/Parallel™ ensures that you always have tractive effort with at least one wheel to keep your unit from getting stuck and losing precious time.
Quick connect hydraulics make it simple to connect or disconnect any of the powered attachments in under a minute. This eliminates the need for dedicated equipment.
For operator ease of use, and to improve the effectiveness of the steerable front attachments, hydraulic power steering is now available on the 5040 and a rugged gear drive system on the 3040. Both designs are now environmentally sealed to ensure long life and reduced maintenance.
The trusted Vanguard® engine is fuel efficient, runs cooler and features a fully pressurized oil lubrication system for longer life.
Easy to use and adapt to the next task. Having the right tool for the job increases the effectiveness of your crew and the efficiency of your operation. Attachments are designed to minimize operator influence to achieve the same result, regardless of whether a new or veteran employee performed the task.
Fingertip operation (no overhead bar), paired handle/foot pedal and torsion bar to improve down pressure provide level/consistent contouring in difficult areas. Quick-up latch locks blade in transport position between uses to improve operator ease of use.

Top

Request a Demo

Overview

It’s time to demand more from your bunker rake. With the exclusive Quick Attach System (QAS) offering tool-free, quick attachment change outs and over 25 valuable attachments, the Sand Pro 3040 and 5040 are versatile utility vehicles with as many uses outside the bunker as in it. The Sand Pro 5040’s optional front QAS provides added flexibility and exclusive steerable front attachments for surgical precision. The Toro Sand Pro keeps bunkers in tournament condition every day.

Features

Maintenance Friendly Layout

The new unit was designed with the mechanic in mind, to reduce, simplify, and increase access to all scheduled maintenance. The majority of scheduled maintenance projects can be accessed by lifting the operator seat. For increased access, the side and center quarter panels can be taken off by removing just a few bolts.

3WD Series/Parallel™ Traction Drive

The 3WD Series/Parallel™ traction drive improves traction in wet or heavy working conditions to get the job completed quickly. In traditional 3WD units all traction effort is lost as soon as one wheel slips. Series/Parallel™ ensures that you always have tractive effort with at least one wheel to keep your unit from getting stuck and losing precious time.

Quick Connect Hydraulics

Quick connect hydraulics make it simple to connect or disconnect any of the powered attachments in under a minute. This eliminates the need for dedicated equipment.

Maneuverable Steering

For operator ease of use, and to improve the effectiveness of the steerable front attachments, hydraulic power steering is now available on the 5040 and a rugged gear drive system on the 3040. Both designs are now environmentally sealed to ensure long life and reduced maintenance.

Mid-Mount System

With the mid-mount system, a flex mounted toolbar can be adjusted to flex backwards when it comes in contact with anything from rocks or other rigid objects to prevent gouging or wash boarding. Multiple locking depth settings to ensure consistent depth of scarification from day to day or between operators. A mid-mount leveling system is also available to make quick work of the difficult projects like around dugouts or player positions.

Power Packed Engines

The trusted Vanguard® engine is fuel efficient, runs cooler and features a fully pressurized oil lubrication system for longer life.

Quick Attach System™ (QAS)

With the Quick Attach System™ (QAS), anyone can switch from one attachment to another in less than a minute, with no tools required! Match the machine to the environment to get your fields back into playing condition The QAS allows you to do more with less, and get the job done faster. Rear QAS is standard on the Sand Pro® 3040 and 5040, front QAS™ is optional on the Sand Pro® 5040.

Ease of Use

Easy to use and adapt to the next task. Having the right tool for the job increases the effectiveness of your crew and the efficiency of your operation. Attachments are designed to minimize operator influence to achieve the same result, regardless of whether a new or veteran employee performed the task.

Front Manual Blade

Fingertip operation (no overhead bar), paired handle/foot pedal and torsion bar to improve down pressure provide level/consistent contouring in difficult areas. Quick-up latch locks blade in transport position between uses to improve operator ease of use.

Specifications

Air Filter	Remote mounted 3-phase Donaldson® air cleaner
Battery	12V
Controls	Hand operated choke, throttle, and hydraulic control for raising/lowering with float. Foot pedal controls traction forward/reverse speed. Rear hydraulic lift and lower controls.
Cooling System	Air Cooled
Displacement	480cc (29.3 cu. in.)
Drivetrain	Gas
Frame	Tricycle vehicle with welded rectangular tubular steel frame construction. Rear engine placement.
Fuel / Power Source	Gasoline
Fuel Capacity	5.0 gallon (18.9 liter)
Gauges/Instrumentation	Hour Meter
Ground Clearance	6.0" (15.2 cm)
Ground Speed - Forward	0 - 10 mph (0 - 16 km/h)
Ground Speed - Reverse	0 - 4.3 mph (0 - 6.9 km/h)
Height	45.25" (114.9 cm)
Hydraulic Oil	Toro PX Hydraulic Oil; 7.0 gallon (26.4 liter) system capacity. Polyethylene reservoir to reduce corrosion. 10 (nominal) micron replaceable cartridge.
Interlock	Neutral interlock switch, seat switch
Oil Capacity with Filter	1.75 quart (1.8 liter)
Optional Accessories	QAS A-Frame Assembly, 400-Hour Filter Maintenance Kit, Rear Remote Hydraulics, Variable Orifice Kit, Light Kit, Speed Control Kit, Hitch/Tow Bar, Front Weight Kit, Smooth Tire, Turf Tire
Overall Width	58" (147 cm)
Parking/Service Brakes	Hand actuated brake lever
Power Steering	No
Power Train (Engine Description)	Vanguard®, V-twin cylinder, 4-cycle, OHV, air-cooled, gas engine with cast iron sleeves. 16 hp (11.9 kW) at 3600 rpm. Displacement: 29.3 cu. in. (480 cc). Electronic ignition. Full pressure lubrication, oil filter. Base mounted engine and pump with 4 isolation mounts.
Product Length	67.5" (171.5 cm)
Rear Attachment Hydraulic Lift	Standard
Sound Level	83 dB(A) at operator ear, under normal operating conditions
Starting	Key Start
Steering System Description	Manual front wheel steering. 15" (38 cm) diameter steering wheel.
Tires - Front	22" x 11" - 8", 2-ply, Knobby Tread
Tires - Rear	22" x 11" - 8", 2-ply, Knobby Tread
Traction Drive	Direct driven hydrostatic variable displacement piston pump to 3 hydraulic motors for 3WD. Large, front mounted hydraulic cooler and fan. Foot pedal control, forward/reverse. Patented Series/Parallel hydraulic traction system keeps three wheels working together, virtually eliminates spin-outs.
Traction Drive (System)	3WD
Vehicle Configuration	Standard
Weight	930 lbs. (421.8 kg), net weight less fluids
Wheelbase	42.75" (108 cm)

Accessories

Manual Blade (Part # 08714)

LED Light Kit (Part # 08740)

Allows operator to mow in low light conditions.

Tooth Rake (Part # 08751)

Collect debris and smooth a surface quickly.

Spring Rake (Part # 08752)

Collect debris and smooth a surface quickly with flexibility with the spring rake.

Rear Broom (Part # 08753)

Clear debris and provide a clean look to any area.

Finish Grader (Part # 08754)

Smooth your surface with a finish grader.

Spiker (Part # 08755)

Drag Mat Carrier System (Part # 08756)

Level playing surfaces and clear debris with the drag mat carrier system.

QAS Nail Drag (Part # 08761)

Remove cleat marks and other imperfections with the nail drag quick attach system.

QAS Bunker Pump (Part # 08765)

The quick attachment system (QAS) will make it easy to move between jobs.

QAS Flex Tooth Rake (Part # 08767)

Use the QAS tooth rake to clear off debris, pebbles, or other unwanted mess on your field.

Rear Remote Hydraulics (Part # 08781)

Remote control option to increase operator productivity and ease of operation.

Mid-Mount Tool Bar (Part # 08838)

PLUG-PLASTIC (YELLOW) (Part # 107-1576)

Yellow Hydraulic Fluid Cap - Tethered (Part # 107-2174)

Toro 14 oz. All-Purpose Grease (Part # 108-1190)

Toro 14 oz. All-Purpose Grease. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 55 Gallon Premium Engine Oil SAE 30 (Part # 108-1196)

Toro 55 Gallon Premium Engine Oil SAE 30. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 5 Gallon Premium Engine Oil SAE 30 (Part # 108-1197)

Toro 5 Gallon Premium Engine Oil SAE 30. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

SPEED LIMITER KIT (Part # 110-1371)

DRAW BAR ASM, SAND PRO (Part # 110-1375)

Wheel/Tire ASM-Smooth (Part # 112-0034)

Smooth tires can help decrease tire marks and inconsistencies.

Drag Mat Assembly (Part # 112-1424)

Everything you need to attach your drag mat.

Variable Orifice Kit, Sand/Infield Pro 3040 and 5040 Traction Unit (Part # 112-1433)

Wireless Hourmeter System (Part # 115-4754)

DECAL (Part # 115-5619)

SCREEN-SPARK ARRESTOR (Part # 119-7185)

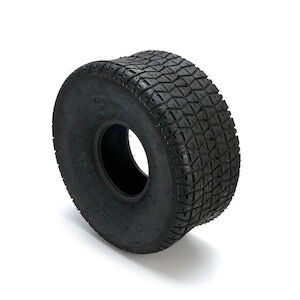

22 x 11 - 8 4-Ply Turf Tread Tire (Part # 121-9072)

Toro 22 x 11 - 8 4-Ply OEM Turf Tread Tire. Toro OEM replacement pneumatic tire. This tire delivers superior traction on turf, grass & pavement. Ideal replacement tire for your riding equipment.

Toro 5 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8086)

Toro 5 Gallon PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 55 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8087)

Toro 55 Gallon PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Arm Rest Kit (Part # 139-5823)

Genuine OEM Part

MVP KIT-SANDPRO (Part # 30035)

Contains 108-3811 @ 2, 107-7817 @ 9, 54-0110 @ 2

Red Paint (Gallon) (Part # 361-11)

Genuine OEM Part

Dark Metallic Gray Paint (Part # 361-12)

Genuine OEM Part

Semi-Gloss Black Paint (Part # 361-9)

Genuine OEM Part

MVP KIT 1000 HOUR - SANDPRO 3040/5041 (Part # 44957)

Contains 107-7817 @ 10, 108-3811 @ 5, 94-2690 @ 2, 115-7854 @ 1, 54-0110 @ 1

Red Paint (Part # 5340)

Genuine OEM Part

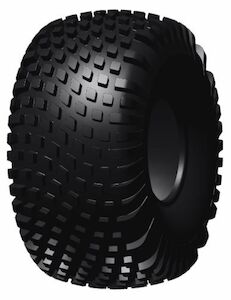

22 x 11 - 8 2-Ply Knobby Tire (Part # 85-8290)

Toro 22 x 11 - 8 2-Ply OEM Knobby Tire. Toro OEM replacement pneumatic tire. This tire delivers superior traction on turf, grass & pavement. Ideal replacement tire for your riding equipment.

Documents

Title	Documents
SandPro_3040_5040_Golf_Sell_Sheet_061424.pdf	PDF - Sellsheet-en-us
SandPro_3040_5040_SFG_Sell_Sheet_061424.pdf	PDF - Sellsheet-en-us
SandPro_3040_Accessory Guide_10-22.pdf	PDF - Accessories-en-us
SandPro-3040-Brochure-7-19-2019.pdf	PDF - Brochure-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

08743 Serial #
415300000-999999999
412818332-415299999
410500000-412818331
409800000-410499999
400000000-409799999

Warranty

2-Year Limited
