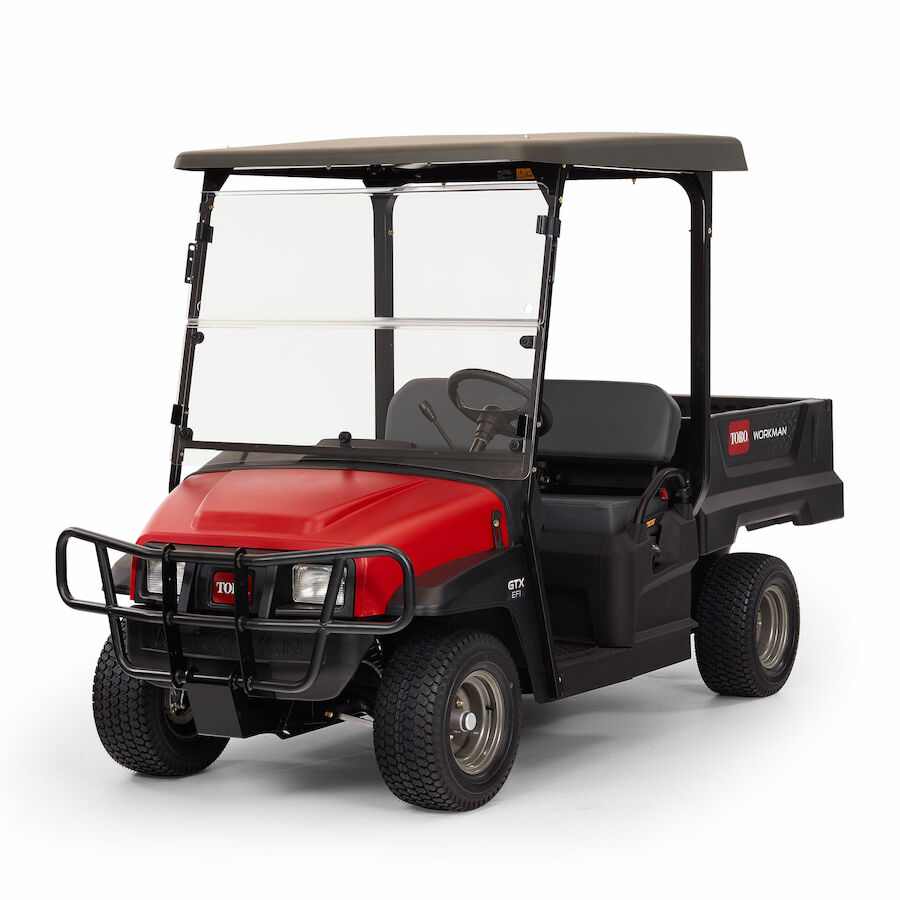

The Workman® GTX Series is a grounds and turf crossover vehicle that boasts an unequalled combination of comfort, utility and control, making it simply superior to the competition. Its increased power, improved steering and exclusive suspension and braking systems make the Workman GTX the most versatile, practical and comfortable utility vehicle in its class.
Available in gas or electric options, the Workman GTX features hundreds of configurable options that include front and rear attachments, a flat bed and four-seat option, to name a few. So whether you are running to different jobs around the property, moving people or materials, or transporting tools to crews that need them, the Workman GTX has the power and versatility to get the job done right.
| Battery | One 12V starter battery |
|---|---|
| Brakes - Front | Hydraulic Disc |
| Brakes - Rear | Hydraulic disc |
| Cooling System | Air Cooled |
| Crated Model | No |
| Displacement | 429cc (26.2 ci) |
| Drivetrain | Gas |
| Frame | Power coated, welded steel channel and tube. |
| Fuel / Power Source | Gasoline |
| Fuel Capacity | 5 gallons (18.9 liters) |
| Gauges/Instrumentation | Hour meter, fuel gauge, USB power port, headlight switch, on/off ignition key switch, gear selector and parking brake lever. Two cup holders, radio holder and three in-dash storage compartments. |
| Ground Clearance | Front: 9" (22.8 cm) Rear: 6" (15.2 cm) |
| Height | 2-Seat with Bed: 50.2" (127 cm) 4-Seat with Bed: 50.2" (127 cm) 2-Seat with 6' Flat Bed: 50.2" (127 cm) |
| Horn | Standard |
| Inside Turning Radius | 60.25" (153 cm) |
| Lights | Standard LED Headlights |
| Optional Accessories | Canopy, solid folding windshield, 4-seat configuration, flat bed, 6-foot flat bed, bed sides, storage box, trash can mount, bed racking, electric bed lift, brush guard, 12V outlet, brake/tail/signal lights, ROPS certified hard cab, back up alarm kit, parking brake alarm kit, all-terrain tire kit, 2-post ROPS kit, beverage cart, range cage, glass windshield and medical-bed. |
| Power Steering | No |
| Power Train (Engine Description) | 429 cc, air-cooled, single cylinder Kohler® EFI gasoline engine. |
| Product Length | 2-Seat with Bed: 119" (302 cm) 4-Seat with Bed: 144" (366 cm) 2-Seat with 6' Flat Bed: 156" (396 cm) |
| Rear Draw Bar | Standard |
| Roll-Over Protection (ROPS) | Optional |
| Starting | Pedal or Key Start |
| Steering System Description | Rack and pinion system with ergonomically positioned non-adjustable column. Steering wheel has 2.75 turns lock-to-lock with a 13.75" (34.93 cm) diameter wheel. |
| Suspension - Front | Modified MacPherson Strut. Adjustable coil over shocks at all four wheels. |
| Suspension - Rear | Articulating Swing Arm. Adjustable coil over shocks at all four wheels. |
| Suspension Travel - Front | 3.5" (8.9 cm) |
| Suspension Travel - Rear | 4" (10.2 cm) |
| Tires - Front | 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply |
| Tires - Rear | 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply |
| Total Vehicle Capacity | 1,200 lbs. (544 kg) |
| Towing Capacity | 1,500 lbs. (680 kg) |
| Traction Drive (System) | 2WD |
| Transaxle | 11.47:1 Forward, 14.35:1 Reverse. |
| Vehicle Configuration | Standard |
| Vehicle Type | Light Duty |
| Weight | 2-Seat with Bed: 875 lbs. (397 kg) 4-Seat with Bed: 1,150 lbs. (522 kg) 2-Seat with 6' Flat Bed: 1,264 lbs. (573 kg) |
| Wheelbase | 2-Seat with Bed: 77.8" (197 cm) 4-Seat with Bed: 114" (290 cm) 2-Seat with 6' Flat Bed: 114" (290 cm) |
| Title | Documents |
|---|---|
| WorkmanGTX_Accessories_020723.pdf | PDF - Brochure-en-us |
| WorkmanGTX_Sell_Sheet_020723.pdf | PDF - Sellsheet-en-us |
Select your model year from the options below to view parts & manuals.
**See dealer for Warranty details.
