Workman® HDX-D 2WD

  • Model: 07385
See All Items in Workman® HDX Series
Request a Demo
  • Payload Capacity of up to 3352 lbs.
  • Comfortable ride and easy to reach controls.
  • Robust suspension provides ride quality that reduces fatigue and increases operator comfort.
  • Extremely versatile with many accessories to enhance the Workman HD's capabilities.
  • Short description for frames.
  • Powerful Tier 4 diesel engines that get the job done.
  • 4 wheel hydraulic disc brakes provide greater stopping power and easier servicing than traditional drum brakes.
  • A specially designed composite bumper with seven (7) energy absorbing crush zone cones protects the Workman to withstand impacts up to 3 mph (4.8 km/h) under full load with no permanent deformation.

Overview

You can’t get more hauling capacity, versatility, or bang for your utility vehicle buck than you can with a Toro Heavy-Duty Workman. With an I-beam axle that’s seven times stronger than a tubular design, a bed that hauls up to 3,352 pounds (1,520 kg), and an electronic fuel-injected engine that makes every gallon go farther, it’s the highest performing utility vehicle on the market today.

Features

workman-hd-series-feature-payload-capacity
Payload Capacity
The Workman HDX line of vehicles provides total payload capacity up to 3352 lbs.
workman-hd-series-feature-operator-comfort

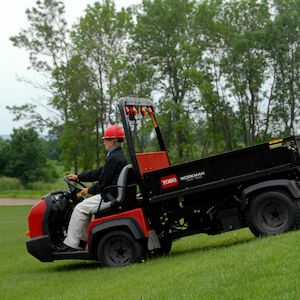

Operator Comfort
In addition to excellent ride quality, the HD Series offers an easy to read instrumentation package, enhanced leg room, a radio / beverage holder, easy to reach controls and a deep storage box.
workman-hd-series-feature-ride-quality
Ride Quality
Independent front suspension consisting of two double A-frames with opposing dual coil springs and dual shock absorbers provides 5.75" (14.6 cm) of front suspension travel. Rear suspension design consists of a DeDion rear axle and dual independent leaf springs and shock absorbers to provide 3" (7.6 cm) of rear travel. Benefits include operator comfort, safety, reduced operator fatigue, productivity and efficiency gains.
workman-hd-series-feature-versatility
Versatility
The Workman® can perform a variety of work tasks beyond hauling and towing with attachments such as a 200 Gallon (757 Litre) Sprayer, Vicon® Spreader, 1/3 Vertical Platform Lift, Patriot® Aerial Lift and Topdressers. Numerous accessories enhance versatility including Canopy, Folding Windshield, Various Light Kits, Deluxe Hard Cab, Various Flatbeds, 4-Post ROPS, Automatic Tailgate Release, Rear PTO and others.
workman-hdx-series-feature-image-tough-frames

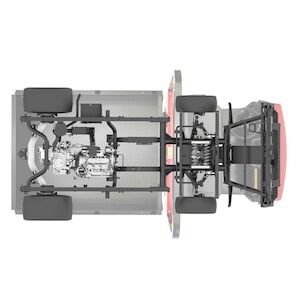

Tough Frames
The Workman® front space frame design is multi-dimensional or truss like, providing superior strength and torsional rigidity in rough terrain. The rear frame uses a C-channel design to provide superior strength in hauling heavy loads.
workman-hd-series-feature-high-performance-engine
High Performance Engine
Liquid cooled diesel engine provides excellent low end torque and is EPA Tier 4 emmission compliant and B20 biodiesel ready.
workman-hd-series-feature-dedion-rear-axle

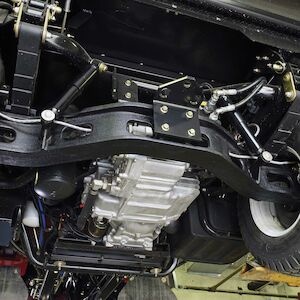

DeDion Rear Axle
The DeDion rear axle design is an automotive technology which isolates the engine, transmission and main frame from all load forces, eliminating stress to these main components. The I-beam design provides superior ability to handle vertical loading, exactly the reason I-beams are used extensively in the construction industry.
workman-hd-series-feature-disc-brakes

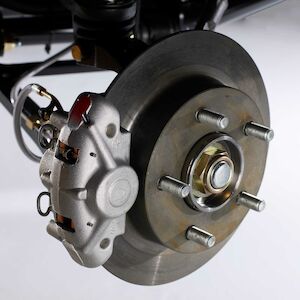

Disc Brakes
4 wheel hydraulic disc brakes provide greater stopping power and easier servicing than traditional drum brakes.
workman-hd-series-feature-front-impact-bumper

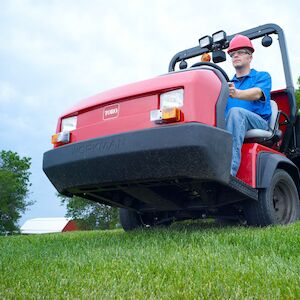

Front Impact Bumper
A specially designed composite bumper with seven (7) energy absorbing crush zone cones protects the Workman to withstand impacts up to 3 mph (4.8 km/h) under full load with no permanent deformation.

Specifications

Air Filter Remote mounted, heavy-duty 2-stage air cleaner with evacuator valve
Alternator 60 amps with electronic regulator
Battery 12V
Brakes - Front Hydraulic Disc
Brakes - Rear Hydraulic disc
Cargo Bed Yes
Cargo Capacity 2,844 lbs. (1293 kg)
Clutch 7.5" (19 cm) clutch and pressure plate
Cooling System Liquid Cooled
Crated Model No
Differential Lock Manual engage rear differential lock
Displacement 950cc (58 ci)
Drivetrain Diesel
Frame Steel space frame front frame and C-channel rear frame.
Fuel / Power Source Diesel
Fuel Capacity 6 gallons (22.7 liters)
Fuel Filter Combination fuel filter/water separator with a 30 micron filtration and 50 mesh suction screen in tank.
Fuel Pump Electronic pump
Gauges/Instrumentation Fuel and coolant temperature gauges. Hour meter. Oil pressure, check engine and battery charge indicator lights. Tachometer and speedometer.
Ground Clearance Rear: 7" (18 cm)
Height Overall Top of ROPS: 75.8" (192.5 cm)
High Speed Lockout Interlock key switch that prevents engine from running in 3rd gear. Limits engine RPM to 2,200 in 3rd gear high range (HDX gas).
Horn Standard
Hydraulics 4 gpm (15 lpm) gear pump provides hydraulic flow for power steering and lift in series. Lift control valve with quick disconnects for dual lift cylinders or for attachments when quick disconnects are switched. 8 quart total capacity.
Inside Turning Radius 32" (81 cm)
Interlock To start engine, clutch pedal must be depressed and remote hydraulic lever must be in neutral position. If installed, high flow hydraulics and rear PTO must be disengaged/switched off
Outside Turning Radius 194" (493 cm)
Overall Width 64.7" (164.3 cm)
Power Rating 23.3 hp (17.4 kW)
Power Steering Yes
Power Train (Engine Description) Kubota® 902D, 3-cylinder, inline vertical, 4-cycle, liquid cooled, counterbalanced diesel engine. Full pressure lubrication with spin-on oil filter. Meets EPA Tier IV compliance. Biodiesel ready for use up to B-20.
Product Length Overall w/o Bed: 127.6" (324 cm) Overall w/ Full Bed: 130" (330 cm)
Rear Draw Bar Standard
Rear Draw Bar Description Steel hitch bracket bolted to rear DeDion axle. Mounting plate provides mounting hole for pin or ball hitch and incorporates two safety chain mounting holes. Maximum tongue weight of 600 lbs (272 kg). Trailers over 1500 lbs require trailer brakes.
Steering System Description Hydraulic power steering with steering valve coupled to hydraulic cylinder with thru shaft. Maximum steering angle is 70 degrees on 2WD and 50 degrees on 4WD.
Suspension - Front Independent system with dual "A" frame control arms, dual coil springs and dual shock absorbers with anti-sway bar.
Suspension - Rear DeDion rear axle (weight carrying axle) suspension independent of transaxle with dual leaf springs and dual shock absorbers.
Suspension Travel - Front 5.75" (14.6 cm)
Suspension Travel - Rear 3" (7.6 cm)
Tires - Front 20" x 9" - 12", 6-ply, Turf Tread
Tires - Rear 24" x 12" - 12", 6-ply, Turf Tire
Total Vehicle Capacity 3,244 lbs. (1475 kg)
Towing Capacity 3,500 lbs. (1587 kg)
Traction Drive (System) 2WD
Transmission Rear transaxle directly connected to engine, twin axle drive. 3-speed synchromesh (forward speeds only), h-shift pattern with high-low range providing 6 forward speeds and 2 in reverse. Transmission housing doubles as hydraulic reservoir with outlet screen and external filter.
Vehicle Configuration Standard
Vehicle Type Heavy Duty
Weight w/o Fuel: 1,956 lbs. (889 kg)
