Workman® MDX Utility Vehicle

  • Model: 07235
See All Items in Workman® MDX Series
Request a Demo
  • Rugged injection-molded body styling. Latch opened hood design for ease of access for technicians.
  • Extended front frame for additional leg room to enhance SRQ™ benefits of operator and passenger comfort.
  • SRQ™ combines a coil-over shock absorber suspension design with the Active In-Frame™ twister joint.
  • Double-walled composite bed can withstand the elements and heavy loads, and won't rust or dent.
  • Allows each axle to react independently to the terrain. The result is the smoothest ride over the most undulating surfaces.
  • Highest total payload capacities in their class for maximum productivity.

Overview

The Workman® MDX features the SRQ™ (Superior Ride Quality) system that delivers a more comfortable ride. The SRQ system on the Workman MDX model is made up of an independent A-frame front suspension, a swing-arm rear suspension and an active in-frame twister joint that dynamically connects the front and rear chassis. The Workman MDX features a durable plastic cargo bed with a load capacity of 1650 lbs (750 kg).

Features

workman-mdx-series-feature-rugged-body-styling
Rugged Body Styling
Rugged injection-molded body styling. Latch opened hood design for ease of access for technicians.
workman-mdx-series-feature-image-optional-accessories-attachments
Optional Accessories and Attachments

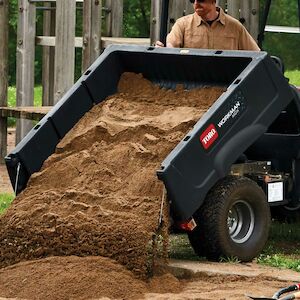

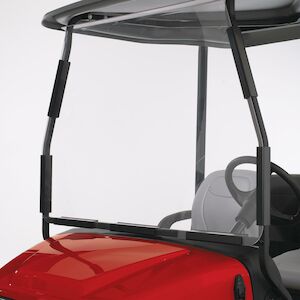

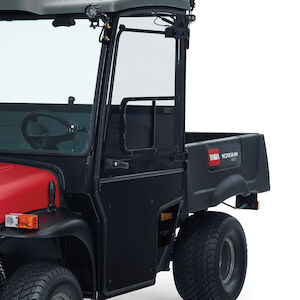

Canopy, Solid and Folding Windshield, Electric Bed Lift, Brush Guard, Heavy Duty Bumper, ROPS, Brake/Tail/Signal Light Kit, Deluxe Hard Cab, Heavy Duty Tow Hitch, Rear Lift Kit, Snow Plow
workman-mdx-series-feature-operator-passenger-platform
Operator/Passenger Platform
Extended front frame for additional leg room to enhance SRQ™ benefits of operator and passenger comfort.
workman-mdx-series-feature-srq-superior-ride-quality
SRQ™ - Superior Ride Quality
SRQ™ combines a coil-over shock absorber suspension design with the Active In-Frame™ twister joint. Front suspension is Independent A-Frame design with coil-over shock absorbers. Rear suspension is Swing Arm design with coil-over shock absorbers. Benefits include operator comfort, safety, reduced operator fatigue, and productivity and efficiency gains.
workman-mdx-series-feature-durable-plastic-cargo-bed
Durable Plastic Cargo Bed
Double-walled composite bed can withstand the elements and heavy loads, and won't rust or dent.
workman-mdx-series-feature-active-in-frame-twister-joint
Active In-Frame™ Twister Joint
The innovative Active In-Frame™ Twister Joint allows each axle to react independently to the terrain. The result is the smoothest ride over the most undulating surfaces. All four wheels maintain constant contact with the ground for better traction, stability and less potential turf damage.
workman-mdx-series-feature-payload-capacity
Payload Capacity
The Workman® MDX Series utility vehicles have the highest total payload capacities in their class for maximum productivity. Get more jobs done in less time.
MDX: 1,650 lbs. (748 kg)

Specifications

Brakes - Front Hydraulic Disc
Brakes - Rear Hydraulic drum
Cargo Capacity 1,250 lbs. (567 kg)
Cooling System Air Cooled
Crated Model No
Displacement 480cc (29.2 ci)
Drivetrain Gas
Frame Welded steel channel and tube in body construction. Frame surfaces are dipped e-coat. Body and bed constructed of dent and corrosion-resistant polyethylene
Fuel / Power Source Gasoline
Fuel Capacity 6.5 gallons (24.6 liters)
Gauges/Instrumentation Hour meter, low oil pressure warning light, accessory power port, two cup holders, radio holder, glove box storage
Ground Clearance Front: 10" (25.4 cm) Rear: 7" (18 cm)
Height Cab Installed: 79.2" (201.1 cm) Canopy Installed: 79.5" (201.9 cm)
Horn Standard
Lights Standard LED Headlights
Optional Accessories Canopy, fold-down windshield, electric bed lift, brush guard, ROPS, brake/tail/signal light kit, receiver hitch, BOSS plow, beverage cart
Power Steering No
Power Train (Engine Description) Two-cylinder, Briggs & Stratton® Vanguard™. Meets 2011 EPA & CARB exhaust & evaporative emissions regulations
Product Length 121.1" (307.5 cm)
Rear Draw Bar Optional
Seat Bucket Seat
Starting Pedal or Key Start
Steering System Description Manual rack and pinion steering system with ergonomically positioned column. Steering wheel has 2.75 turns lock-to-lock with 13.75" diameter
Suspension - Front Modified MacPherson strut, adjustable coil over shock absorbers
Suspension - Rear Trailing arm with adjustable coil over shock absorbers

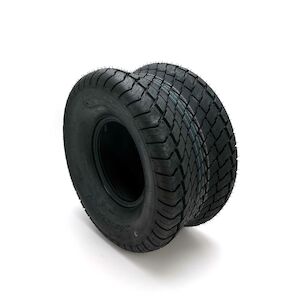

Tires - Front 22" x 9.5" - 10", 4-ply
Tires - Rear 24" x 12" - 10", 4-ply. Optional All-Terrain Tire
Total Vehicle Capacity 1,650 lbs. (750 kg)
Towing Capacity 1,200 lbs. (544 kg)
Traction Drive (System) 2WD
Vehicle Configuration Standard
Vehicle Type Medium Duty
Wheelbase 80.4" (204.2 cm)

Documents

Title Documents
Workman MDX Sell Sheet PDF - Sellsheet-en-us
WorkmanMDX_Accessories_020723.pdf PDF - Brochure-en-us



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
