Reelmaster® 3555-D

  • Model: 03820
See All Items in Reelmaster® 3555/3575 Series
Request a Demo
  • Weighing 20% less than a comparably equipped Toro 4-wheel drive, the Reelmaster 3555-D offers optimal turf friendliness and performance
  • The Reelmaster 3555-D shares a platform with other Toro mowers, reducing training time and boosting productivity
  • The Reelmaster 3555-D operates quietly at 84 dB(A) at the operator's ear and 73 dB(A) at a 25-foot drive by
  • The three-wheel design maximizes productivity with high maneuverability and turf-friendly tires to significantly decrease potential for turf tear. A 100-inch (2.5 m) cutting width and 7 mph (11.3 km/hr) mowing speed make the 3555-D fast and efficient.
  • The Reelmaster 3555-D, powered by a 24.8 hp Kubota diesel engine, delivers strong hill-climbing power while using less fuel per acre than traditional fairway mowers
  • The Series/Parallel 3-wheel drive system powers at least two wheels at all times, providing excellent traction on hills and wet ground with minimal turf impact
  • Dual Precision Adjustment (DPA) cutting units with Toro's EdgeSeries™ reels provide a consistent, high-quality cut and superior after cut appearance while reducing maintenance through improved reel edge retention

Overview

The Reelmaster® 3555-D 5-inch reel mower provides productivity, efficiency, and simplicity. The 100 inch width of cut and lighter weight makes it perfect for sports fields and golf courses. This mower was designed to be over 20% lighter and much more compact than traditional Toro reel mowers. You get the performance you come to expect from Toro in a size that is not only highly maneuverable, but is also engineered to decrease turf compaction.

Features

Lightweight Design
Lightweight Design
With a weight that is 20 percent lighter than a comparably equipped Toro 4-wheel drive reel machine, the Reelmaster 3555-D provides the ideal combination of turf friendliness and productive performance.
Simplicity
Simplicity
The Reelmaster 3555-D utilizes a common platform with other popular Toro mowers, which reduces operator training time and increases productivity.
Quiet Operation
Quiet Operation
The Reelmaster 3555-D has a quiet, low noise design with only 84 dB(A) at the operator's ear & 73 dB(A) at a 25-foot drive by.
Three Wheel Design
Three Wheel Design
The three wheel design is highly maneuverable which maximizes productivity. Smooth, turf-friendly tires significantly decrease potential for turf tear in tight turns. The 100 inch (2.5 m) cutting width and up to 7 mph (11.3 km/hr) mowing speed make the 3555-D fast and effective.
Engine Efficiency
Engine Efficiency
Powered by a 24.8 hp (18.5 kW) Kubota diesel engine. The Reelmaster 3555-D provides plenty of power to climb hills, even while operating groomers and rear roller brushes, yet it uses less fuel per acre than a traditional fairway mower.
Superior Traction
Superior Traction
The innovative Series/Parallel 3-wheel drive system provides power to at least two wheels at all times. The result is impressive traction in hilly and wet conditions, and minimal wheel slip so it’s gentle on the turf.
EdgeSeries™ Reels
EdgeSeries™ Reels

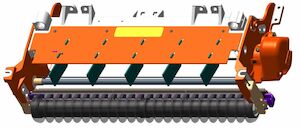

Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Watch the Video

Specifications

Armrests Standard
Battery 12V
Bedknife Adjustment Precision machined cutting units maintain levelness and hold adjustments. Dual Precision Adjustment (DPA) allows quick bedknife to reel adjustment.
Blade Style/Type Reel
Blade Type (Description) EdgeSeries™ DPA radial or forward swept reels.
Clip Frequency/Backlapping 5" reel 2,350 (+/- 150) rpm max reel speed, at highest setting. 200 rpm max at low idle and lowest setting for backlapping.
Controls Foot operated controls: Forward and reverse traction pedal, mow/transport speed limiter. Hand operated on control panel: Parking brake lever, ignition switch, engine throttle lever, LED headlight switch, on/off switch for cutting units, joystick for cutting unit lift and lower. Other controls: Steering wheel tilt control, reel speed control, backlap engagement lever.
Cooling System Description Aluminum side-by-side oil cooler/radiator. 8.5 fins per inch, wavy fin, non-louvered. 5.25 quart (4.9 liter) capacity.
Cup Holder Standard
Cutting Unit Accessories Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets
Cutting Unit Lift/Lower Hydraulic - front and rear cutting unit lift/lower are sequenced for uniform starting and ending points.
Cutting Unit Type/Configuration Five hydraulically driven, balanced, DPA cutting Units. Frame precision manufactured, die-cast aluminum for increased strength, simple click adjustment maintenance.
Drivetrain Diesel
Electrical System Heavy-duty 12-volt battery, 570 CCA; 40 amp alternator/regulator. Electronic control unit is microprocessor based, solid state control unit with diagnostic capabilities.
Engine Cooling Liquid Cooled
Fuel / Power Source Diesel / Biodiesel
Fuel Capacity 7.5 U.S. gal. (28.4 L)
Fuel Filter 10 micron spin-on filter with integral water separator.
Gauges/Instrumentation Hour meter, fuel gauge, diagnostic lamp, cluster gauge with glow plug and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off).
Ground Speed - Forward 0 - 10 mph (0 - 16.1 km/h)
Ground Speed - Reverse 0 - 3.5 mph (0 - 5.6 km/h)
Height 79" (200 cm)
Height of Cut Range 8-Blade: 0.5" - 1.5" (13 mm - 38 mm)
11-Blade: 0.25" - 0.75” (6 mm -19 mm)
Hydraulic Fluid Capacity 6 U.S. gal. (22.7 L)
Hydraulic Fluid Type Toro PX™ Extended Life Hydraulic Fluid
IntelliDash™ Capable Yes
Interlocks Traction pedal neutral, parking brake, operator presence in seat, and cutting unit engage/disengage safety interlock switches.
Lighting Standard
Main Frame/Chassis Formed steel, welded steel and steel tubing.
Max Slope Angle Refer to operator's manual.
Mowing Speed 0 - 7 mph (0 - 11.3 km/h)
Number of Blades 11, 8
Oil Capacity 3.5 U.S. qt. (3.3 L)
Oil Cooler Description Pressurized lubrication system.
Optional Accessories Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon)
Overall Width 112" (274 cm)
Parking/Service Brakes Hydrostatic service brake. Hand-operated parking brake.
Power Steering Yes
Power Train (Engine Description) Kubota® liquid-cooled diesel, 3-cylinder, 24.8 hp (18.5 kW) @ 3000 RPM. Engine governed to 3220 RPM high idle (± 50 RPM), 1400 RPM low idle (± 50 RPM). Displacement: 68.5 cu. in. (1123 cc). Peak torque: 57.2 lbs-ft @ 2200 RPM. Tier 4 and Stage V compliant.
Product Length 105" (266 cm)
Reel Diameter 5 in. (12.7cm)
Reel/Cylinder Drive Hydraulic
Rollers Wiehle front roller and standard rear roller included. Optional front full and shoulder rollers, and short and long rear rollers available.
Safety/Operator Safety 2-post ROPS and retractable seat belts standard.
Seat Two-piece premium commercial two-tone grey vinyl with two armrests, mechanical suspension standard.
Starting Switch
Steering System Description Hydraulic power steering, tilt wheel.
Tires - Front 22" x 12" - 12", 4-ply, No Tread
Tires - Rear 22" x 12" - 12", 4-ply, No Tread
Tool Box Standard
Traction Drive 3WD
Traction Drive (System) Series/Parallel hydraulic traction circuit provides continuous 3-wheel drive, in mow and transport. Hydrostatic traction drive provides infinitely variable speed in forward and reverse.
Transport Width 91" (231 cm)
Weight 1,655 lbs. (751 kg) with no cutting units. 2,280 lbs. (1,034 kg) with (5) 5" reels, 22" width, 8-blade cutting units.
Width of Cut 100" (254 cm)
