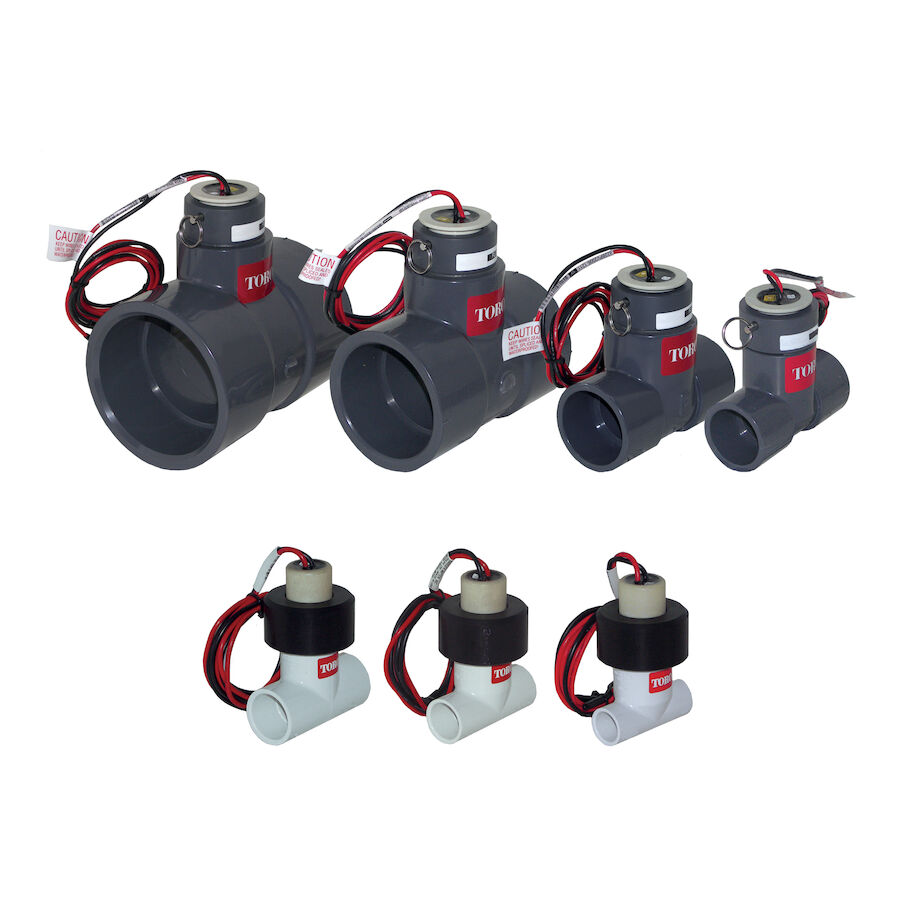

TFS Flow Sensors

  • Model: TFS Flow Sensors
  • Effective Flow Monitoring Even In Flows Less Than 5 GPM Effective in ranges from 1.2 GPM to 500 GPM. Teamed with the Toro TMC-424, ½”, ¾” and 1” sensors provide a cost-effective flow monitoring and alarm system.
  • Compatible With Competitive Controllers In addition to the TORO compatible controllers – TMC- 424E, TIS-PRO, Sentinel® and SitePro® – these flow sensors work with any controller or control system compatible with frequency output flow sensors.

Overview

The Toro TFS series flow sensors provide reliable flow information to aid in the detection of and response to system issues like piping breaks, while being accurate enough for tracking water usage.

Features

Effective Flow Monitoring Even In Flows Less Than 5 GPM (19 LPM)
Effective Flow Monitoring Even In Flows Less Than 5 GPM (19 LPM)
Effective in ranges from 1.2 GPM to 500 GPM (4,5-1892 LPM). Teamed with the Toro TMC-424, ½”, ¾” and 1” (12mm, 20mm, 25mm) sensors provide a cost-effective flow monitoring and alarm system.
Compatible With Competitive Controllers
Compatible With Competitive Controllers
In addition to the TORO compatible controllers – TMC-424E, TIS-PRO, Sentinel® and SitePro® – these flow sensors work with any controller or control system compatible with frequency output flow sensors (pulses per second proportional to flow velocity).

Specifications

Dimensions 1/2" (1.3 cm), 3/4" (1.9 cm), 1" (2.54 cm) , 1.5" (3.8 cm), 2" (5.1 cm), 3" (7.6 cm), & 4" (10.2 cm)
Flow 1.2 to 500 gpm (4.5 to 1892.7 lpm)
Operating Temperature Up to 140° F
Pressure Rating 1/2" (1.3 cm), 3/4" & 1" (1.9 & 2.5 cm): 150 PSI (10.3 BAR); 1 1/2", 2", 3" & 4"(3.8, 5.1, 7.6 & 10.2 cm): 100 PSI (6.9 BAR)

Documents

Title Documents
TFS Flow Sensor Sell Sheet - 24-1203-IRC-NA PDF - Sellsheet-en-us



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
