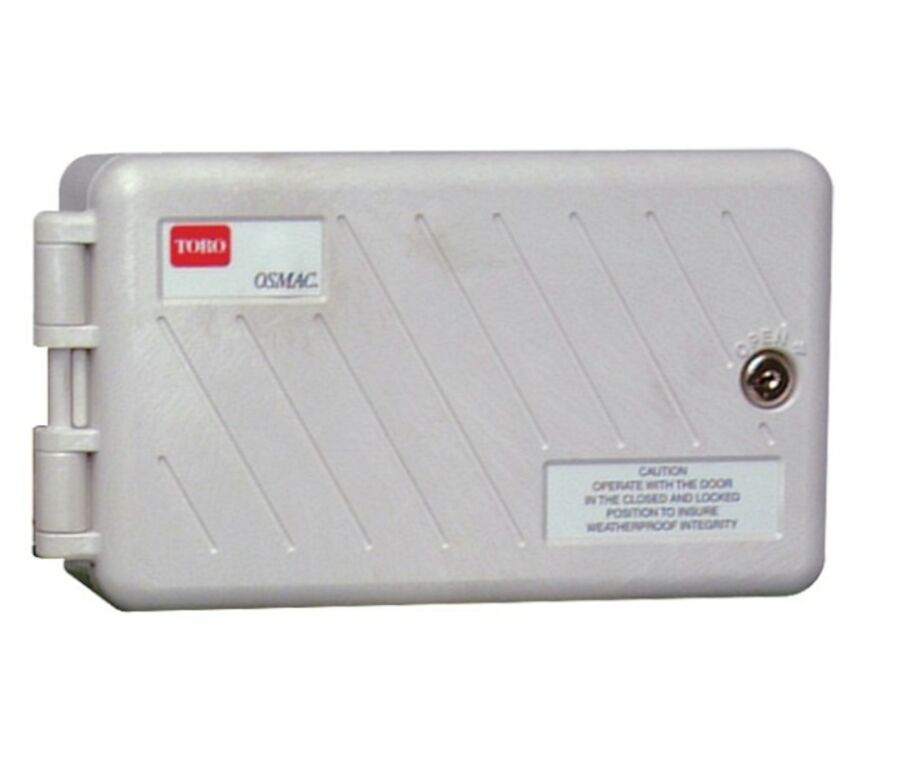

OSMAC RDR Satellite Series

  • Model: OSMAC RDR Satellite Series
  • Smart Osmac provides stand-alone operating capabilities for grow-in, daily use or central backup
  • Modular solid-state design, expandable up to 48 stations in eight-station increments

Overview

The OSMAC RDR field satellite utilizes paging technology to create one of the most convenient, dependable and flexible satellites on the market. Employing wireless communication, OSMAC RDR satellites are great for retrofit projects. Six 8-station output cards stretch flexibility even further, allowing you to expand from eight to 48 stations. OSMAC RDR is the convenient solution.

Features

Low cost wireless communication
Low cost wireless communication
Ideal choice for upgrading existing systems. No communication wires are needed. Mounts to many existing pedestal bolt patterns.

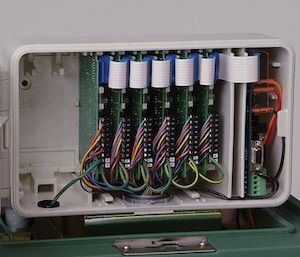

Modular solid-state design
Modular solid-state design
Expandable up to 48 stations in 8-station increments

Specifications

Dimensions Plastic: 17" (43.2 cm) W x 40" (101.6 cm) H x 16" (40.6 cm) D; Metal: 13" (33 cm) W x 36" H (91.4 cm) x 13" D (33 cm)
Output Power 24 V ac - 3.0 amps (max load)
Power INPUT: 120/240 V ac, 50/60 Hz = 0.17 amps 110-120 (no load); 0.76 amps, 110-120 (max load); 0.09 amps 220-240 (no load); 0.41 amps 220-240 (max load)



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
