On Sale

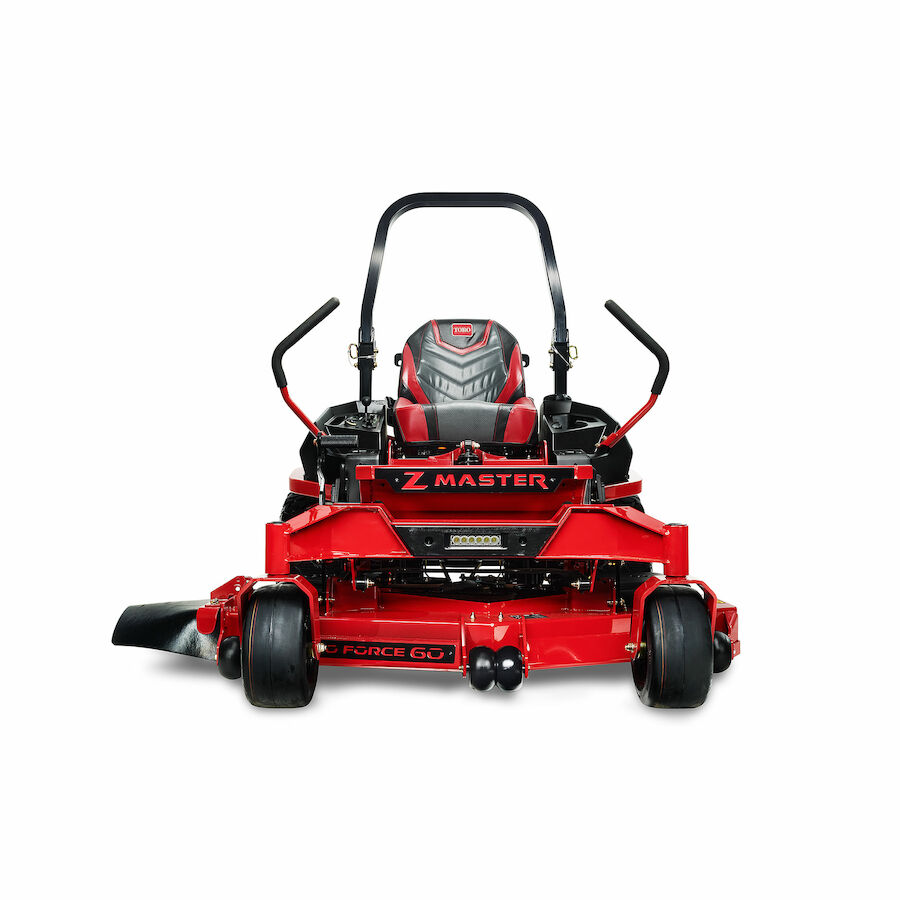

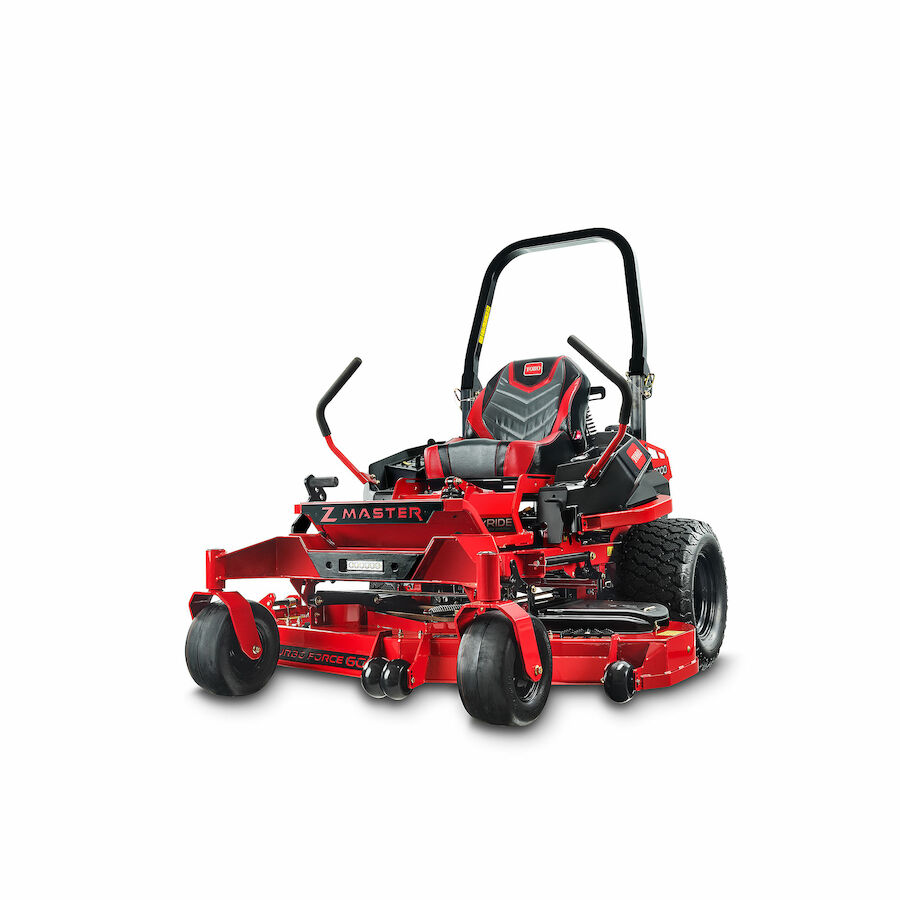

2000 Series MyRIDE® HDX 60 in. (152 cm) 23.5 hp 726 cc

Model: 77294
UPC/EAN: 21038772943

See All Items in Z Master® Gas 2000 Series

For a limited time only

$10,549.00 USD

$11,299.00 USD

Also available at select retailers:

TURBO FORCE® Cutting Deck - Built to last. Enjoy years of reliable performance with an upgraded 7-gauge steel, 5.5" deep deck.
MyRIDE® Suspension System - Save your body from the toughest terrain with the MyRIDE Suspension System featuring up to 3 inches of travel.
24" Voodoo Trac™ Drive Tires - Get the ultimate in aggressive tread and styling with 24" Voodoo Trac™ Drive Tires.
Get commercial-grade performance with a 23.5 hp* Kawasaki® FX engine.
Customize your ride with optional lights, bucket holder, trimmer mount, baggers, mounts, and up to 20 attachments.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Free Shipping

Expert Setup & Delivery

Cannot ship to the following states: AK, HI

Ground Shipping Only

Top

Overview

Take on any task with the Z Master® 2000 zero-turn mower. Constructed for professional use with a 7 gauge steel TURBO FORCE® cutting deck for fast, clean work. With the customizable MyRIDE Suspension System to isolate bumps and vibrations, you'll stay comfortable even on the longest days.

Features

TURBO FORCE® Cutting Deck

Enjoy years of reliable performance with an upgraded 7-gauge steel, 5.5" deep deck.

MyRIDE® Suspension System

Save your body from the toughest terrain with the MyRIDE suspension system.

24" Voodoo Trac™ Drive Tires

Get the ultimate in agressive tread and styling with 24" Voodoo Trac™ Drive Tires.

23.5 HP* Kawasaki® Engine

Enjoy top-line performance from the professional-grade 23.5 HP* Kawasaki engine.

Commercial-Grade Hydro-Gear ZT-3400

Fast, clean work with commercial-grade ZT-3400 hydros.

Rubber Discharge Chute

Trim close without damaging landscape structures or your chute.

Horizon360^® Business Management Software.

Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.

Specifications

Anti Scalp Wheels	Standard
Blade Tip Speed	18,500 ft/min / 5,638 m/min
Box Dimensions	91 in. x 70 in. x 52.5 in. / 231.1 cm x 177.8 cm x 133.4 cm
CARB Compliant	CARB Compliant
Caster Tires	13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic
Clutch	Electromagnetic
Comfort Platform	MyRIDE^® Suspension System
Deck Design	5.5” (14 cm) deck depth, 7-Gauge High-Strength Steel TURBO FORCE® w/ bull-nose bumper
Deck Size	60 in / 152 cm
Discharge Chute	Rubber
Drive Tires	Voodoo Trac 24 in. x 9.5 in. - 12 in. (61 x 24.1 - 30.5 cm)
Engine	Kawasaki FX730V
Engine Brand	Kawasaki
Engine Displacement (cc)	747 cc
Engine Horsepower	23.5 hp
Foot Operated Height of Cut	Standard
Forward Ground/Transport Speed	Up to 10.0 mph / 16.0 kph
Fuel Capacity	7 gal. / 26.5 L / 28 Qt.
Fuel Type	Gasoline
Height of Cut	1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.25 in (0.64 cm) increments
Hitch Bracket	Standard
Hour Meter	Standard
Ignition	Electric
Lighting	LED Headlights
Notes	Hitch: Integrated Receiver Hitch - 2 in. x 2 in. 80 lbs. (36.3 kg) max tongue, 250 lbs. (113.4 kg) max tow
Product Type	Zero Turn Mowers
Product Use	Commercial
Roll-Over Protection (ROPS)	Folding; Standard
Seat	Deluxe Comfort Seat
Spindle Housing	8 in / 20.3 cm Diameter Aluminum (Non Greasable) Ball Bearing, 1 in / 2.5 cm Shaft
Start Type	Electric
Steering Controls	1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened
Tool Mounting Capability	Side Console / Rear Guard Ready
Transmission	Hydro-Gear ZT-3400
Weight	1,135 lbs / 514.8 kg

Disclaimer

Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
*The gross horsepower of these engines was laboratory rated by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.

Accessories

Hypr-Oil™ 500 (quart) (Part # 114-4713)

$15.39 USD

High Performance Hydro Oil

$15.39 USD

Hypr-Oil™ 500 (gallon) (Part # 114-4714)

$54.99 USD

High Performance Hydro Oil

$54.99 USD

Hypr-Oil™ 500 Hydraulic Oil (5 gallon) (Part # 114-4715)

$285.99 USD

Maximize commercial mower performance with Hypr-Oil™ 500. Tested and approved by Toro Engineering.

$285.99 USD

KIT-STRIPER 48, 52, 60, 72 (Part # 126-7882)

$582.99 USD

Riding Mower Jack Kit (Part # 127-6666)

$142.99 USD

Genuine Toro jack mount kit. Mounts to the front of the mower and allows the owner to raise the mower to gain access to the underside of the deck to check blades or wash the deck. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$142.99 USD

Please contact your local dealer

20.5 Inch Hi-Flow Blade (Part # 133-2127)

$26.39 USD

Toro 20.5 Inch OEM Hi-Flow blade. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$26.39 USD

20.5 Inch Atomic Blade (Part # 133-2157)

$38.84 USD

Toro 20.5 Inch OEM Atomic blade. The Toro Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$38.84 USD

20.5 Inch Recycler Blade (Part # 133-2161)

$35.69 USD

Toro 20.5 Inch OEM Recycler blade. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$35.69 USD

20.5 Inch Hi-Flow Blade Pack - 6 Blades (Part # 133-2174)

Toro 20.5 Inch OEM Hi-Flow blade pack. (6) Hi-Flow blades. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

20.5 Inch Recycle Blade Pack - 6 Blades (Part # 133-2177)

Toro 60 Inch OEM Recycler blade pack. (6) Recycler blades. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

20.5 Inch Atomic Blade Pack - 6 Blades (Part # 133-2180)

Toro 20.5 Inch OEM Atomic blade. (6) blade pack. Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Spark Arrestor (Part # 137-8098)

$58.83 USD

MICHELIN® X® TWEEL® Turf Airless Radial Tires (24") (Part # 139-3649)

$868.99 USD

A MICHELIN® X® TWEEL® airless radial tire is a single unit that replaces the current tire and wheel assembly. There is no need for complex mounting equipment and once they are bolted on, there is no air pressure to maintain The unique energy transfer within the poly-resin spokes helps reduce the “bounce” associated with pneumatic tires, while providing outstanding handling characteristics. They are designed to perform like pneumatic tires, without the inconvenience and downtime caused by flat tires. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$868.99 USD

60 Inch Recycler Kit (Part # 139-6655)

$419.09 USD

The 60 in. Recycler Kit, when installed on compatible 42 in. deck Toro zero turn riding mowers, gives it the capability to mulch grass by cutting it multiple times turning it into fine clipping pieces. These are returned under the mower back into the soil to serve as natural fertilizer. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$419.09 USD

Wheel and axle assembly (Z Master ) (Part # 140-4896)

$221.09 USD

Z Master wheel and axel assembly.

$221.09 USD

TRIMMER MOUNT [4000] (Part # 144-2665)

$194.69 USD

JACK MOUNT KIT (Part # 144-2676)

$105.59 USD

HARDTOP SUN CANOPY (ARTICULATING) (Part # 144-3719)

$538.99 USD

24X12-12 Rear Riding Mower Wheel and Tire Assembly (Part # 144-6607)

$288.19 USD

Toro OEM replacement rear tire and steel wheel. This rear mounted tire delivers superior traction on turf and grass. Ideal replacement tire for residential riding lawn mowers and tractors.

$288.19 USD

Handle Extension Kit (Part # 145-3615)

$83.59 USD

Genuine OEM Part

$83.59 USD

MICHELIN® X® TWEEL® Turf Airless Caster Wheels (13") (Part # 147-6294)

$294.79 USD

The MICHELIN® X® TWEEL® Turf Caster Wheel is the next “revolution” in commercial mowing. The MICHELIN X TWEEL Turf Caster Wheel has all the qualities you would want in a pneumatic tire but it never needs air. No more flats, downtime, patch kits or replacement tires. And in the area of wear and tear, this “tire” has a wear life that is three times that of a pneumatic.

$294.79 USD

BAGGER KIT, Z MASTER 2000 / 4000 (Part # 78439)

4000 Series E-Z Vac Blower & Drive Kit for 60" Deck (Part # 78466)

$2,049.00 USD

4000 Series E-Z Vac Blower & Drive Kit for 60" Deck - use with 4000 Series Twin Soft Bagger 48 - 60" Deck (#78463)
