On Sale

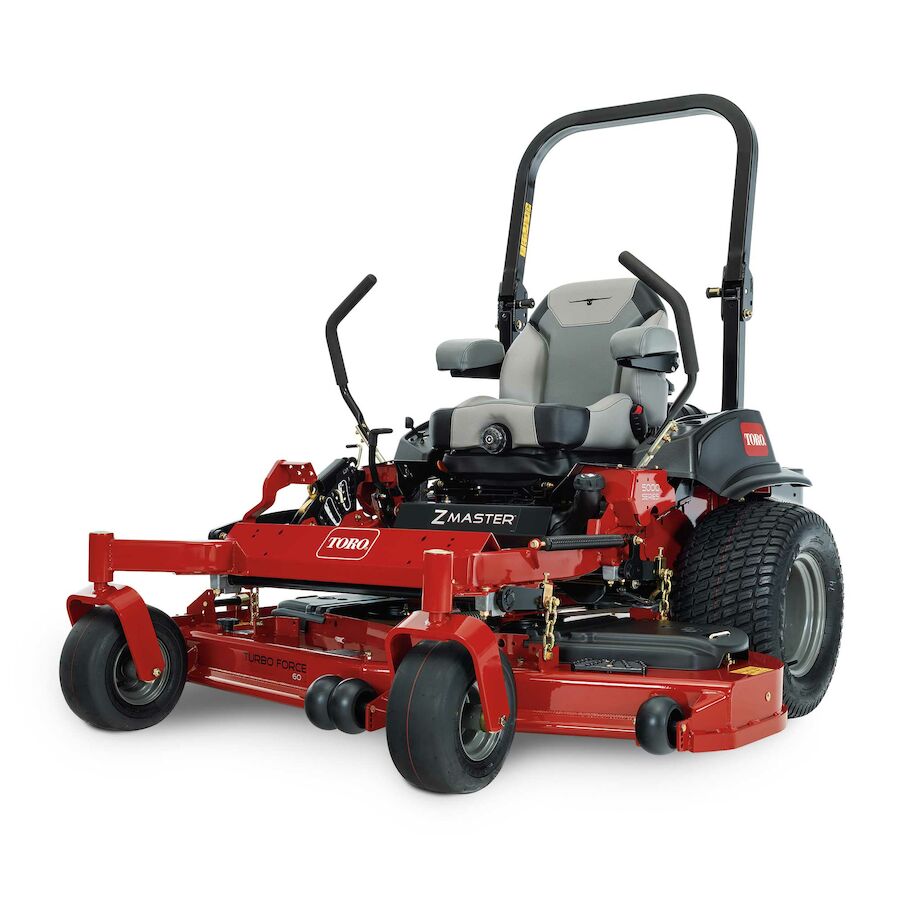

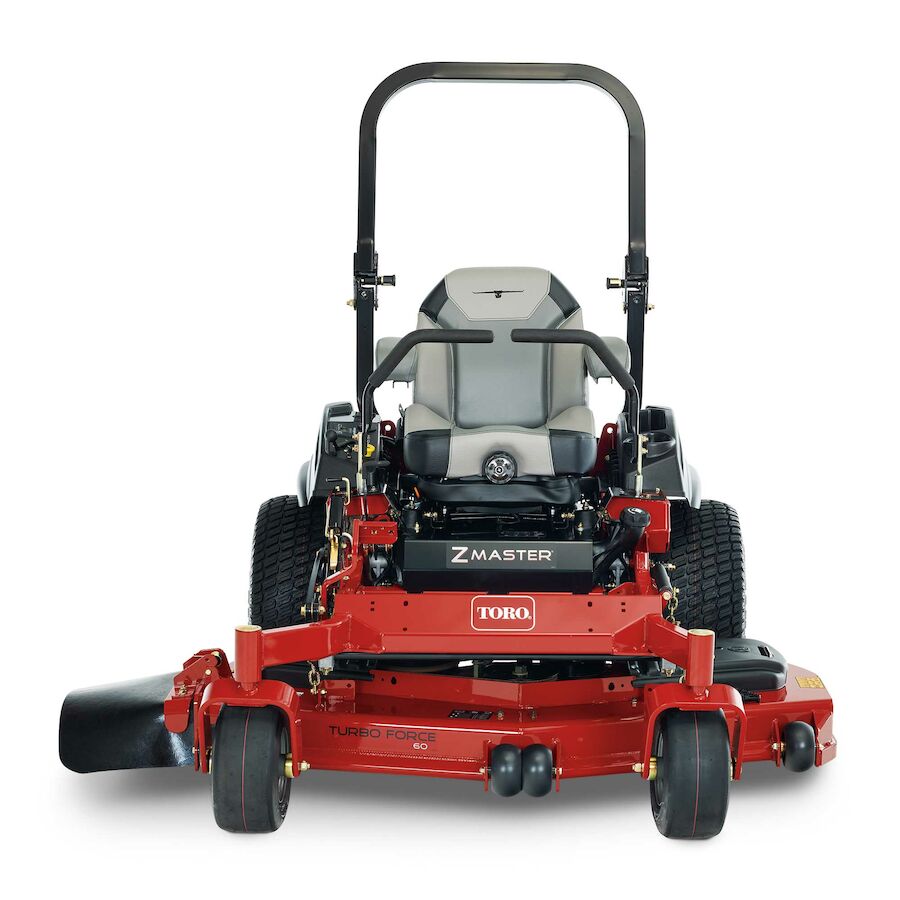

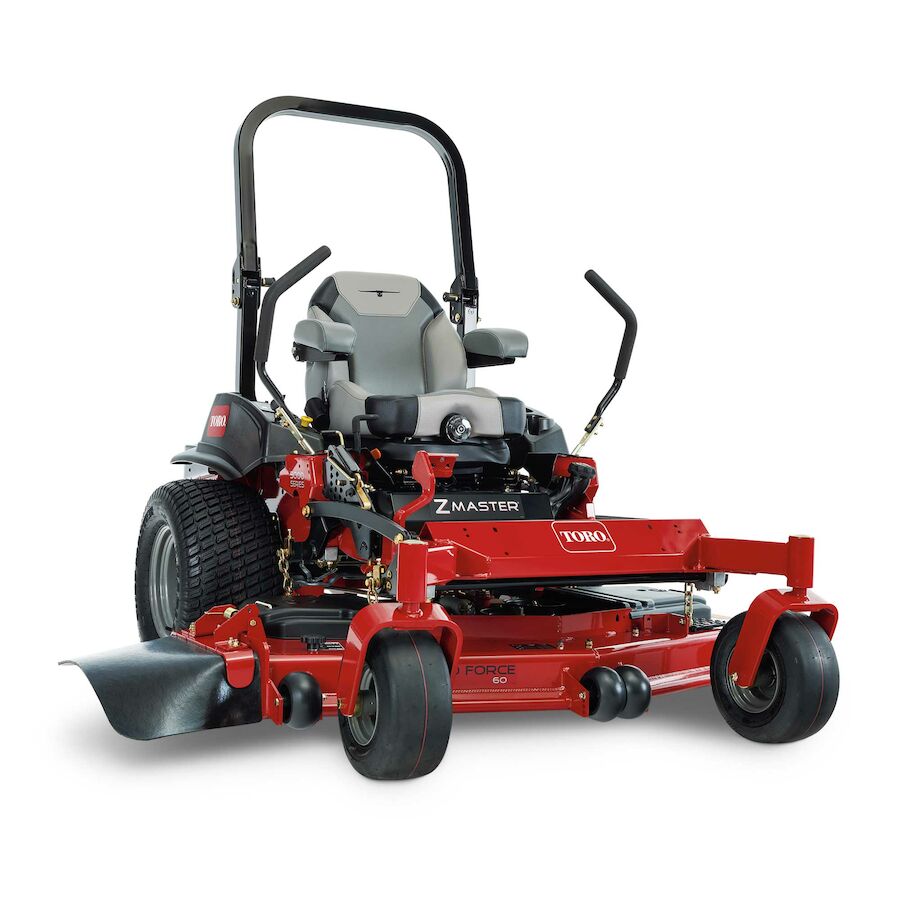

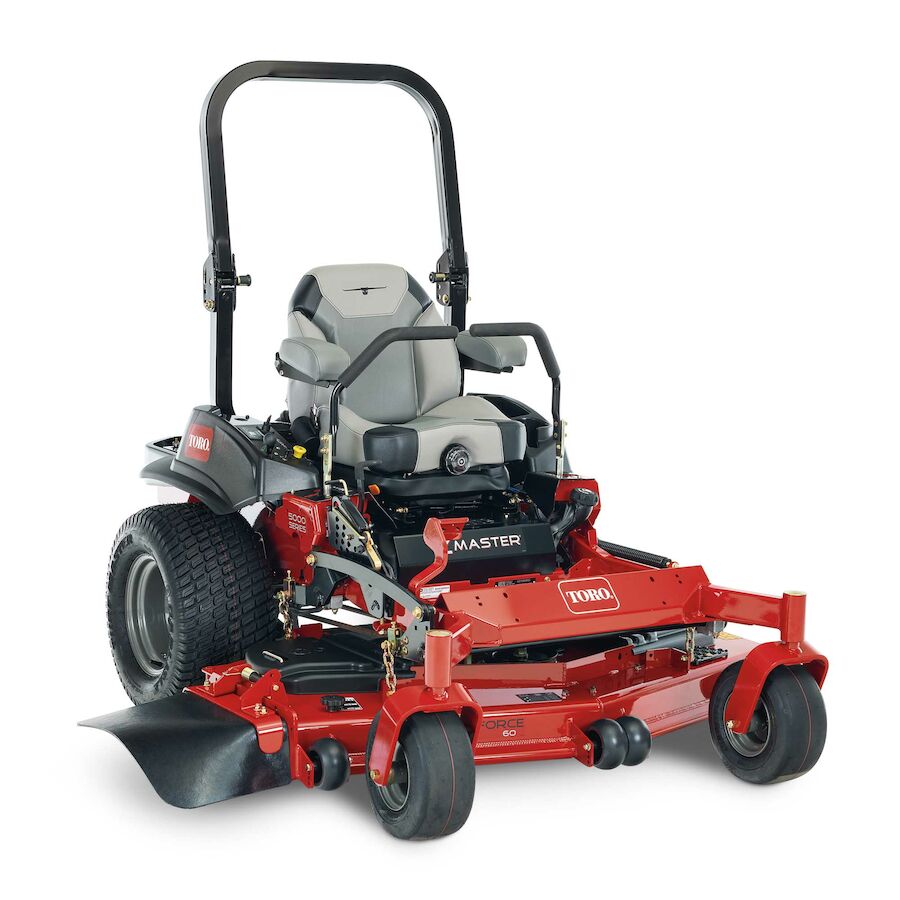

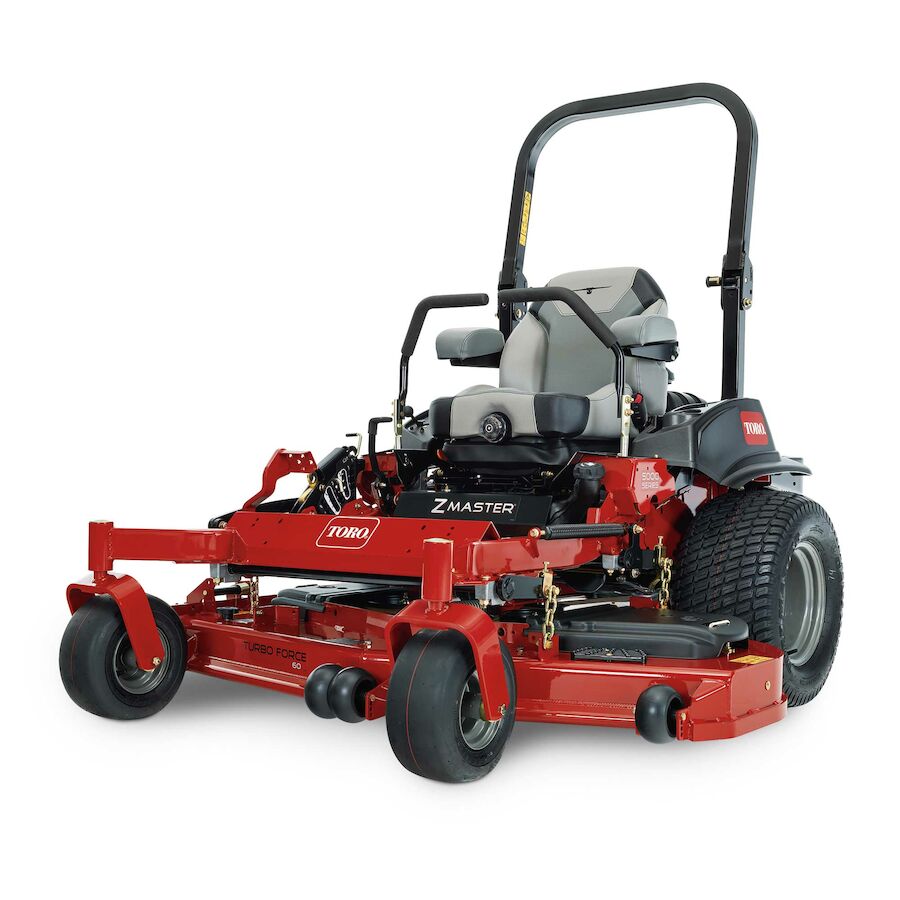

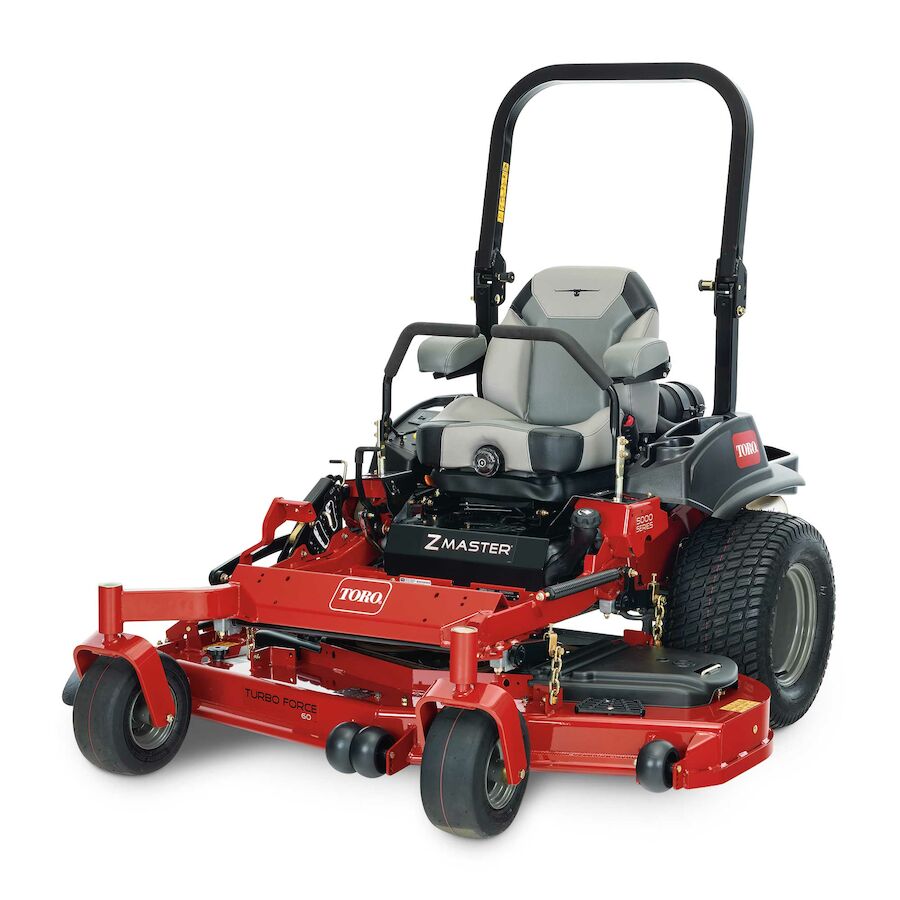

5000 Series 60 in. (152 cm) 25.5 hp 852cc

  • Model: 72910
  • UPC/EAN: 21038729107
See All Items in Z Master® 5000 Series
Find a Dealer
  • Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue, fully adjustable to match operator comfort
  • Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Expert Setup & Delivery

Ground Shipping Only

Overview

Z Master 5000 Series mowers deliver impressive commercial-grade results and durability, all at an outstanding value. Powerful quality performance from the 25.5 hp Kawasaki FX 852cc engine with 60 in. TURBO FORCE deck.

Features

Deluxe Handcrafted Seat with Arm Rests
Deluxe Handcrafted Seat with Arm Rests
Ultimate padding and back support with a handcrafted seat with arm rests and bullhorn logo.
Exclusive TURBO FORCE Deck
Exclusive TURBO FORCE Deck
High-capacity TURBO FORCE decks deliver unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Equipped with a patented adjustable baffle, TURBO FORCE decks can be fine-tuned in order to conquer changing turf conditions.
7-Gauge, High-Strength Steel
7-Gauge, High-Strength Steel
The TURBO FORCE deck is constructed of 7-gauge, high-strength steel which is 33% thicker and 32% higher in yield strength than ordinary 10-gauge commercial steel used in 7/10 decks. The combined effect is 75% stronger, so it easily handles the most demanding conditions and resists damage from impacts and abrasion.
A Flat Crisp Cut with Precision Blades
A Flat Crisp Cut with Precision Blades
(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.
Rubber Discharge Chute
Rubber Discharge Chute
High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.
Rugged Frame
Rugged Frame
A commercial-grade carrier frame, constructed of 3" x 1.5" tubular steel, supports the cutting deck and stands up to the rigors of professional use.
Folding Rollover Protection System ROPS
Folding Rollover Protection System ROPS
A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.
Cast Aluminum Spindle
Cast Aluminum Spindle
Cools quickly for enhanced durability and performance.
Horizon360 system used by contractor
Horizon360® Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.

Specifications

Adjustable Discharge Baffle Standard, Tools-Free
Air Filter Heavy-Duty Canister Air Cleaner
Anti Scalp Wheels 4 Standard, 1 Optional
Armrests Standard
Blade Tip Speed 18,300 ft/min / 5,577 m/min
Blades 0.204 in. (0.5 cm) heat-treated steel
Box Dimensions 91 in. x 70.25 in. x 52.5 in. / 231.1 cm x 178.4 x 133.4 cm
CARB Compliant Not CARB Compliant
Carrier Frame 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
Caster Tires 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
Comfort Platform Deluxe Suspension with 3-D Isolation Mounts
Deck Design 80-Grade 7-gauge 60" (152 cm) TURBO FORCE® w/bull-nose bumper
Deck Material 8 Gauge Steel
Deck Size 60 in / 152 cm
Discharge Chute Rubber
Drive System Hydraulic Unitized Pumps and Wheel Motors
Drive Tires 24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm)
Engine 25.5 hp* Kawasaki FX 852 cc
Engine Brand Kawasaki
Engine Displacement (cc) 852 cc
Engine Horsepower 25.5 hp
Forward Ground/Transport Speed Up to 10.0 mph / 16.0 kph
Front Bumper Reinforced Bull-Nose
Fuel Capacity 12 gal. / 45.4 L / 48 Qt.
Fuel Type Gasoline
Height of Cut 1.0 - 5.5 in. / 2.5 - 14.0 cm
Hour Meter Standard
Hydraulic Fluid Premium synthetic
Product Type Zero Turn Mowers
Product Use Commercial
Roll-Over Protection System (ROPS) Folding; Standard
Seat Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
Spindle Bearings Maintenance-free
Spindle Housing 9 in / 22.9 cm Diameter Cast Aluminum
Start Type Electric
Steering Controls 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened
Weight 1,132 lbs / 513.5 kg

Disclaimer

*The gross horsepower of these engines was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.

Documents

Title Documents
Z Master 5000 Sellsheet PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

72910 Serial #
417485833-999999999
416303729-417485832
415300000-416303728
414161126-415299999
412800000-414161125
409521812-412799999
409219336-409521811
400000000-409219335



Warranty

5-Year / 1200 Hours

**See dealer for Warranty details.
