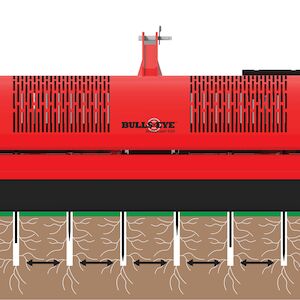

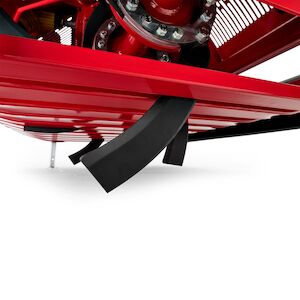

The Bullseye RotaQuake™ 630 is an aerator that decompacts the soil using a set of rotating steel blades. As these blades cut cleanly through the soil, they create a wave action that shatters compacted areas and opens up the subsoil. The RotaQuake™ can work at depths up to 10” (25.4 cm) with minimal to no surface disruption to keep your turf ready for play. The rear roller smooths surface behind rotating blades and the integrated legs make unhooking and storage easy.
| 3-Point Hitch | Category 1 & 2 |
|---|---|
| Aeration Type | Linear |
| Blade Spacing | 10" (25.4 cm) |
| Blade Thickness | 0.5" (12.7 mm), tapered |
| Height | 42" (106.6 cm) |
| Length | 59" (149.8 cm) |

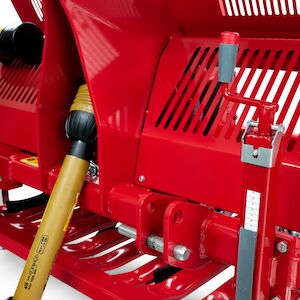

| Maximum Operating Depth (Working Depth) | Adjustable depth, up to 10" (25.4 cm). |
| Maximum PTO Speed | 540 RPM |
| Number of Blades | 18 |
| Operating Speed | 0.3 - 1.0 mph (.048 - 1.6 km/h) |
| Operating Width (Working Width) | 63" (160 cm) |
| Productivity | Up to 27,720 square feet per hour (2,560 square meters per hour) |
| Recommended Tow Vehicle Requirement | 35 hp (26 kW), lift capacity 1,654 lbs. (750 kg) |
| Weight | 1,355 lbs (615 kg) |
| Width | 71" (180.3 cm) |
Select your model year from the options below to view parts & manuals.
| 46454 Serial # |
|---|
| 321000001-329999999 |
**See dealer for Warranty details.
