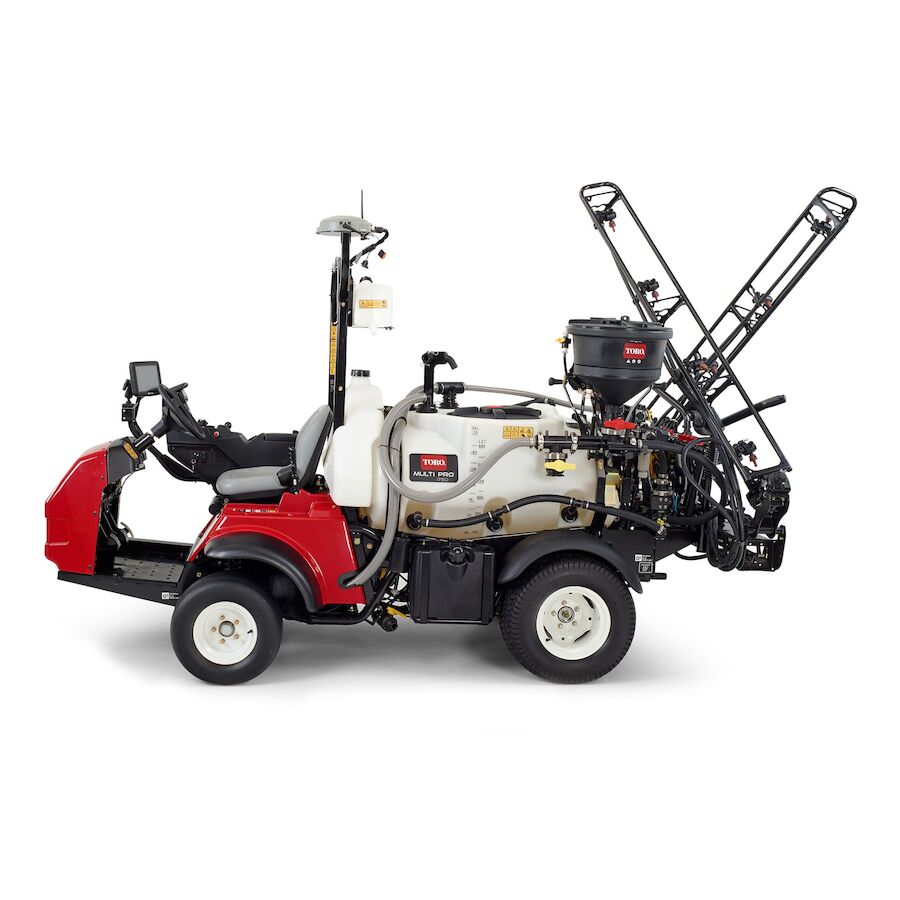

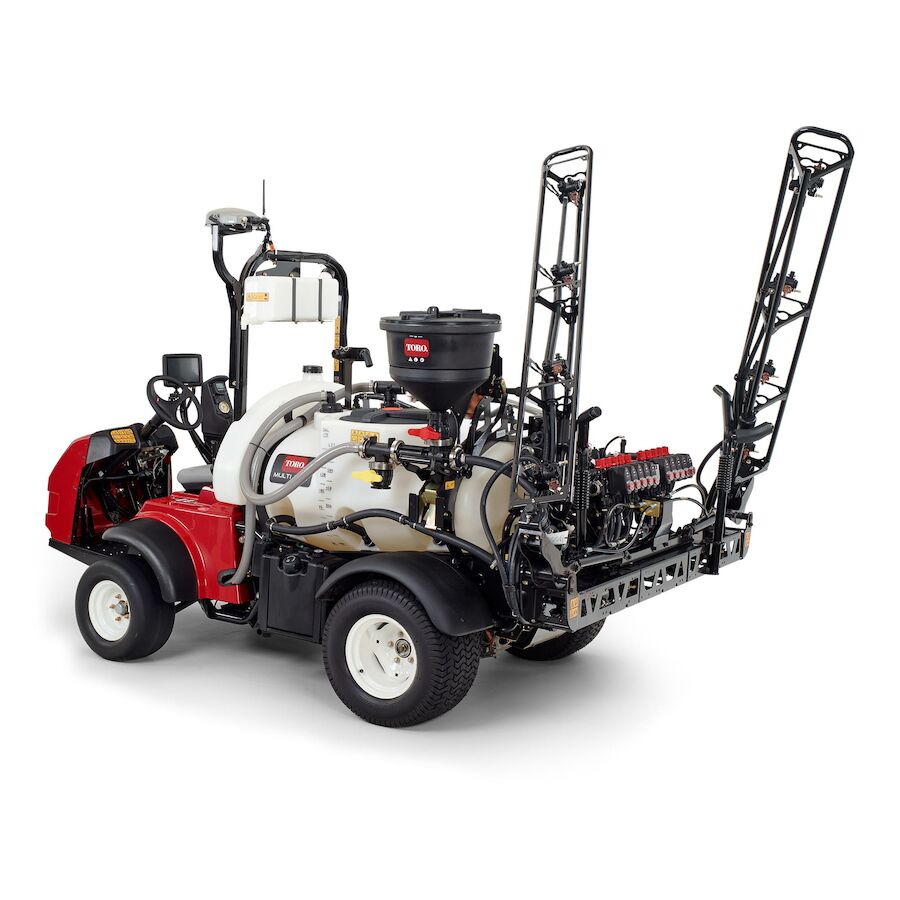

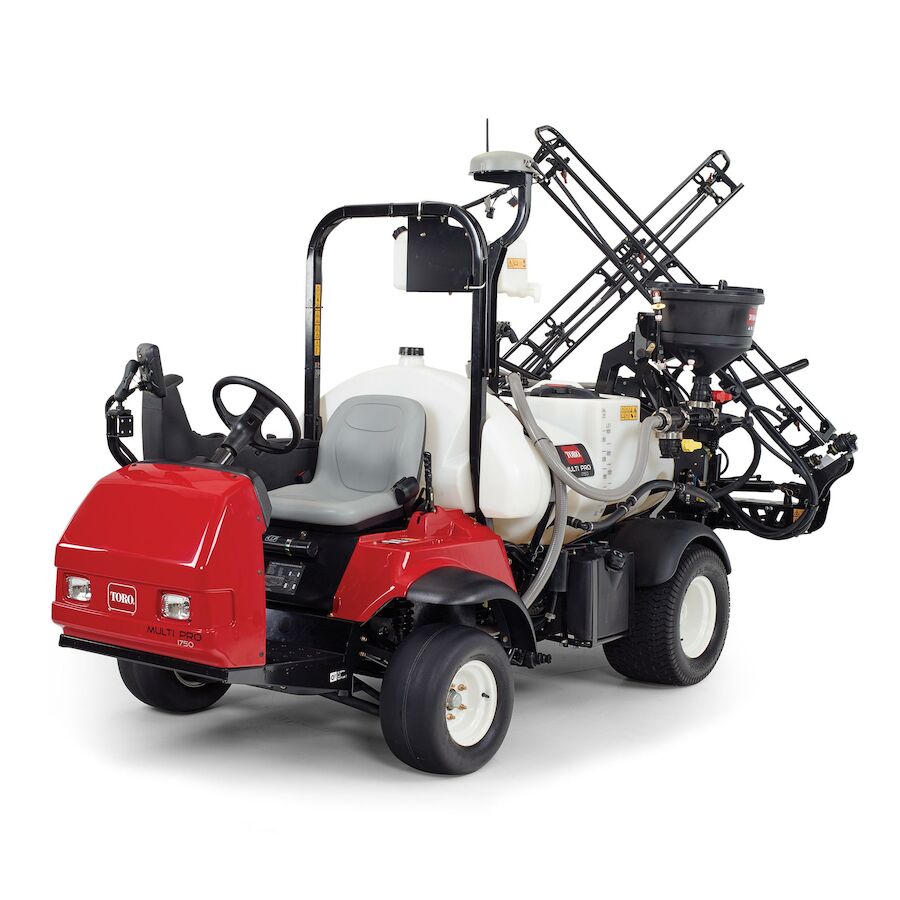

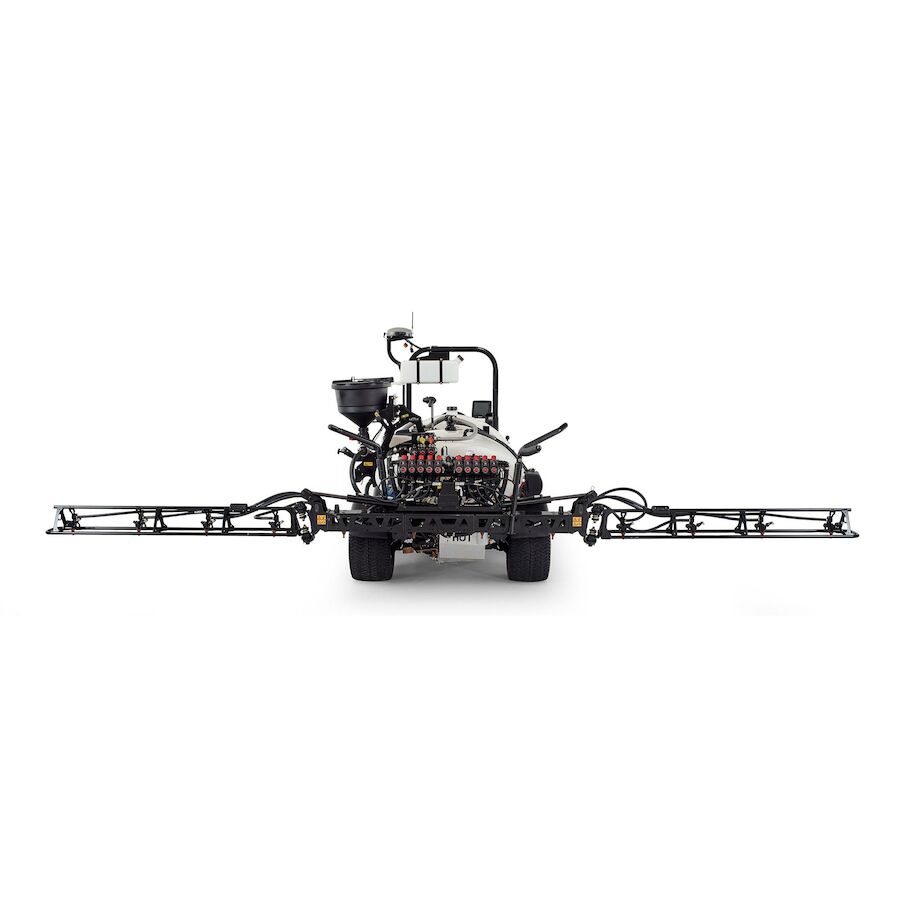

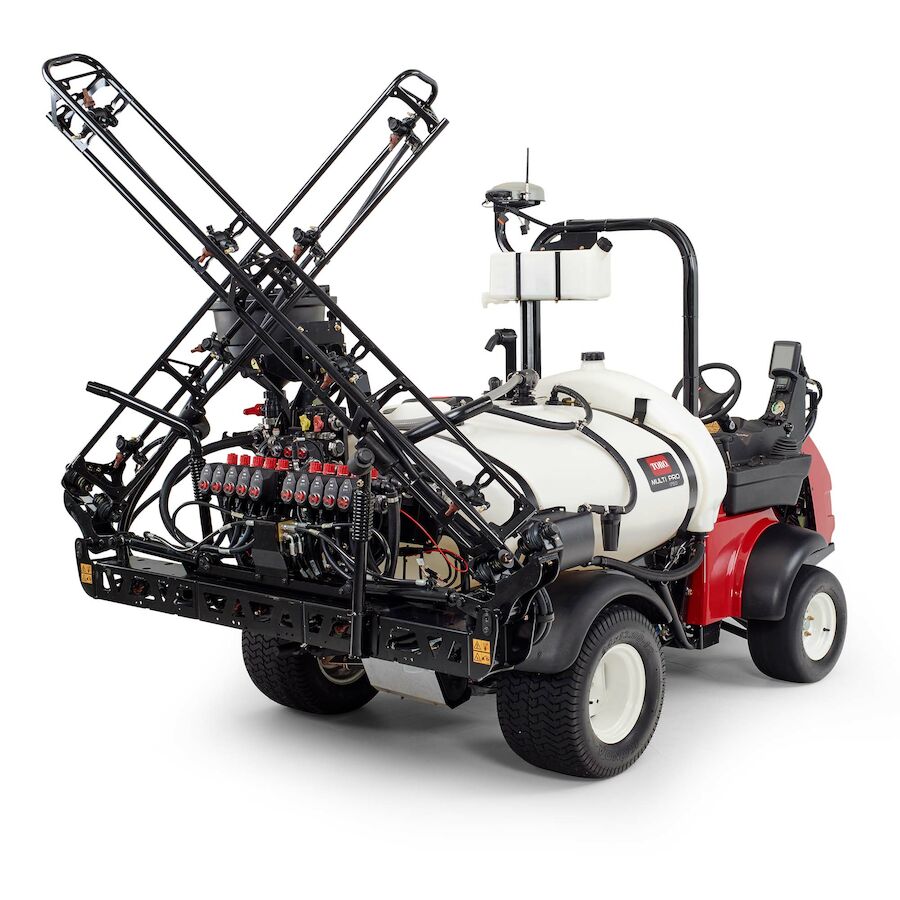

Multi Pro® 1750 Turf Sprayer

  • Model: 41188
See All Items in Multi Pro® Series Turf Sprayers
Request a Demo
  • Oversized pump satisfies the highest spray rates while simultaneously supplying aggressive agitation flow.
  • Spring-loaded breakaway system returns boom to spray position after any type of impact while moving.
  • Hill-assist feature prevents the vehicle from rolling backwards when parked on an incline and the clutch is released.
  • Application rate remains consistent even when ground speed varies.
  • Elliptical tank design prevents chemicals from building up in 'dead spots'.
  • Full range of contact, systemic and low drift nozzles are available.
  • The Quick Find™ Console places all key vehicle and sprayer systems at the operator's fingertips.

Overview

Multi Pro 1750 175-gallon dedicated sprayer
Leading sprayer technology, proven reliability and innovative accessories provide many performance and operational advancements. Every aspect of the spray system has been engineered to deliver unsurpassed spray accuracy, aggressive agitation and faster response time. Consistently delivers desired spray rates in even the most demanding environments.

Multi Pro 1750 with GeoLink® GPS Technology
This smart system knows your precise location. By automatically turning individual nozzles on and off, overlaps are virtually eliminated, resulting in substantial product savings.* You only need to map out your application area once, and the data will be saved for future applications.**

Features

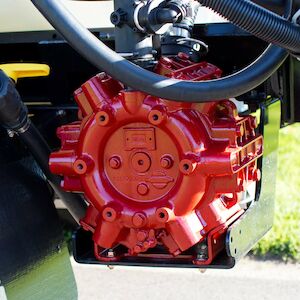

Six Diaphragm Pump
Six Diaphragm Pump
An industry exclusive! This oversized pump satisfies the highest spray rates while simultaneously supplying aggressive agitation flow. The self-priming, positive displacement design means the pump can be run dry without damage. Its dry sump means there's no risk of oil/lubricant contaminating the spray application.

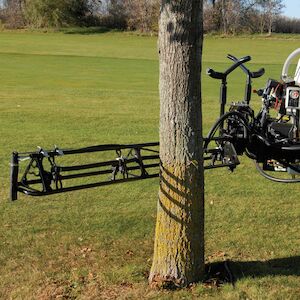

Rugged Spray Booms
Rugged Spray Booms
  • The triangulated truss design provides protection to nozzles
  • Transport cradles with breakaway capability secure wing booms during transport
  • Lift and lower booms without leaving the seat
  • Spring-loaded breakaway system returns boom to spray position after an impact during forward or reverse travel
  • Reduce damage to trees or other objects with specially rounded boom ends
  • Three section 20.5’ (6.25 m) boom width

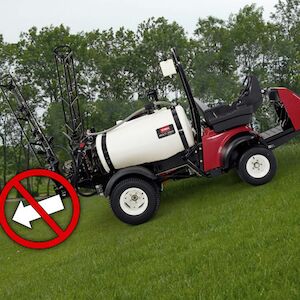

Hill-Assist
Hill-Assist
To help prevent the 1750 from rolling backwards when parked on an incline, the hill-assist feature holds the vehicle while the operator releases the clutch pedal.

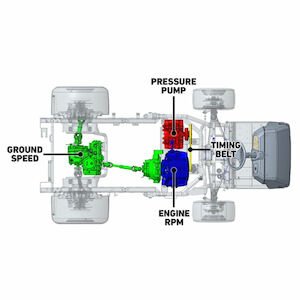

Ground Speed Proportional
Ground Speed Proportional
Application rate remains consistent even when ground speed varies. If the operator speeds up, the pump speed is increased automatically which increases pump pressure. When the operator slows down, the pump pressure decreases accordingly. In other words, by directly linking the pump to the transmission, the system helps to ensure that fluctuations in ground speed will not affect application rate.

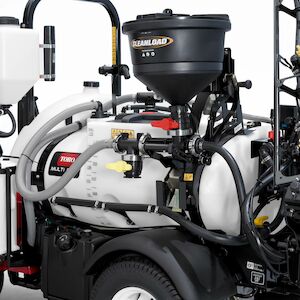

Chemical Tank
Chemical Tank
Elliptical tank design prevents chemicals from building up in 'dead spots'. Square tanks with interior ledges can lead to misapplication or residual chemicals left in the tank after the spray application. The tank incoporates a 16" side-offset fill well for easy access when loading chemicals. Durable polyethylene material won't crack, dent, rust, chip or peel. Three, 30-degree, side-mounted, agitation nozzles continuously 'roll' the tanks contents. Agitation nozzles are serviceable from outside of the spray tank.

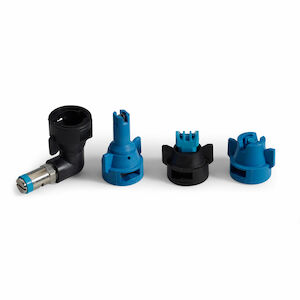

Spray Nozzles
Spray Nozzles
Full range of contact, systemic and low drift nozzles are available. Air inclusion nozzles provide improved accuracy, uniform droplet size, and reduced drift and even coverage.Find the right nozzle for your application with our Nozzle Selector Tool

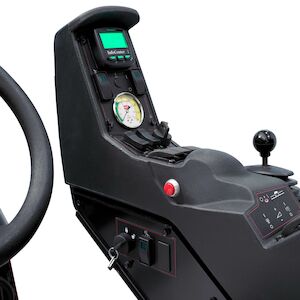

Quick Find™ Console
Quick Find™ Console
The Quick Find™ Console helps the operator intuitively find boom and actuator switches with the palm of their hand and places command of all key vehicle and sprayer systems at the operator's fingertips for ease-of-use and improved control. The InfoCenter display and the analog pressure gauge, which is conveniently located just above the boom section and actuator switches, keeps all key sprayer operation data in the operator's line of sight.

Specifications

Agitator Three side-mounted jet agitation nozzles for full tank agitation.
Boom Actuators Heavy-duty hydraulic lift actuators with nitro-steel plated shafts; 1-3/4" (4.4 cm) Bore x 10.06" (25.6 cm) stroke.
Boom Assembly 18.5' (5.6 m) three-section, triangular truss-style open booms, expandable to 20.5' (6.3 m) with optional kit. Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves. Twelve nozzle turrets with optional kit.
Brakes Four wheel hydraulic disc, 2-piston calipers; Front: 7.5" (19 cm) diameter rotor, Rear: 9.5" (24 cm) diameter rotor.
Cooling System Air-cooled engine.
Electrical System 12-volt battery, 300 cold cranking amps at 0° F (-18° C). 12-volt, 60 Amp alternator. Dash mounted ignition switch.
Fuel System 5 gallon molded Roto-Low Perm tank with 1.5" fill opening, non-vented cap w/tether, mechanical float-type fuel gauge and roll-over valve; carbon vapor canister; mechanical fuel pump
Gauges/Instrumentation Multi-function display (InfoCenter™), analog pressure gauge, mechanical fuel gauge.
GeoLink® Capable Yes
Ground Clearance 5.5" (13.9 cm)
Ground Speed Forward: 0 - 11.5 mph (0 - 18.5 kph) Reverse: 0 - 2.5 mph (0 - 4 kph)
Height 97" (2.4 m) [with booms folded in cradles]
Length 140” (3.55 m) [with booms folded in cradles]
Lights Rectangular 12-volt, 37.5 watt halogen sealed beam headlights.
Main Frame/Chassis High-strength, formed steel rear frame channels welded to steel tubular crossmembers and upper/lower steel tubular structure, ROPS standard.
Optional Accessories CleanLoad™ eductor, fresh water rinse kit, electric hose reel, Pro Foam™ marking kit, Pro Foam™, Ultra Sonic Boom™ kit, covered boom kit, universal sunshade, hand spray wand kit, air induction turbo twin jet nozzles, contact & systemic nozzles, NozzAlert™, GeoLink® Precision Spray System
Overall Width 70" (1.77 m) [with booms folded in cradles]
Power Train (Engine Description) Kohler® CH740 Command Series, twin-cylinder, air-cooled, 4-cycle engine, 25 hp (18.6 kW) gross.
Rated Capacity 175 U.S. gal. (662.4 L)
Seat Single, high back cushion seat standard with manual position adjustment and seat belts.
Solution Tank Elliptical, high-density, impact-resistant polyethylene with large 16" (41 cm) fill well opening; tapered bottom and sump with drain.
Sound Level 86 dB(A) at operator ear under normal operation
Spray Controls Spray pump control switch, agitator jet switch, rate switch, individual boom on/off switches, boom actuator switches, indicator lights on pump, agitation & boom switches, throttle lock, app rate lock-out.
Spray Pump Hardi 364/5.5, 6-diaphragm positive displacement w/ 1" (2.5 cm) input shaft; input speed 300~860 rpm, Flow rate of 45 gpm (170.3 lmp) @ 40 psi (860 rpm).
Steering System Description Fully hydraulic; steering wheel turns, lock to lock: 3.5
Suspension Front suspension – Double A-Arm with coil over shock; Rear suspension – rigid; rubber tires.
Tires - Front 20" x 10" - 10", 4-ply, Treadless
Tires - Rear 24” x 13” - 12”, 6-ply
Traction System Kanzaki / Tuff Torq 3-speed (forward). 1-speed (reverse), mechanical transaxle with differential lock.
Turning Diameter 7'-2" (2.2m) to sprayer centerline
Valve Actuators Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves. Twelve nozzle turrets with optional kit.
Vehicle Controls Ignition key switch, choke, headlight switch, optional wireless hour meter, speed lock.
Weight Shipping weight: 2,200 lbs. (997.9 kg) MGVW: 4,000 lbs. (1814 kg)
