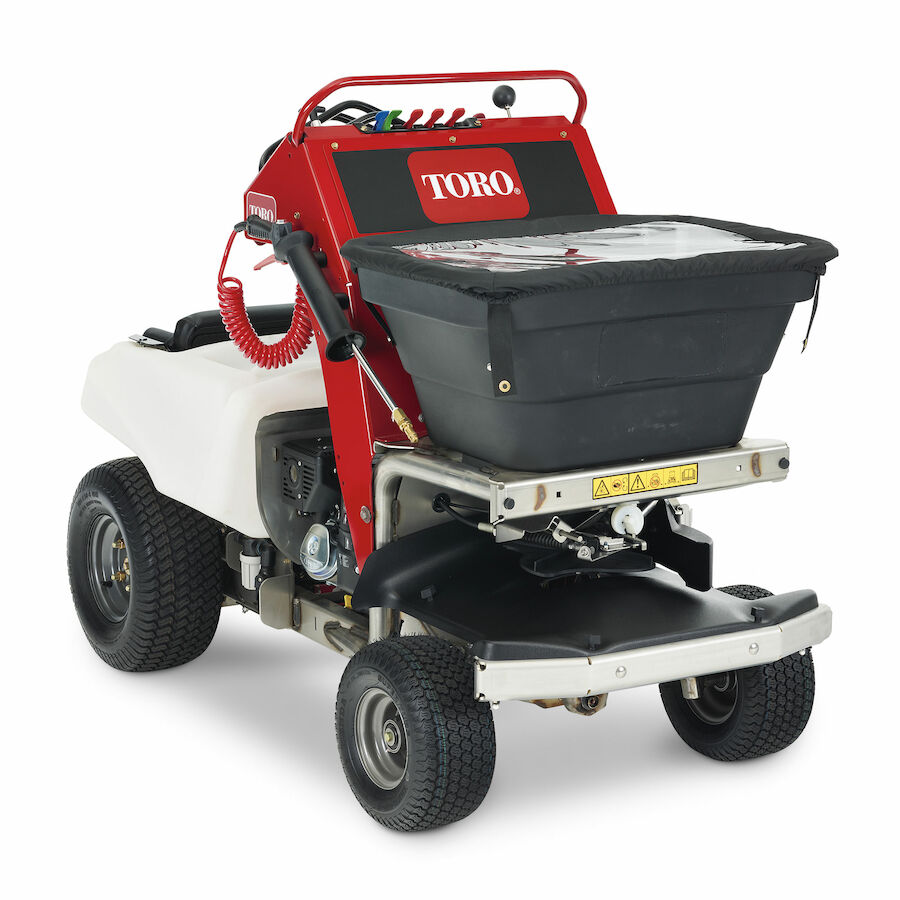

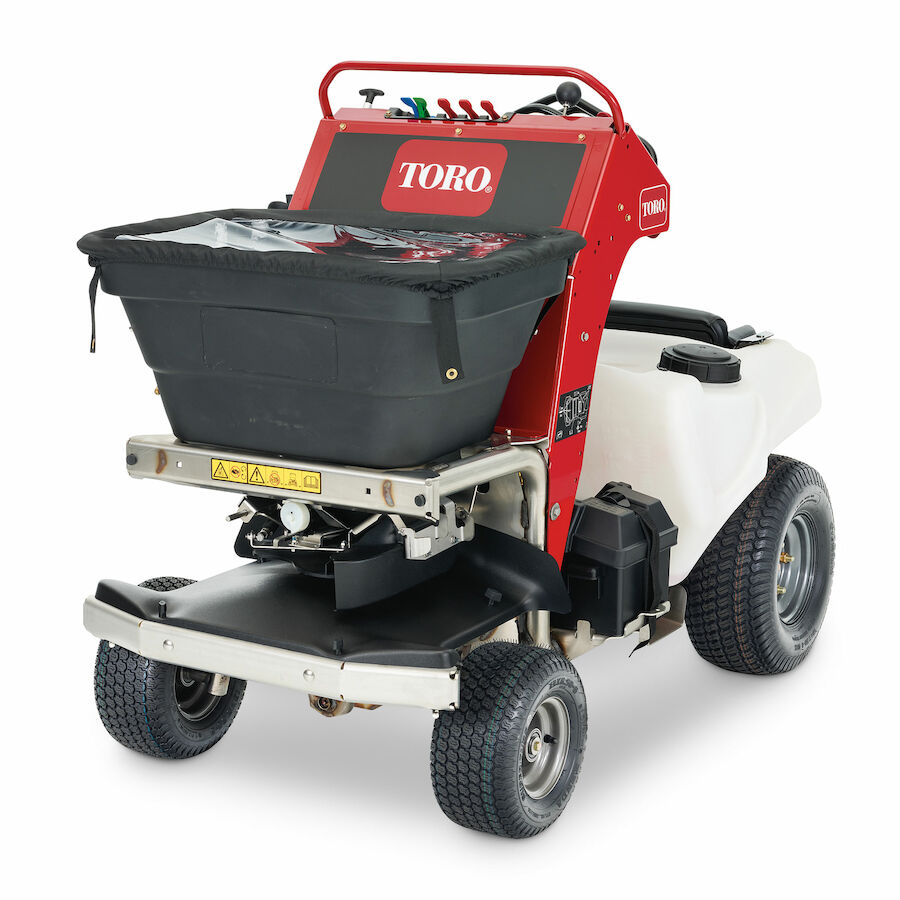

Stand-On Spray Master Lean-to-Steer

  • Model: 34230
  • UPC/EAN: 21038342306
See All Items in Spreader / Sprayers
Find a Dealer
  • Make Adjustments on the Fly - Control forward/reverse and left/right steering with one hand.
  • Easy-to-Use Controls - The easy-to-operate control panel allows the operator to conveniently make adjustments to spread and spray settings.
  • Reduce Fatigue - Stand-on operator platform, isolation mounts and padded knee bolster for a comfortable ride
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Overview

Treating turf can be a big job. Toro’s stand-on spreader sprayer makes that job a whole lot easier. It’s the industry’s most innovative product of its kind, featuring Lean To Steer technology so you can control the machine with one hand and have one hand free to make adjustments to the spreader or sprayer using the intuitive control panel. With fast forward speeds of up to 5.5 mph, a large 175-lb. hopper and a 20-gallon spray tank, you can count on spending less time refilling and more time covering ground.

Features

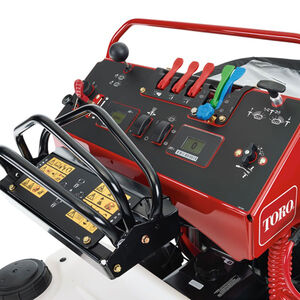

Lean to Steer Technology
Lean to Steer Technology
Control forward/reverse and left/right steering with one hand, allowing adjustments to be made on the fly.

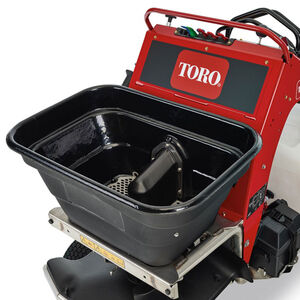

Large Capacity
Large Capacity
From the 20-gallon spray tank and 175 lb. hopper capacity to the 1.85-gallon fuel tank, this unit is designed to maximize ground coverage and reduce refill stops.

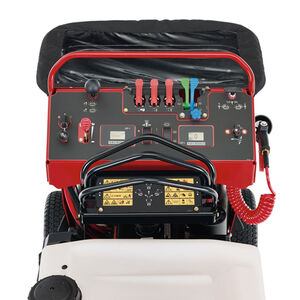

Easy-To-Use Controls
Easy-To-Use Controls
The easy-to-operate control panel allows the operator to conveniently make adjustments to spread and spray settings. The updated digital controls allow for more precise application.

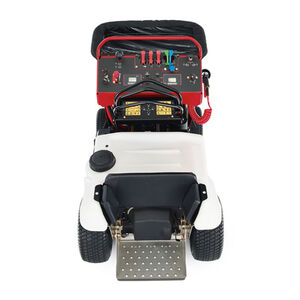

Compact Design
Compact Design
The compact design allows for exceptional maneuverability in tight spaces, including fitting through 36” gates, so spraying and spreading is possible in any area.

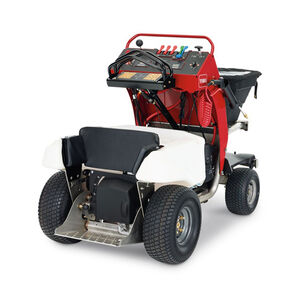

Operator Comfort
Operator Comfort
The large stainless steel operator platform, isolation mounts and the ergonomic padded knee bolster allow for a more comfortable ride and reduced operator fatigue.

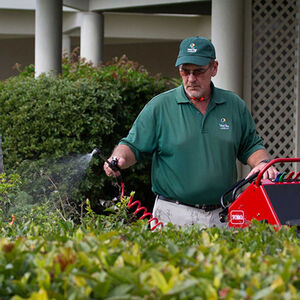

Hand-held Spray Wand
Hand-held Spray Wand
The hand-held spray wand comes standard for spot spraying to ensure you’re covering the whole job, no matter how difficult to reach.

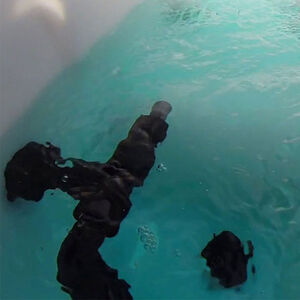

Spray Tank Agitation System
Spray Tank Agitation System
Two agitation nozzles in the spray tank can be turned on and off on demand from the operator panel to keep material in the tank circulating for even distribution and reduced clogging.
Horizon360 system used by contractor
Horizon360® Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.

Specifications

Deflector Shield Molded Plastic
Engine Kohler 9.5 hp CH395 277cc
Engine Brand Kohler
Engine Displacement (cc) 277 cc
Engine Horsepower 9.5 hp
Engine Orientation Horizontal
Fertilizer Capacity 225 lbs
Fuel Capacity 1.85 gal. / 7.0 L / 7.4 Qt.
Fuel Type Gasoline
Ground Speed Up to 5.5 mph / 8.8 kph
Hopper Capacity 175 lbs
Product Type Spreader/Sprayer
Pump Capacity 5 GPM
Spinner Motor Electric
Spot Spray Hose 15 ft Coil Hose
Spray Capacity (gallons) 20
Spray Wand Standard, hand-held spray wand for spot spraying
Spray Width 4 ft or 10 ft / 1.2 m or 3.0 m
Spreader Hopper Capacity (lbs) 175
Spreading Width Adjustable from 4 ft to 22 ft / 1.2 m to 6.7 m
Start Type Electric
Transmission Hydrostatic
Weight 500 lbs / 226.8 kg

Documents

Title Documents
SprayMaster Brochure.pdf PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

34230 Serial #
415300000-999999999
412800000-415299999
408000000-412799999
400000000-407999999



Warranty

1-Year Commercial

**See dealer for Warranty details.
